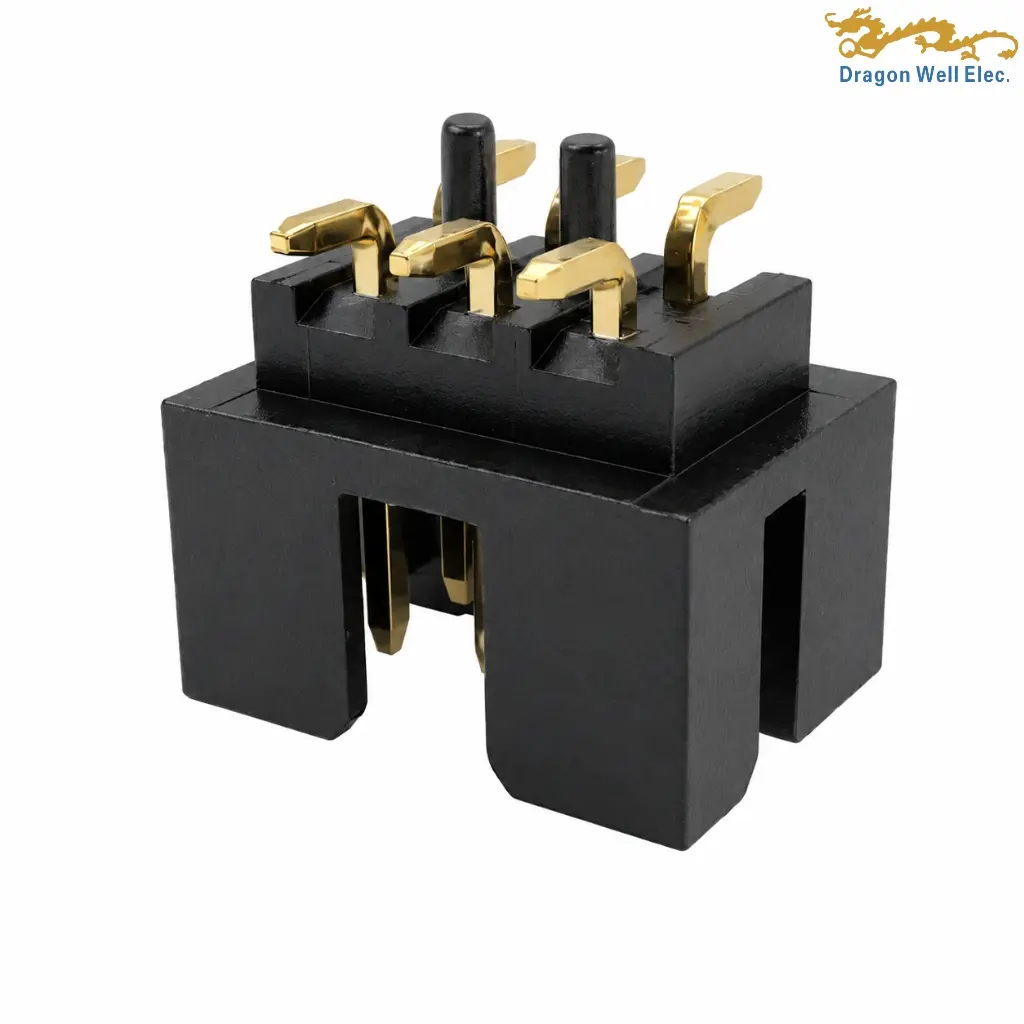

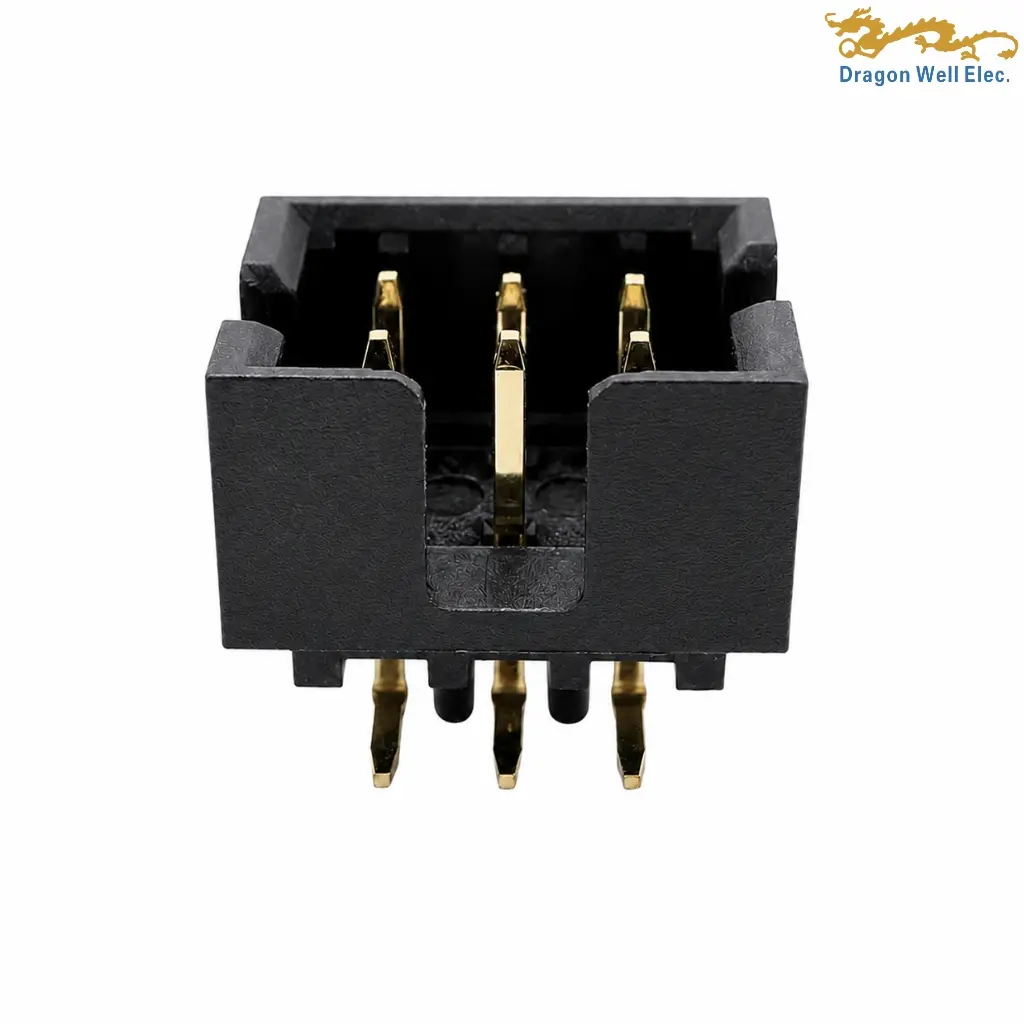

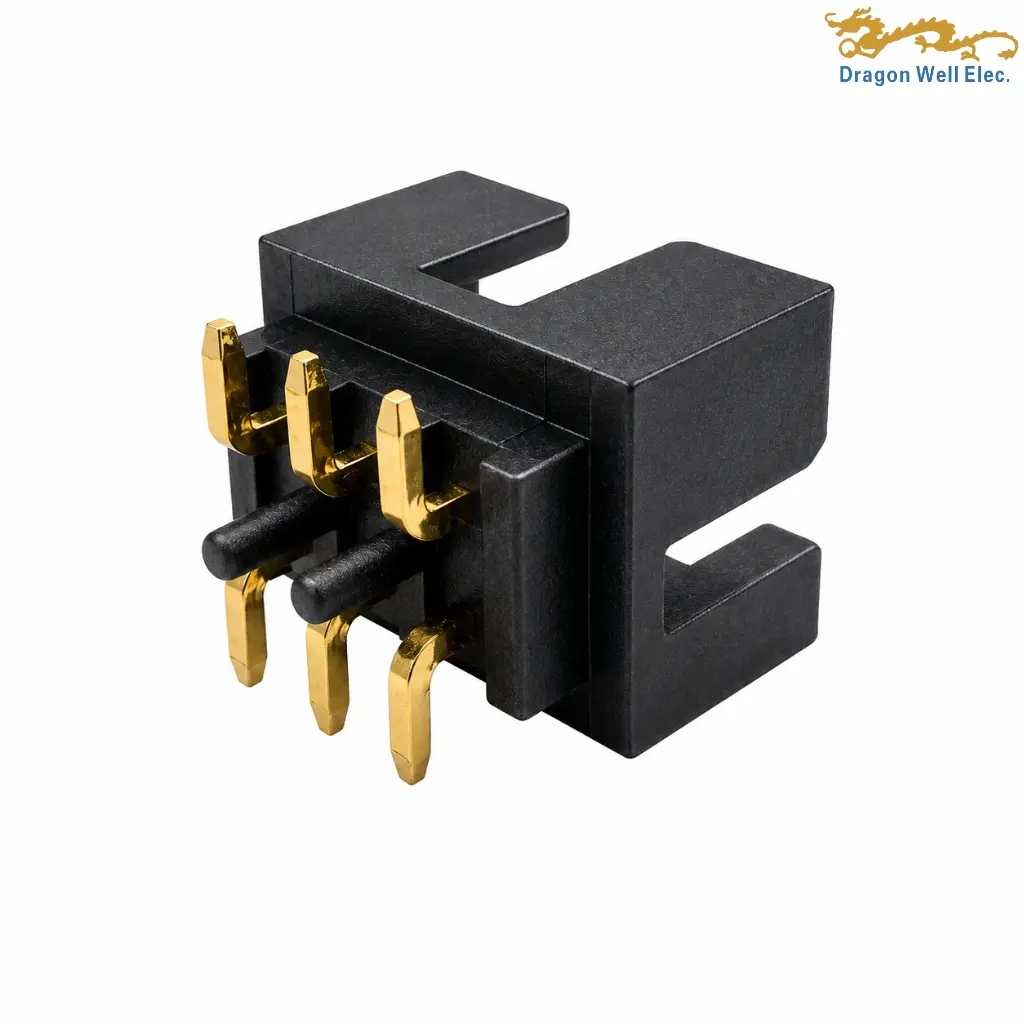

2.00mm SMT Box Header Connector with dual row vertical 180° SMT design, PA6T UL94V-0 housing, copper alloy contacts, 2 AMP current rating, and RoHS-compliant construction.
2.00mm SMT Box Header Connector is a high-reliability dual row PCB connector designed for compact electronic assemblies requiring stable board-to-board and wire-to-board interconnection. The DW-BH Series features a 2.00mm pitch vertical SMT mounting structure, providing efficient PCB integration for industrial and electronic applications.
According to the drawing, this 2.00mm SMT Box Header Connector uses a dual row box header design with vertical 180° orientation. The connector is manufactured with a PA6T UL94V-0 insulating material housing and copper alloy contacts, providing mechanical stability and dependable electrical connection performance.
The connector supports a current rating of 2 AMP, insulation resistance of ≥1000MΩ minimum, contact resistance of ≤20mΩ maximum, and voltage resistance of AC 500V. The operating temperature range is specified as -40°C to +105°C, making it suitable for electronic equipment operating in demanding environmental conditions.
The SMT mounting design allows automated PCB assembly processes while maintaining accurate positioning through the recommended PCB layout provided in the manufacturer drawing. The dual-row configuration helps achieve higher contact density within a compact footprint.
The 2.00mm SMT Box Header Connector is available with different plating options including gold flash, gold, tin, and nickel according to configuration requirements. With RoHS-compliant construction and high-temperature soldering capability of 260°C ±5°C for 10 seconds maximum, this connector is designed for reliable manufacturing environments.
Dragon Well Electronics provides the DW-BH Series box header connector solution for OEM customers requiring compact SMT connectors with reliable electrical characteristics, strong mechanical structure, and flexible pin-count options.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-BH-2200132WVnP-XXTR-XX | Description | 2.00 mm Pitch Box Header, Dual Row, Vertical 180°, Surface Mount Type, 4–50 Positions |
| Application | Signal, Board-to-Board, Wire-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount Connector | UPC | N/A |
| Keywords | Box Header, 2.00 mm Box Header, Dual Row Box Header, SMT Box Header, Vertical Box Header, PCB Header, Shrouded Header Connector | Connector & Contact Terminates to | Printed Circuit Board |
| Electrical | |||
| Rated Voltage | — | Current Rating | 2:00 AM |
| Contact Resistance | ≤20 mΩ Max. | Insulation Resistance | ≥1000 MΩ Min. |
| Dielectric Withstanding Voltage | AC 500 V | Norm | N/A |
| Physical | |||
| Breakaway | No | Circuits (Number of Positions) | 4–50, even-position versions |
| Circuits (Maximum) | 50 | Color – Housing | — |
| Durability (mating cycles max) | — | Flammability | UL94V-0 |
| Glow-Wire Capable | — | Lock to Mating Part | — |
| Material – Metal | Copper Alloy | Material – Plating Mating | Ni 30–50 μ″ + Au 0.5–0.8 μ″ |
| Material – Plating Soldering Area | — | Material – Resin | PA6T, UL94V-0 |
| Metal Shape & Form | Square Terminal, SQ 0.50 ± 0.02 mm | Number of Rows | 2 |
| Connector Orientation | Vertical 180° (WV) | Packaging Type | Tape Reel (TR) |
| PCB Locator | Optional — Series 01 with plastic pegs; Series 02 without plastic pegs | PCB Retention | Optional plastic pegs |
| PC Tail Length | — | Pitch – Mating Interface | 2.00 mm |
| Plating min – Mating | Plating code options: 01 Gold Flash; 03 3 μ″ Gold; 06 6 μ″ Gold; 15 15 μ″ Gold; 30 30 μ″ Gold; 31 Sn; 32 Ni | Plating min – Termination | — |
| Polarized to Mating Part | Yes, keyed/shrouded housing shown | Polarized to PCB | With plastic-peg version: Yes |
| Shrouded | Yes | Stackable | — |
| Operating Temperature | -40°C to +105°C | Termination Interface Style | Surface Mount (SMT) |
| Square Terminal Post & Tail Dimension | 0.50 ± 0.02 mm SQ | PCB Mount Retention | Plastic peg option, Ø0.85 ± 0.10 mm |
| PCB Mount Alignment | Optional plastic pegs | Connector Mounting Type | Surface Mount |
| PCB Thickness (Recommended) | — | Row-to-Row Pitch | 2.00 mm nominal |
| Height of connector above PCB | 7.60 ± 0.30 mm | Housing Width / Depth | W = 6.30 ± 0.35 mm |
| Solder Process Data | |||
| Max-Cycle | N/A | Max-Duration | 10 s Max. |
| Lead-Free Process Capability | Yes — RoHS Compliant | Max-Temp | 260°C ± 5°C |
