2-54mm dual row right angle female header 16 pin connector for PCB interconnection, designed with a 2.54 mm pitch, dual-row socket structure, and right-angle through-hole mounting. Based on the drawing, this female header provides 2A current rating, AC 500V withstand voltage, and a PA6T UL94V-0 insulator, making it suitable for dependable PCB assembly in industrial and electronic applications.
• Applications: Industrial control boards, embedded systems, PCB interconnect modules, instrumentation, communication equipment, development boards, internal board-to-board connection, electronic control assemblies.**
• Highlights: 2.54 mm pitch female header; dual row design; right angle 90° type; through-hole/DIP mounting; 16-pin version shown; 2A current rating; 1000MΩ min insulation resistance; 20mΩ max contact resistance; AC 500V withstand voltage

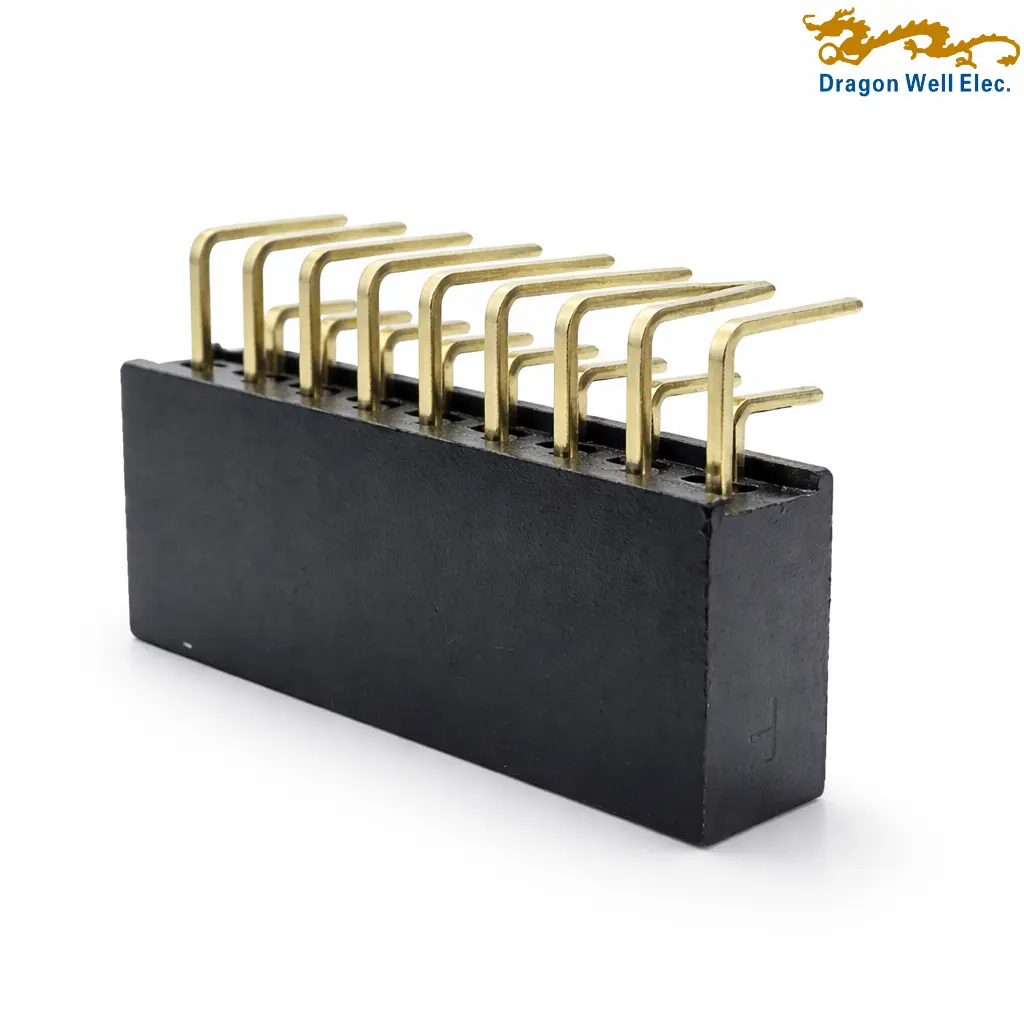

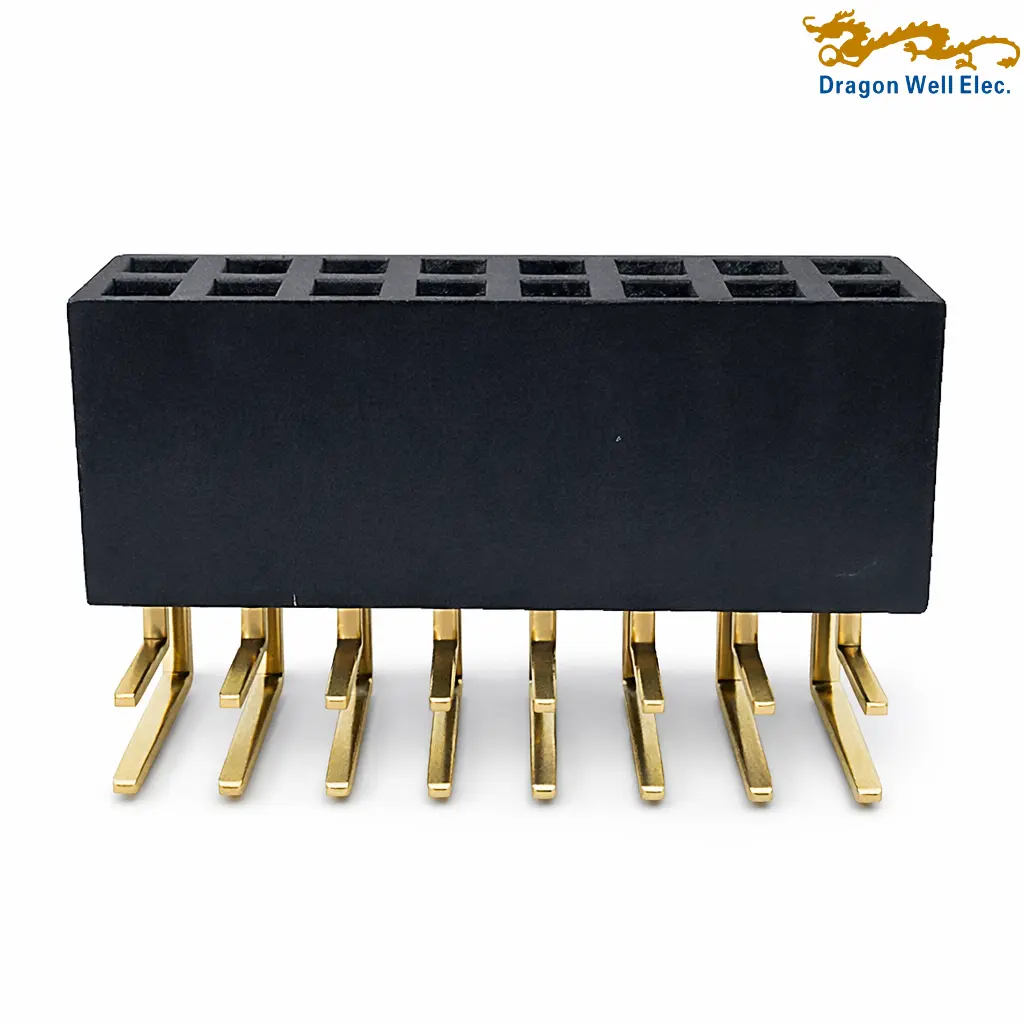

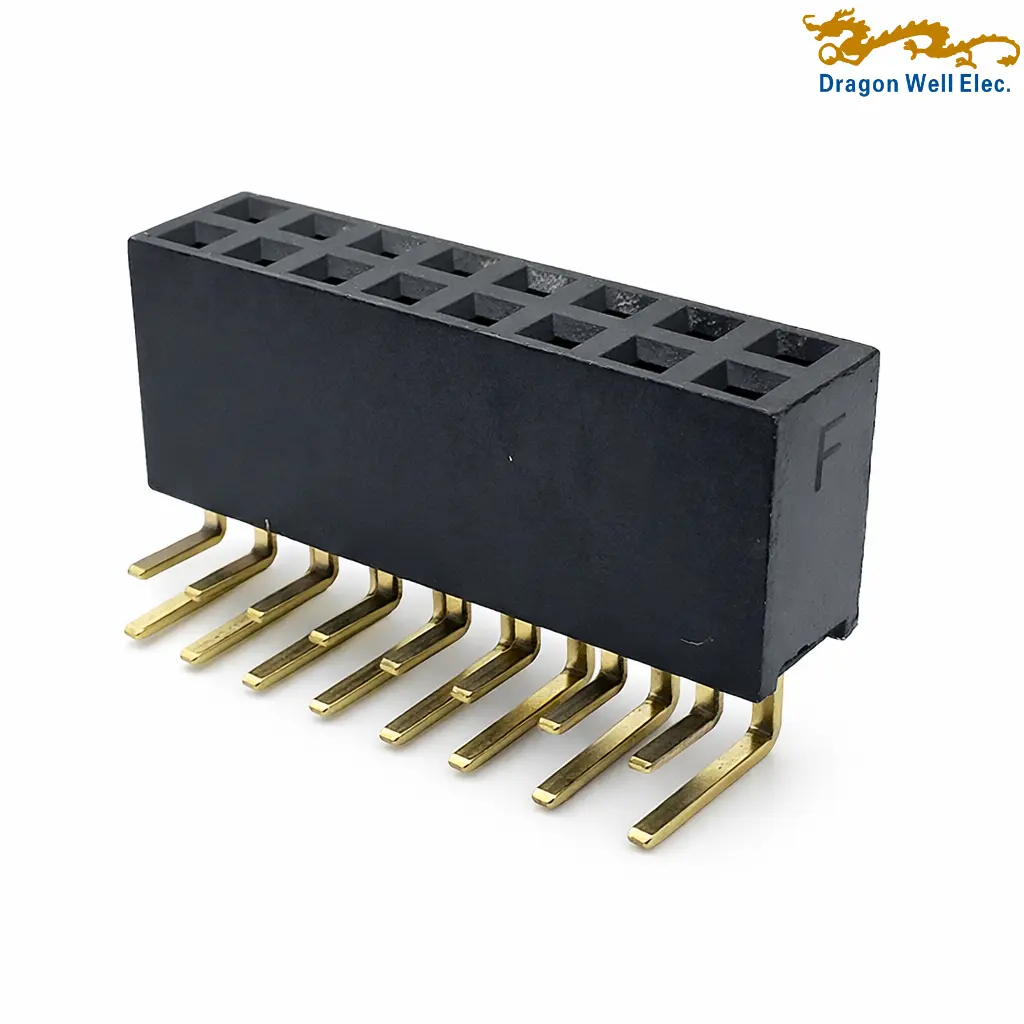

2-54mm dual row right angle female header 16 pin connector is a through-hole PCB socket designed for compact board-to-board and wire-to-board interconnection in electronic assemblies. Based on the drawing, this product is a 2.54 mm pitch dual row female header with a right angle 90° mounting style, through-hole/DIP termination, and an 8.5 mm insulator height. The image and drawing show a 16-pin version, and the dimension table indicates that this series is available in a wider range of circuit counts.
This 2-54mm dual row right angle female header 16 pin connector is designed for stable electrical connection in control boards, industrial electronics, embedded modules, and general PCB interconnect systems. According to the technical parameters shown in the drawing, it has a current rating of 2A, insulation resistance of 1000MΩ min, contact resistance of 20mΩ max, and withstand voltage of AC 500V. The operating temperature range is listed as -40°C to +105°C, helping support use in demanding electronic environments.
With its 2.54 mm pitch, dual-row arrangement, right-angle PCB mounting, and through-hole retention, this female header connector is suitable for standard PCB interconnect applications where reliable mating and compact layout are required. The drawing also shows a recommended PCB layout and confirms RoHS compliance.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-FH-2254515WRnP-XXXX-02 | Description | 2.54mm Female Header Dual Row Right Angle Through-Hole Type, Base 8.5H |
| Application | Signal / Board-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount Receptacle / Female Header | Product Name | Female Header Connector |
| Keywords | 2.54 Female Header, Dual Row Female Header, Right Angle Female Header | Contact Type | Receptacle |
| Electrical | |||
| Rated Voltage | N/A | Current Rating | 2.0A |
| Contact Resistance | 20mΩ Max. | Insulation Resistance | 1000MΩ Min. |
| Dielectric Withstand | AC 500V | Norm | N/A |
| Physical | |||
| Breakaway | N/A | Circuits (Number of Positions) | 4–80 |
| Circuits (Maximum) | 80 | Color – Housing | N/A |
| Durability (Mating Cycles) | N/A | Flammability | UL94V-0 |
| Glow-Wire Capable | N/A | Lock to Mating Part | N/A |
| Material – Metal | Copper Alloy | Material – Plating | Ni (30–50μ”) + finish per part code |
| Material – Plating Solder | N/A | Material – Resin | PA6T, UL94V-0 |
| Metal Shape and Form | Pin 0.64 × 0.40mm | Number of Rows | 2 |
| Connector Orientation | Right Angle | Packaging Type | TP: Tray / PE: Bag |
| PCB Locator | N/A | PCB Retention | N/A |
| PC Tail Length | 2.54mm | Pitch – Mating Interface | 2.54mm |
| Plating Min – Mating | N/A | Plating Min – Termination | N/A |
| Polarized to Mating | N/A | Polarized to PCB | N/A |
| Shrouded | Yes | Stackable | N/A |
| Operating Temperature | -40°C to +105°C | Termination Interface | Through Hole |
| Square Terminal Post | 0.64 × 0.40mm | PCB Mount Retention | N/A |
| PCB Mount Alignment | N/A | Connector Mounting | Through Hole |
| PCB Thickness (Recommended) | N/A | Row-to-Row Pitch | 2.54mm |
| Height of Connector | 8.50±0.20mm | Recommended PCB Hole Dia. | Ø1.20mm |
| Solder Process Data | |||
| Max-Cycle | N/A | Max-Duration | 10s Max |
| Lead-Free Process Compatible | Yes (RoHS Compliant) | Max-Temp | 260°C ±5°C |
