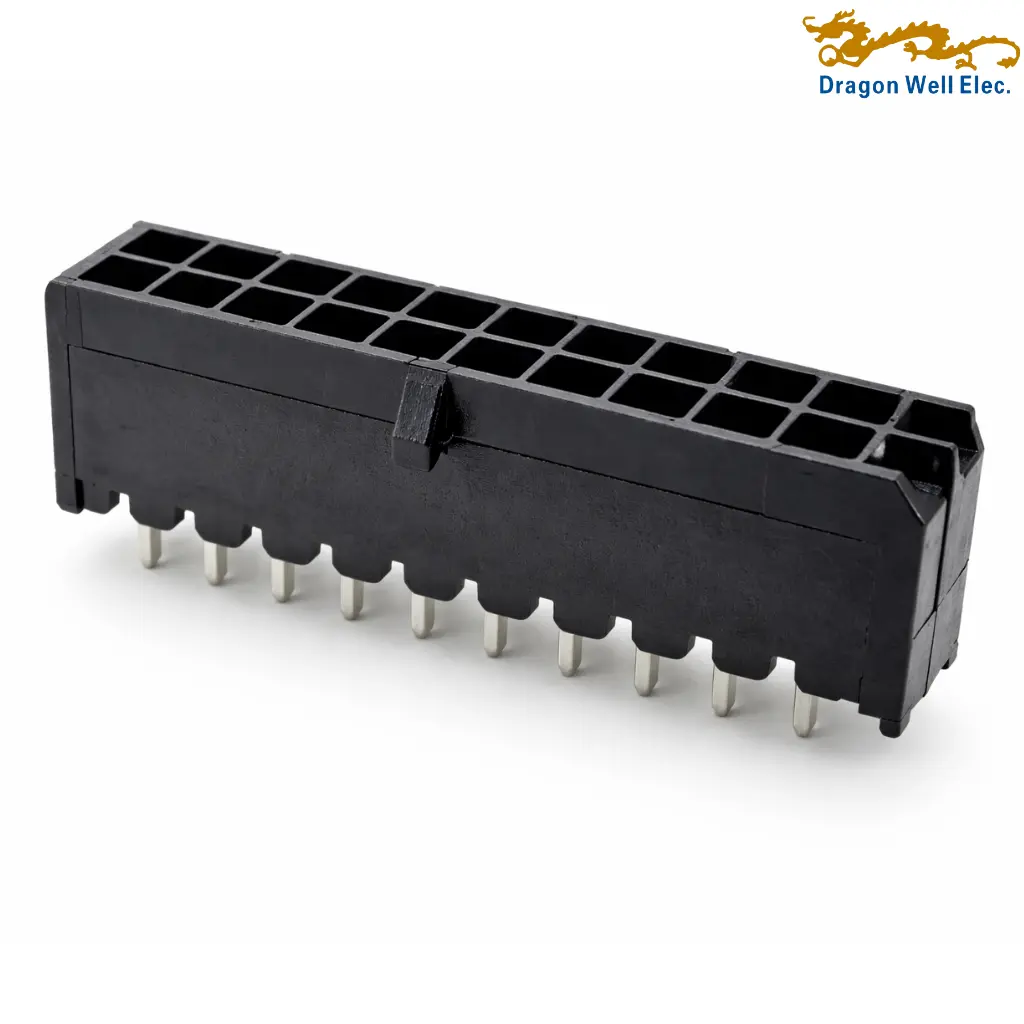

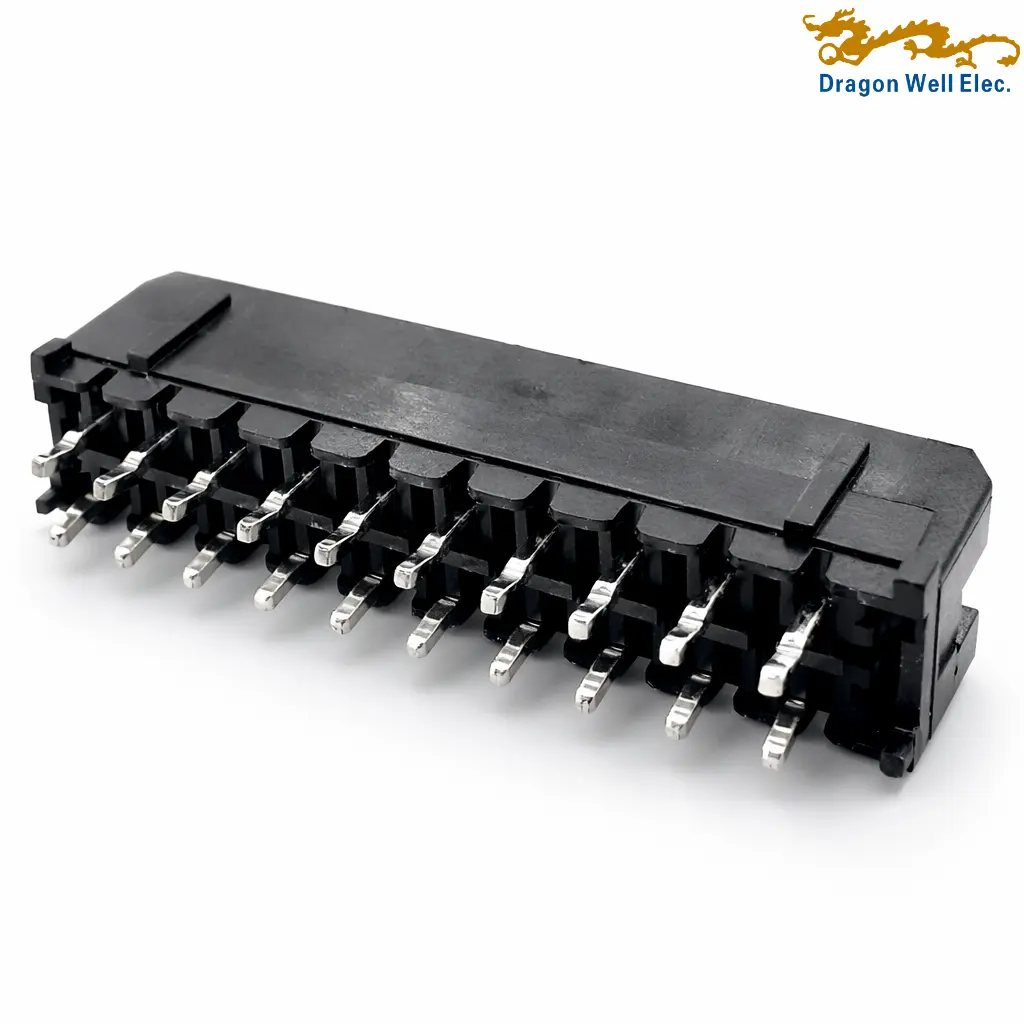

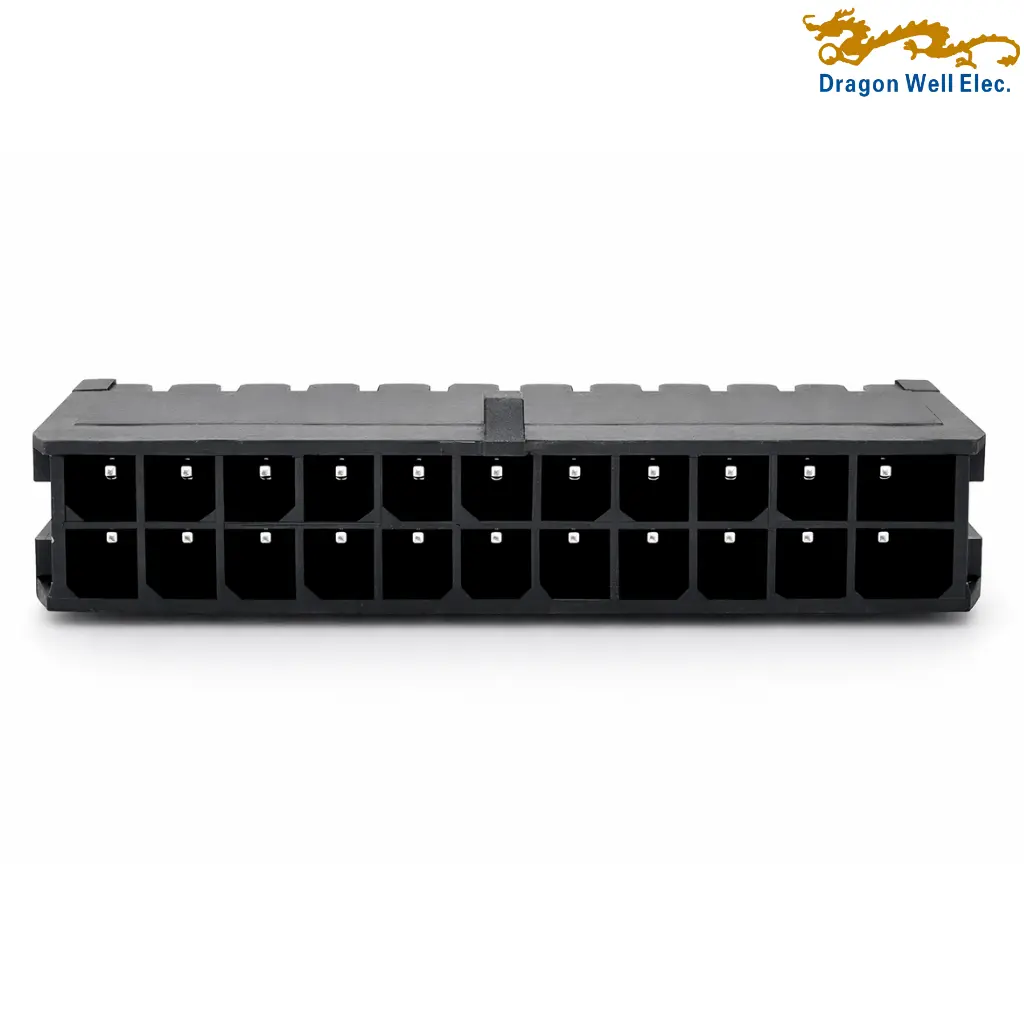

3.00mm pitch 180° dual row wafer connector for wire-to-board PCB connection, designed with a vertical mating structure and through-hole termination for secure board mounting. This connector supports 2 to 24 pins, 5A AC/DC, and 250V AC/DC, with brass terminals, tin-over-nickel plating, and a Nylon 66 UL94V-0 housing. The drawing also shows Type 1, Type 2, and Type 3 structural versions for flexible PCB design needs.
• Applications: Household appliances, power supply boards, industrial control systems, consumer electronics, internal wire-to-board connection, control modules, PCB power and signal interconnection.
• Highlights: 3.00 mm pitch dual row wafer; 180° vertical type; through-hole/THT mounting; 2 to 24 pins available; 5A AC/DC current rating; 250V AC/DC voltage rating; brass terminals with tin over nickel plating; Nylon 66 UL94V-0 insulator; 1500V AC/min withstand; RoHS compliant; available in Type 1, Type 2, and Type 3 structures.
3.00mm pitch 180° dual row wafer connector is a through-hole PCB connector designed for stable wire-to-board connection in power and signal applications. Based on the drawing, this dual row wafer features a 3.00 mm pitch layout, 180° vertical mating structure, and supports multiple circuit counts from 2 to 24 pins. It is suitable for PCB assemblies that require dependable retention, compact dual-row contact arrangement, and consistent electrical performance.
This 3.00mm pitch 180° dual row wafer connector is rated for 5A AC/DC current and 250V AC/DC voltage, making it suitable for a wide range of consumer electronics, industrial control, and power distribution applications. The drawing also shows a contact resistance of 10mΩ max, insulation resistance of 1000MΩ min, and withstanding voltage of 1500V AC/minute, supporting reliable insulation and electrical stability in demanding operating environments. The operating temperature range is -40°C to +105°C.
The contact material is specified as brass with tin over nickel plating, while the insulator is Nylon 66, UL94V-0, helping provide durability and flame resistance for PCB connector applications. This dual row wafer connector is a practical choice for manufacturers looking for a dependable through-hole wire-to-board connector for appliances, industrial devices, control boards, and internal power or signal connection systems. It is also RoHS compliant.
| General | |||
| Status | Active | Category | Wafer |
| Product Name | Wafer Connector | Description | 3.00MM PITCH 180° DUAL ROW WAFER |
| Part Number | DW-WF-2300201WVnP-XXXX-XX | Component Type | Wafer (DIP) |
| Electrical | |||
| Current – Maximum | 5A AC/DC | Voltage – Maximum | 250V AC/DC |
| Insulation Resistance Min. | 1000MΩ Min. | Withstanding Voltage | 1500V AC/minute |
| Contact Resistance | 10mΩ Max. | ||
| Physical | |||
| Circuits (Loaded) | 02P-24P | Circuits (maximum) | 24 |
| Color – Resin | N/A | Durability (mating cycles max) | N/A |
| Glow-Wire Capable | N/A | Lock to Mating Part | Yes |
| Mated Height | Per series: Type 1=11.00±0.35 mm; Type 2=11.00±0.35 mm; Type 3=9.90±0.35 mm | Mated Width | Per table: 02=6.65 mm; 04=9.65 mm; 06=12.65 mm; 08=15.65 mm; 10=18.65 mm; 12=21.65 mm; 14=24.65 mm; 16=27.65 mm; 18=30.65 mm; 20=33.65 mm; 22=36.65 mm; 24=39.65 mm |
| Material – Metal | Brass | Material – Plating | Tin over Nickel |
| Material – Plating Thickness | Per code: 01 Gold Flash / 03 3u Gold / 06 6u Gold / 15 15u Gold / 30 30u Gold / 31 Sn / 32 Ni | Net Weight | N/A |
| Material – Resin | Nylon 66, UL94V-0 | Material – Shell | N/A |
| Number of Rows | 2 (Dual Row) | Orientation | Vertical (180°) |
| Packaging Type | N/A | PCB Locator | Per series: Type 1/Type 2=Yes; Type 3=N/A |
| PCB Retention | N/A | Pitch – Mating Interface | 3.00 mm |
| Pitch – Termination | 3.00 mm | Plating min – Mating | N/A |
| Polarized to Mating Part | Yes | Polarized to PCB | Per series: Type 1/Type 2=Yes; Type 3=N/A |
| Temperature Range | -40 °C to +105 °C | Termination Interface | Through Hole |
