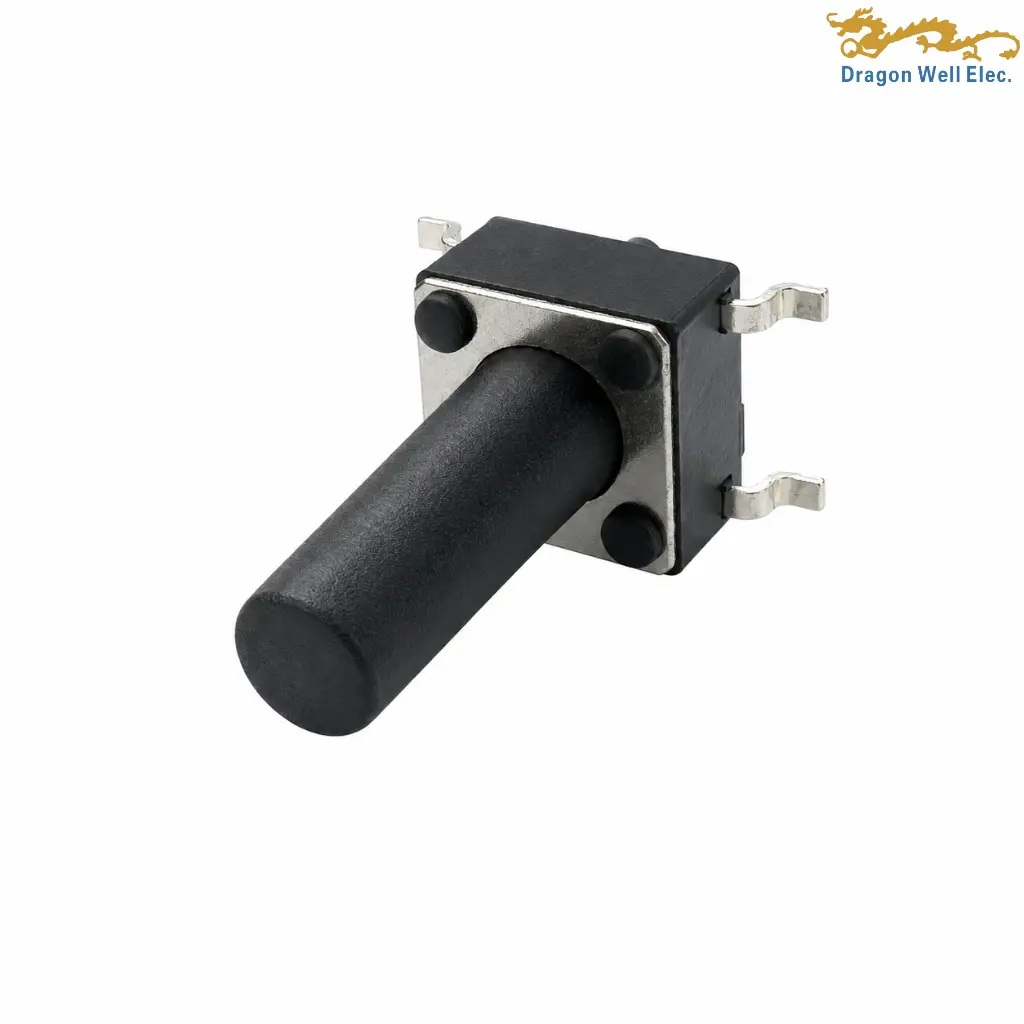

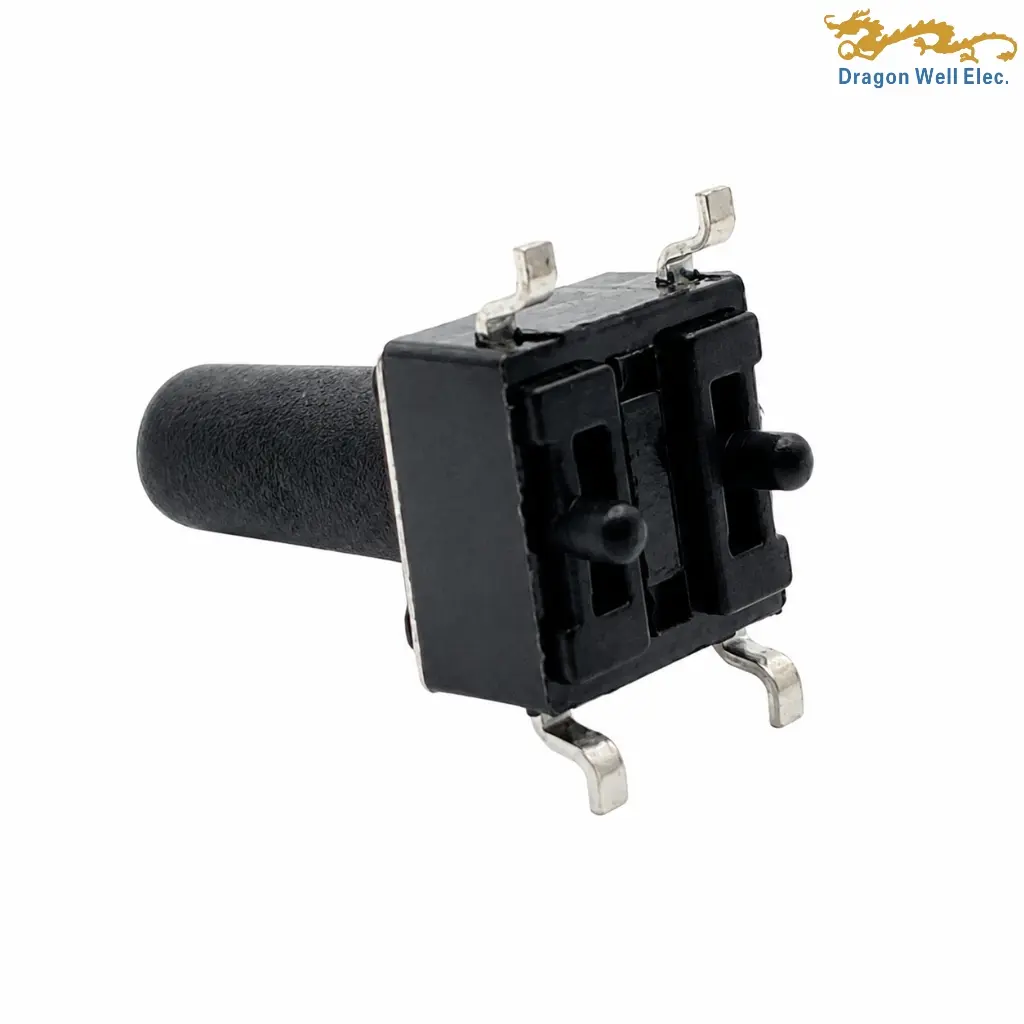

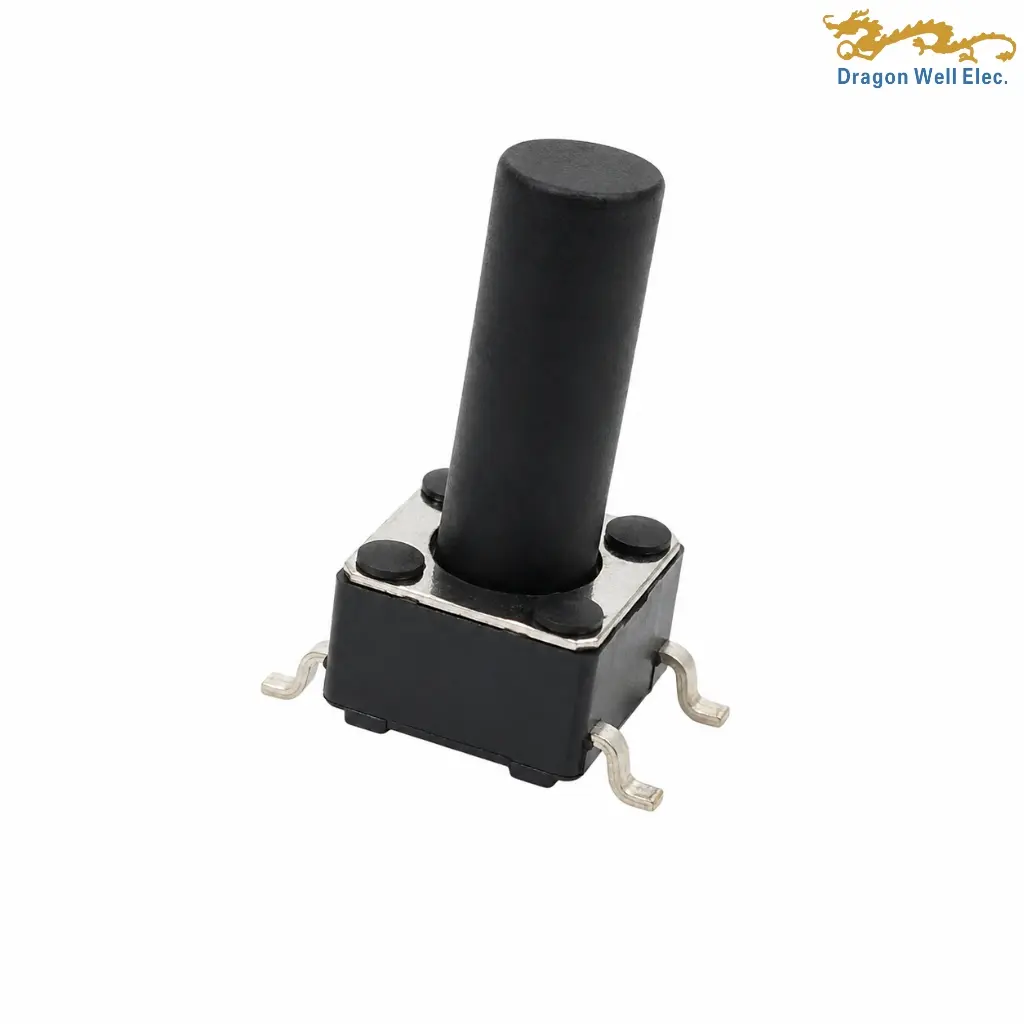

The 6x6mm SMT tactile switch DW-TS-S060321 is a top-push, momentary surface-mount tact switch with four terminals, two PCB positioning posts, 0.25 mm travel and a 50 mA/12 VDC rating. It offers 160 ±30 gf or 260 ±50 gf operating force, selectable actuator heights from 4.3–12.0 mm and a minimum operating life of 100,000 cycles.
Typical applications include:
6x6mm SMT tactile switch DW-TS-S060321 is a compact top-actuated surface-mount switch designed for PCB user-interface and control applications. The supplied Dragon Well engineering drawing confirms a 6.00 × 6.00 mm body, four SMT electrical terminals, two PCB positioning posts and multiple selectable actuator heights.
The switch operates as a momentary normally-open contact. Terminals 1 and 2 are internally connected on one side of the circuit, while terminals 3 and 4 are internally connected on the opposite side. Pressing the actuator closes the circuit between these two contact groups.
Electrical performance of this 6x6mm SMT tactile switch includes a rating of 50 mA at 12 VDC, maximum contact resistance of 100 mΩ, minimum insulation resistance of 100 MΩ, and dielectric withstand of 250 VAC for one minute. The specified actuator travel is 0.25 ±0.15 mm, while minimum operating life is 100,000 cycles.
Two operating-force options are available. Code 01 specifies 160 ±30 gf, while code 02 specifies 260 ±50 gf. The DW-TS-S060321 family also provides multiple actuator-height configurations from 4.3 mm to 12.0 mm, with actuator diameter varying according to the selected height code.
Construction includes a black PPA actuator and base, a silver-clad stainless-steel spring contact, a brass cover and silver-plated brass retaining/contact components. The 6x6mm SMT tactile switch is supplied in tape-and-reel packaging for automated SMT production and is RoHS compliant.
With its configurable actuator height, locating posts and compact 6 × 6 mm footprint, this 6x6mm SMT tactile switch is suitable for electronic controls where different button or panel heights must be accommodated without changing the basic PCB switch family.
| 1. General | |||
| Part Number | DW-TS-S060321X-XXTR-01 | Product Name | Tact switch |
| Description | Tact switch, 6×6 with post SMT type | Manufacturer | Dragon Well Electronics Co., Ltd |
| RoHS Compliant | Yes | Packaging | TR: Tape Reel |
| Series | 01–99 | Revision / Date | A-1: 2026.02.05 (Updated spec); A-0: 2022.05.13 (NEW) |
| Illuminated | No | Switch Feedback Type | Tactile |
| Switch Connection | SPST, normally open | Operating Function | Momentary |
| 2.Electrical | |||
| Operating Voltage | DC 12V | Rated Current | 50 mA |
| Contact Resistance | 100mΩ Max. | Insulation Resistance | 100MΩ Min. |
| Withstand Voltage | AC 250V / 1 min | Life Requirement | 100,000 cycles Min. |
| Contact Current Rating | 50 mA | Switch Contact Plating | Ag Plating |
| Contact Base Material | SUS | ||
| 3. Physical | |||
| Actuator Force | 160±30 gf; 260±50 gf | Travel Distance | 0.25±0.15 mm |
| Actuator Material | PPA | Actuator Color | Black |
| Cover Material | Brass | Case Material | PPA |
| Case Color | Black | Base Material | PPA |
| Spring Material | SUS, Ag Plating | Low Profile | N/A |
| Process Sealed | N/A | ||
| Height (H) Options | A: 4.3 mm; B: 4.5 mm; C: 5.0 mm; D: 5.5 mm; E: 6.0 mm; F: 6.5 mm; G: 7.0 mm; J: 7.3 mm; K: 7.5 mm; M: 8.0 mm; P: 8.5 mm; N: 12.0 mm | H Tolerance | ±0.15 |
| Body Length (Top View) | 6.00 mm | Side Dimension | 6.00 mm |
| Vertical Dims (Side) | 3.45 mm; 4.50±0.1 mm; 4.20±0.1 mm; 0.70±0.05 mm | Mounting Length | 9.00±0.4 mm |
| Actuator Ø | ØD±0.2 mm | Thickness (T) | 0.05 mm |
| Pad Spacing (PCB) | 9.40 × 5.50 mm | Footprint Spacing | 6.50 mm; 4.20 mm; 3.50 mm; 2-Ø1.2 mm |
| Operating Temp Range | N/A | ||
| 4. Solder Process Data | |||
| Termination Method | SMT | Recommended PCB Layout | Top View (Tolerance: ±0.05) |
