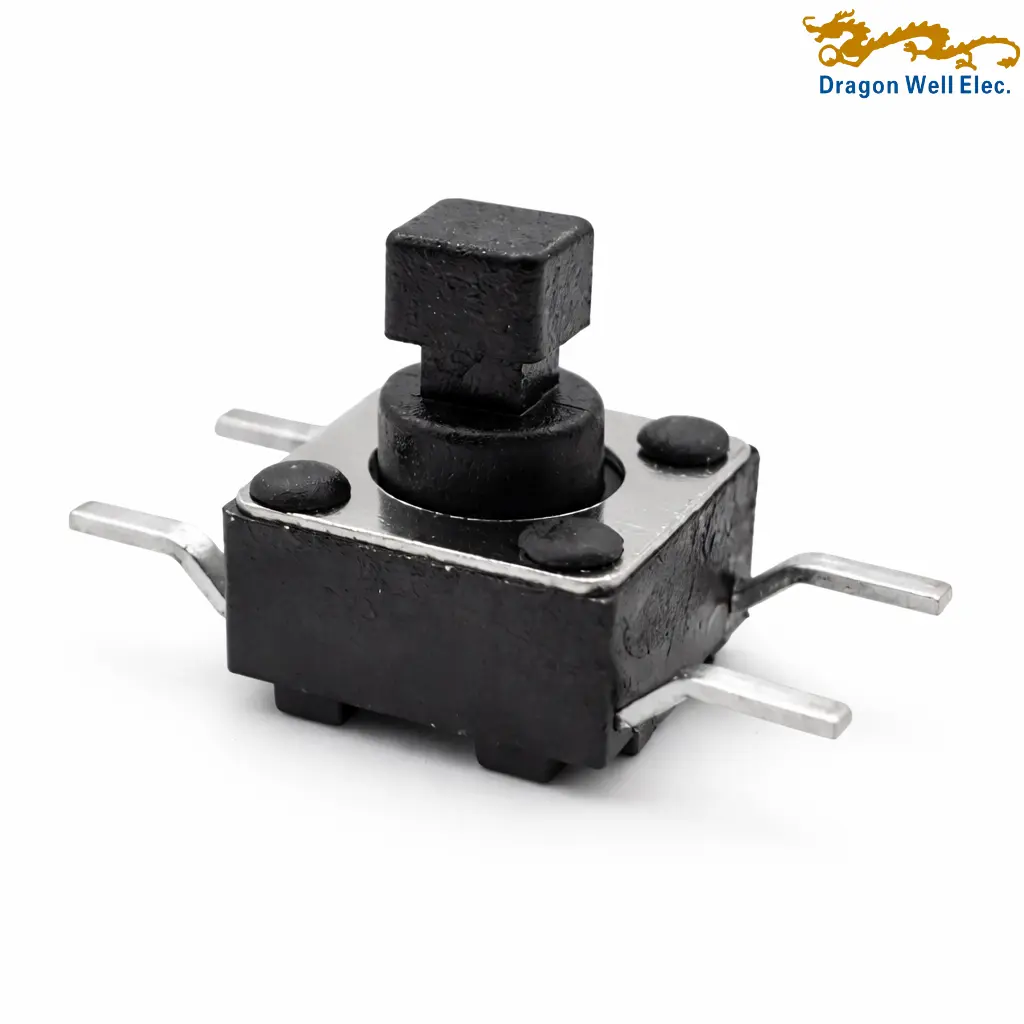

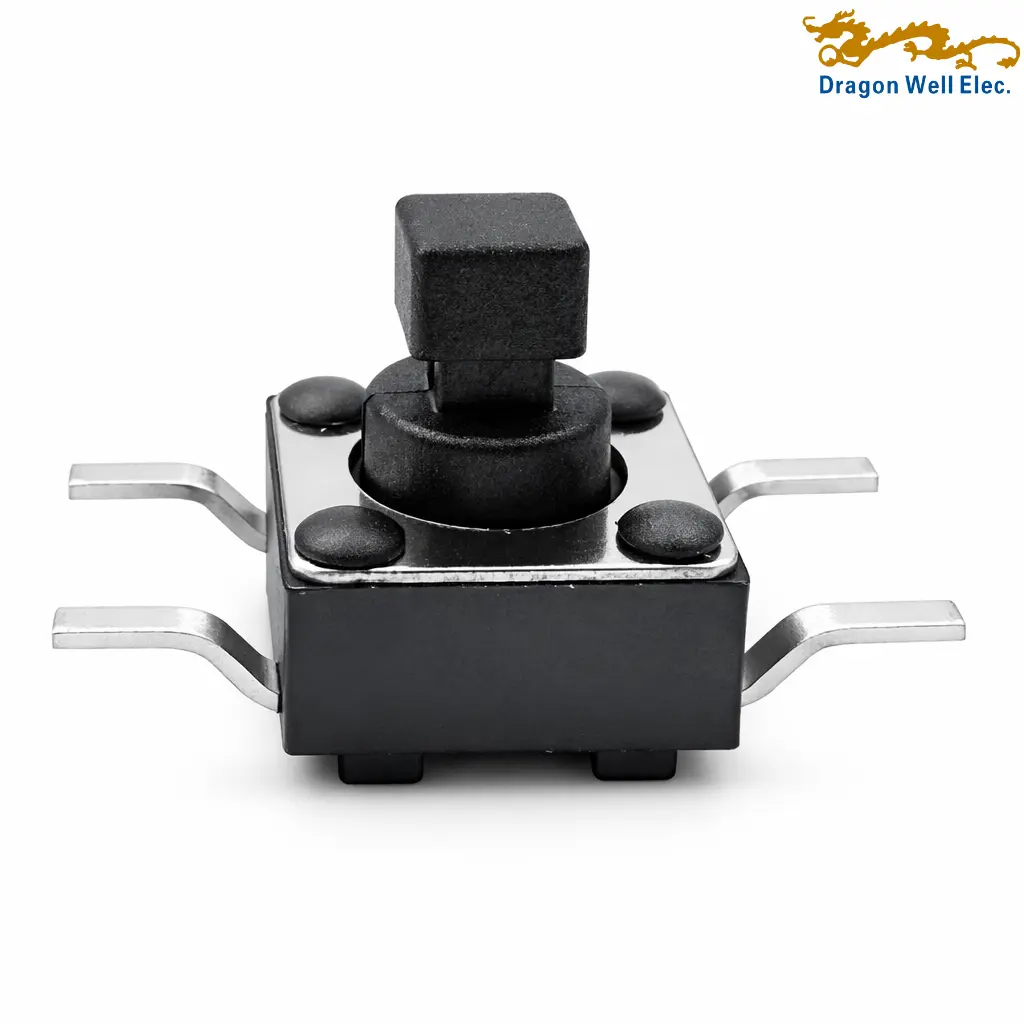

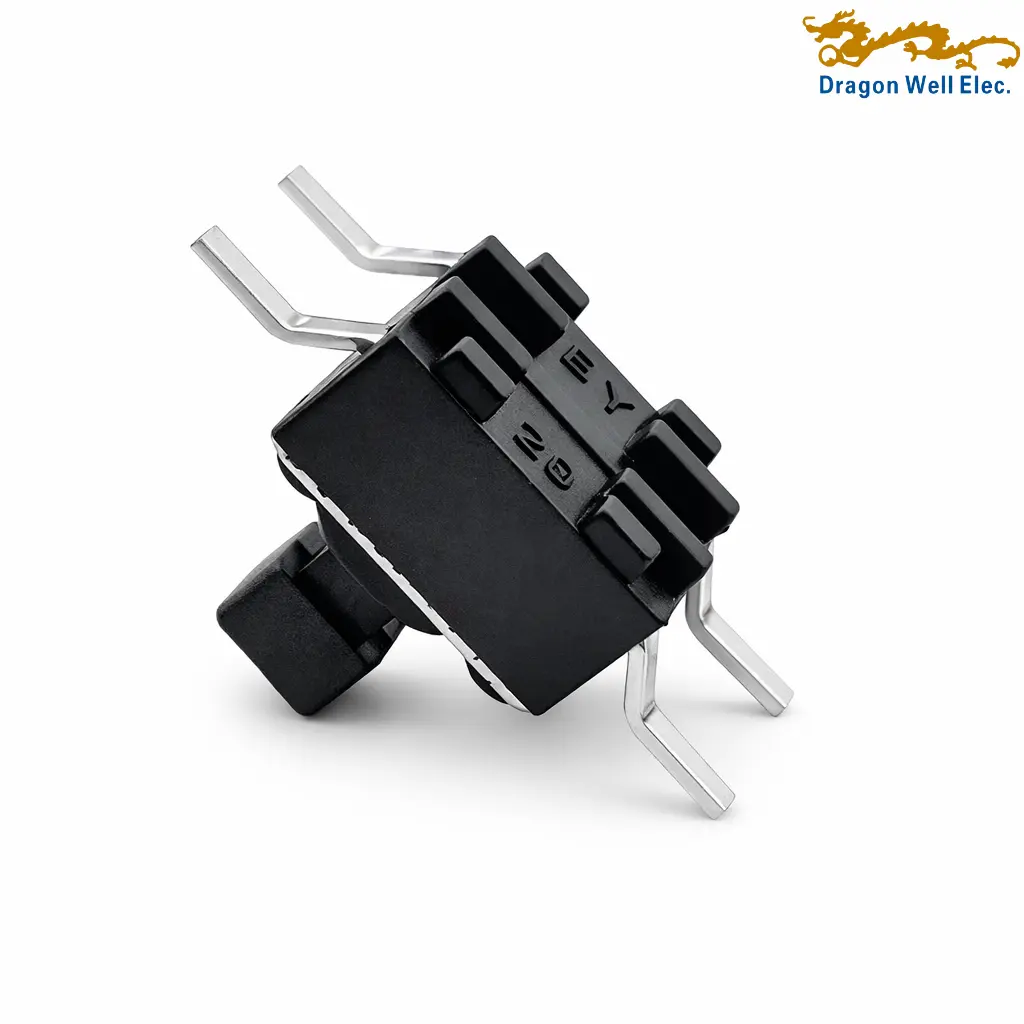

6×6mm tact switch 4 pin right angle 7.3mm height for compact PCB input applications, designed with a right angle mounting structure, 4-pin layout, and square actuator for dependable tactile operation. Based on the drawing, this switch supports DC 12V / 50mA, offers 100,000 cycles minimum, and is available in 160gf or 260gf operating force versions for different tactile feedback needs.
• Applications: Consumer electronics, handheld devices, industrial controls, smart home devices, embedded control boards, small appliances, user interface panels, portable electronic products.
• Highlights: 6×6mm tact switch; 4-pin right angle type; 7.3mm height; DC 12V 50mA rating; 100mΩ max contact resistance; 100MΩ min insulation resistance; AC 250V withstand for 1 minute; 100,000-cycle life; 160gf or 260gf operating force options; RoHS compliant.
6×6mm tact switch 4 pin right angle 7.3mm height is a compact tactile push button switch designed for PCB-mounted user input in consumer electronics, industrial controls, handheld devices, and embedded equipment. Based on the drawing, this product is a right angle tact switch with a 6×6mm body size, 4-pin configuration, and an overall 7.30±0.35mm height. The drawing also shows a square actuator and a recommended PCB layout for stable board integration.
This 6×6mm tact switch 4 pin right angle 7.3mm height is designed for reliable switching performance in low-power control circuits. According to the note section in the drawing, it is rated DC 12V, 50mA, with contact resistance of 100mΩ max, insulation resistance of 100MΩ min, and withstanding voltage of AC 250V for 1 minute. These specifications make it suitable for signal switching and input control applications where compact size and dependable tactile response are required.
With its right angle PCB structure, 4-pin layout, and compact 6×6mm form factor, this tact switch is suitable for control panels, handheld electronics, smart devices, consumer products, and embedded circuit boards requiring a compact momentary push switch. The drawing also confirms RoHS compliance.
| General | |||
| Status | Active | Category | Tactile Switch |
| Model No. | DW-TS-S060299A-XXTR-01 | Description | 6.0 × 6.0 mm SMD tact switch with square actuator, 7.30 mm height |
| Component Type | Switch | Product Name | Tact Switch |
| Mounting Type | Surface Mount | Actuator Color | Black |
| Electrical | |||
| Rating | DC 12V 50mA | Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100 MΩ Min. | Withstanding Voltage | AC 250V, 1 Minute |
| Life Cycle | 100,000 Cycles Min. | Travel | 0.15 ± 0.05 mm |
| Operating Force Type 01 | 160 ± 30 gf | Operating Force Type 02 | 260 ± 50 gf |
| Physical | |||
| Body Size | 6.00 × 6.00 mm | Overall Height | 7.30 ± 0.35 mm |
| Actuator Size | 2.40 × 2.40 mm | Actuator Height | 2.70 mm |
| Terminal Quantity | 4 | Terminal Type | Gull Wing SMD |
| PCB Layout Length | 13.4 mm | PCB Layout Width | 6.40 mm |
| Base Material | PPA | Base Color | Black |
| Knob Material | PPA | Knob Color | Black |
| Cover Material | SUS | Terminal Material | Phosphorous Bronze |
| Shrapnel Material | SUS | Terminal Finish | Ag Plated |
| Shrapnel Finish | Ag Plated | Circuit Diagram | 4-pin tact switch |
