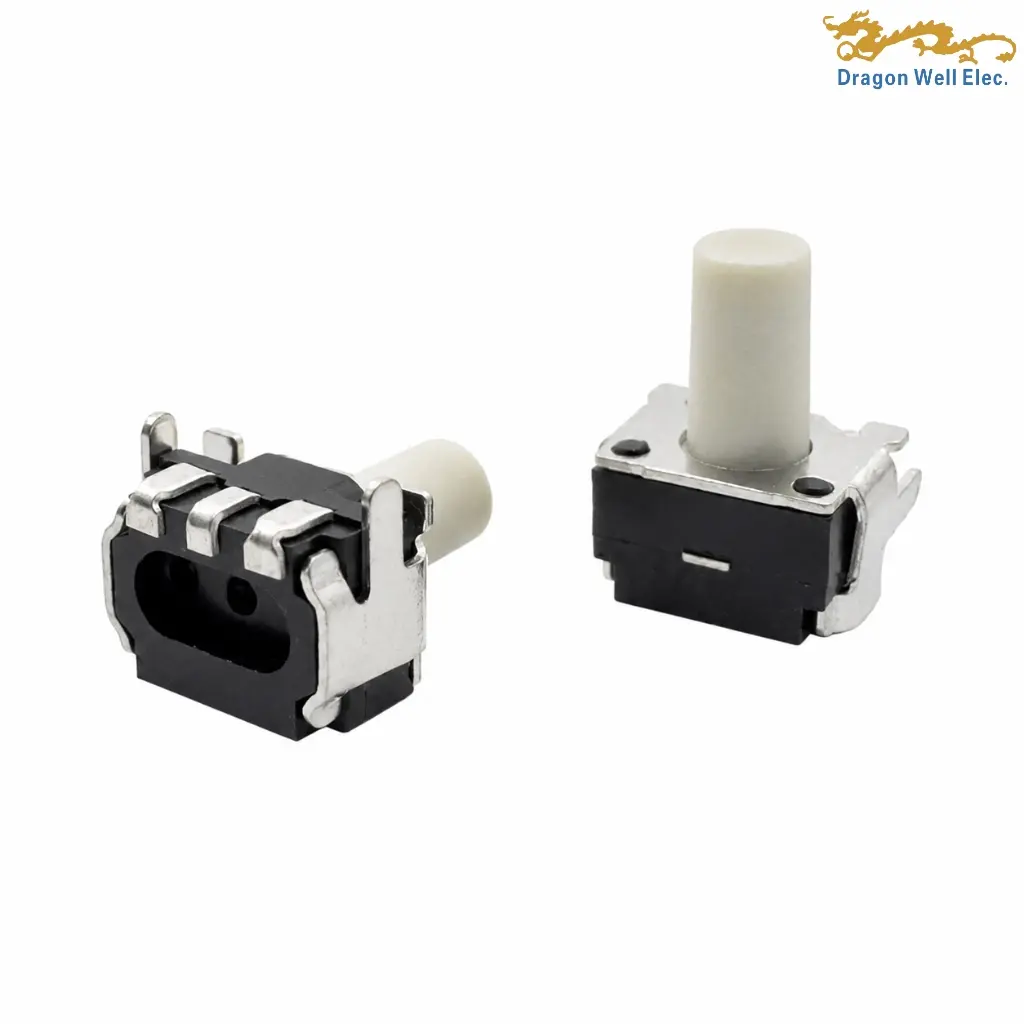

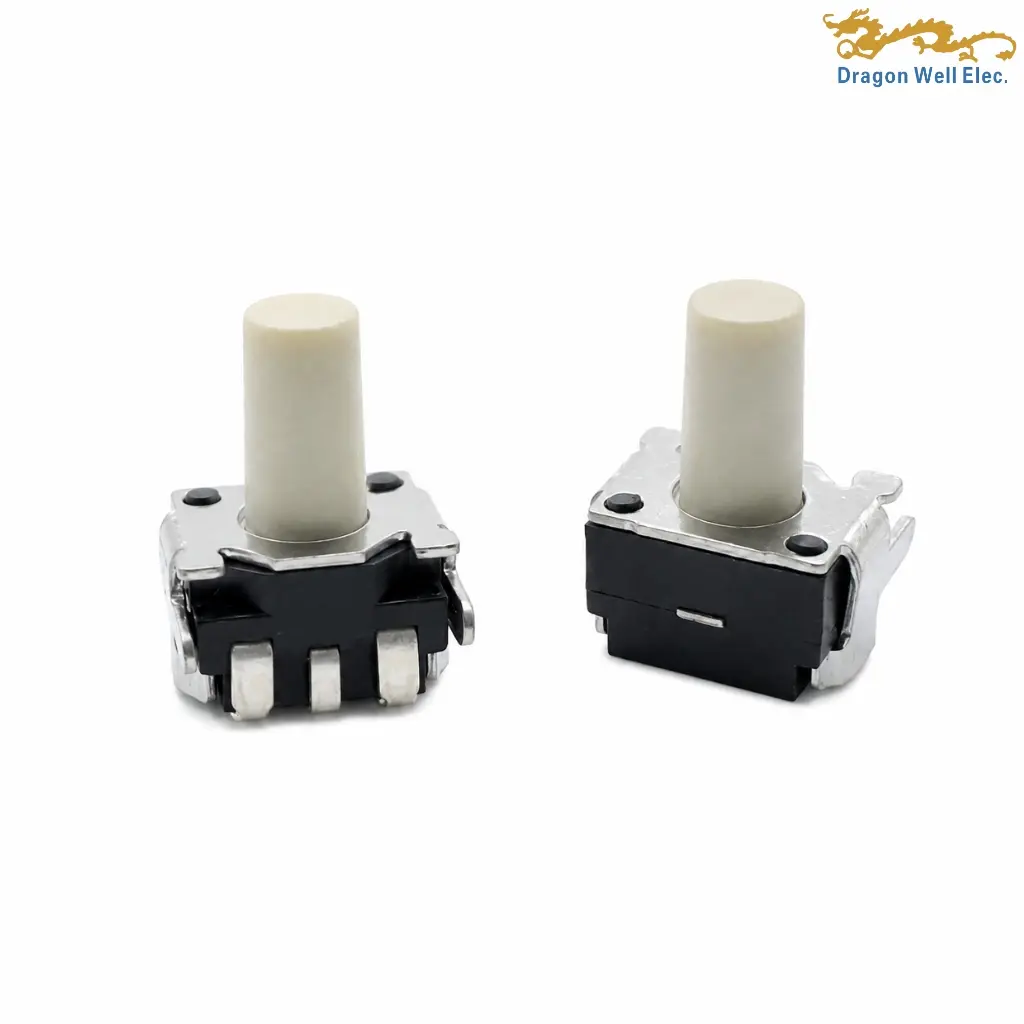

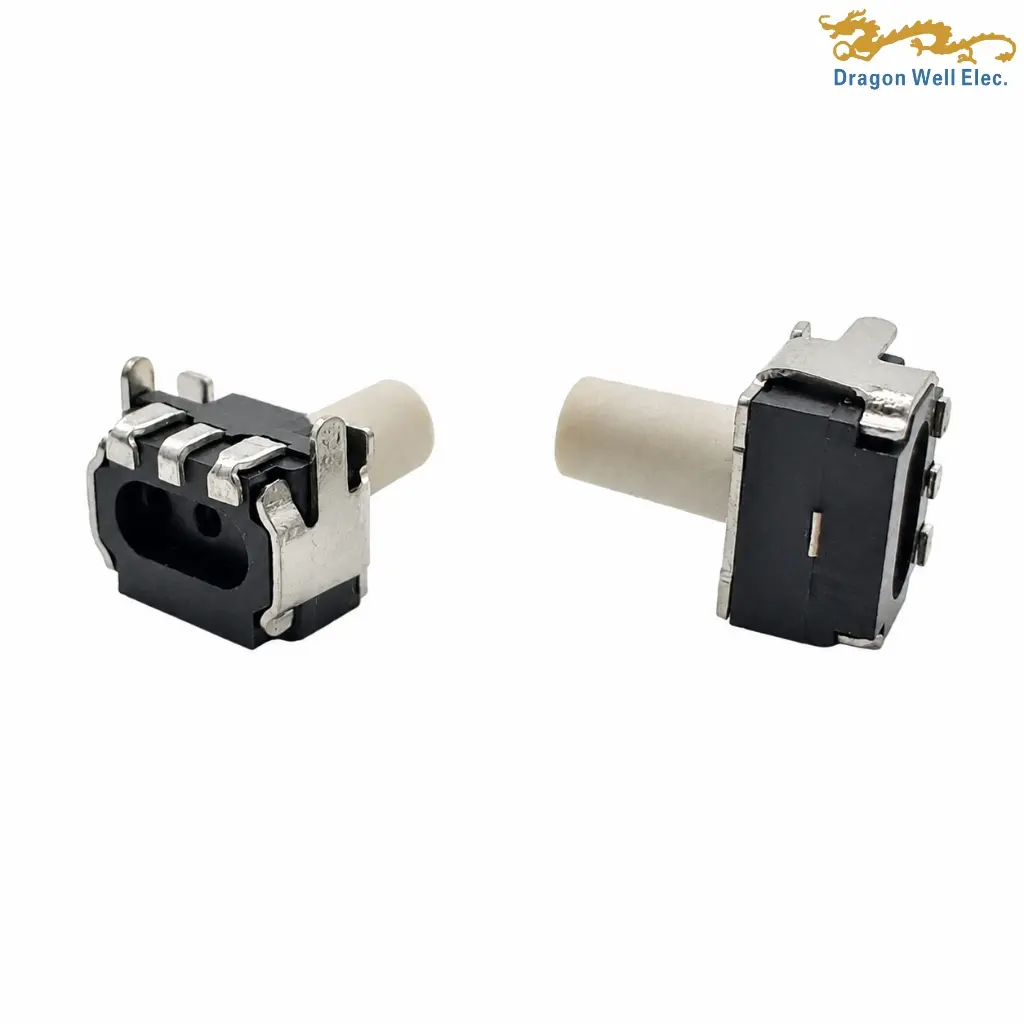

6mm SMT tactile switch DW-TS-S060183C is a compact top-actuated momentary switch designed for surface-mount PCB control and user-interface applications. The supplied Dragon Well engineering drawing confirms a 6.00 mm height configuration with a compact body, three-terminal electrical circuit and surface-mount PCB termination.
The circuit diagram shows terminals 1 and 3 internally connected on one side of the switching circuit, while terminal 2 forms the opposite contact. Pressing the actuator closes the normally open circuit, providing momentary switching operation suitable for push-button input functions.
Electrical performance of this 6mm SMT tactile switch includes a maximum rating of 50 mA at 12 VDC, maximum contact resistance of 100 mΩ, minimum insulation resistance of 100 MΩ, and a dielectric withstand rating of 250 VAC for one minute. The actuator travel is specified at 0.15 ±0.10 mm.
Two operating-force options are available. Code 01 specifies 250 ±50 gf, while code 02 specifies 160 ±50 gf. Both configurations have a drawing-specified minimum operating life of 50,000 cycles, allowing designers to select the preferred tactile force according to the required user-interface feel.
The construction combines an LCP actuator, PPA base, silver-clad stainless-steel spring contact, silver-plated brass cover and silver-plated phosphor-bronze contact component. These material specifications are taken directly from the supplied Dragon Well drawing.
The 6mm SMT tactile switch uses tape-and-reel packaging for automated surface-mount production and is RoHS compliant. Its compact PCB footprint and extended top actuator make it suitable for electronic controls where the switch must be operated through a housing, panel, key cap or other mechanical interface.
Comparable official tactile-switch families are also offered as top-actuated SMT components with selectable operating forces for compact PCB interfaces.
| 1. General | |||
| Part Number | DW-TS-S060183C-XXTR-01 | Product Name | Tact switch |
| Description | Tact switch | Manufacturer | Dragon Well Electronics Co., Ltd |
| RoHS Compliant | Yes | Packaging | TR: Tape Reel |
| Series | 01–99 | Revision / Date | A-0: 2023.09.11 (NEW) |
| Illuminated | No | Switch Feedback Type | Tactile |
| Switch Connection | SPST, normally open | Operating Function | Momentary |
| 2.Electrical | |||
| Operating Voltage | DC 12V Max. | Rated Current | 50 mA |
| Contact Resistance | 100mΩ Max. | Insulation Resistance | 100MΩ Min. |
| Withstand Voltage | AC 250V / 1 min | Life Requirement | 50,000 cycles Min. |
| Contact Current Rating | 50 mA | Switch Contact Plating | Ag Plating |
| Contact Base Material | SUS | ||
| 3. Physical | |||
| Actuator Force | 250±50 gf; 160±50 gf | Travel Distance | 0.15±0.1 mm |
| Actuator Material | LCP | Actuator Color | N/A |
| Cover Material | Brass 0.2 | Case Material | PPA |
| Case Color | N/A | Base Material | PPA |
| Spring Material | SUS, Ag Plating | Low Profile | N/A |
| Process Sealed | N/A | ||
| Height (H) Options | C: 6.00 mm | H Tolerance | ±0.20 |
| Body Length (Top View) | 4.35±0.25 mm | Side Dimension | 3.30±0.2 mm |
| Vertical Dims (Side) | 1.70 mm; 0.65 mm; 0.50±0.05 mm; 0.70±0.05 mm | Mounting Length | 4.64±0.20 mm |
| Actuator Ø | Ø2.0±0.15 mm | Thickness (T) | t=0.20 mm |
| Pad Spacing (PCB) | 4.85 × 2.15 mm; 4.35 × 1.65 mm | Footprint Spacing | 2.30 mm; 0.70 mm; 0.80 mm |
| Operating Temp Range | N/A | ||
| 4. Solder Process Data | |||
| Termination Method | SMT | Recommended PCB Layout | Top View (Tolerance: ±0.05) |
