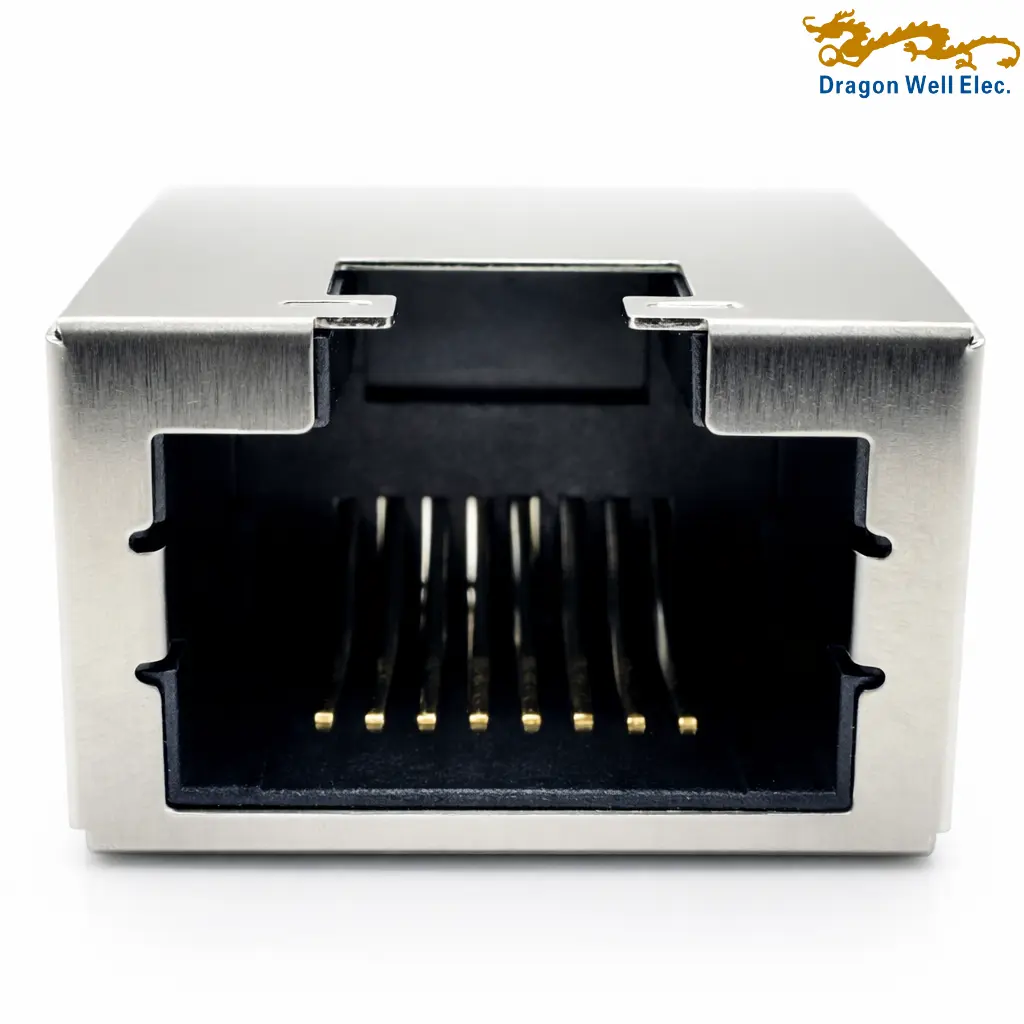

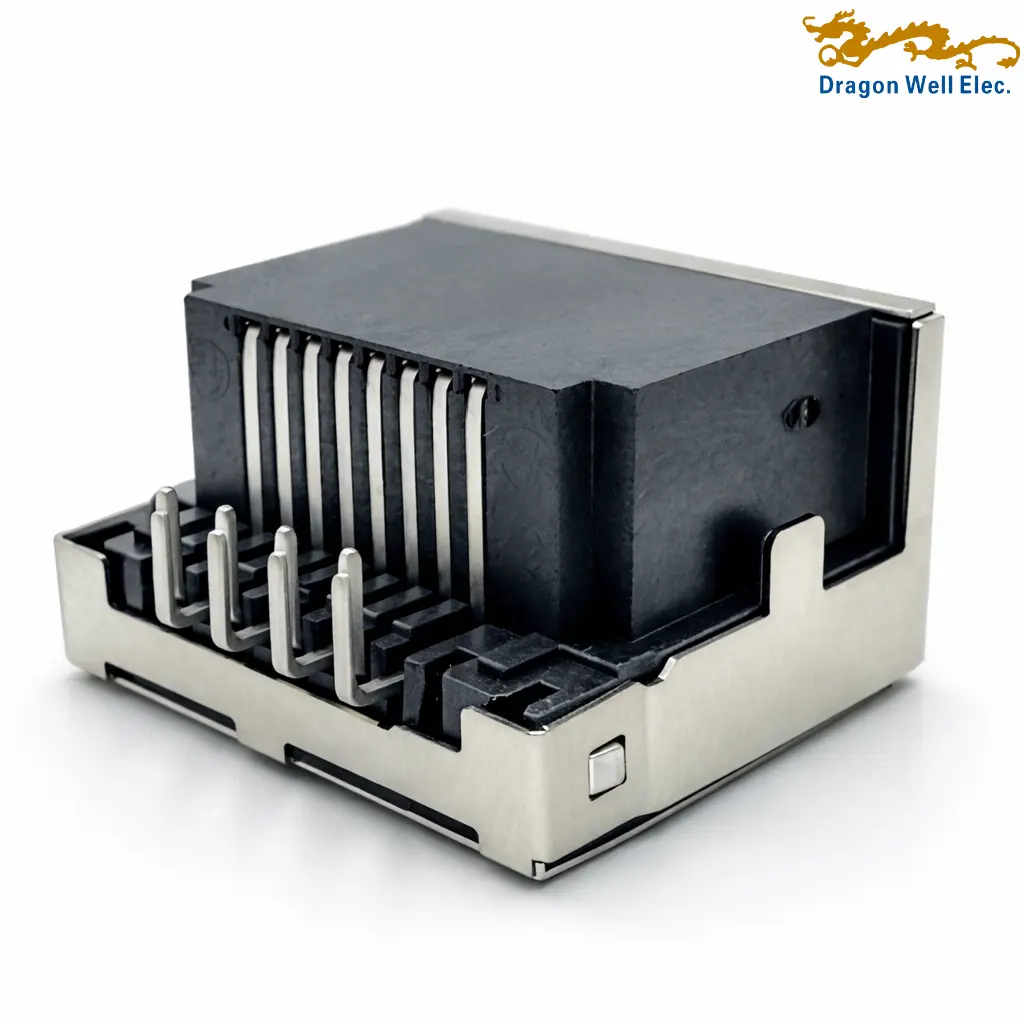

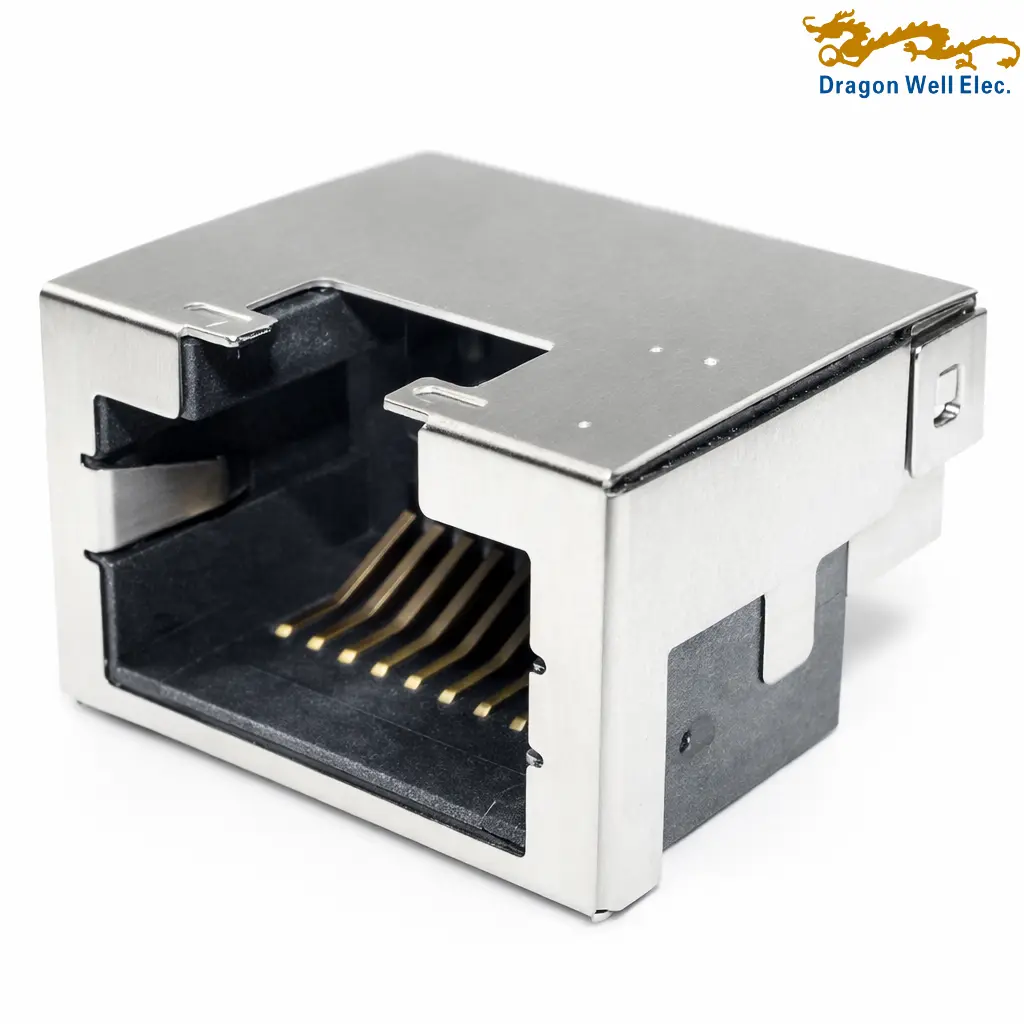

RJ45 1 port female DIP connector H4.10 for compact PCB Ethernet interface applications, designed with a single-port modular jack structure, through-hole/DIP termination, and shielded metal shell. Based on the drawing, this connector supports 125V AC RMS, 1.5A current rating, and uses gold-plated contact area with tin-plated solder tails for reliable board-level networking connection.
• Applications: Routers, switches, network modules, industrial communication equipment, embedded control boards, LAN interface modules, automation devices, compact Ethernet products.
• Highlights: RJ45 1 port female connector; DIP/through-hole type; H4.10 low-profile structure; 1.02mm contact pitch; 125V AC RMS voltage rating; 1.5A current rating; 30mΩ max contact resistance; gold-plated contact area; nickel-plated shell; 750 mating cycles minimum; RoHS compliant.
RJ45 1 port female DIP connector H4.10 is a compact PCB-mount modular jack designed for reliable Ethernet and communication interface applications. Based on the drawing, this product is a single-port RJ45 female connector with DIP/through-hole termination, 1.02mm contact pitch, and a low-profile H4.10 structure shown in the title block. The recommended PCB pad layout and front-opening modular jack structure make it suitable for networking equipment, communication modules, and embedded control boards that require a stable RJ45 interface.
This RJ45 1 port female DIP connector H4.10 is designed for dependable electrical and mechanical performance in board-level applications. According to the drawing notes, it has a voltage rating of 125V AC RMS and a current rating of 1.5A. The contact resistance is specified as 30 milliohms max, helping support stable signal conduction for Ethernet port connections.
Mechanical performance in the drawing includes 750 mating cycles minimum, insertion force of 22N max, and removal force without plug lock of 22N max. Environmental performance lists storage temperature of -40°C to +85°C and operating temperature of -40°C to +85°C. The drawing also states IR reflow soldering temperature 255±5°C and confirms compliance with RoHS.
| General | |||
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-D001883-01XX-01 | Description | RJ45 1-Port Female Jack, Shielded, Low Profile H4.10, DIP, Without LED |
| Product Name | RJ45 8P8C Female Jack | Magnetic | No |
| Component Type | Receptacle | Power over Ethernet (PoE) | N/A |
| Type | Modular Jack | Packaging | — |
| Width | 16.18 mm | Height | 9.90 mm |
| Length | 14.60 mm | Installed Height | 4.10 mm |
| Housing Material | LCP Glass Filled Polyester, UL94V-0 | Contact Material | Phosphor Bronze C5191, t=0.30 mm |
| Contact Plating (Mating Area) | Gold Flash Plating | Solder Area Plating | Tin Plated, 80u” Min |
| Overall Contact Base Plating | Nickel Plated, 50u” Min Overall | Shield Material | Brass C2680, t=0.20 mm |
| Shield Plating | 40u” Nickel Plated | Country of Origin | — |
| Electrical | |||
| Current – Maximum per Contact | 1.5 AMP | Grounding to Panel | — |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125 VAC RMS | Operating Temperature | -40°C to +85°C |
| Contact Resistance (Max) | 30 mΩ Max | Storage Temperature | -40°C to +85°C |
| Insulation Resistance (Min) | — | EMI | Yes |
| Dielectric Withstanding Voltage | — | Lead-Free Process Capability | IR Reflow 255 ±5°C |
| RoHS | Yes | Customs Tariff Number | — |
| Physical | |||
| Color – Housing | — | Orientation 方向 | Side Entry Right Angle, Mid-Mount |
| Positions / Loaded Contacts | 8P8C | Lightpipes / LEDs | No |
| Port Configuration | 1×1 | Termination Interface | DIP / THT |
| Durability (mating cycles min) | 750 Cycles Min | Inverted / Top Latch | Yes |
| Jack Height | 4.10 mm | Latch / Tab Orientation | Top Latch |
| Material – Resin | LCP Glass Filled Polyester UL94V-0 | Material – Metal | Phosphor Bronze / Brass Shield |
| PCB Retention | Yes | Pitch – Mating Interface | 1.02 mm |
| Pitch – Termination Interface | 1.02 mm | PCB Thickness – Recommended | — |
| Terminal Span | 7.14 mm | Recommended PCB Pad Layout Overall | 15.98 mm |
| PCB Layout Inner Width | 14.38 mm | Side Slot Width | 0.70 mm |
| Insertion Force | 22N Max | Removal Force (without plug lock) | 22N Max |
| Net Weight | — | RoHS Compliant | Yes |
