$0.42
RJ45 Jack Mid Mount | Side Entry, Shielded SMT, Non-Magnetic is engineered for ultra-low profile designs. The Side Entry, Shielded SMT configuration saves vertical board space, while the Tape & Reel packaging enables rapid, high-volume automated assembly. A reliable non-magnetic solution for compact networking devices
Applications:
Product Highlight:

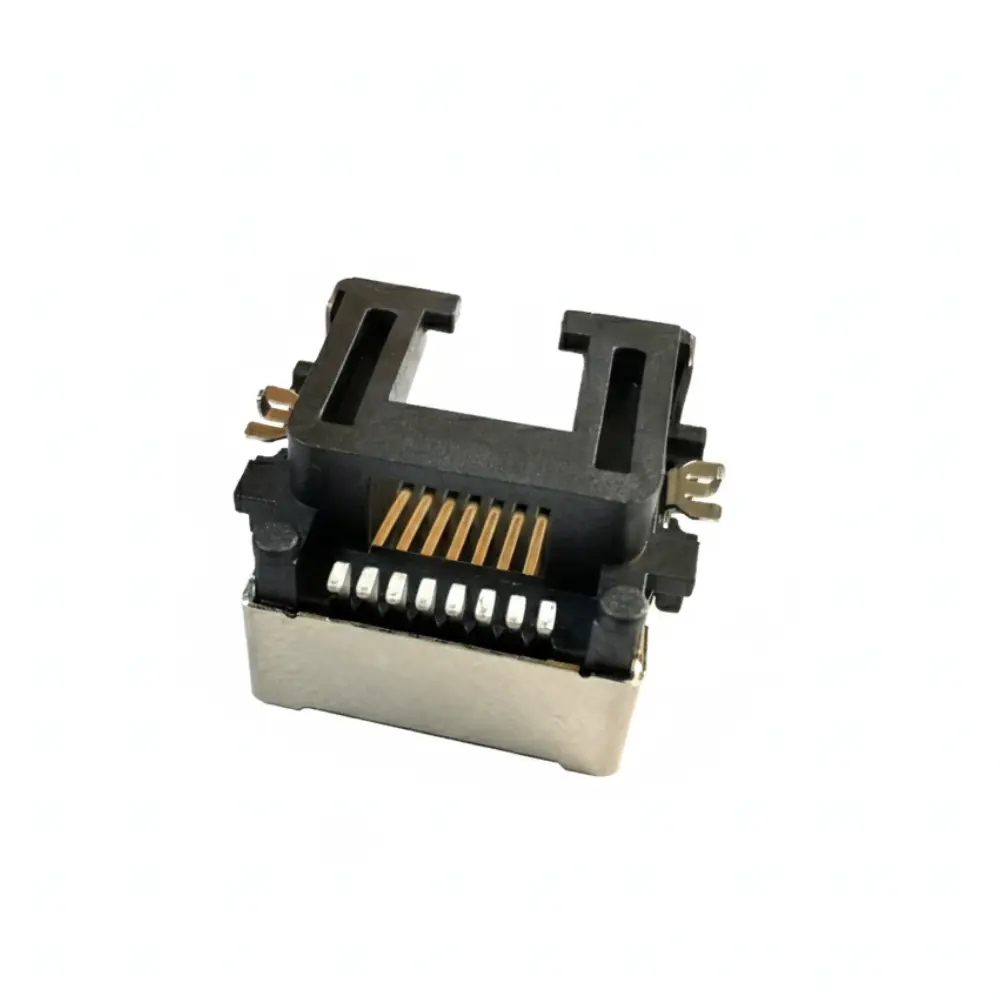

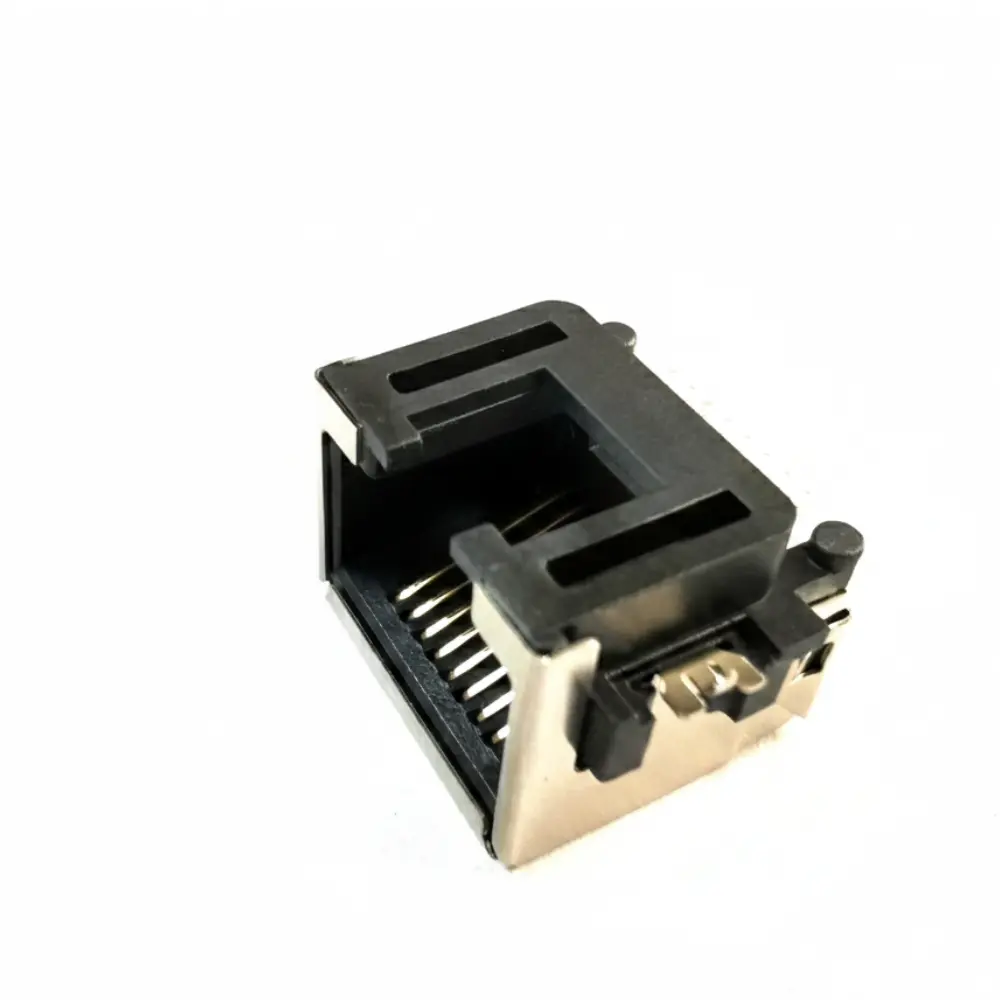

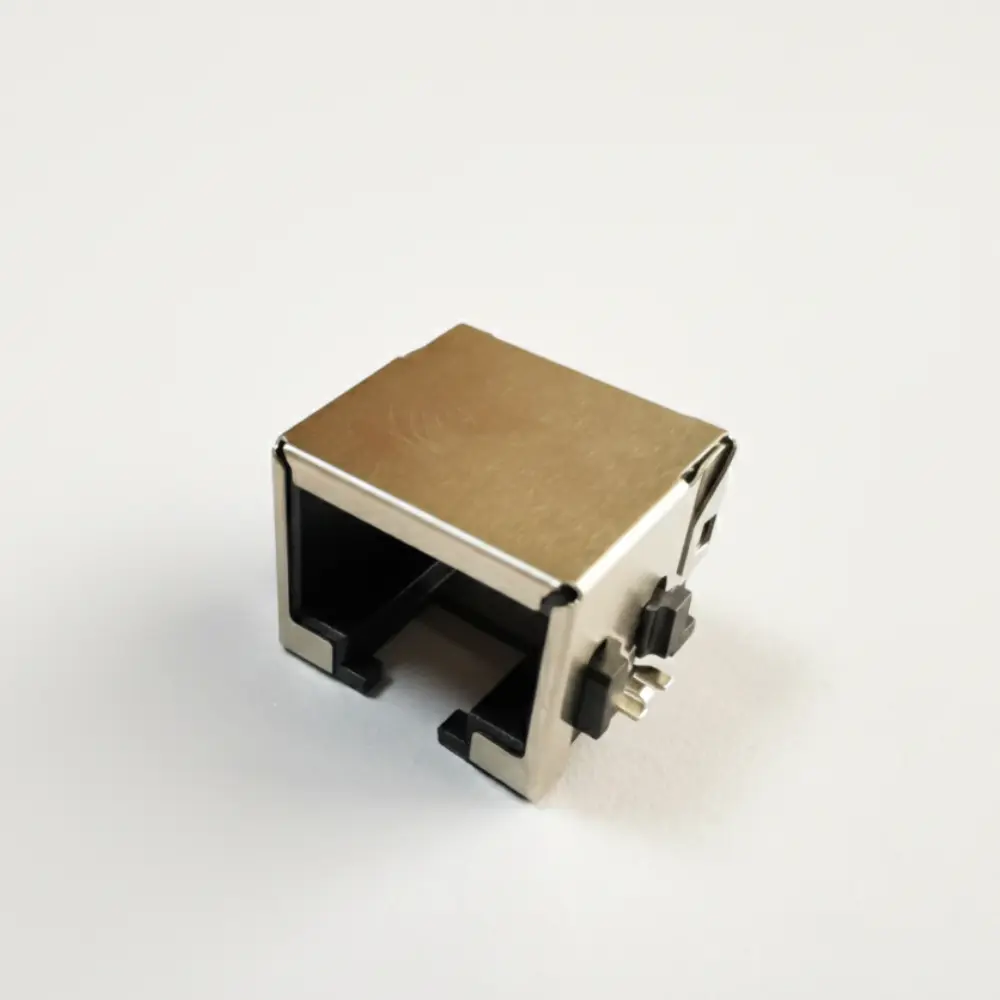

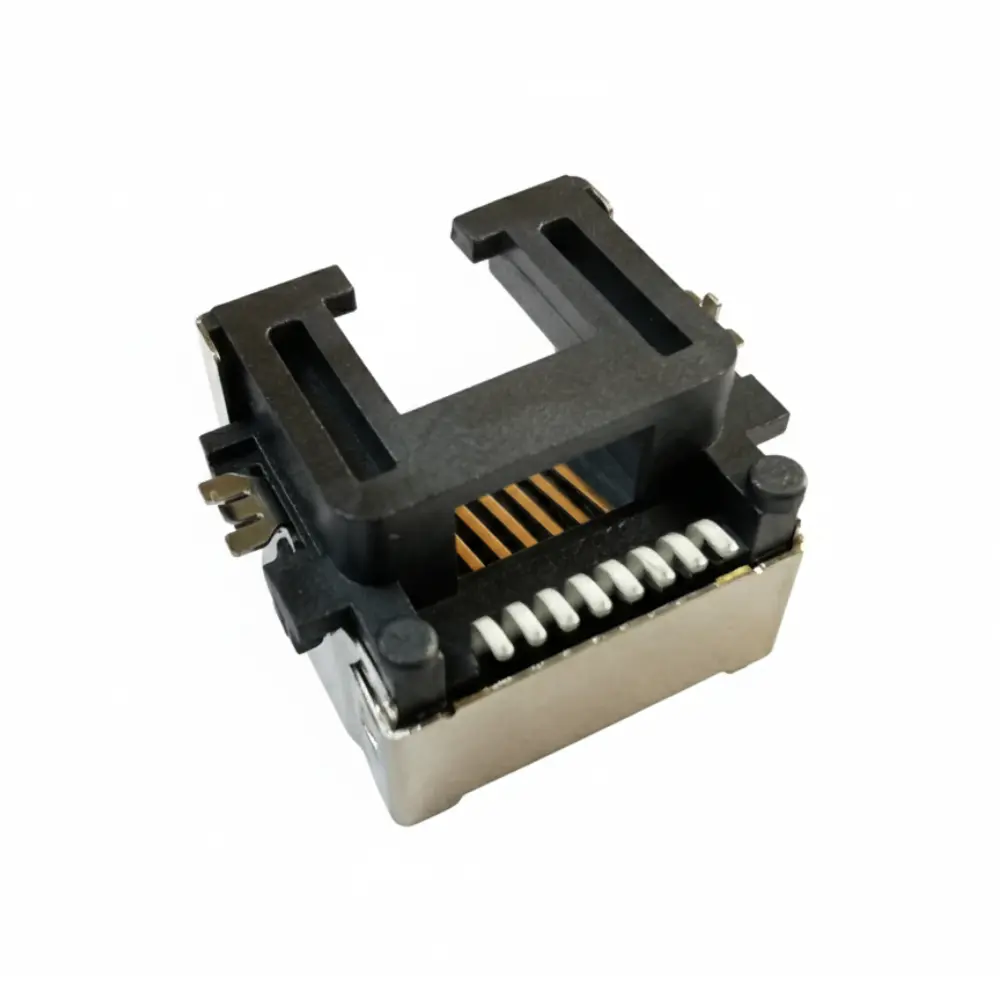

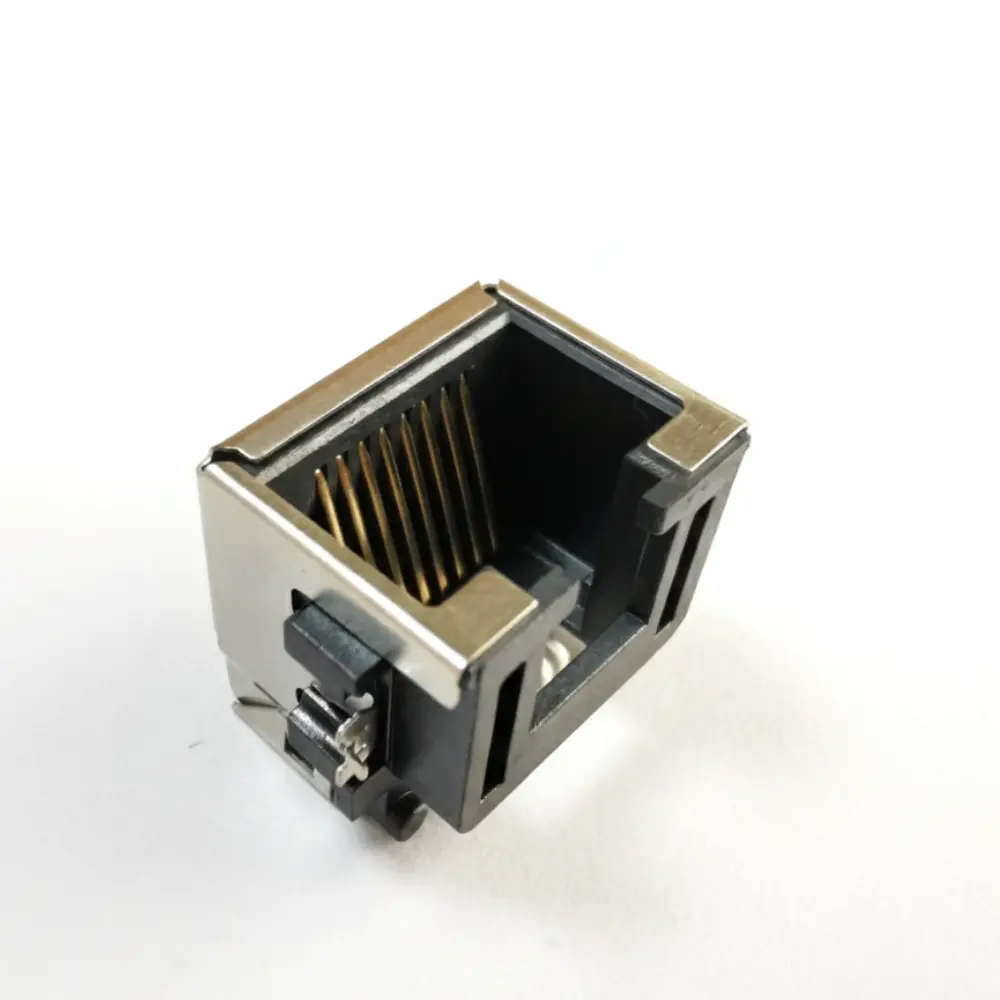

RJ45 Jack Mid Mount | Side Entry, Shielded SMT, Non-Magnetic
I. The Ultra-Low Profile Advantage (The Hook)
Maximize density and minimize vertical profile with our Mid Mount RJ45 Jack. Unlike standard jacks, this innovative design mounts directly into a cutout on the PCB, allowing the connector to sit flush with the board’s surface. This is the ultimate space-saving solution for products where vertical clearance is critical.
II. Engineered for Modern Production
| 1. Basic information | |||
| Status | Active | Category | RJ45 Jack Single Port (1×1 Port) Surface Mount |
| Part Number | DW-RJ45-S001115-01TR-01 | Description | RJ45 Jack, 1×1 port, Mid Mount Type, Side Entry, Shielded, Without LED and EMI, Non-magnetic, Tape Reel |
| Product Name | Modular Jack Right Angle (Side Entry) | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | No |
| Type | Socket | EMI | No |
| Width | 17.00 mm | Height | 11.45 mm |
| Length | 13.05 mm | Installed height | 8.60 mm |
| Material (Metal surface contact area top layer) | Gold / Au | Material (Metal surface contact area middle layer) | Nickel /Ni |
| Material (Metal surface soldering area top layer) | Gold / Au | Material (Metal surface soldering area middle layer) | Nickel /Ni |
| Material – Resin | LCP UL94V-0 | Material – Metal | Phosphor Bronze |
| Mating Force | 3.06 kg.F Max | Retention Strength | 4.9 kg.F |
| Customs tariff number | 8536901100 | Country of origin | CN |
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation | Right Angle (Side Entry) |
| Positions / Loaded Contacts | 8P8C | Lightpipes/LEDs | No |
| Packaging | Tape Reel | Termination Interface | Through-Hole |
| Port Configuration | 1×1 | Latch / Tab orientation | Tab-Down |
| Durability (mating cycles max) | 750 | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.02 mm |
| PCB Thickness – Recommended | 1.6 mm | Pitch – Termination Interface | 1.02 mm |
| Lead time (Days) | 15 | Key Words | Ethernet Connectors, Modular Jack, Shielded Ethernet Connector, Ethernet RJ45 Connector, PCB Mount Jack |
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC | Operating Temperature | -40°C to +85°C |
| Insulation resistance | ≥1000MΩ | Storage Temperature | -10°C to +45°C |
| Lead-Free Process Capability | Yes | Classification temperature, T₍c₎ | 260°C |
