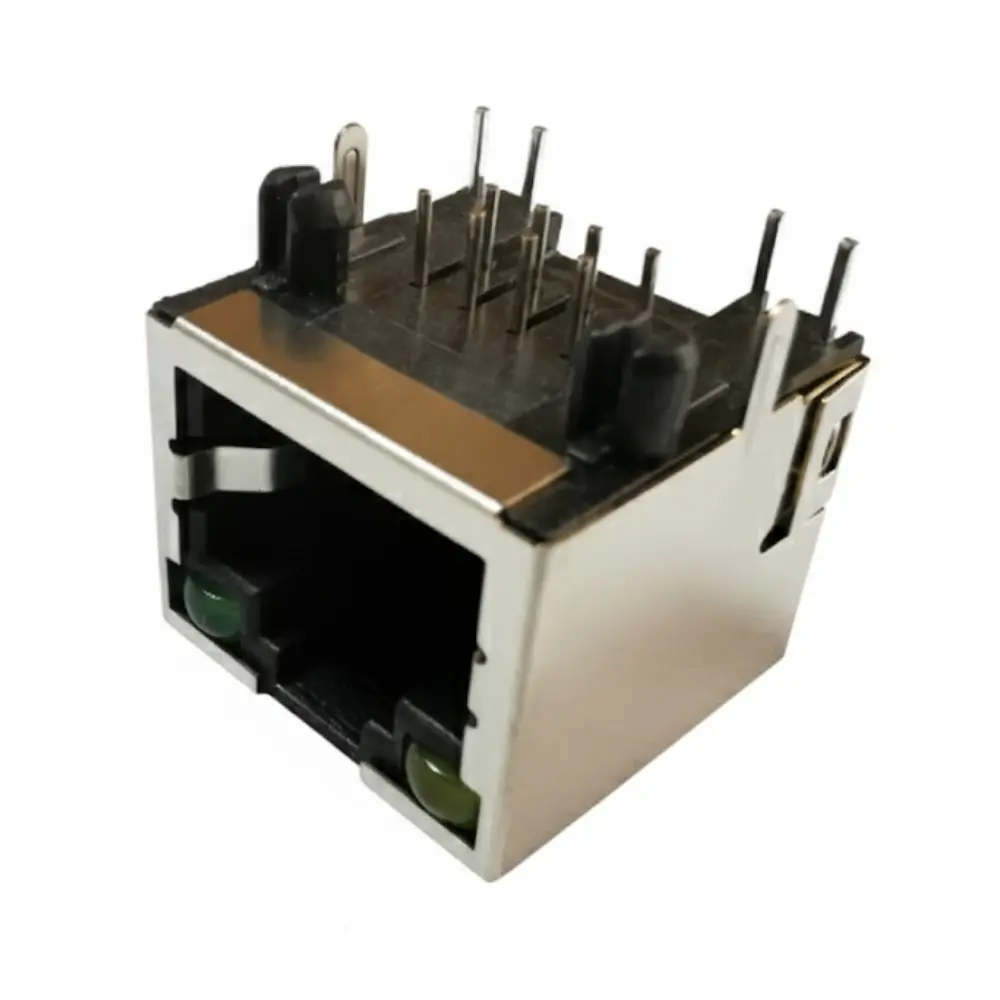

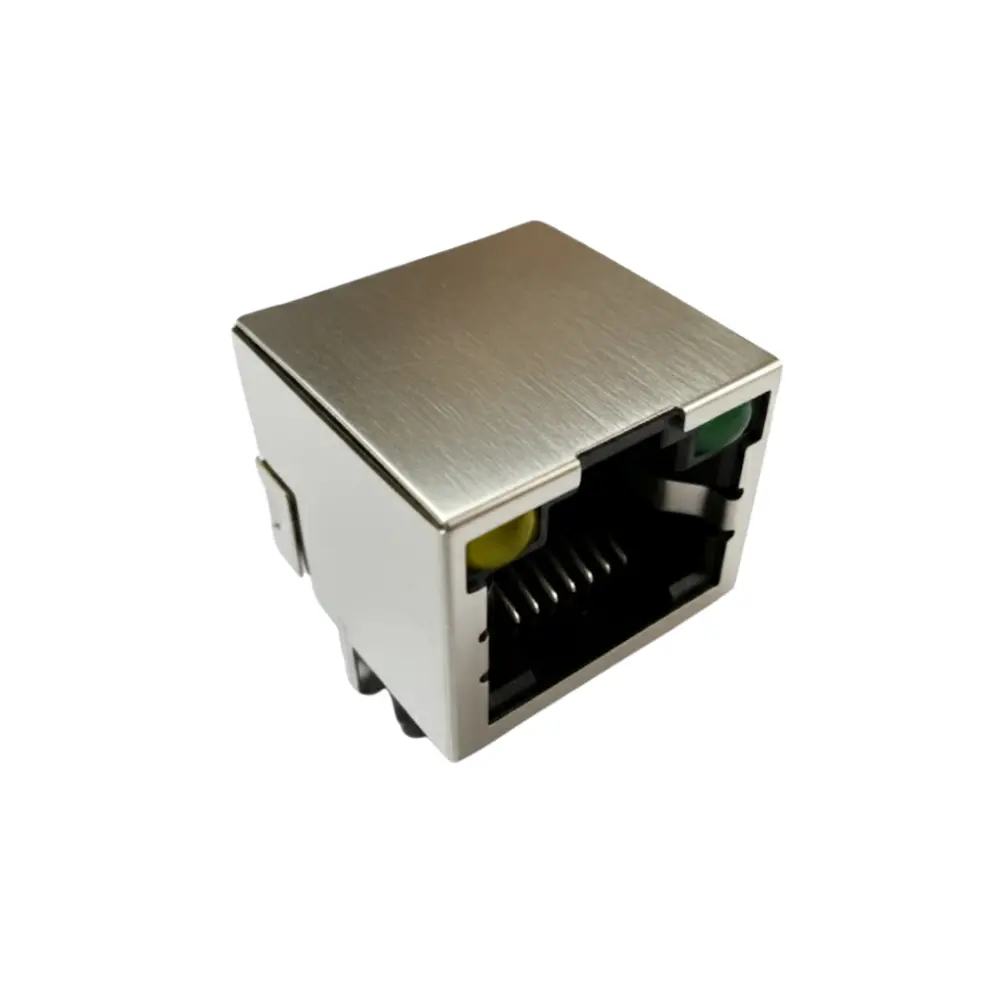

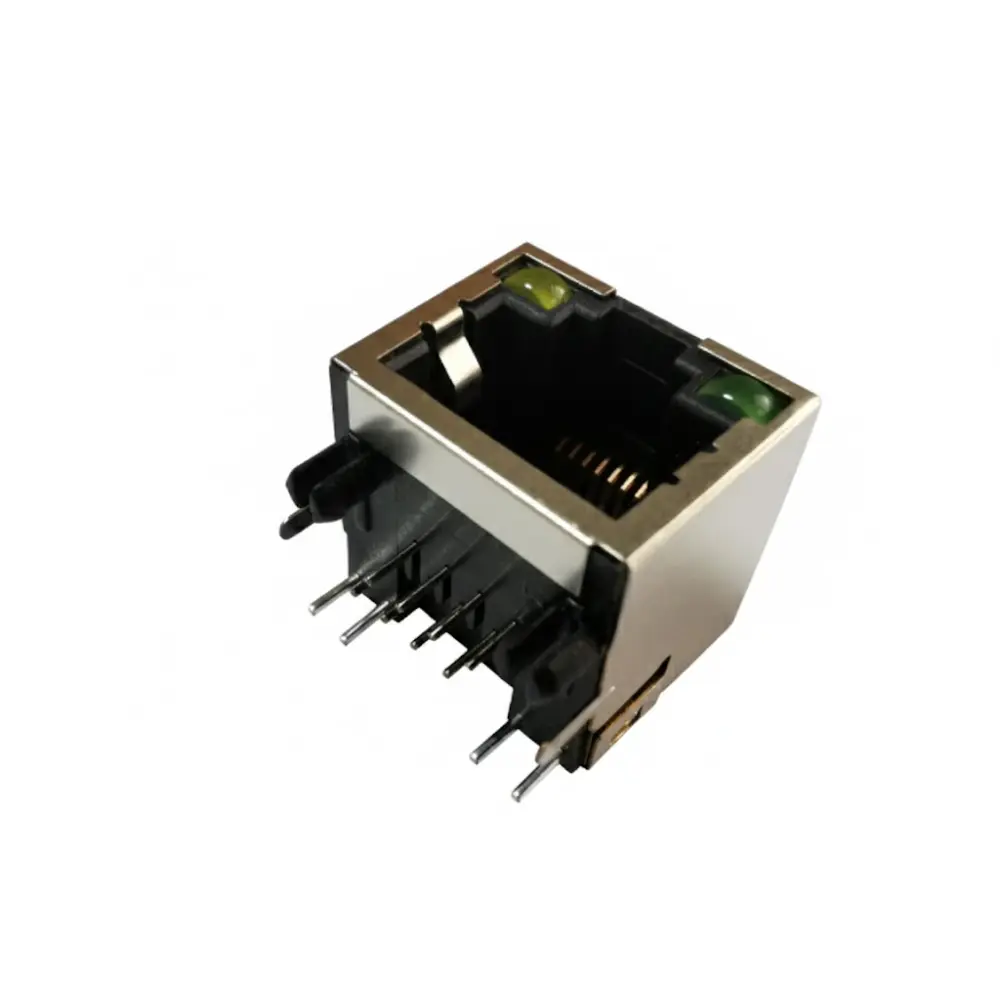

Single-Port RJ45 Modular Jack 1×1 8P8C Tab-Up Shielded DIP with LED
Key Features at a Glance:
Shielded for EMI protection: Nickel-plated brass housing ensures clean data transmission.
Integrated LEDs: Left (yellow) and right (green) indicators for link/activity status.
Durable design: Rated for ≥750 mating cycles and 1.5A / 125V AC operation.
Tab-Up configuration: Space-efficient vertical design for PCB integration.
Wave solder compatible: 255–265°C, 10-second peak for reliable assembly.
RoHS / REACH compliant: Fully meets EU environmental standards.
Highlights: 1×1 8P8C shielded, tab-up, DIP type with LED; gold-plated contacts; durable PA46 housing; EMI protection; 750-cycle lifespan.
Applications: Routers, Ethernet switches, access control panels, IoT gateways, industrial control boards.
Single-Port RJ45 Modular Jack 1×1 8P8C Tab-Up Shielded DIP with LED is a reliable, high-performance network connector designed for professional LAN interface applications. Featuring a tab-up orientation, this connector simplifies PCB layout and cable management in space-constrained network equipment. The jack integrates LED indicators (left: yellow, right: green) for real-time link and activity status monitoring, making it ideal for Ethernet switches, routers, and communication modules.
| 1.Basic Information | |||
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-D00192-01TP-01 | Description | RJ45 Jack, 1×1 port, with Shielded, 8P8C, DIP, Tab-Up. |
| Product Name | RJ45 1-Port W/LED Tab-Up | Magnetic | No |
| Component Type | PCB Jack | Lead time | 7~15 days |
| Type | Socket | Height | 13.21 mm |
| Width | 16.25 mm | Installed height | 14.81 mm |
| Length | 15.60 mm | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface contact area top layer) | Gold | Material (Metal surface soldering area top layer) | Nickel |
| Material (Metal surface soldering area) | Tin | PCB Retention | Yes |
| Mating Force | 30N Max | Country of origin | CN |
| Customs tariff number | 85366930 | ||
| 2. Product Properties / Physical | |||
| Field | Value | Orientation | Right Angle |
| Color – Housing | Black | Lightpipes/LEDs | Yes (Green & Yellow), Single Color |
| Positions / Loaded Contacts | 8P8C | Termination Interface | DIP |
| Packaging | Tray | Inverted / Top Latch | Yes |
| Port Configuration | 1×1 | Material – Resin | PA46 UL94V-0 |
| Durability (mating cycles max) | 750 | Material – Metal | Phosphor Bronze |
| Jack Height | 13.21 mm | PCB Retention | Yes |
| Material – Plating Termination | Tin | Pitch – Mating Interface | 1.02 mm |
| Net Weight | – | Key Words | RJ45 JACK, Modular Jack, Through-Hole RJ45 Connector, RJ45 Connector with LED, Vertical RJ45 Jack, Single port RJ45 Jack, Shielded RJ45 Connector |
| PCB Thickness – Recommended | 1.60 mm | POE+ | No |
| Pitch – Termination Interface | 1.02 mm | Latch / Tab orientation | Tab-Up |
| EMI | No | ||
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A AMP | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC | Operating Temperature | -40°C to +85°C |
| Insulation resistance | 100MΩ min (DC 500V) | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | WAVE | Classification temperature, T₍C₎ | 255°C – 265°C |
Reliable single-port RJ45 for seamless networking.
Factory-tuned 1×1 8P8C, tab-up, shielded DIP with integrated LEDs—verified on real boards for EMI control, stable link/act status, and drop-in compatibility with major LAN PHYs.
