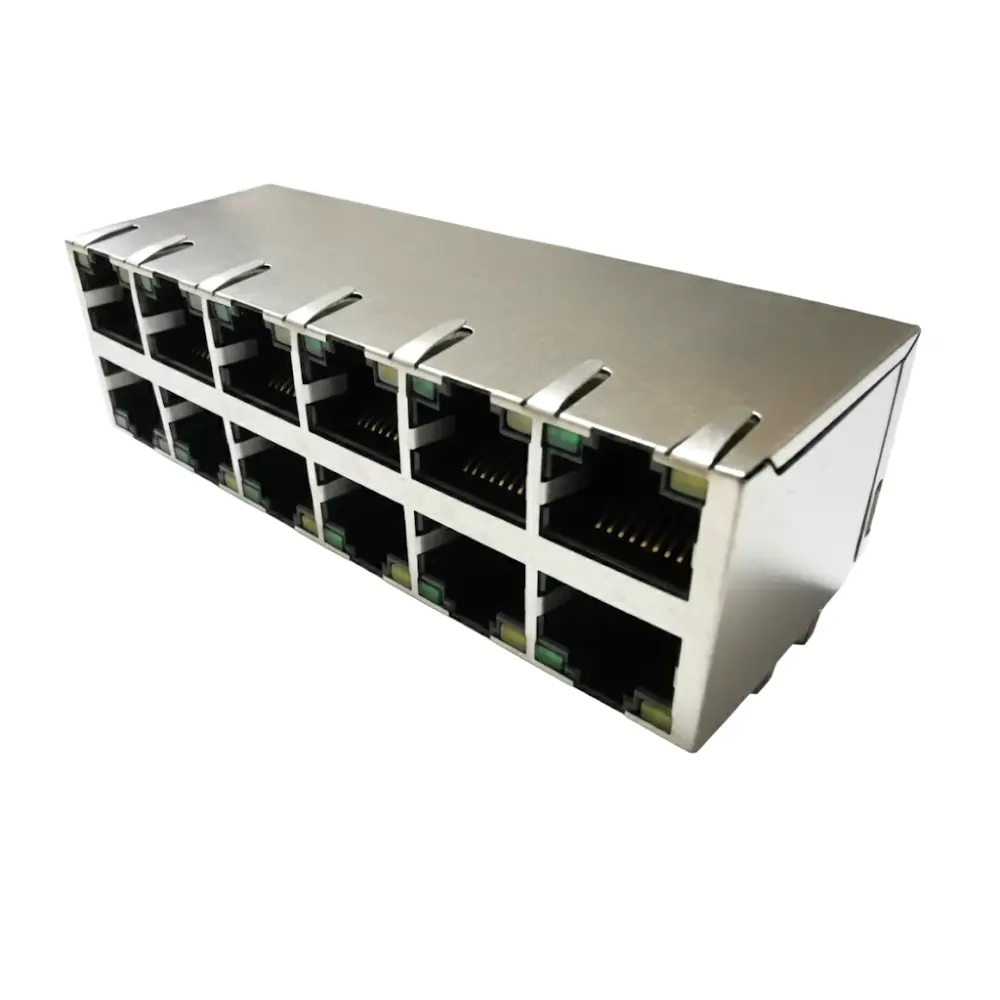

Stacked 2×6 Port DIP Modular RJ45 Jack, Tab-Down 8P8C Shielded with LEDs arranged in two stacked rows, each with six tab-down oriented ports. Designed for DIP (through-hole) mounting, it supports a pitch of 13.98mm between ports and 2.54mm terminal pitch. The connector is shielded by a robust stainless steel shell for EMI protection and features a housing molded from flame-retardant black PA46 and PBT (UL94V-0 rated)
Highlights : 12-port stacked RJ45 connector with LEDs, Stainless steel shielding ensures strong EMI protection, High-temperature housing with UL94V-0 flame retardance, Multiple contact plating options to meet performance needs, Optimized for space-efficient multi-port PCB layouts
Application : Suitable for Networking equipment, routers, LAN switches, telecommunications systems, set-top boxes, and industrial Ethernet devices.

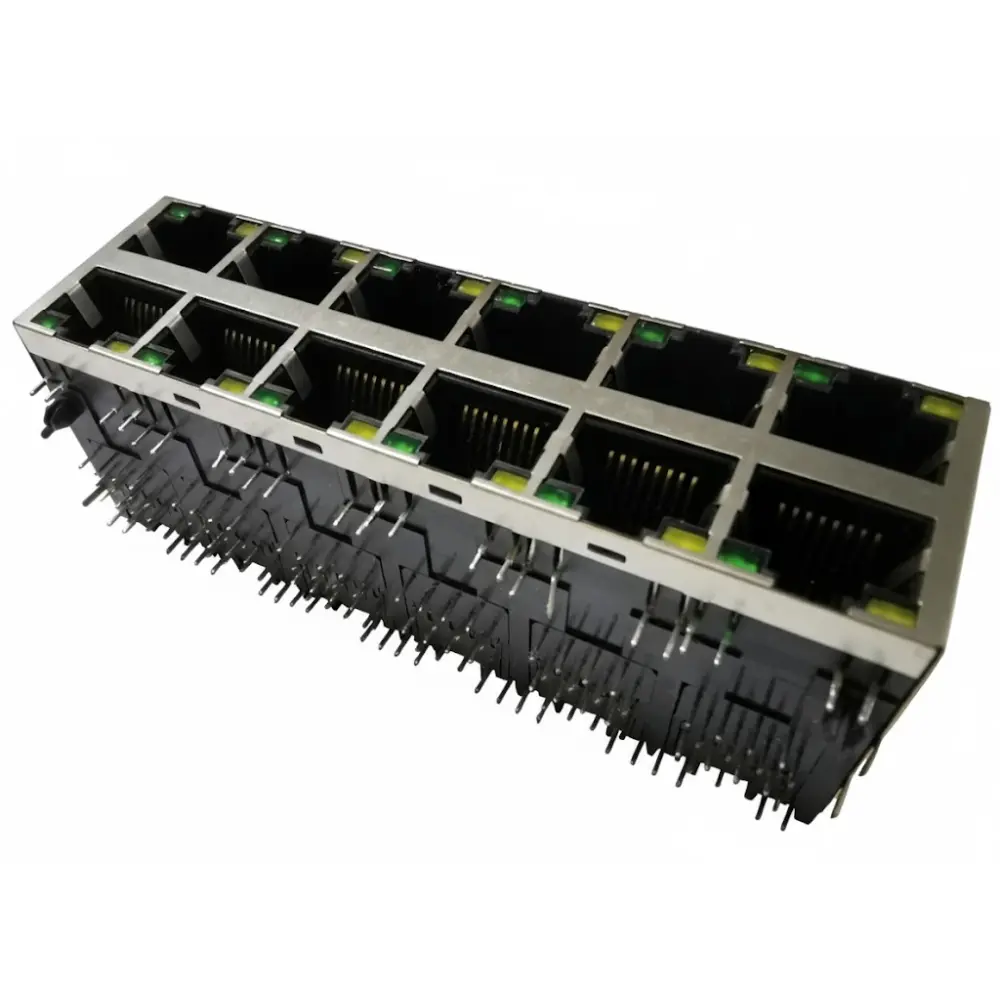

Stacked 2×6 Port DIP Modular RJ45 Jack, Tab-Down 8P8C Shielded with LEDs designed for high-density Ethernet connectivity in routers, LAN switches, and communication systems. Featuring twelve 8P8C ports arranged in two vertical rows, each port is tab-down oriented and equipped with bi-color LEDs to indicate link and activity status.
| 1. Basic Information | |||
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-D0012K13-XXTP-XX-X | Description | RJ45 Jack, 2×6 stacked port, with Shielded and EMI Tabs, with LED (Green/Yellow or customizable), 8P8C, Tab-Down, DIP Type, 13.98mm Pitch |
| Product Name | RJ45 2×6 Tab-Down Shielded w/LED | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 87.18 mm | Height | 25.20 mm |
| Length | 32.50 mm | Installed height | 26.80 mm |
| Material (Metal surface contact area top layer) | Gold | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface soldering area) | Nickel | Material (Metal surface soldering area top layer) | Gold |
| Mating Force | ≤ 30N | PCB Retention | Yes |
| Customs tariff number | 85366930 | Country of origin | CN |
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation | Right Angle |
| Positions / Loaded Contacts | 8P8C 2×6 | Lightpipes/LEDs | Dual LED (Green/Yellow) |
| Packaging | Tray | Termination Interface | DIP |
| Port Configuration | 2×6 | Inverted / Top Latch | No |
| Durability (mating cycles max) | 750 | Material – Resin | Glass Filled PA46 UL94V-0 |
| Jack Height | 25.20 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Tin | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.02 mm |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 JACK, Modular Jack, Multi-Port RJ45 Jack, Shielded RJ45 Connector, Through-Hole RJ45 Connector, RJ45 with LED |
| Pitch – Termination Interface | 2.54 mm | POE+ | No |
| EMI | No | Latch / Tab orientation | Tab-Down |
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC | Operating Temperature | -40°C to +85°C |
| Insulation resistance | ≥500MΩ | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | WAVE | Classification temperature, T₍C₎ | 260°C |
