$0.72

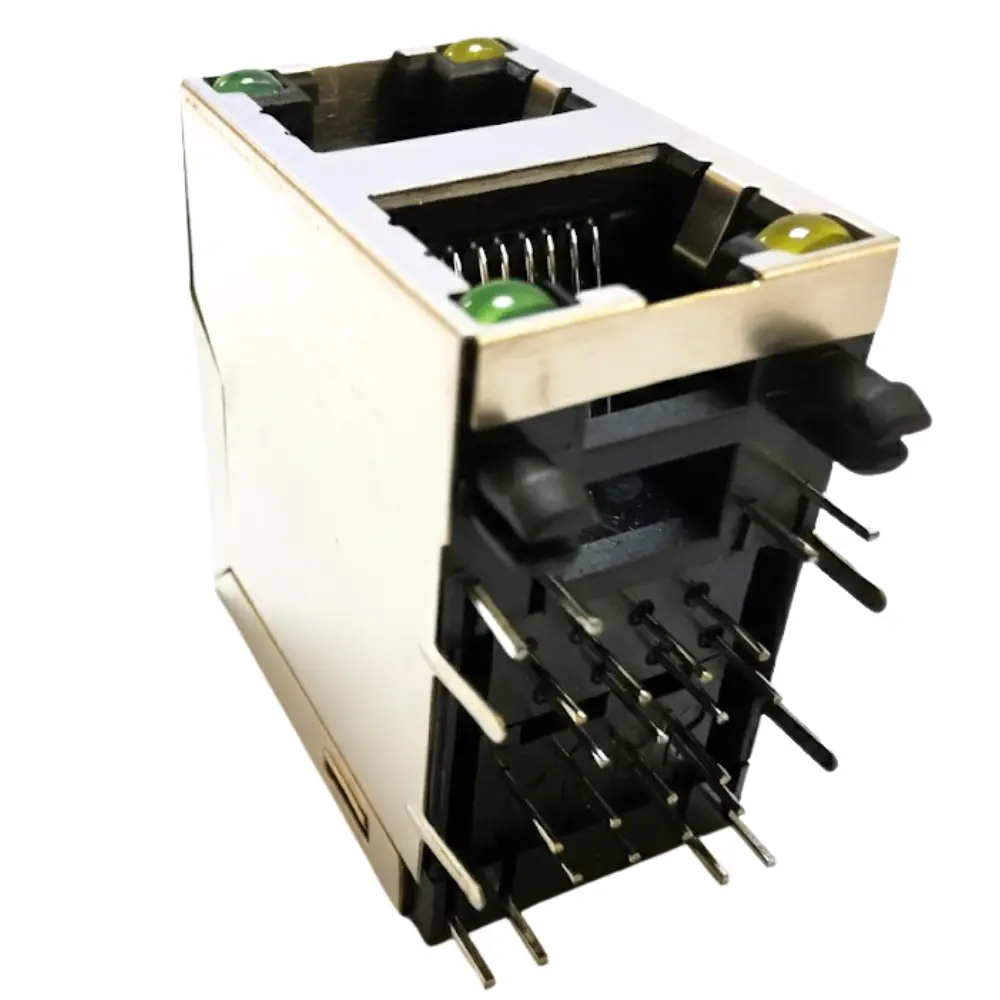

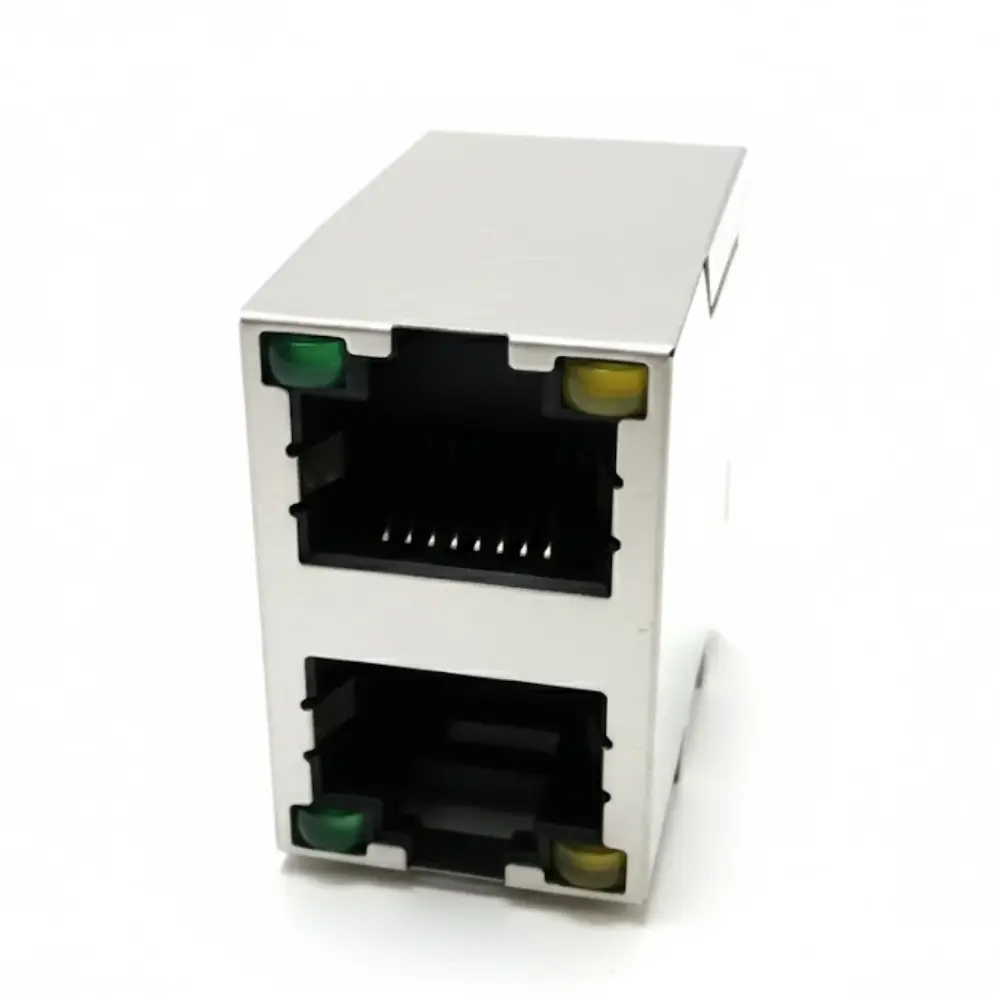

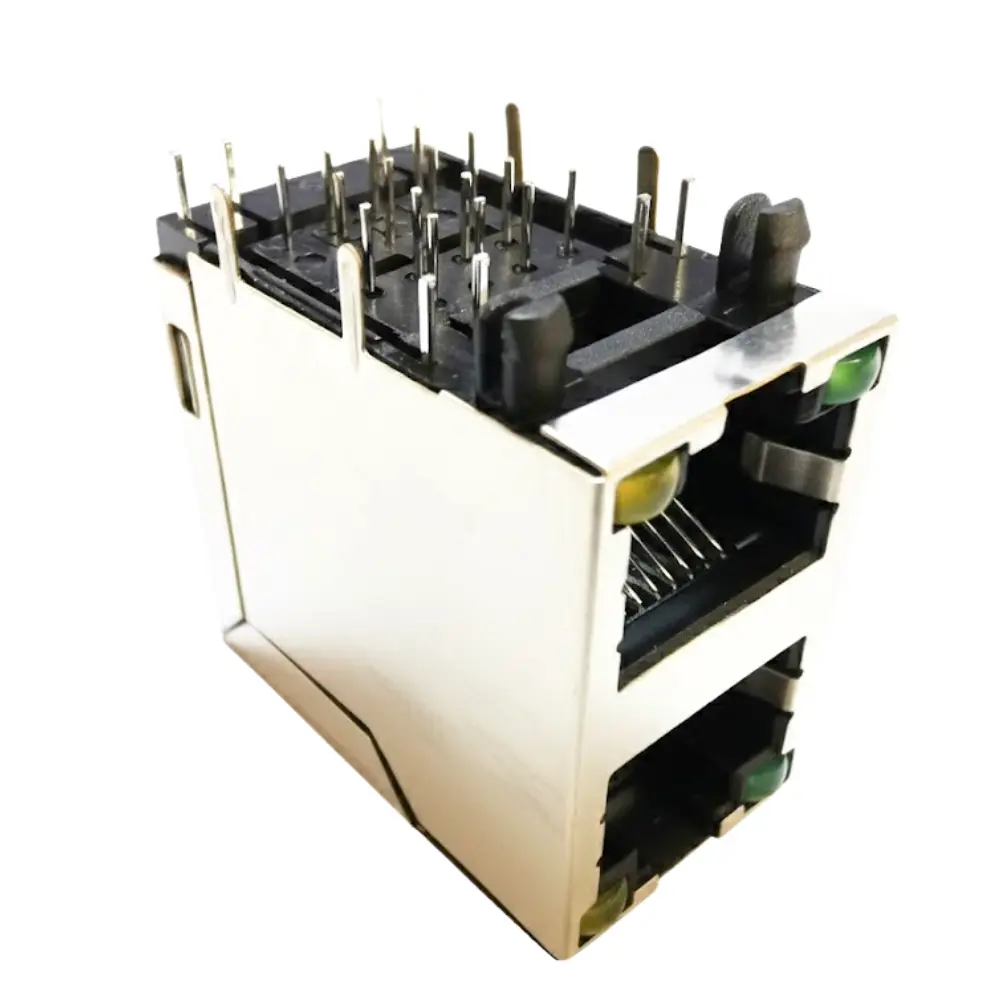

Stacked Dual-Port Modular RJ45 Jack 2×1 DIP Type with LED optimized for through-hole DIP PCB mounting. It features a compact width of 15.75mm and pitch spacing of 1.27mm.
Highlights: Vertical stacked RJ45 design saves board space,Dual LEDs (customizable color configurations),Durable, gold-plated contacts ensure signal integrity, EMI shielded housing for improved noise reduction, Wide operating and storage temperature range
Applications: Ideal for compact networking hardware, smart routers, embedded Ethernet modules, telecom systems, and IoT gateways, this stacked connector delivers robust performance, strong EMI shielding, and visual link indication in a minimal PCB footprint.
Stacked Dual-Port Modular RJ45 Jack 2×1 DIP Type with LED featuring a vertical dual-port configuration designed for through-hole DIP mounting. This compact connector, with a 15.75 mm total width and 1.27 mm pin pitch, provides high-density Ethernet connectivity in space-constrained network equipment.
| 1. Basic Information | |||
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-D00227-06TP-03 | Description | RJ45 Jack, 2×1 stacked port, Right Angle with Shielded and EMI Tabs, with LED, 8P8C, DIP Type |
| Product Name | RJ45 2-Port Shielded w/LED | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 28.20 mm | Height | 13.20 mm |
| Length | 25.40 mm | Installed height | 14.80 mm |
| Material (Metal surface contact area top layer) | Gold | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface soldering area) | Tin | Material (Metal surface soldering area top layer) | Gold |
| Mating Force | ≤ 30N | PCB Retention | Yes |
| Customs tariff number | 85366930 | Country of origin | CN |
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation | Right Angle |
| Positions / Loaded Contacts | 8P8C x2 | Lightpipes/LEDs | Yes (Supports Left + Right LED, Single or Dual Color) |
| Packaging | Tray | Termination Interface | DIP |
| Port Configuration | 1×2 | Inverted / Top Latch | No |
| Durability (mating cycles max) | 750 | Material – Resin | PA46 Black |
| Jack Height | 13.20 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Tin | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.27 mm |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 JACK, Modular Jack, Shielded RJ45 Connector, RJ45 with LED, Through-Hole RJ45 Connector, Right Angle RJ45 Connector |
| Pitch – Termination Interface | 1.27 mm | POE+ | No |
| EMI | Yes | Latch / Tab orientation | Tab-Down |
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC | Operating Temperature | -40°C to +85°C |
| Insulation resistance | ≥500MΩ | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | WAVE | Classification temperature, T₍C₎ | 260°C |
