$0.15

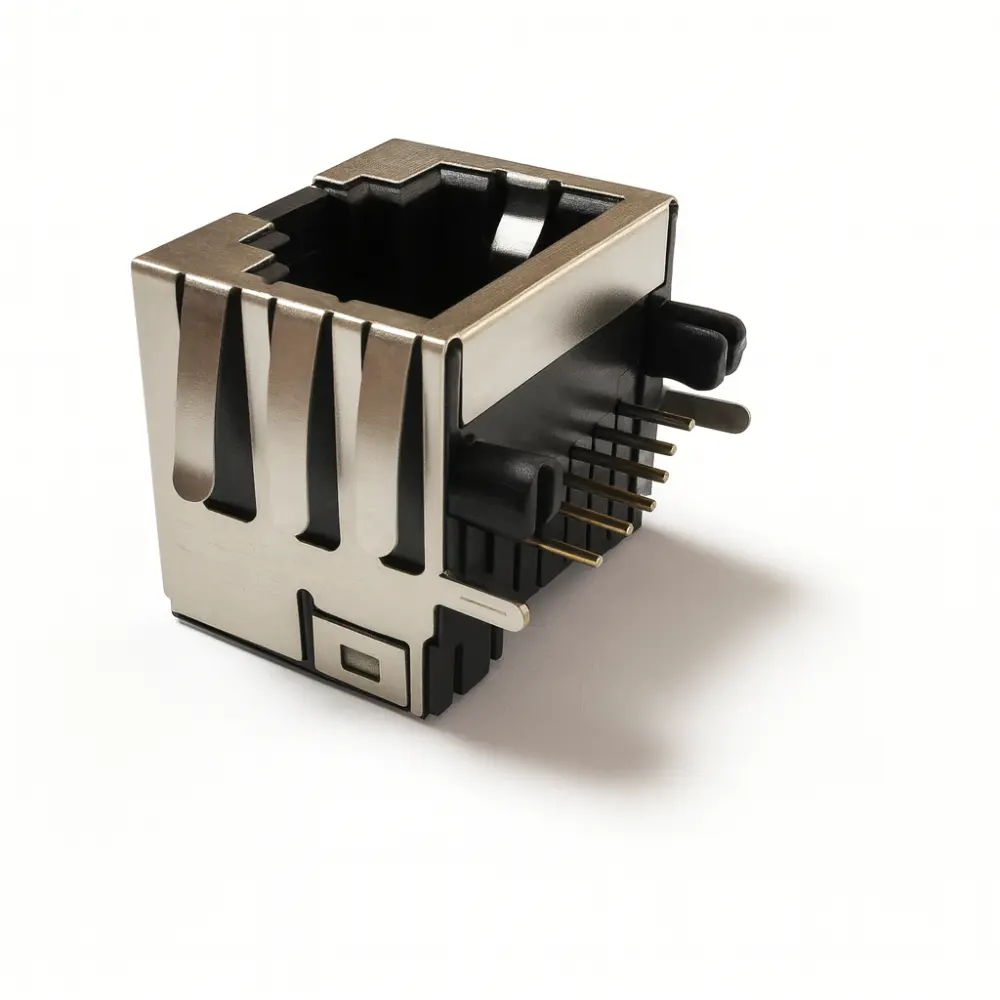

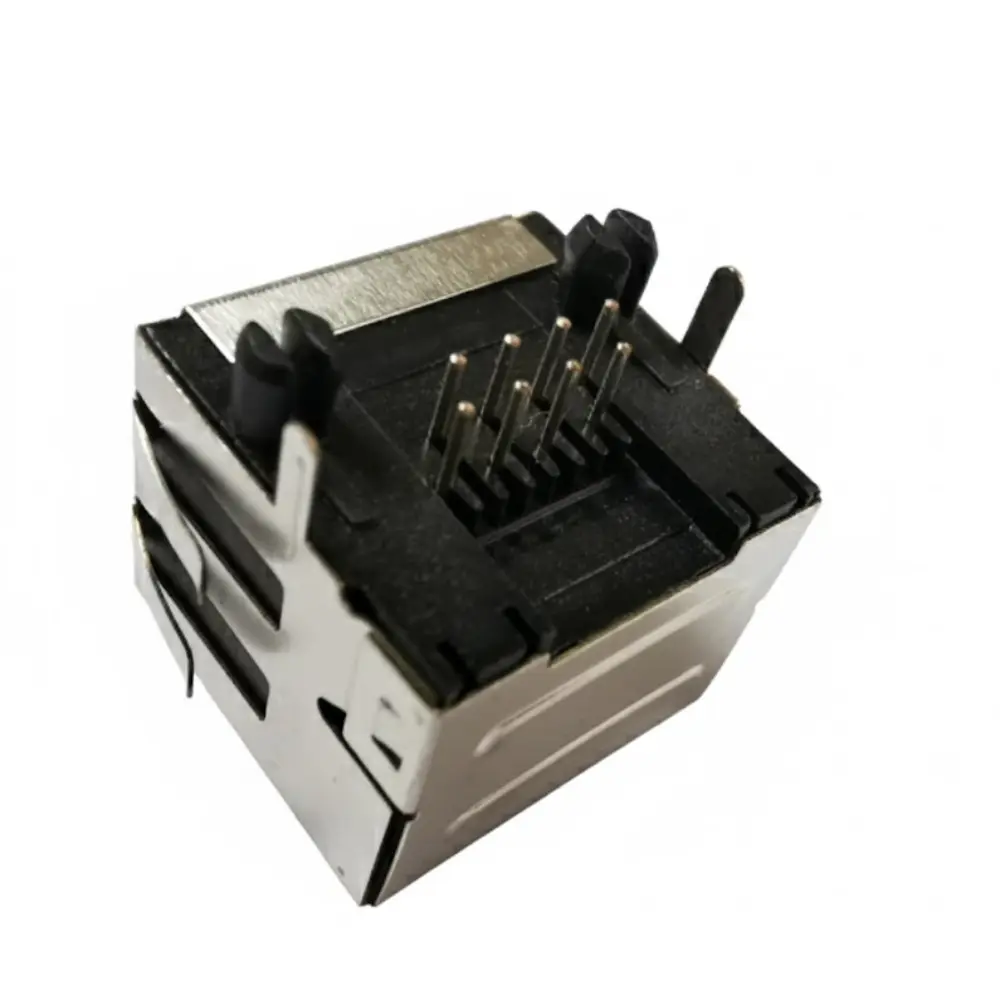

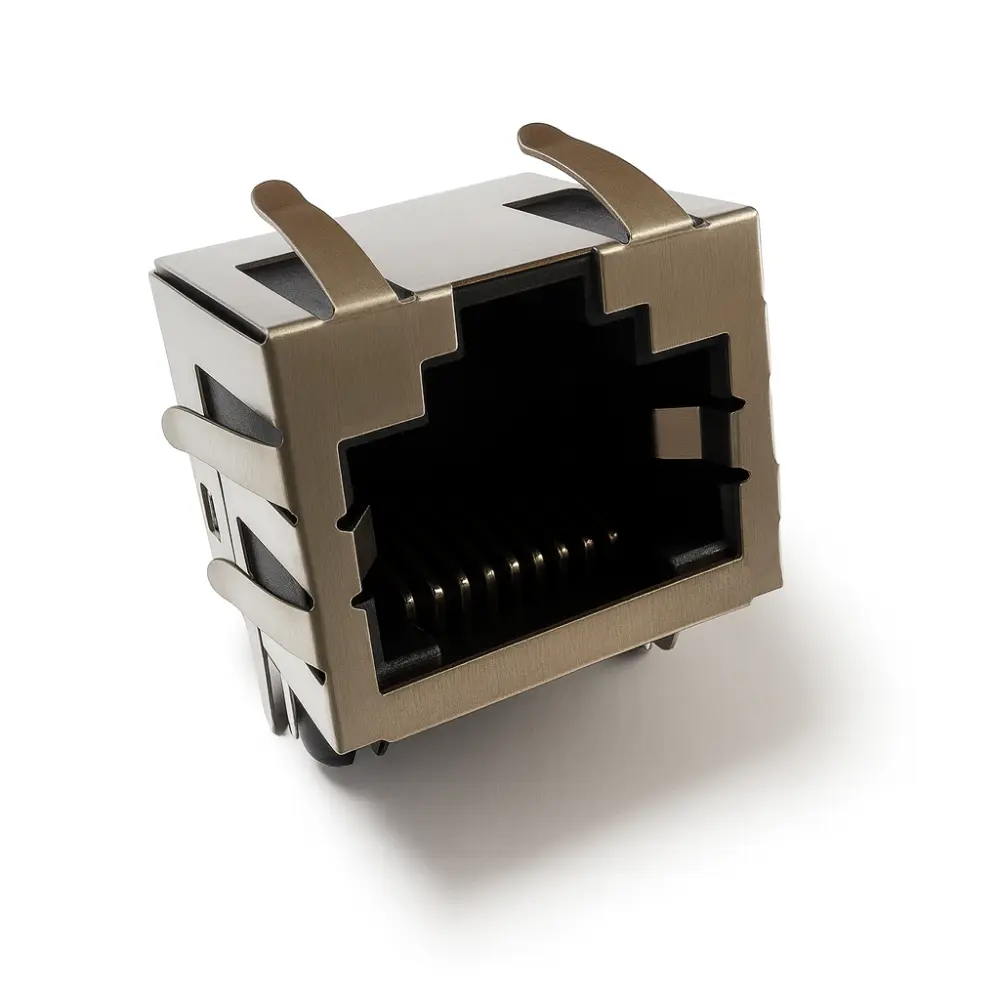

Tab-Up RJ45 Modular Jack, 1×1, Shielded DIP for durable RJ45 links from −40 °C to +85 °C with selectable gold plating. The shielded construction and DIP stakes deliver strong retention, reliable grounding, and stable performance across temperature.
Applications: Networking switches and access routers; Ethernet-enabled embedded systems; PLC/HMI and industrial control boards; media converters; SBC/IoT gateways.
Highlights: 1×1 shielded construction; DIP through-hole design; dimensions 16.3 W × 15.7 D × ~13.05 H mm; panel cutout 17.3 × 14.0 mm; contact gold 3/6/15/30 µin; 750 cycles minimum; 125 VAC, 1.5 A;
Tab-up RJ45 modular jack for Ethernet and general RJ45 applications, single-port (1×1) with through-hole DIP tails for robust wave-solder assembly. The drawing confirms a compact front width 16.3 ±0.25 mm, front opening height ≈13.05 ±0.25 mm, and overall depth 15.7 ±0.25 mm. Suggested metal-panel cutout is 17.3 × 14.0 mm, with the connector seating on the PCB and a PEG/TAB locator for alignment. Recommended PCB layout shows standard RJ45 pin field on 1.02 mm holes and keep-outs for the side EMI feature.
| 1. Basic Information | |||
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-D00196-01TP-01 | Description | RJ45 Jack, 1×1 port, Shielded with EMI, 8P8C, Right Angle, Tab-Up, DIP Type |
| Product Name | RJ45 1-Port W/O LED Tab-Up | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 16.30 mm | Height | 13.05 mm |
| Length | 15.70 mm | Installed height | 13.05 mm |
| Material (Metal surface contact area top layer) | Gold | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface soldering area) | Nickel | Material (Metal surface soldering area top layer) | Tin |
| Mating Force | PCB Retention | Yes | |
| Customs tariff number | 85366930 | Country of origin | CN |
| 2. Product Properties / Physical | |||
| Field | Value | Field | Value |
| Color – Housing | Black | Orientation | Right Angle |
| Positions / Loaded Contacts | 8P8C | Lightpipes/LEDs | W/O LED (option on family) |
| Packaging | Tray | Termination Interface | DIP |
| Port Configuration | 1×1 | Inverted / Top Latch | Yes |
| Durability (mating cycles max) | 750 | Material – Resin | PA46 UL94V-0 |
| Jack Height | 13.05 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Tin over Nickel | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.02 & 2.04 mm (staggered) |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 JACK, Modular Jack, Through-Hole RJ45 Connector, Right Angle RJ45, Single Port RJ45, Shielded RJ45 |
| Pitch – Termination Interface | 2.54 mm | POE+ | No |
| EMI | Yes | Latch / Tab orientation | Tab-Up |
| 3. Electrical | |||
| Field | Value | Field | Value |
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC RMS | Operating Temperature | -40°C to +85°C |
| Insulation resistance | ≥500 MΩ @ 500 VDC | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | WAVE | Classification temperature, T(C) | 260°C |
| Dielectric Withstanding | 1000 VAC RMS, 1 min | ||
