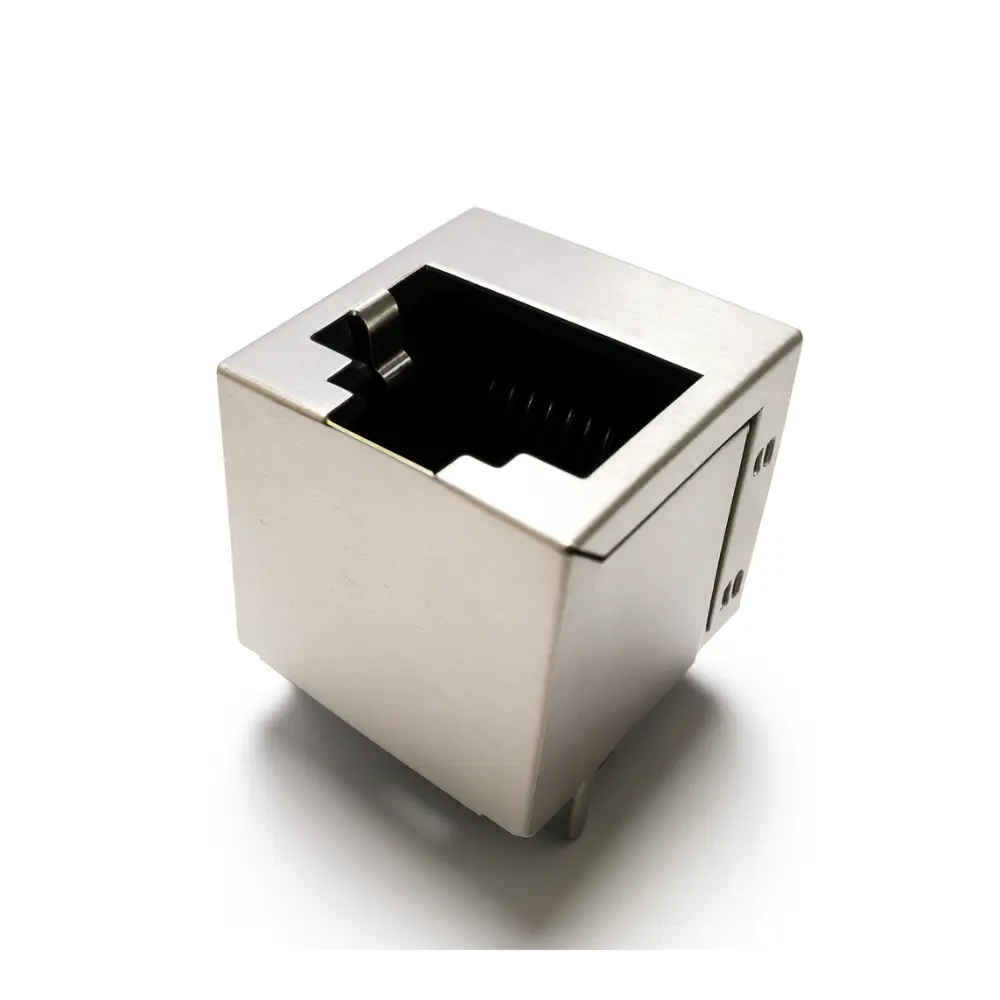

Vertical RJ45 Jack THT | Shielded, 8P8C, Non-Magnetic DW-RJ45-D001100-01TP-01-1

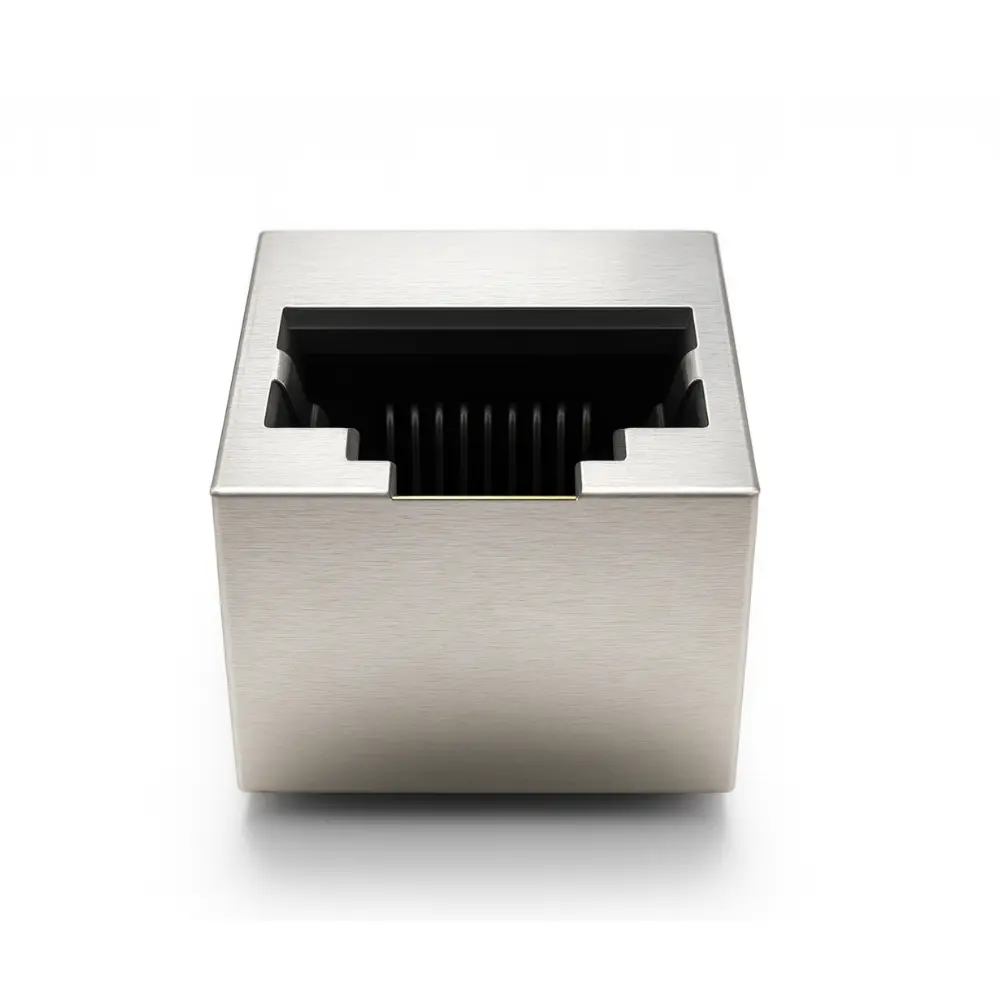

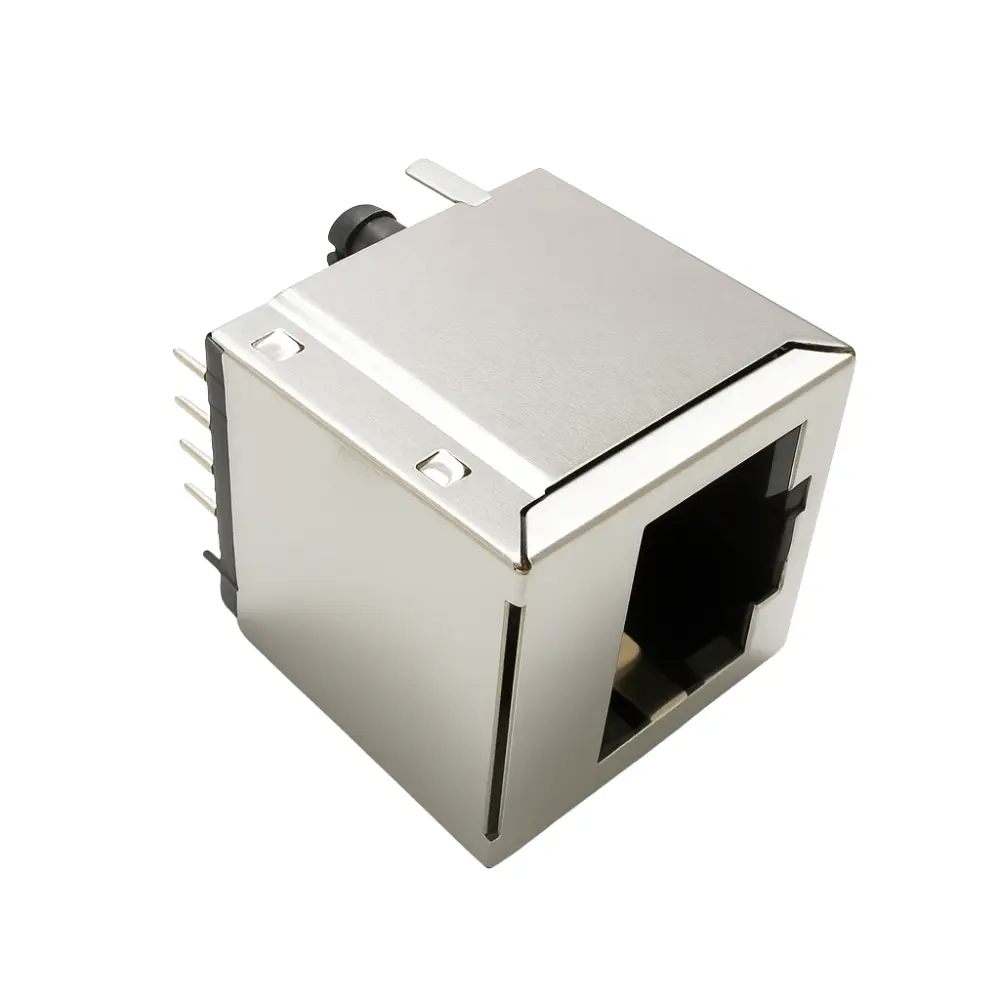

Vertical RJ45 Jack THT | Shielded, 8P8C, Non-Magnetic DW-RJ45-D001100-01TP-01-3

Dragon Well

1 2 3 4 5 0 Review

Vertical RJ45 Jack THT | Shielded, 8P8C, Non-Magnetic

$0.19

Vertical RJ45 Jack THT | Shielded, 8P8C, Non-Magnetic DW-RJ45-D001100-01TP-01
Ideal for Demanding Environments: This highly durable shielded THT connector is the preferred choice for applications requiring exceptional mechanical integrity, including Industrial Control Panels, Network Patch Panels, Server Backplanes, Medical Devices, and Outdoor Kiosks
Applications:

Industrial Control Panels
Server Chassis/Racks
Network Patch Panels
Audio/Visual Equipment
Digital Video Recorders (DVRs)
Custom Gaming Cabinets
Diagnostic Tools

Product Highlight:

Maximum Mechanical Strength: Through-Hole Technology (THT)
Essential Shielding
Vertical, Top-Entry Design
Cost-Effective
Standard 8P8C Configuration

Bulk Purchase, Buy More, Save More

$0.19

100-599

$0.19

600-1199

$0.18

1200-5999

$0.17

6000+

$0.15

Ask A Question

Delivery By 7 November, Friday
If Ordered before Today

Products and Project Inquiry

Free Product Trial

Product Warranty

5-Year Warranty

30-Day Returns

30-Day Exchange

SKU: DW-RJ45-D001100-01TP-01 Categories: RJ45 Jack Single Port (1x1 Port) Through-Hole, RJ45 Jack Single Port (1x1 Port), RJ45 Jacks (Without Magnetics) Tags: 8P8C Jack, Non-Magnetic RJ45, Panel Mount RJ45, Shielded Ethernet Jack, Single Port RJ45, Through-Hole RJ45, THT RJ45 Connector, Top-Entry RJ45, Vertical RJ45 Jack, Without LED Brand: Dragon Well

Guarantee Safe Checkout

Always-On Tech Support

900+ Technical Support and Service Professionals
0.5-Day Average Solution Response Time
On-Site, Remote, Demo, and Online Support Options
Personalized Technical Services Tailored to Each Project

Tech Support >

Global Services Localized for You

7 Local Warehouses Enabling 90% Same-Day Shipping
8 Local Presences Supporting 450K+ Enterprise Clients in Over 200 Countries
Expert Customer Service On Call, 5x24 Phone Support
Local Engineers Provide Professional DW Install Services

DW Install >

End-to-End Product Customization

600+ R&D Experts in Software and Hardware Domains
Hardware Adaptation to Tailor Products and Ensure Seamless Compatibility
Custom Protocol Development Aligned with Unique Business Needs
Management Platform Integration for Device Onboarding and Feature Development

Product Custom >

Description

Vertical RJ45 Jack THT | Shielded, 8P8C, Non-Magnetic,Top Entry, 1×1 port, without LED, Without EMI

Rugged Construction & Stability

Maximum Mechanical Strength: Utilizes Through-Hole Technology (THT) mounting, ensuring the pins are soldered through the PCB for unmatched pull-out force and long-term durability against physical stress.
Secure Vertical Access: The Vertical (Top-Entry) orientation is perfectly suited for panel mounting, providing a stable, upright port ideal for rear-facing access.
Built-in Shielding: Features a robust metal shield for foundational EMI/RFI protection, ensuring signal stability in electrically noisy environments.

Technical Simplicity

Non-Magnetic & Straightforward: This non-magnetic design is a reliable, cost-effective choice when integrated magnetics are handled elsewhere in the circuit, simplifying your power architecture.
Universal Compatibility: 8P8C configuration ensures seamless compatibility with all standard Ethernet patch cables.
Cost-Efficient: As a basic, without LED version, it reduces component cost while still delivering essential networking functionality.

1. Basic Information
Status	Active	Category	RJ45 Jacks (Without Magnetics) Single Port (1×1 Port)
Part Number	DW-RJ45-D001100-01TP-01	Description	RJ45 Connectors, Vertical (Top Entry), 1×1 port, Shielded, 8P8C,Through-hole, without LED, Without EMI,without Magnetics
Product Name	Modular Jack Vertical (Top Entry)	Magnetic	No
Component Type	PCB Jack	Power over Ethernet (PoE)	N/A
Type	Socket	Shielded	Yes
Width	16.65 mm	Height	16.40 mm
Length	16.00 mm	Installed height	16.40 mm
Material (Metal surface contact area top layer)	Gold / Au	Material (Metal surface contact area middle layer)	Nickel / Ni
Material (Metal surface soldering area Top layer)	Gold / Au	Material (Metal surface soldering area middle layer)	Nickel / Ni
Material – Plating Termination	Gold / Au	Material – Resin	PA46 UL94V-0
EMI	No	Material – Metal	Phosphor Bronze
Mating Force	2.2KG.F MAX	PCB Retention	Yes
Customs tariff number	8536901100	Country of origin	CN
2. Product Properties / Physical
Color – Housing	Black	Orientation	Vertical (Top Entry)
Positions / Loaded Contacts	8P8C	Lightpipes/LEDs	None
Packaging	Tray	Termination Interface	Through-hole
Port Configuration	1×1	PCB Retention	Yes
Durability (mating cycles max)	600	Lead time (Days)	15
Net Weight	–	Latch / Tab orientation	Tab-Up
PCB Thickness – Recommended	1.60 mm	Pitch – Mating Interface	1.02 mm
Pitch – Termination Interface	1.02 mm	Key Words	RJ45 JACK, Modular Jack, Shielded RJ45 Connector, Vertical RJ45 Jack, Single port RJ45 Jack, THT RJ45 Connector, Shielded Ethernet Jack
3. Electrical
Current – Maximum per Contact	1.5A Max	Grounding to Panel	Yes
Grounding to PCB	Yes	Operating Temperature	-40°C to +85°C
Voltage – Maximum	125V AC	Storage Temperature	-10°C to +40°C
Insulation resistance	≥500MΩ	Classification temperature, T₍C₎	260°C
Lead-Free Process Capability	WAVE
