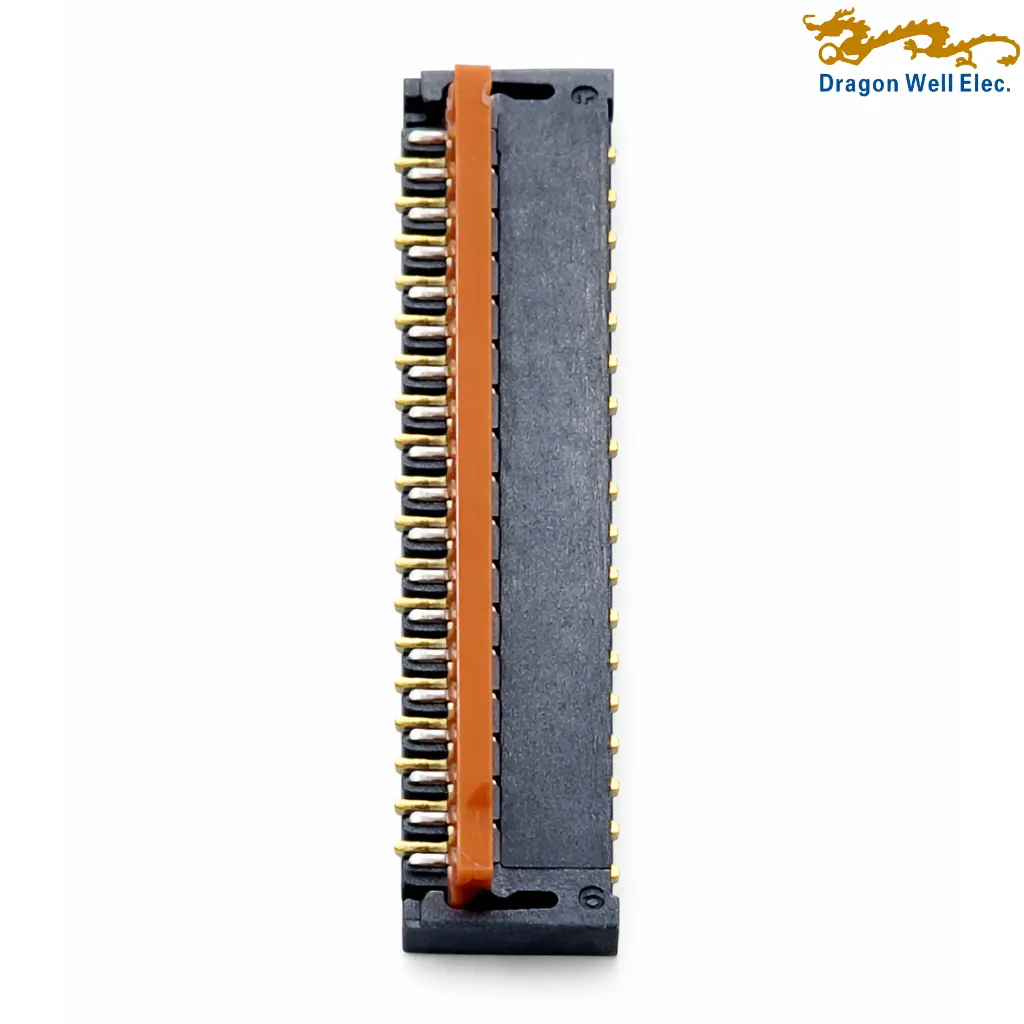

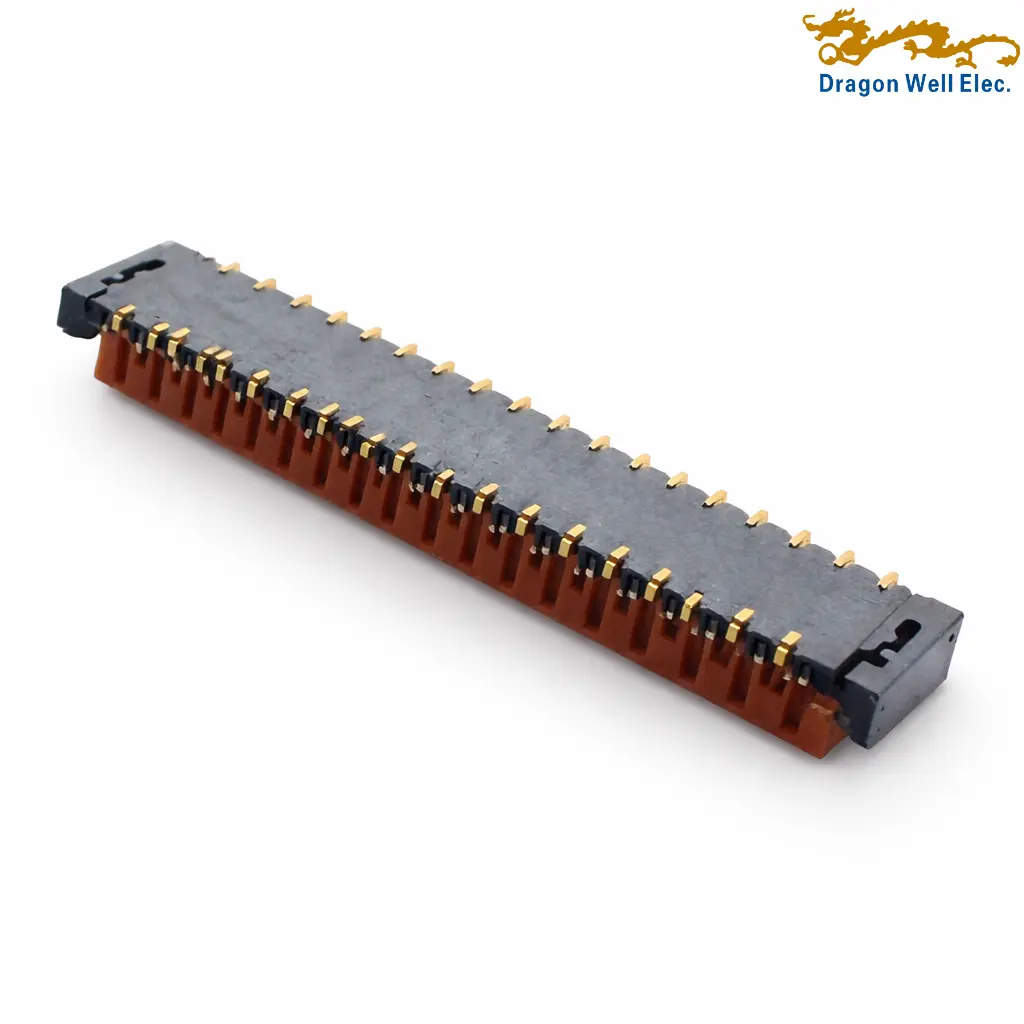

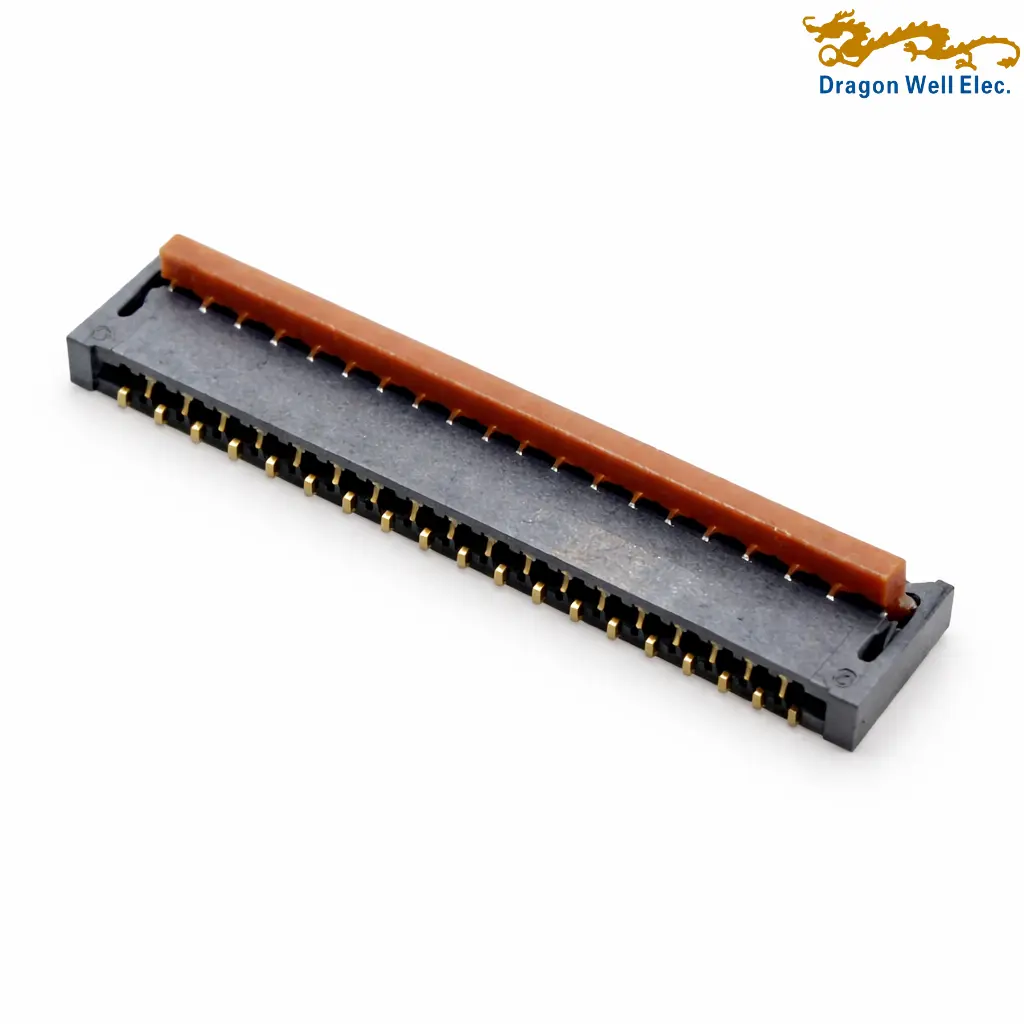

0.3mm pitch back-flip FPC connector 31 pin 0.9mm height for ultra-compact FPC interconnection, designed with a 0.30mm pitch, back-flip actuator, and low-profile 0.9mm height for precision PCB applications. Based on the drawing, this connector supports 0.2A current, 50V AC rating, and uses UL94V-0 high-temperature plastic housing and cover with copper alloy contacts for reliable fine-pitch cable connection.
• Applications: Display modules, camera modules, wearable devices, handheld electronics, compact consumer electronics, embedded control boards, medical electronics, precision FPC interconnection.
• Highlights: 0.30mm pitch FPC connector; back-flip type; 0.9mm height; 31-pin version shown; 0.2A current rating; 50V AC voltage rating; copper alloy contacts; high-temperature UL94V-0 housing and cover; gold-plated contact area per part number; RoHS compliant.
0.3mm pitch back-flip FPC connector 31 pin 0.9mm height is an ultra-fine-pitch board connector designed for compact FPC connection in slim electronic devices, display assemblies, camera modules, and other space-limited PCB applications. Based on the drawing, this product is a 0.30mm pitch FPC connector with a back-flip locking structure, 0.9mm profile height, and a 31-pin version in the shown model/file. The drawing title also identifies it as a 0.3 pitch 0.9H FPC (back-flip) custom type.
This 0.3mm pitch back-flip FPC connector 31 pin 0.9mm height is designed for fine-pitch flexible cable termination where compact size and secure cable retention are important. According to the notes in the drawing, the connector has a current rating of 0.2A and a voltage rating of 50V AC. The specified operating temperature range is -55°C to +85°C, supporting use in demanding electronic environments.
This 0.3mm pitch FPC connector uses a back-flip actuator for cable locking and is suitable for compact electronic products that require fine-pitch FPC interconnection, such as display modules, camera boards, wearable devices, handheld equipment, and other precision PCB assemblies. The drawing also confirms RoHS compliance.
| General | |||
| Status | Active | Category | FPC Connector |
| Model No. | DW-FPC-S03021531P-01TR-01 | Description | 0.30 mm pitch, 0.9 mm height, back-flip FPC connector, 31-pin, SMT |
| Component Type | Receptacle | Product Name | FPC Connector |
| RoHS | Compliant | Packaging | Tape Reel |
| Electrical | |||
| Current Rating | 0.2A | Voltage Rating | 50V AC |
| Operating Temperature | -55°C to +85°C | Contact Resistance | — |
| Insulation Resistance | — | Withstanding Voltage | — |
| Temperature Range | -55°C to +85°C | Electrical Specification | — |
| Physical | |||
| Number of Contacts | 31 | Contact Pitch | 0.30 mm |
| Mounting Type | Surface Mount | Actuator Type | Back-Flip |
| Profile Height | 0.90 ± 0.10 mm | Connector Height | 1.84 mm |
| Compatible FPC Thickness | 0.20 ± 0.02 mm | Insertion Length | 3.00 ± 0.50 mm |
| Contact Material | Copper Alloy, T=0.10 mm | Housing Material | High-Temp Plastic, UL94V-0 |
| Housing Color | Black | Cover Material | High-Temp Plastic, UL94HB |
| Cover Color | Brown | Contact Plating | Gold Flash on contact area and solder area |
| Nickel Underplating | 60~120u” Nickel Underplated Overall | Metal Mask Thickness | 0.05 mm |
| Plating Code | 1 | Series | wire to board |
