0.50 mm pitch vertical FPC connector 30 pin SMT with H=4.0 mm profile height, 0.30 ± 0.03 mm applicable flat cable thickness, LCP UL94V-0 housing, copper alloy contacts, tin-plated finish, and tape reel packaging. Designed for compact PCB applications requiring reliable vertical FPC/FFC cable connection.
Applications:
• Consumer electronics
• Display modules
• Communication terminals
• Industrial control boards
• Embedded PCB assemblies
• Smart devices and compact electronic equipment
• FPC/FFC cable-to-board connection
Highlights:
• 0.50 mm pitch vertical FPC/FFC connector
• 30-pin receptacle type
• SMT surface mount termination
• H=4.0 mm profile height
• Applicable flat cable thickness: 0.30 ± 0.03 mm
• Cable insertion length: 3.0 mm minimum
• Rated current: 0.5 A
• Rated voltage: 50 V AC
• Contact resistance: 30 mΩ max.
• Insulation resistance: 500 MΩ min.
• Withstanding voltage: 150 V AC / 1 minute
• LCP UL94V-0 housing material
• Copper alloy contacts with tin-plated finish
• RoHS compliant
• Tape reel packaging for SMT assembly

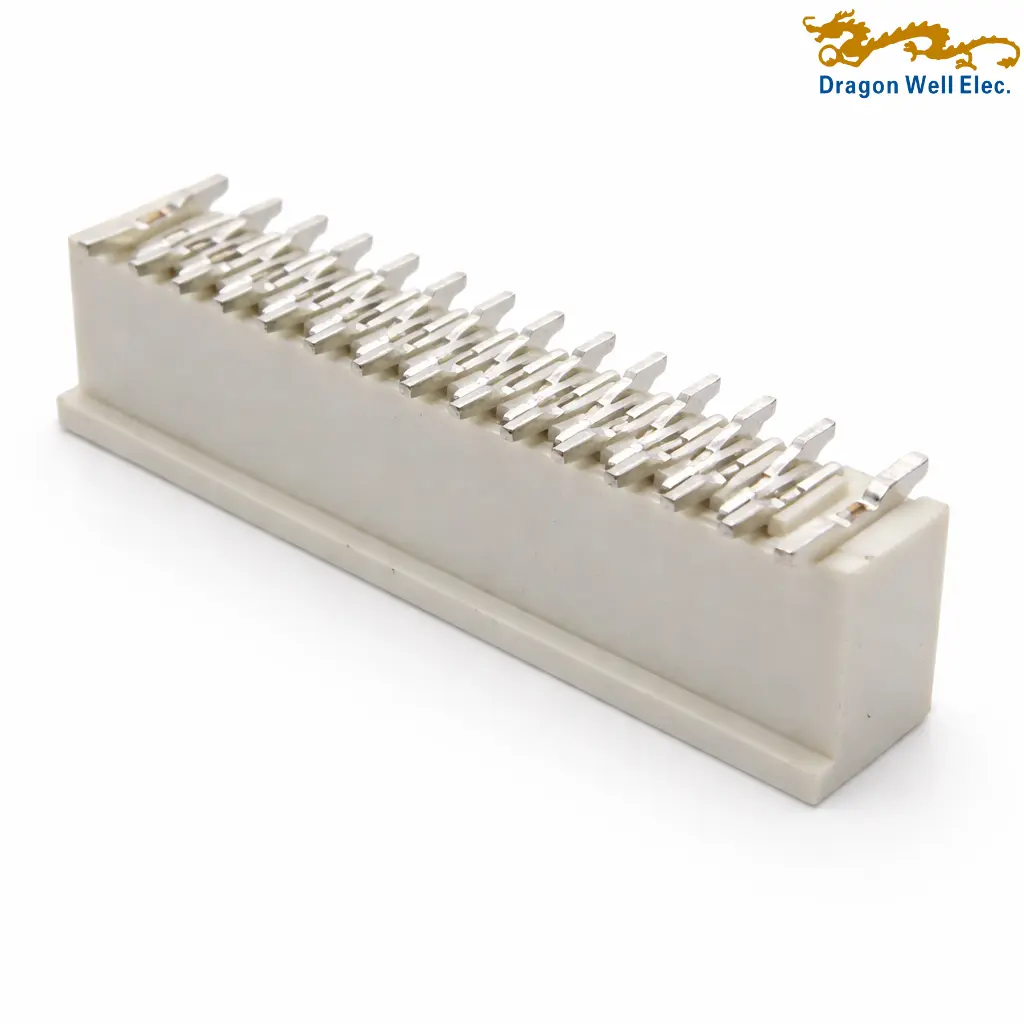

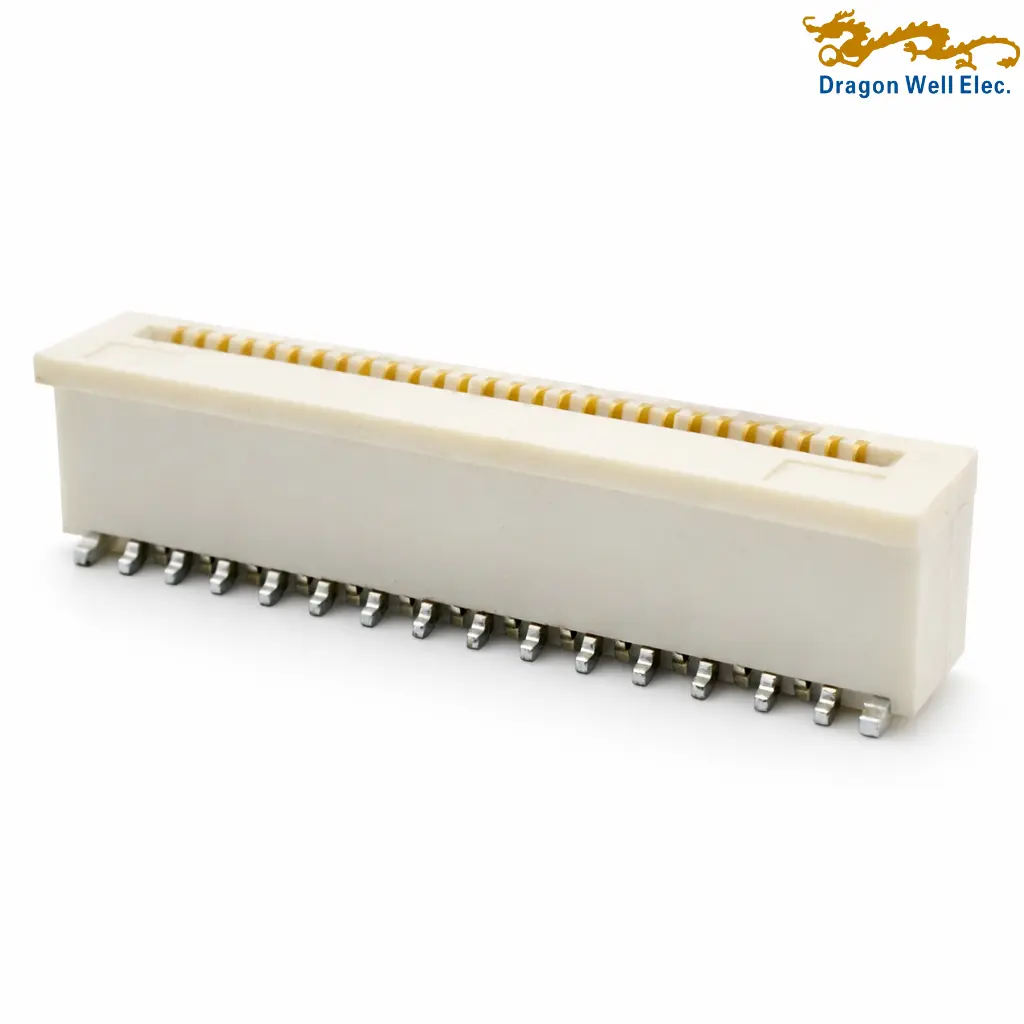

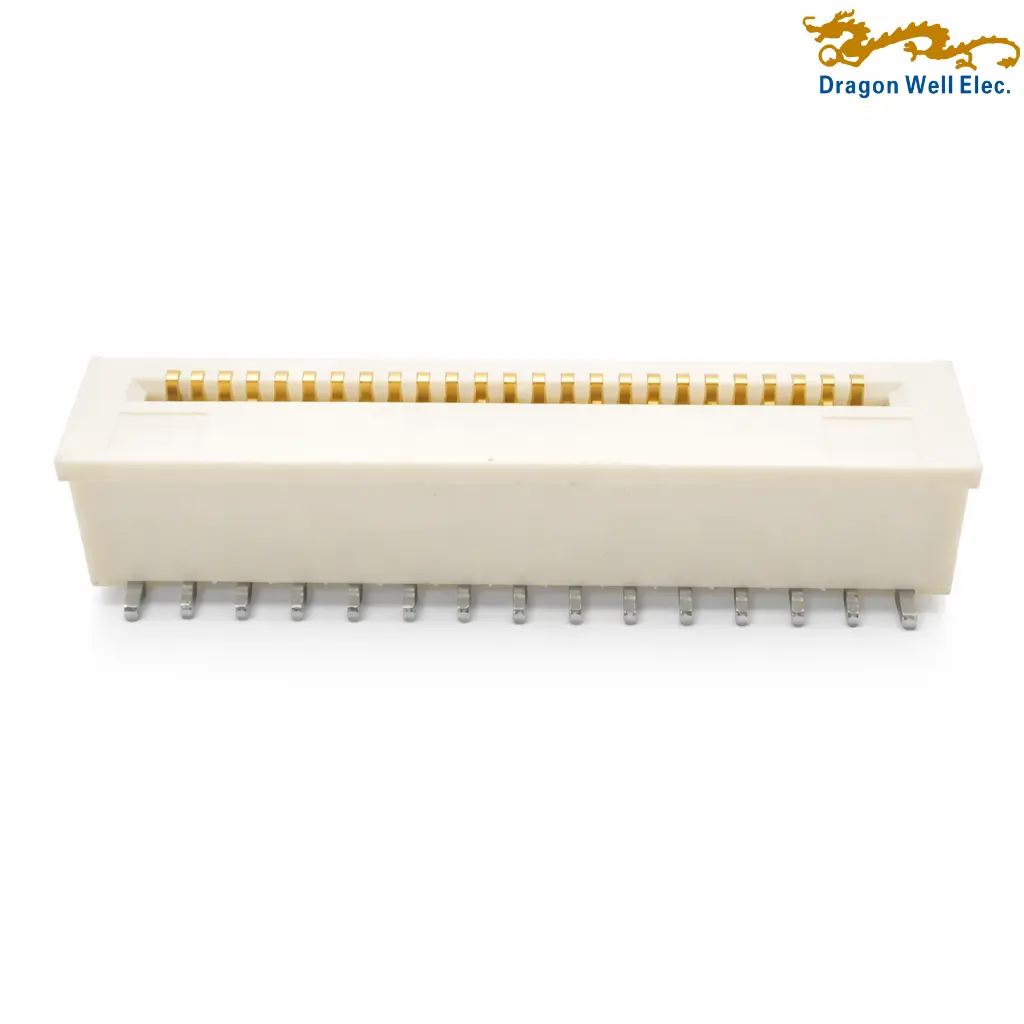

0.50 mm pitch vertical FPC connector 30 pin SMT is designed for compact PCB applications requiring reliable flat flexible cable connection in a vertical mounting direction. This connector features a 0.50 mm contact pitch, 30-pin contact layout, surface mount termination, and H=4.0 mm profile height, making it suitable for high-density electronic devices where PCB space and stable cable retention are important.
Based on the drawing, the connector uses a vertical receptacle structure for applicable flat cable insertion with a minimum cable insertion length of 3.0 mm. The recommended FPC/FFC cable thickness is 0.30 ± 0.03 mm. The housing material is LCP, UL94V-0, offering heat resistance and flame-retardant performance for SMT processing. The contact material is copper alloy with a tin-plated contact finish, supporting dependable conductivity in board-level interconnection.
With tape reel packaging and RoHS compliance, this connector is suitable for automated SMT production and environmentally compliant electronic manufacturing. The vertical SMT design helps engineers achieve compact FPC/FFC cable routing while maintaining stable electrical and mechanical performance.
| General | |||
| Status | Active | Category | FFC / FPC Connector |
| Model No. | DW-FPC-S05013030P-31TR-02 | Description | 0.50 mm pitch vertical FPC connector, 30-pin, SMT, H=4.0 mm |
| Component Type | Receptacle | Product Name | FPC Connector |
| RoHS | Compliant | Packaging | Tape Reel |
| Electrical | |||
| Current Rating | 0.5A | Voltage Rating | 50V AC |
| Temperature Range | -25°C to +85°C | Contact Resistance | 30 mΩ Max. |
| Insulation Resistance | 500 MΩ Min. | Withstanding Voltage | 150V AC / 1 Minute |
| Electrical Specification | Available | Operating Temperature | -25°C to +85°C |
| Physical | |||
| Number of Contacts | 24 | Contact Pitch | 0.50 mm |
| Mounting Type | Surface Mount | Orientation | Vertical |
| Profile Height | 4.0 mm | Applicable Flat Cable Thickness | 0.30 ± 0.03 mm |
| Dimension A | 14.50 mm | Dimension B | 15.60 mm |
| Dimension C | 18.00 mm | Cable Insertion Length | 3.0 mm Min. |
| Housing Material | LCP, UL94V-0 | Housing Color | Natural |
| Contact Material | Copper Alloy | Contact Finish | Tin plated |
| Plating Code | 31 | Series | wire to board |
