0.5mm FPC Connector Front Flip Lock with 2.0mm low-profile design, 0.30mm FFC support, UL94V-0 housing, copper alloy contacts, gold flash plating, and RoHS compliance.

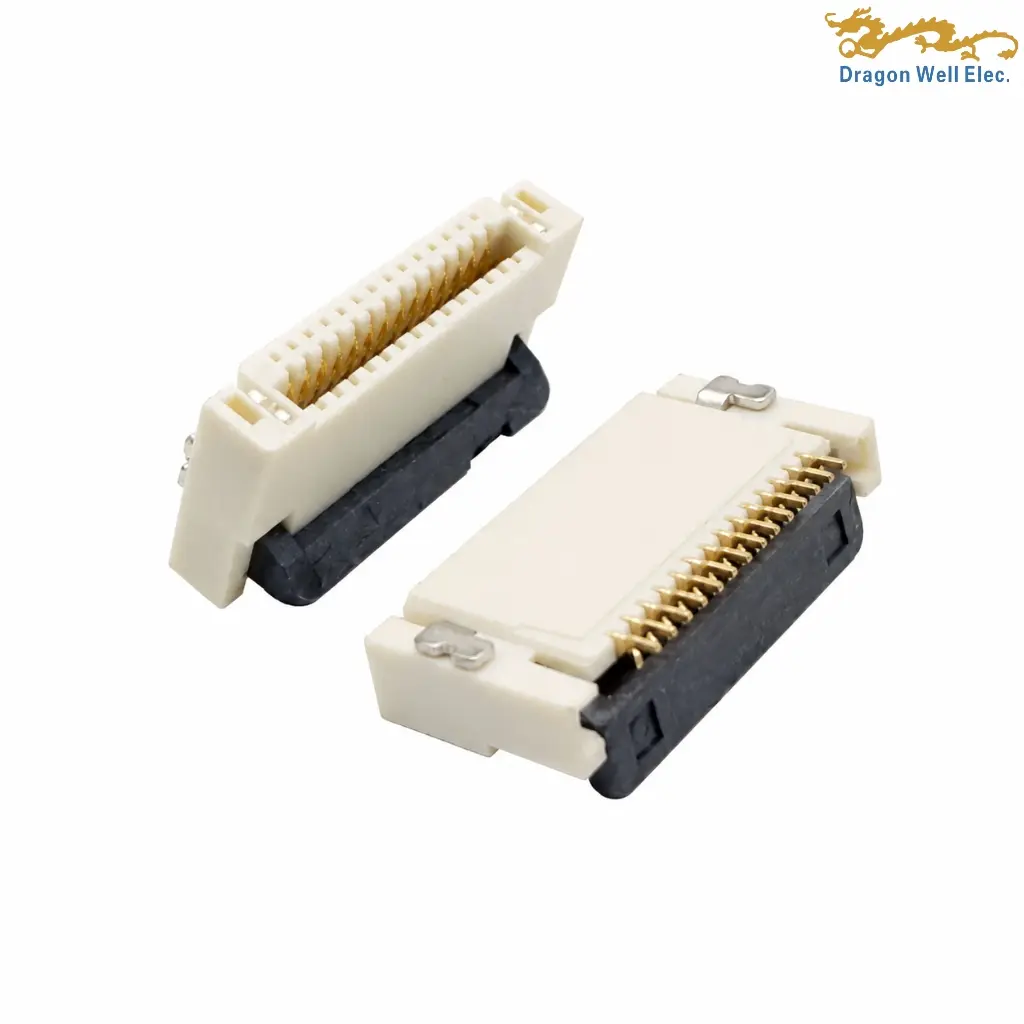

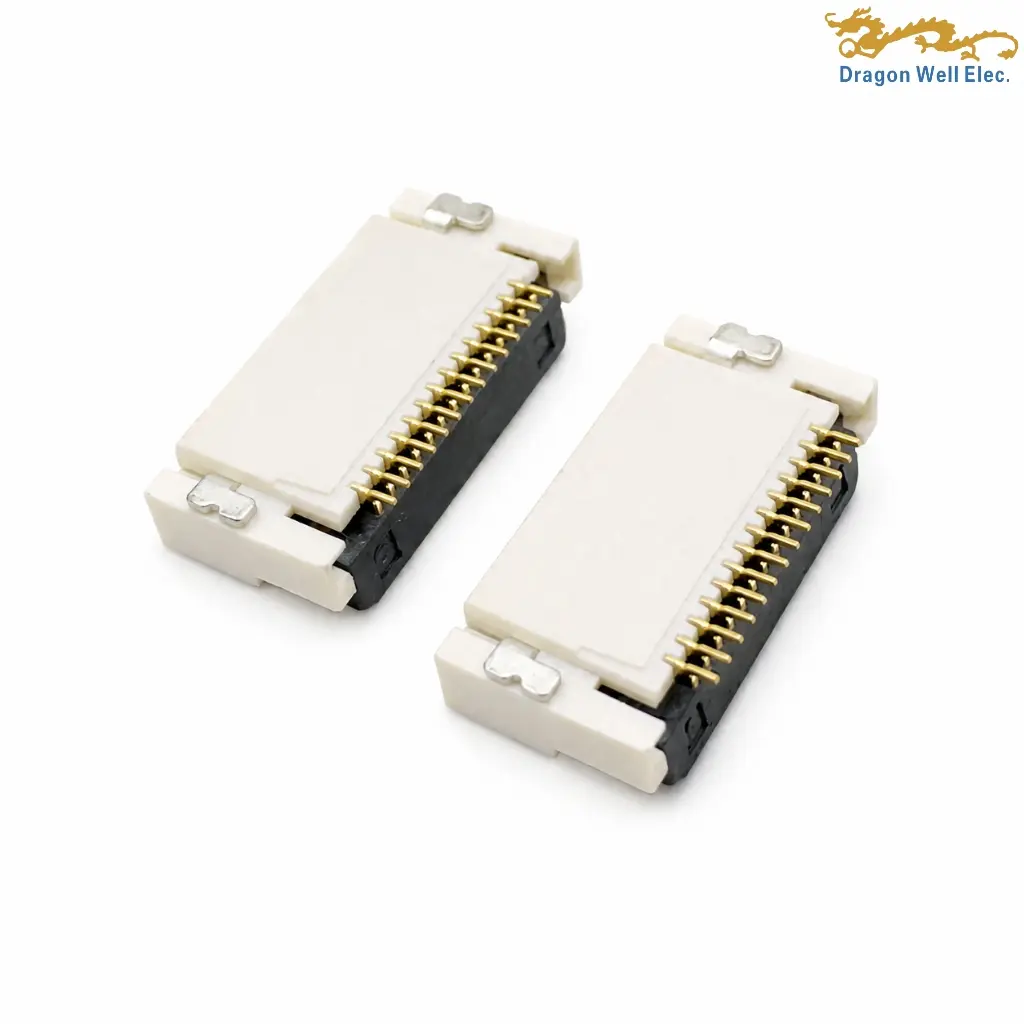

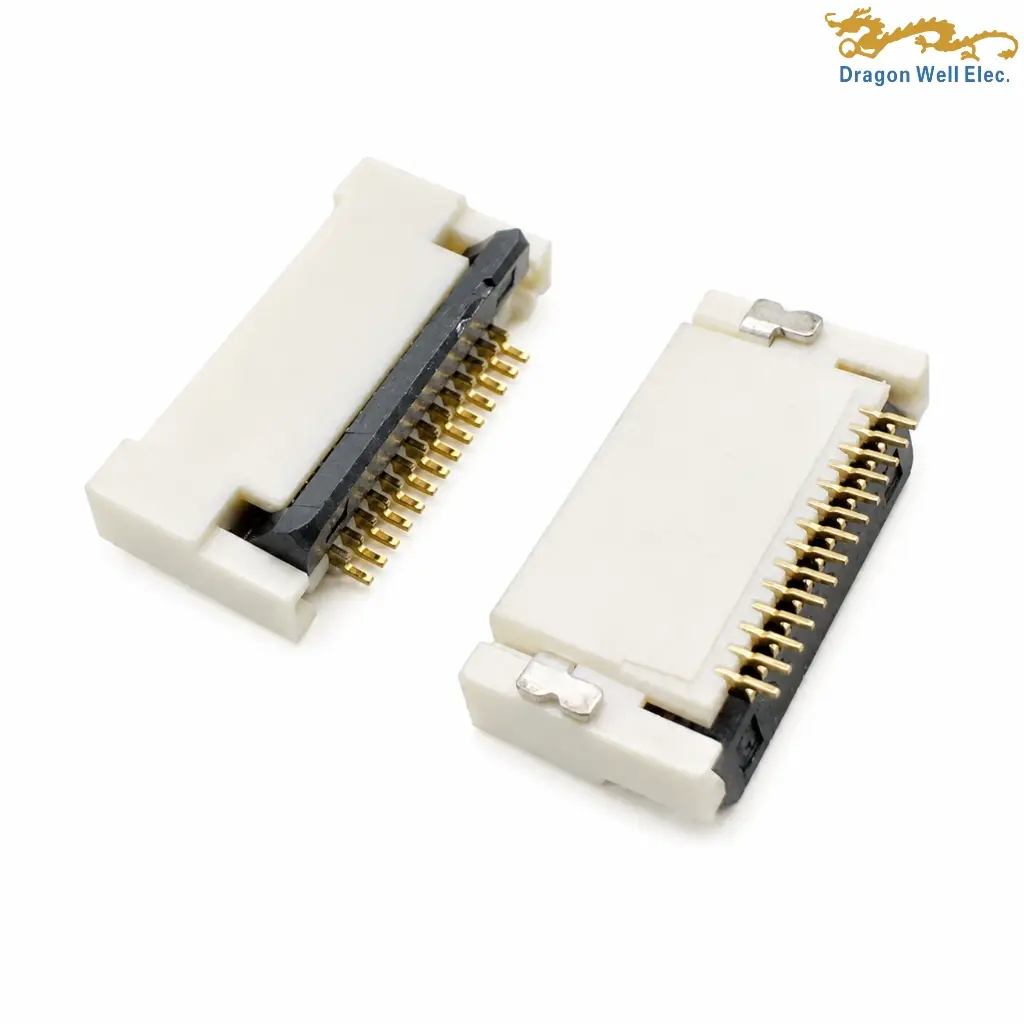

0.5mm FPC Connector Front Flip Lock is a compact flat flexible cable connector designed for reliable FPC/FFC connection in space-limited electronic devices. The DW-FPC series features a fine 0.50mm pitch structure with a front insertion and rear flip-lock mechanism, providing a secure connection method for flexible cable applications.
According to the drawing, this 0.5mm FPC Connector Front Flip Lock has a low-profile 2.0mm height design and supports variable pin configurations. The connector uses high-temperature plastic UL94V-0 housing material with a natural color base and black flip cover structure. Copper alloy contacts and legs provide the required mechanical strength and electrical connection stability.
The connector is specified with a rated current of 0.5A AC/DC and rated voltage of 50V AC/DC. The operating temperature range is confirmed as -40°C to +85°C, allowing the connector to be used in various electronic equipment environments. Contact and soldering areas feature gold flash plating over nickel, helping maintain reliable electrical contact performance.
The 0.5mm FPC Connector Front Flip Lock is designed for 0.30mm FFC/FPC cable applications according to the drawing information. The compact pitch arrangement helps reduce PCB space requirements while maintaining practical assembly performance.
Dragon Well Electronics provides the DW-FPC-S050112nP series for OEM customers requiring precision FPC connector solutions for compact electronic products. With RoHS-compliant materials, high-temperature housing construction, and stable electrical specifications, this FPC connector is suitable for modern electronic assemblies requiring dependable flexible cable connections.
| General | |||
| Status | Active | Category | FPC Connector |
| Model No. | DW-FPC-S050112nP-XXXX-02 | Description | 0.50 mm pitch, H2.0, front-insert/rear-flip FPC connector, 4–60 positions, SMT |
| Component Type | Receptacle | Product Name | FPC Connector |
| RoHS | Compliant | Packaging | TR: Tape Reel / TB: Tube Package |
| Electrical | |||
| Current Rating | 0.5 A AC/DC | Voltage Rating | 50 V AC/DC |
| Operating Temperature | -40°C to +85°C | Contact Resistance | — |
| Insulation Resistance | — | Withstanding Voltage | — |
| Temperature Range | -40°C to +85°C | Electrical Specification | — |
| Physical | |||
| Number of Contacts | 4–60 | Contact Pitch | 0.50 mm |
| Mounting Type | Surface Mount | Actuator Type | Rear-Flip / Back-Flip |
| Profile Height | 2.00 ± 0.10 mm | Connector Height | 5.32 mm overall drawing dimension |
| Compatible FPC Thickness | 0.30 ± 0.02 mm | Insertion Length | 6.00 mm REF (applicable FFC contact length) |
| Contact Material | Copper Alloy | Housing Material | High-Temp Plastic, UL94V-0 |
| Housing Color | Natural | Cover Material | High-Temp Plastic, UL94V-0 |
| Cover Color | Black | Contact Plating | Contact and solder area Gold Flash plated over Nickel overall |
| Nickel Underplating | Nickel overall; thickness not specified | Metal Mask Thickness | — |
| Plating Code | 01: Gold Flash; 03: 3µ″ Gold; 05: 5µ″ Gold; 15: 15µ″ Gold; 30: 30µ″ Gold | Series | 2 |
