The 0.5mm 20 pin FPC connector is a low-profile, right-angle surface-mount connector with a top-contact interface and pull-slider locking actuator. It features 20 positions, a 1.20 ± 0.15 mm height, a 0.3 A current rating, and compatibility with 0.30 ± 0.03 mm FPC or FFC cable. Its LCP housing and actuator are UL94 V-0 rated, while the copper-alloy contacts use tin-over-nickel plating.

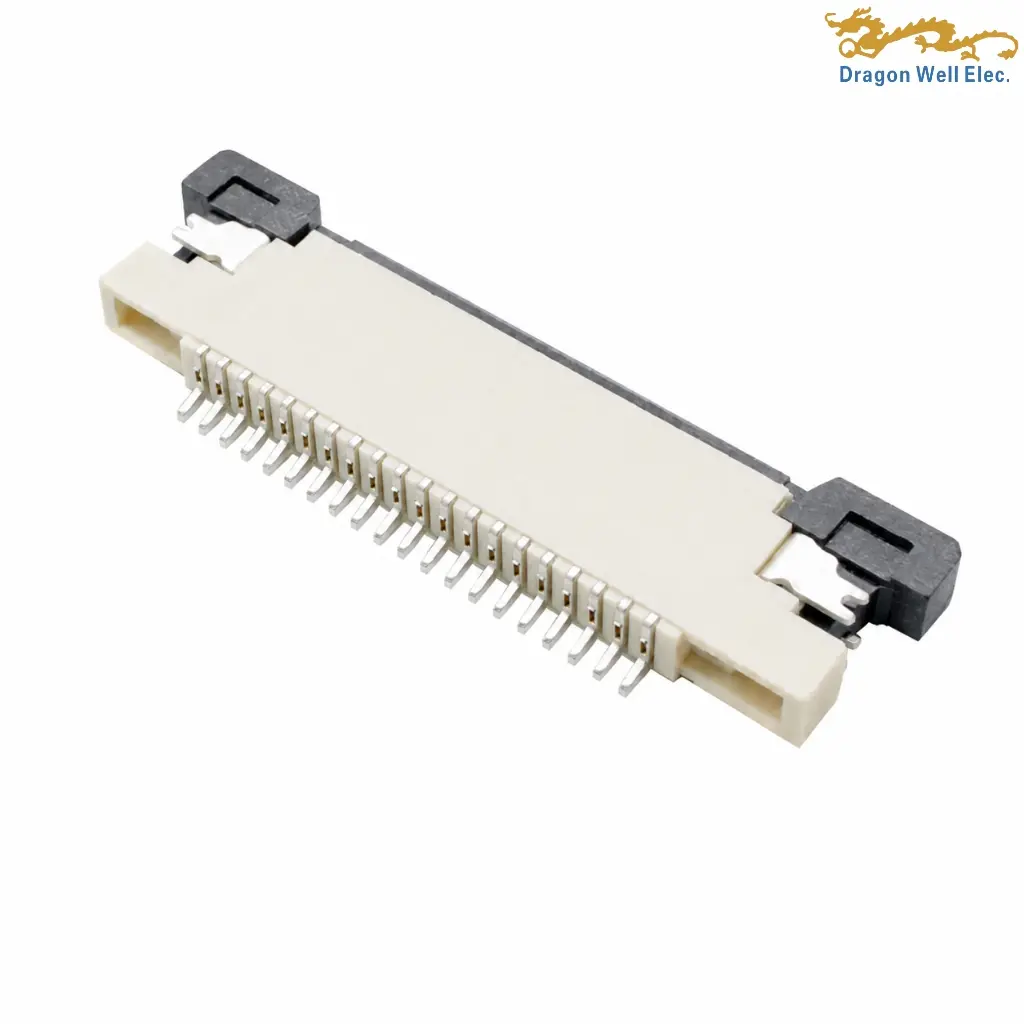

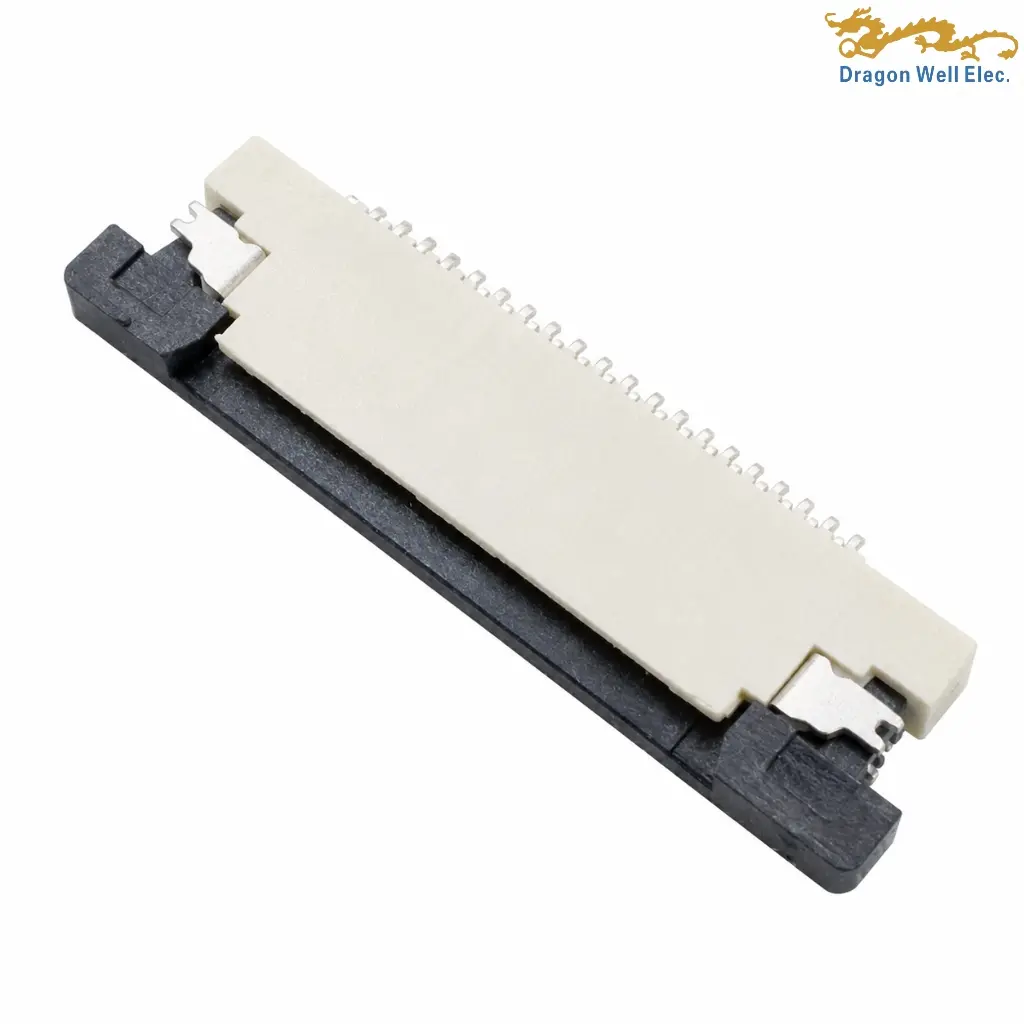

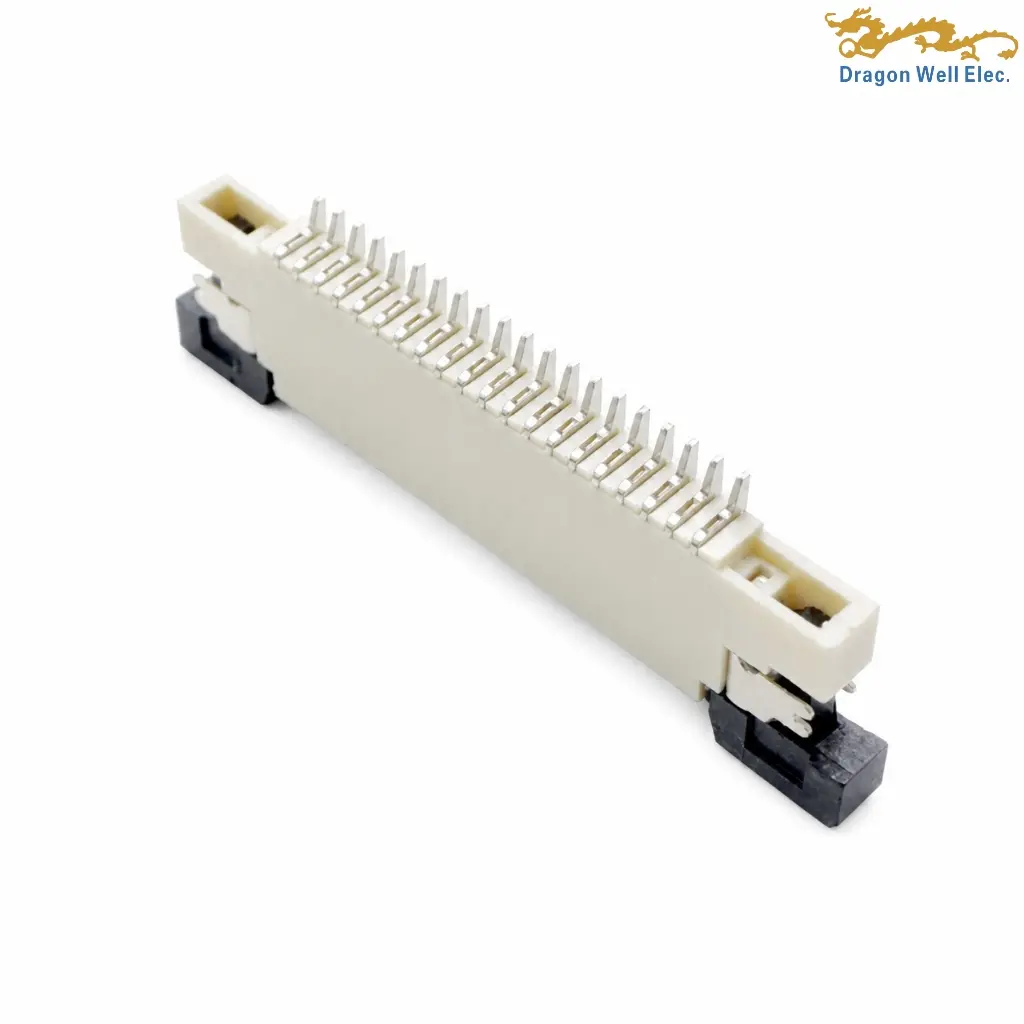

The 0.5mm 20 pin FPC connector is a low-profile, right-angle PCB connector designed for side-entry flexible printed circuit and flat-flex cable connections. The supplied photograph shows 20 signal terminals, while the engineering drawing identifies a 0.50 ± 0.05 mm contact pitch, top-contact interface, pull-slider actuator, surface-mount termination, and 1.20 ± 0.15 mm connector height.
For the 20-position configuration, the drawing table specifies a 9.50 mm contact-center span, identified as DIM A, a 10.56 mm body reference dimension, identified as DIM B, and a 15.96 mm overall connector length, identified as DIM C. The corresponding drawing tolerances are ±0.15 mm, ±0.10 mm, and ±0.25 mm. The recommended FPC or FFC thickness is 0.30 ± 0.03 mm.
The 0.5mm 20 pin FPC connector is rated at 50 V AC/DC and 0.3 A AC/DC, with an operating-temperature range from -25°C to +85°C. Its housing and actuator are manufactured from LCP with a UL94 V-0 flammability classification. The contacts and retention pegs are copper alloy, and the standard material block specifies tin-over-nickel plating.
The pull-slider structure helps retain the inserted flex cable, while the right-angle top-contact arrangement supports compact PCB layouts where the cable runs parallel to the board. Tape-and-reel packaging is specified for automated surface-mount assembly.
This 0.5mm 20 pin FPC connector is suitable for display modules, control panels, compact consumer electronics, cameras, printers, communication equipment, industrial controllers, and other electronic assemblies requiring a low-profile FPC or FFC interface.
| General | |||
| Status | Active | Category | FFC / FPC Connector |
| Model No. | DW-FPC-S05055nP-XXTR-01 | Description | 0.50mm Pitch Horizontal Pull-Type Top-Contact FPC Connector, 4–60 Contacts, SMT, H=1.20mm |
| Component Type | Receptacle | Product Name | FPC Connector |
| RoHS | Compliant | Packaging | TR: Tape Reel |
| Electrical | |||
| Current Rating | 0.3A AC/DC | Voltage Rating | 50V AC/DC |
| Temperature Range | -25°C to +85°C | Contact Resistance | N/A |
| Insulation Resistance | N/A | Withstanding Voltage | N/A |
| Electrical Specification | Available | Operating Temperature | -25°C to +85°C |
| Physical | |||
| Number of Contacts | 4–60 Contacts; See Contact-Count Dimension Table | Contact Pitch | 0.50±0.05mm |
| Mounting Type | Surface Mount | Orientation | Horizontal / Right Angle, Top Contact |
| Profile Height | 1.20±0.15mm | Applicable Flat Cable Thickness | 0.30±0.03mm |
| Dimension A | Variable by Contact Count: 1.50–29.50mm | Dimension B | Variable by Contact Count: 2.56–30.56mm |
| Dimension C | Variable by Contact Count: 7.96–35.96mm | Cable Insertion Length | 1.2mm Shown in Section A–A |
| Housing Material | LCP, UL94V-0 | Housing Color | Natural Housing; Black Actuator / Rear Cover |
| Contact Material | Copper Alloy | Contact Finish | Tin over Nickel |
| Plating Code | XX: 01 Gold Flash; 03 3µin Gold; 06 6µin Gold; 15 15µin Gold; 30 30µin Gold; 31 Sn; 32 Ni | Series | 01–99 |
