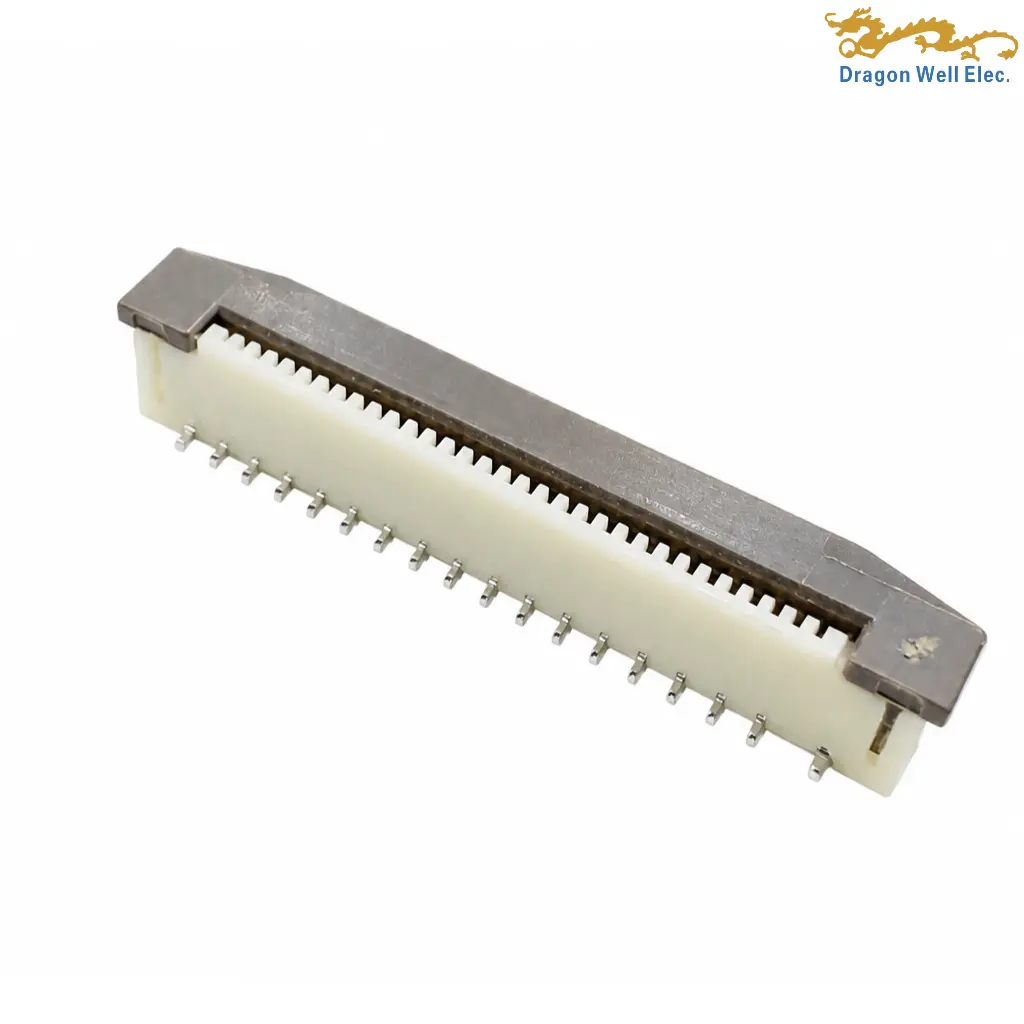

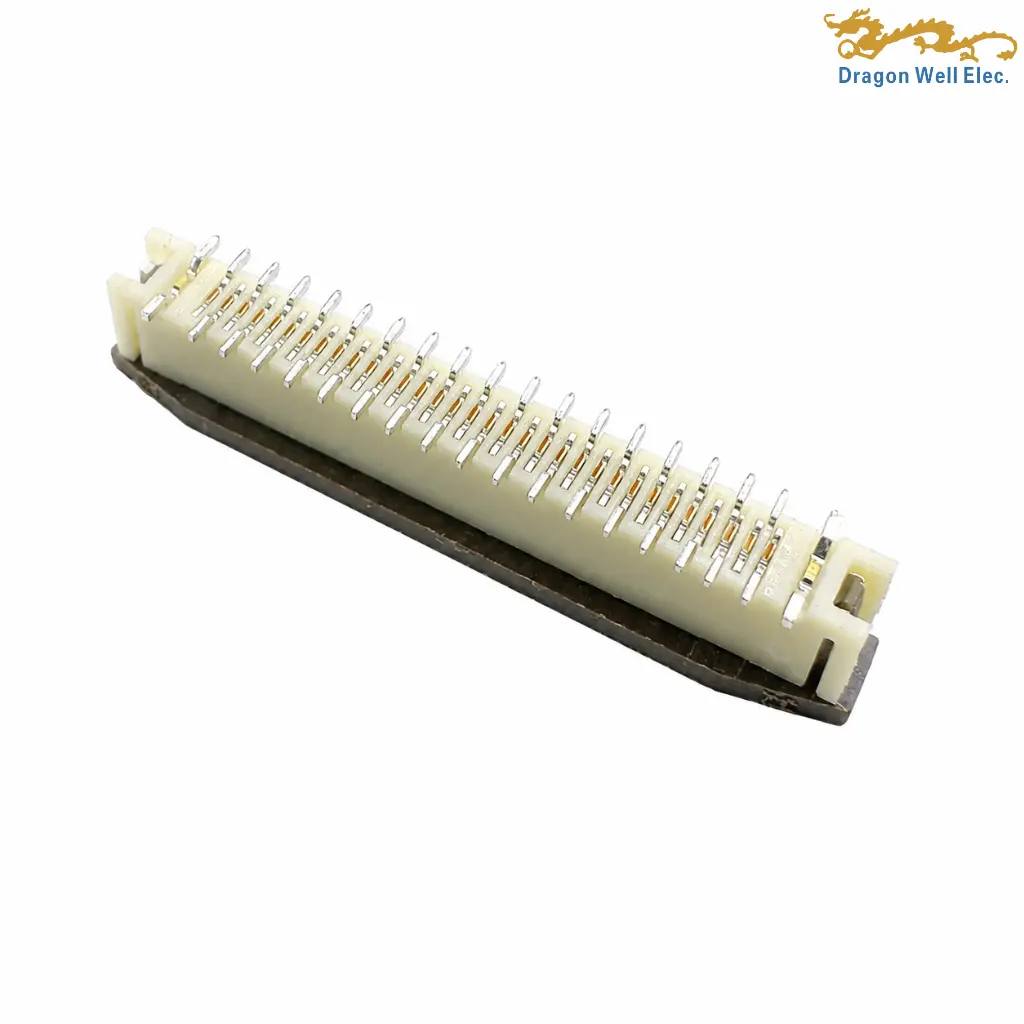

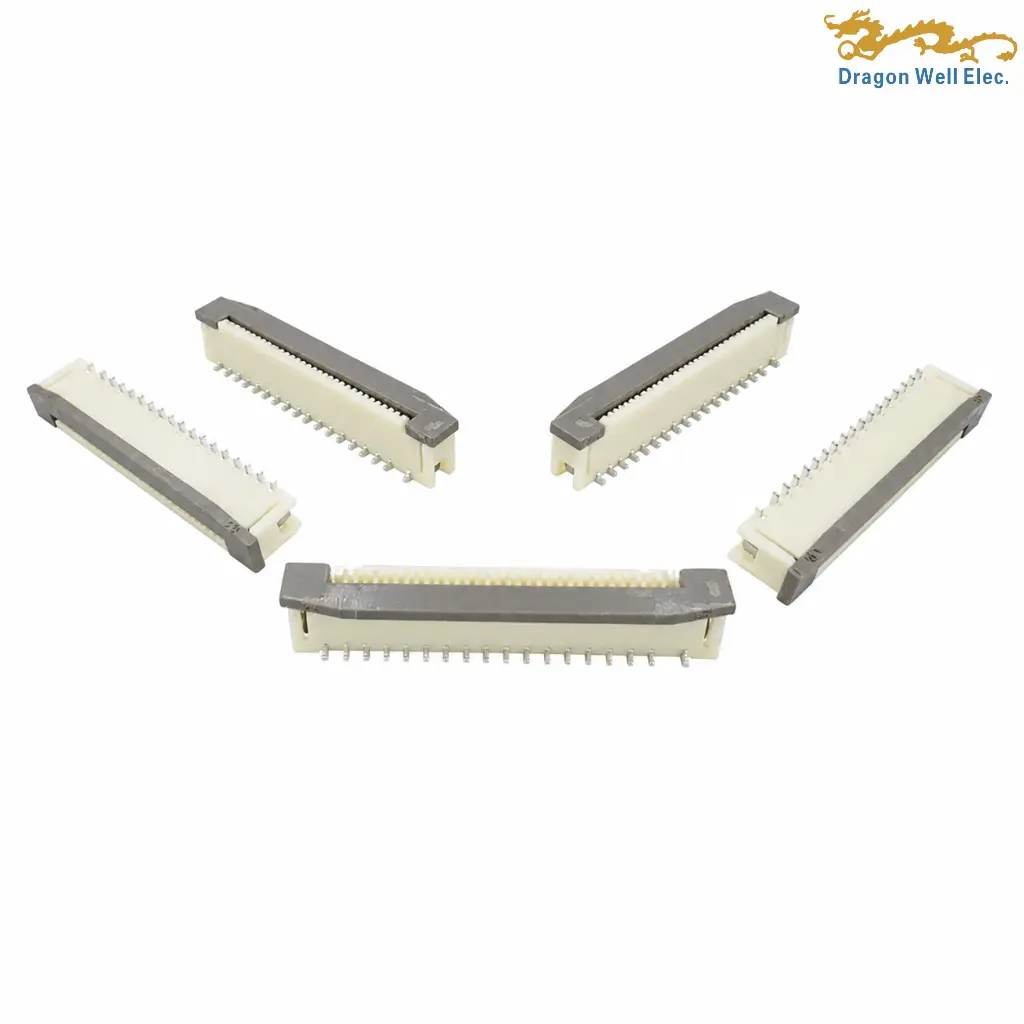

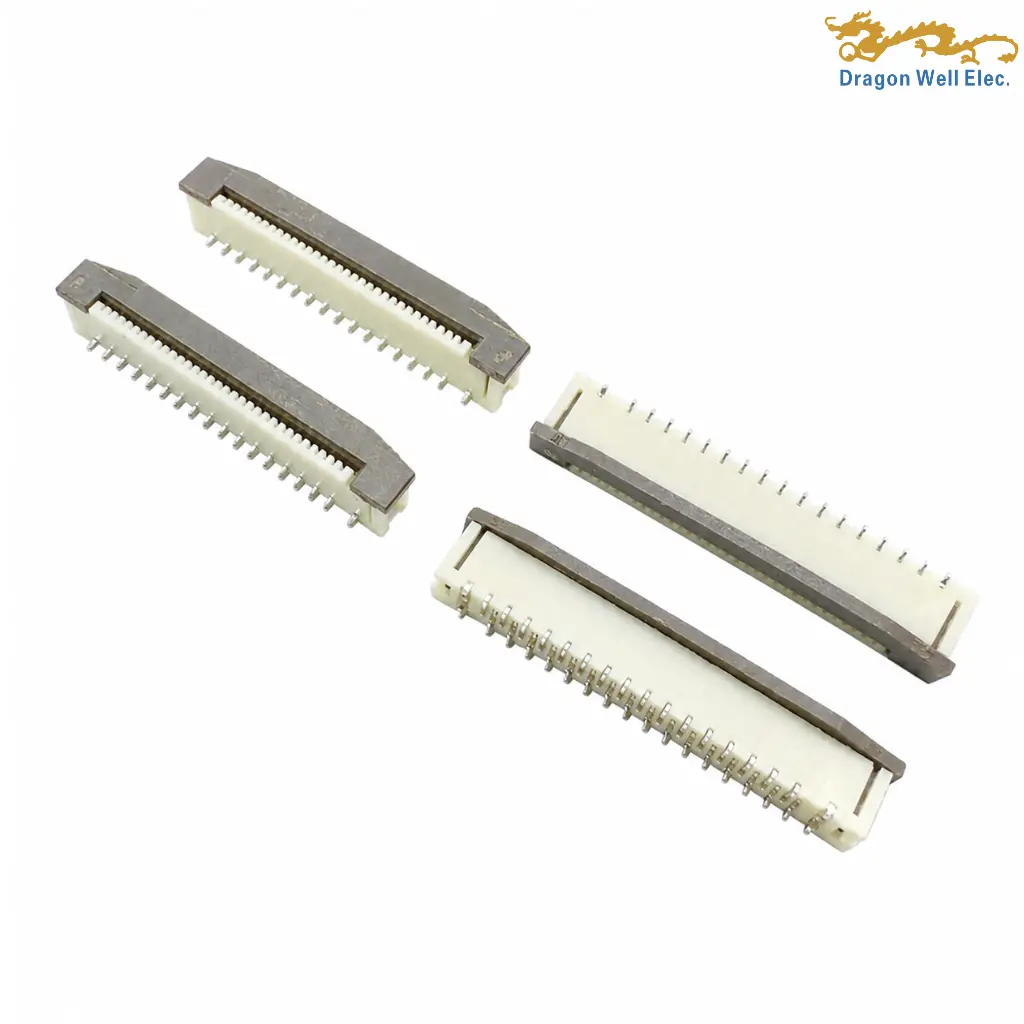

Dragon Well’s 0.50mm pitch FPC connector features a positive-lock design, a PA6T UL94V-0 housing, a PPS UL94V-0 lock catch, and phosphor bronze terminals. Available in 4–60 positions, it is designed for compact surface-mount FPC-to-PCB interconnection.
Applications:
Highlights:
0.50mm pitch FPC connector (DW-FPC-S050121nP-XXXX-01) is a surface-mount connector designed to connect a flexible printed circuit (FPC) to a printed circuit board. Its positive-lock design helps secure the flexible circuit in the connector. The 0.50mm contact pitch supports compact, high-density interconnection in electronic assemblies.
The drawing specifies a range of 4 to 60 positions, with dimensions varying according to the selected circuit count. The connector features a PA6T housing with a UL94V-0 flammability rating and a PPS lock catch also rated UL94V-0. The terminals and fitting nails are made of phosphor bronze.
This connector is intended for PCB-based FPC interconnection where a compact footprint and secure cable retention are required. Potential applications include consumer electronics, display assemblies, cameras, printers, communication equipment, and industrial control electronics. Actual suitability depends on the equipment design and the selected circuit configuration.
The recommended PCB layout and dimensions provided in the engineering drawing should be followed during board design and assembly. Before production, confirm the FPC dimensions, contact arrangement, selected plating option, and packaging configuration.
The DW-FPC-S050121nP series provides multiple position options for different PCB designs. Select the correct part-number variant to match the required circuit count, plating, and packaging.
| General | |||
| Status | Active | Category | FPC Connector |
| Model No. | DW-FPC-S050121nP-XXXX-01 | Description | 0.50 mm pitch positive FPC connector; SMT; 4–60 contacts |
| Component Type | FPC Connector | Product Name | FPC 0.50mm Pitch Positive |
| RoHS | Compliant | Packaging | TR: Tape Reel; TB: Tube Package |
| Electrical | |||
| Current Rating | 0.5 A | Voltage Rating | 50 V AC/DC |
| Operating Temperature | -40°C to +85°C | Contact Resistance | ≤30 mΩ |
| Insulation Resistance | ≥500 MΩ | Withstanding Voltage | AC 200 V for 1 minute |
| Temperature Range | -40°C to +85°C | Electrical Specification | 50 V AC/DC; 0.5 A; contact resistance ≤30 mΩ; insulation resistance ≥500 MΩ; AC 200 V for 1 minute |
| Physical | |||
| Number of Contacts | 4–60 | Contact Pitch | 0.50 mm |
| Mounting Type | Surface Mount / SMT | Actuator Type | Positive type |
| Contact Position | N/A | Mounting Orientation | Horizontal / right-angle style as depicted |
| Overall Profile Height | (5.35) mm (reference dimension) | Body Height | 3.95 mm (dimension shown) |
| Connector Depth | 3.30 ±0.10 mm (end-view dimension) | Body Depth | (2.50) mm (reference dimension in section view) |
| Compatible FPC Thickness | 0.30 ±0.05 mm | FPC Contact Pitch | 0.50 mm |
| FPC Contact Length | 3.00 mm (dimension shown in applicable FFC/FPC sketch) | FPC End Length | 5.50 mm (dimension shown in applicable FFC/FPC sketch) |
| FPC Contact Width | N/A | FPC Corner Radius | N/A |
| Contact Material | Phosphor Bronze | Housing Material | PA6T, UL94V-0 |
| Housing Color | N/A | Cover Material | N/A |
| Cover Color | N/A | Contact Plating | Selectable by code: 01 Gold Flash; 03 3 µin Gold; 06 6 µin Gold; 15 15 µin Gold; 30 30 µin Gold; 31 Sn; 32 Ni |
| Solder Piece Material | Phosphor Bronze (fitting nail) | Solder Piece Plating | Matte tin >1 µm over nickel underplate >0.5 µm |
| Terminal Width | N/A | PCB Contact Pitch | 0.50 mm |
| Recommended PCB Layout Tolerance | ±0.05 mm | Series | 01–99 |
