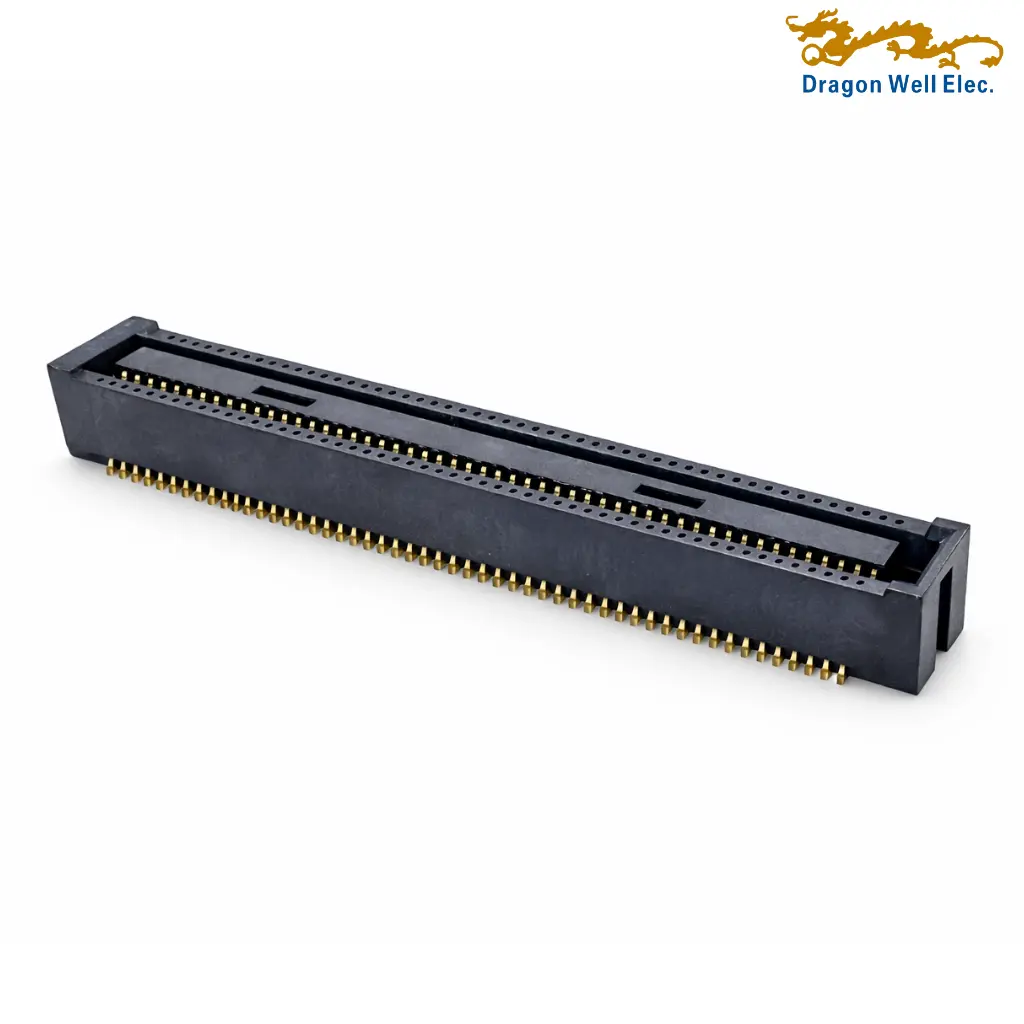

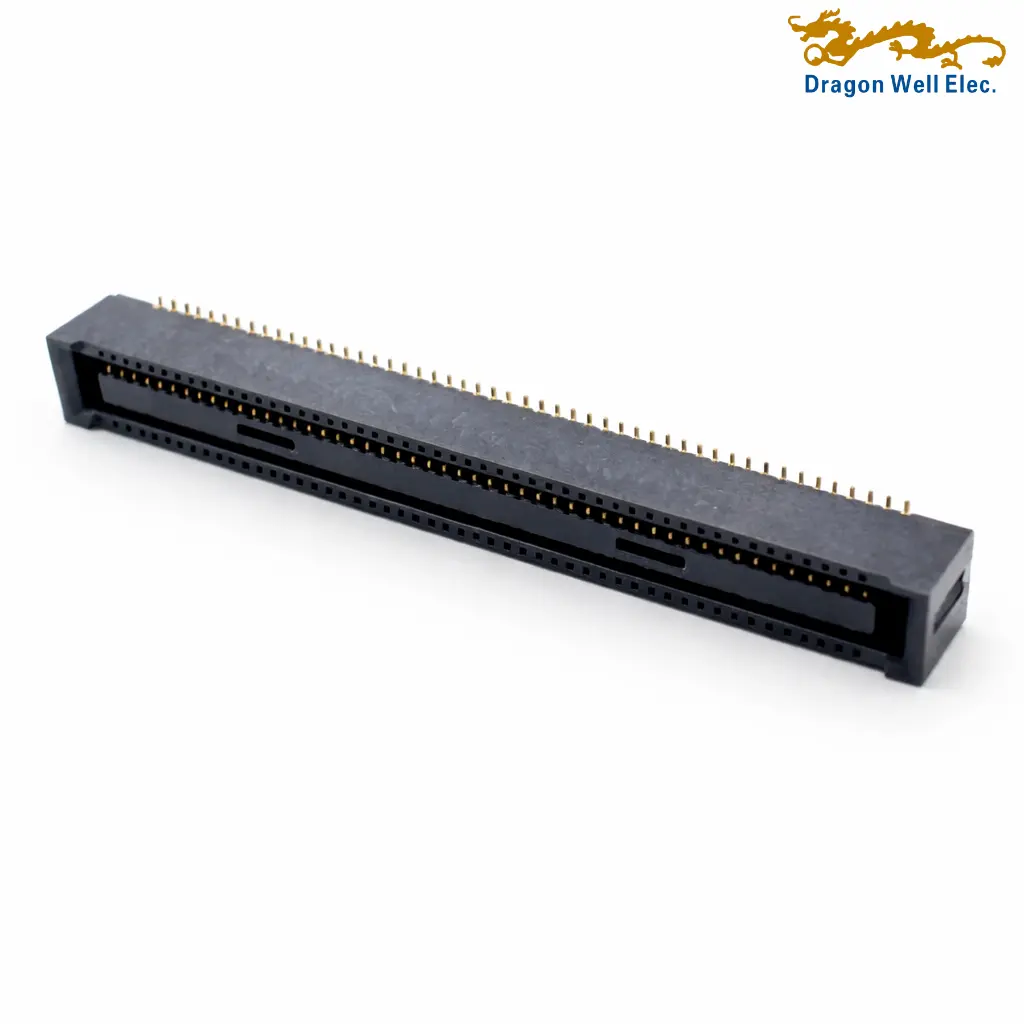

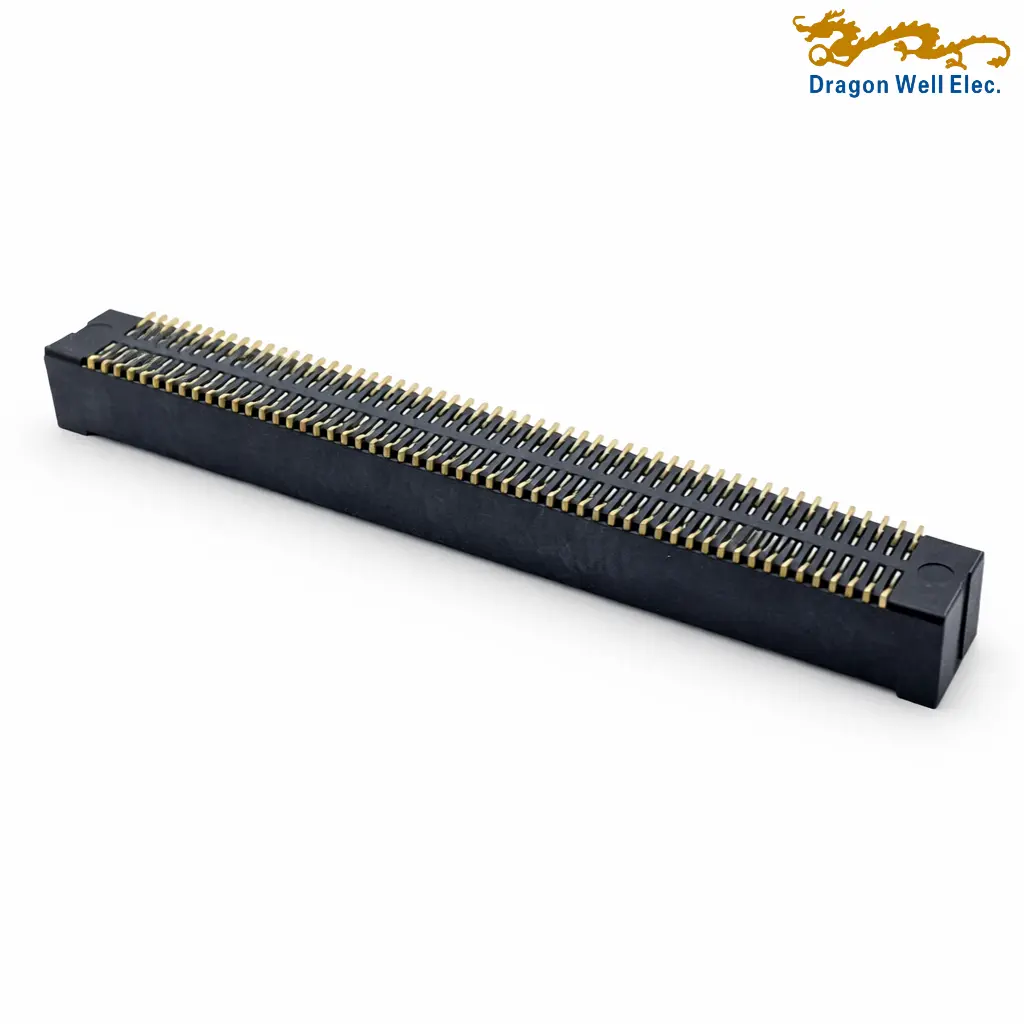

A 0.40mm pitch female board-to-board socket with vertical SMT mounting, 10–120 circuit options, 2.00–4.00mm mated height options, phosphor bronze terminals, black LCP UL94V-0 housing, 0.3A/30V rating, and RoHS compliance.
Applications:
Compact board-to-board PCB connection, mezzanine PCB stacking, embedded electronics, communication modules, consumer electronics, IoT devices, smart devices, handheld equipment, industrial control boards, instrumentation, and space-saving electronic assemblies.
Highlights:
0.40mm fine-pitch board-to-board socket; female connector design; vertical 180° orientation; SMT surface-mount termination; 10–120 circuit options; 2.00 / 2.50 / 3.00 / 3.50 / 4.00mm mated height options; 0.3A AC/DC current rating; 30V AC/DC voltage rating; 100V AC dielectric withstand for 1 minute; 500MΩ minimum insulation resistance; 90mΩ maximum contact resistance; phosphor bronze terminals; black LCP UL94V-0 housing; multiple plating options; Tape & Reel option; RoHS compliant.
0.40mm board-to-board socket DW-BTB-F040100WVnP-XXTR-XX is a fine-pitch female SMT connector designed for compact PCB stacking and signal connection applications. Based on the drawing, this series uses a 0.40mm pitch layout, vertical 180° orientation, and surface-mount termination, making it suitable for electronic assemblies where board space is limited and a low-profile board-to-board interface is required.This 0.40mm board-to-board socket supports 10 to 120 circuit options, including 10, 20, 24, 30, 34, 40, 50, 60, 70, 80, 90, 100, and 120 positions. The product also supports multiple mated height options: 2.00mm, 2.50mm, 3.00mm, 3.50mm, and 4.00mm. These options allow engineers to select the proper board stacking height for different PCB design requirements.
The connector is rated for 0.3A AC/DC current and 30V AC/DC voltage. It provides 500MΩ minimum insulation resistance at 100V DC, 90mΩ maximum contact resistance, and 100V AC dielectric withstand voltage for one minute. The drawing also confirms 30 mating cycles and an operating temperature range from -35°C to +85°C.
The housing material is black LCP rated UL94V-0, and the terminal material is phosphor bronze. Contact plating options include Gold Flash, 5µ” Gold, 10µ” Gold, 15µ” Gold, 30µ” Gold, Sn, or Ni, with nickel underplating. This 0.40mm board-to-board socket is RoHS compliant and suitable for compact electronic products requiring reliable SMT board-to-board connection.
| 1. General | |||
| Status | Active | Category | Board-to-Board Connectors |
| Series | DW-BTB-F040100WVnP-XXTR-XX | Description | 0.40 mm Pitch Board-to-Board Socket, Female, Vertical 180°, SMT, 10–120 Circuits, Mated Height 2.00–4.00 mm |
| Comments | RoHS Compliant | Product Name | 0.4 mm Pitch Board to Board SOCKET |
| 2. Electrical | |||
| Current – Maximum per Contact | 0.3 A AC/DC | Voltage – Maximum | 30V AC/DC |
| Contact Resistance (Max) | 90 mΩ Max. | Insulation Resistance (Min) | 500 MΩ Min. / 100V DC |
| Dielectric Withstanding Voltage | 100V AC, 1 Minute | ||
| 3. Physical | |||
| Actuator Type | N/A | Circuits (Loaded) | 10–120 |
| Color – Resin | Black | Contact Position | N/A |
| Durability (mating cycles max) | 30 Cycles | Mated Height | 2.00 / 2.50 / 3.00 / 3.50 / 4.00 mm |
| Material – Metal | Phosphor Bronze | Material – Plating Mating | Contact area: Gold 0.05μm min.; underplating: Nickel 1μm min. |
| Material – Plating Termination | SMT lead: Gold 0.025μm min.; underplating: Nickel 1μm min. | Material – Resin | LCP UL94-V0, Black |
| Net Weight | N/A | Orientation | Vertical / 180° |
| Packaging Type | Tape & Reel | PCB Locator | N/A |
| PCB Mounting | Surface Mount (SMT) | PCB Retention | SMT solder hold-downs |
| Pitch – Mating Interface | 0.40 mm | Polarized to PCB | N/A |
| Stackable | Yes | Temperature Range – Operating | -35°C to +85°C |
| Wire/Cable Type | N/A | Mating Force | N/A |
| Unmating Force | N/A | Plating Code | 01 / 05 / 10 / 15 / 30 / 31 / 32 |
| Plating Options | 01: Gold Flash; 05: 5u” Gold; 10: 10u” Gold; 15: 15u” Gold; 30: 30u” Gold; 31: Sn; 32: Ni | Height Code | 01 / 02 / 03 / 04 / 05 |
| PCB Layout Pad Pitch | 0.40±0.02 mm | PCB Layout Pad Width | 0.20±0.02 mm |
| Connector Width | 2.94±0.20 mm | PCB Layout Width | 3.78 mm |
