1.00 pitch pin header dual row SMT type base 1.00H with vertical 180° orientation, brass contacts, PA6T+30% UL94V-0 insulator, 0.75A/30V rating, 500 cycles, plastic cap, tape reel packaging, and RoHS compliance.
• Applications: Board-to-board PCB connection, compact signal interface, embedded electronics, communication modules, industrial control boards, consumer electronics, smart devices, automation equipment, instrumentation, and SMT PCB assembly.
• Highlights: 1.00 pitch pin header dual row SMT type base 1.00H; vertical 180° orientation; surface mount termination; brass contacts; 0.30 SQ pin structure; 0.75A current rating; 30V voltage rating; 120V AC dielectric withstand for 1 minute; 1000MΩ min insulation resistance; 20mΩ max contact resistance; PA6T+30% UL94V-0 insulator; 7.75±0.25mm connector height; 1.00±0.10mm base height; 5.20±0.30mm body width; plastic cap shown; 500 mating cycles; tape reel packaging; 255°C–265°C reflow soldering for 5–10 seconds; RoHS compliant.

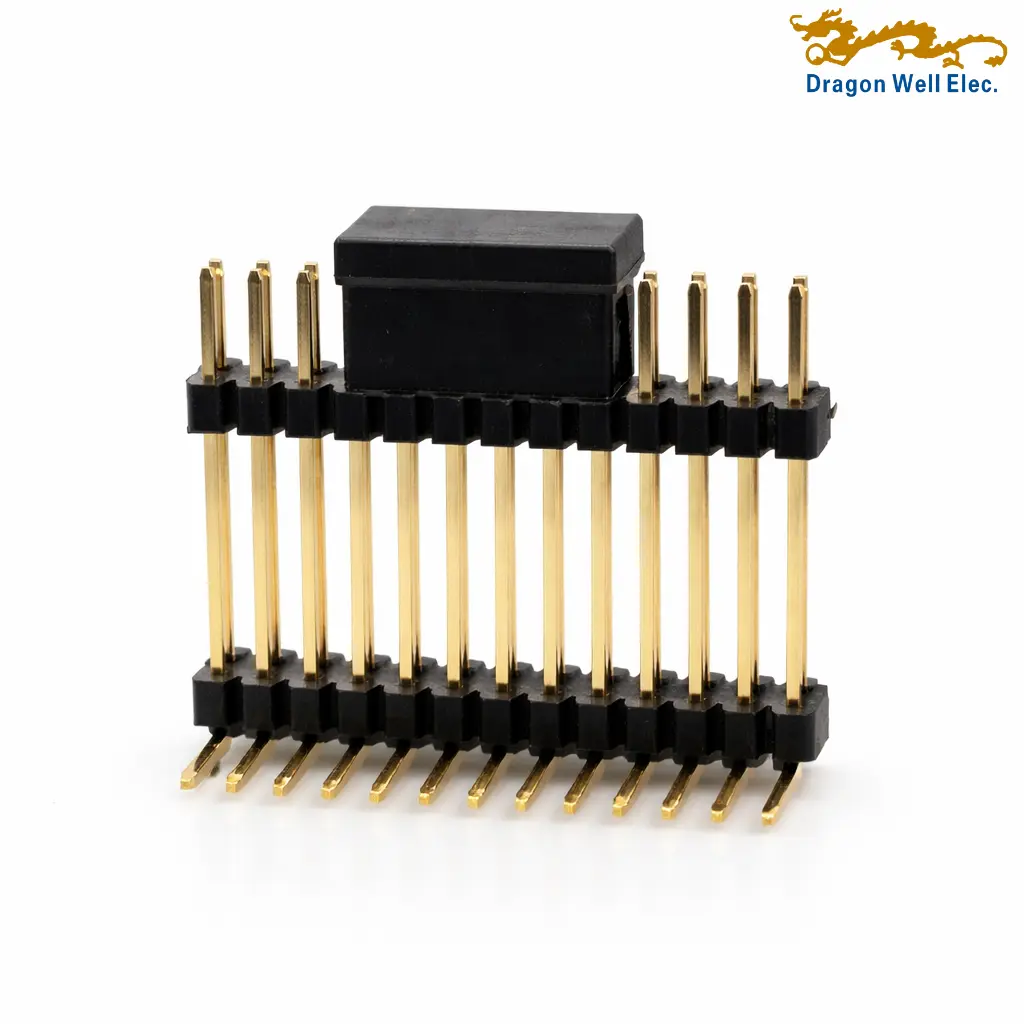

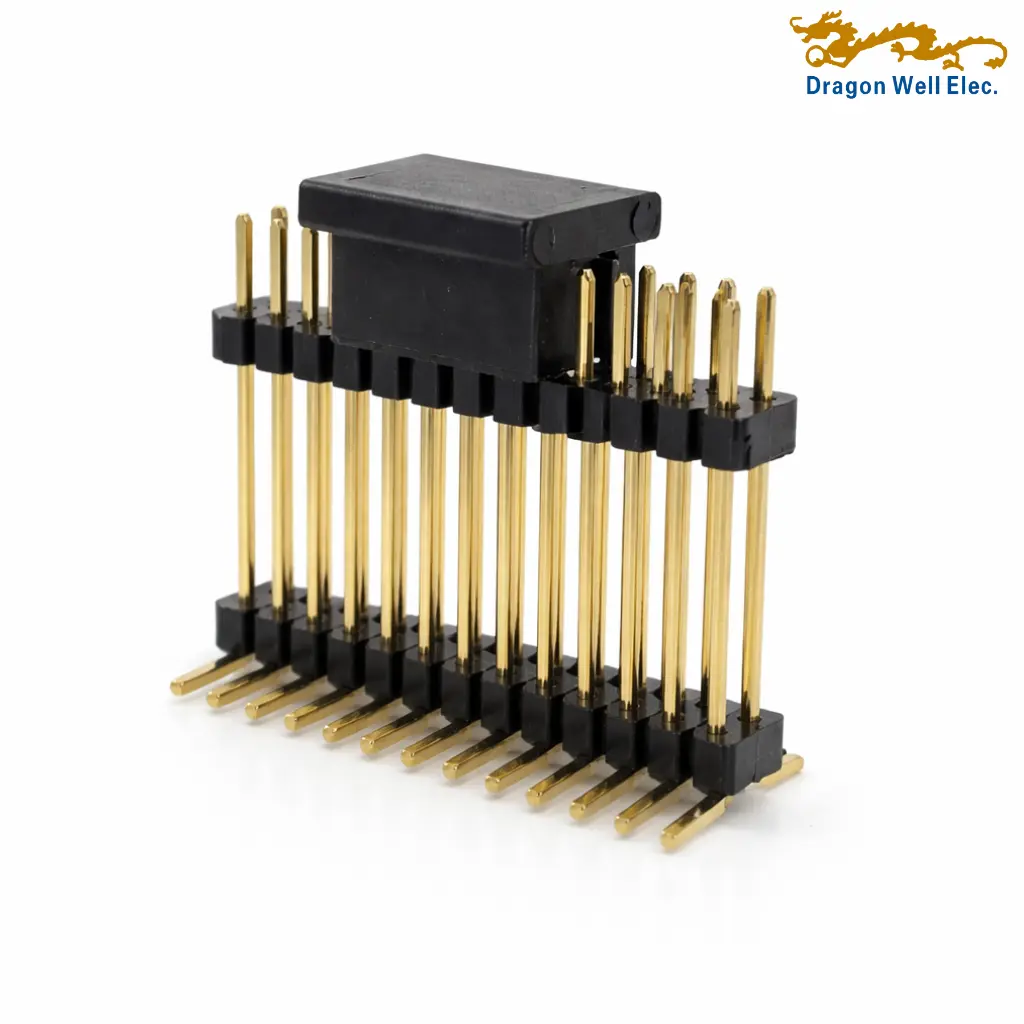

1.00 pitch pin header dual row SMT type base 1.00H DW-PH-2100833WVnP-XXTR-01 is a vertical surface mount PCB connector designed for compact board-to-board and signal connection applications. Based on the drawing title, this product is a 1.00 pitch pin header dual row SMT type with base 1.00H, vertical 180° orientation, and tape reel packaging for SMT assembly.
This 1.00 pitch pin header dual row SMT connector uses brass contacts with a 0.30 SQ pin structure. It supports a current rating of 0.75A and a voltage rating of 30V. The electrical performance includes 1000MΩ minimum insulation resistance, 20mΩ maximum contact resistance, and 120V AC dielectric withstand voltage for 1 minute. These specifications make it suitable for compact PCB signal interfaces, board-to-board connection, embedded electronics, communication modules, and electronic control assemblies.
The insulation material is PA6T+30%, UL94V-0, supporting flame-retardant performance for PCB connector applications. The drawing confirms a 7.75±0.25mm connector height, 1.00±0.10mm base height, 5.20±0.30mm body width, 1.00mm PCB layout pitch, 0.50mm PCB pad width, and 7.00mm PCB layout width. A plastic cap is also shown for SMT pick-and-place handling.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-PH-2100833WVnP-XXTR-01 | Description | 1.00 Pitch Pin Header Dual Row SMT Type Base 1.00H |
| Application | Signal / Board-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount Header | Product Name | Pin Header CONN |
| Keywords | 1.00 Pin Header, Dual Row Pin Header, SMT Header, Vertical SMT Header | Contact Type | Pin |
| Electrical | |||
| Rated Voltage | 30V | Current Rating | 0.75A |
| Contact Resistance | 20mΩ Max. | Insulation Resistance | 1000MΩ Min. |
| Dielectric Withstand | 120V AC for 1 minute | Norm | N/A |
| Physical | |||
| Breakaway | N/A | Circuits / Number of Positions | Variable nP |
| Circuits Maximum | N/A | Color – Housing | N/A |
| Durability / Mating Cycles | 500 cycles | Flammability | UL94V-0 |
| Glow-Wire Capable | N/A | Lock to Mating Part | N/A |
| Material – Metal | Brass | Material – Plating | See part number code |
| Material – Plating Solder | N/A | Material – Resin | PA6T+30%, UL94V-0 |
| Metal Shape and Form | 0.30 SQ | Number of Rows | 2 |
| Connector Orientation | Vertical / 180° | Packaging Type | Tape Reel |
| PCB Locator | N/A | PCB Retention | N/A |
| PC Tail Length | N/A | Pitch – Mating Interface | 1.00mm |
| Plating Min – Mating | See part number code | Plating Min – Termination | N/A |
| Polarized to Mating Part | N/A | Polarized to PCB | N/A |
| Shrouded | No | Stackable | N/A |
| Operating Temperature | -55°C to +125°C | Termination Interface | Surface Mount |
| Square Terminal Post | 0.30 SQ | PCB Mount Retention | N/A |
| PCB Mount Alignment | N/A | Connector Mounting | Surface Mount |
| PCB Thickness Recommended | N/A | Row-to-Row Pitch | 1.00mm |
| Height of Connector | 7.75±0.25mm | Recommended PCB Hole Dia. | N/A |
| Base Height | 1.00±0.10mm | Plastic Cap | Shown |
| PCB Layout Width | 7.00mm | PCB Layout Pitch | 1.00mm |
| Pad Width | 0.50mm | Body Width | 5.20±0.30mm |
| Solder Process Data | |||
| Max-Cycle | N/A | Max-Duration | 5–10 seconds |
| Lead-Free Process Compatible | Yes (RoHS Compliant) | Max-Temp | 255°C–265°C |
