The 2.54mm 20 pin SMT female header is a 2 × 10 dual-row, vertical surface-mount PCB receptacle with an 8.50 ± 0.20 mm high-profile body. It is rated at 3.0 A and 250 V AC/DC and features copper-alloy contacts with gold plating over a minimum 50 µin nickel underplate. The PA6T housing is black, heat resistant, UL94 V-0 rated, and RoHS compliant.

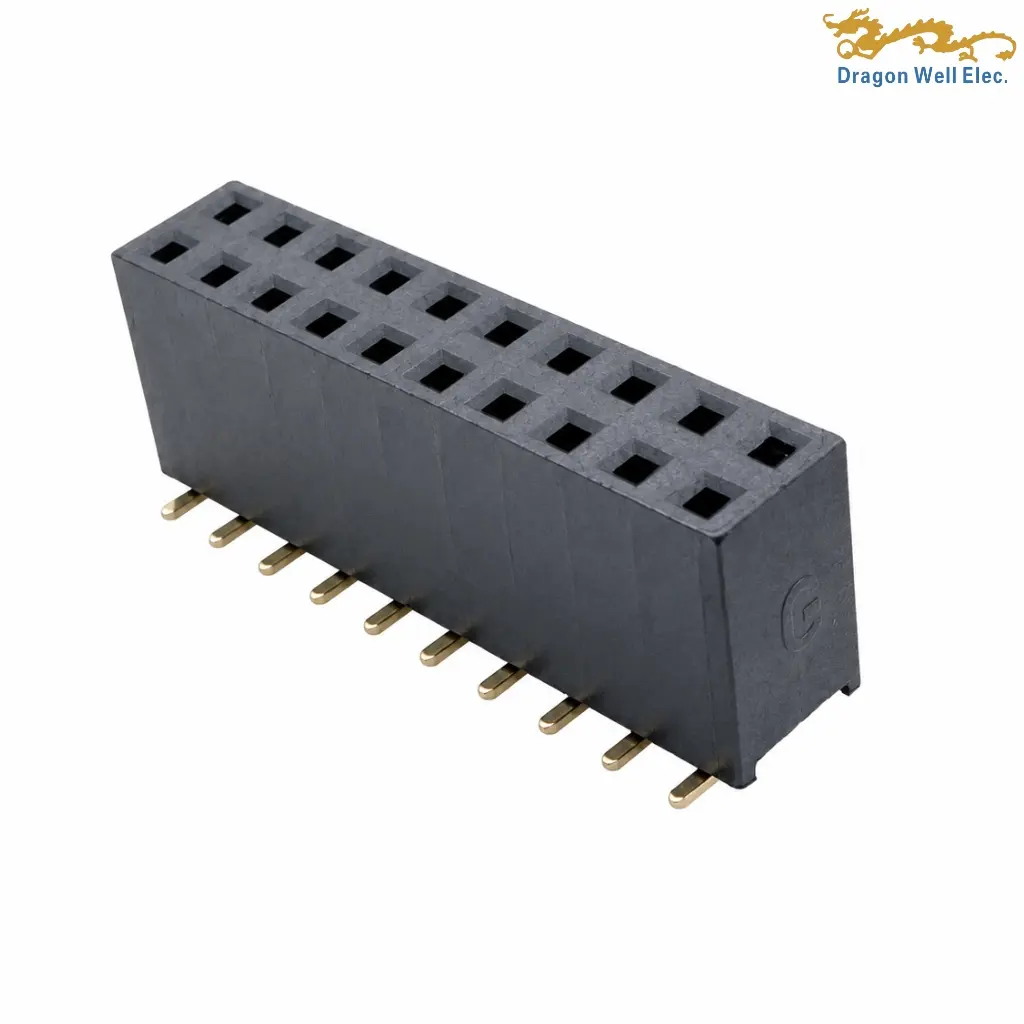

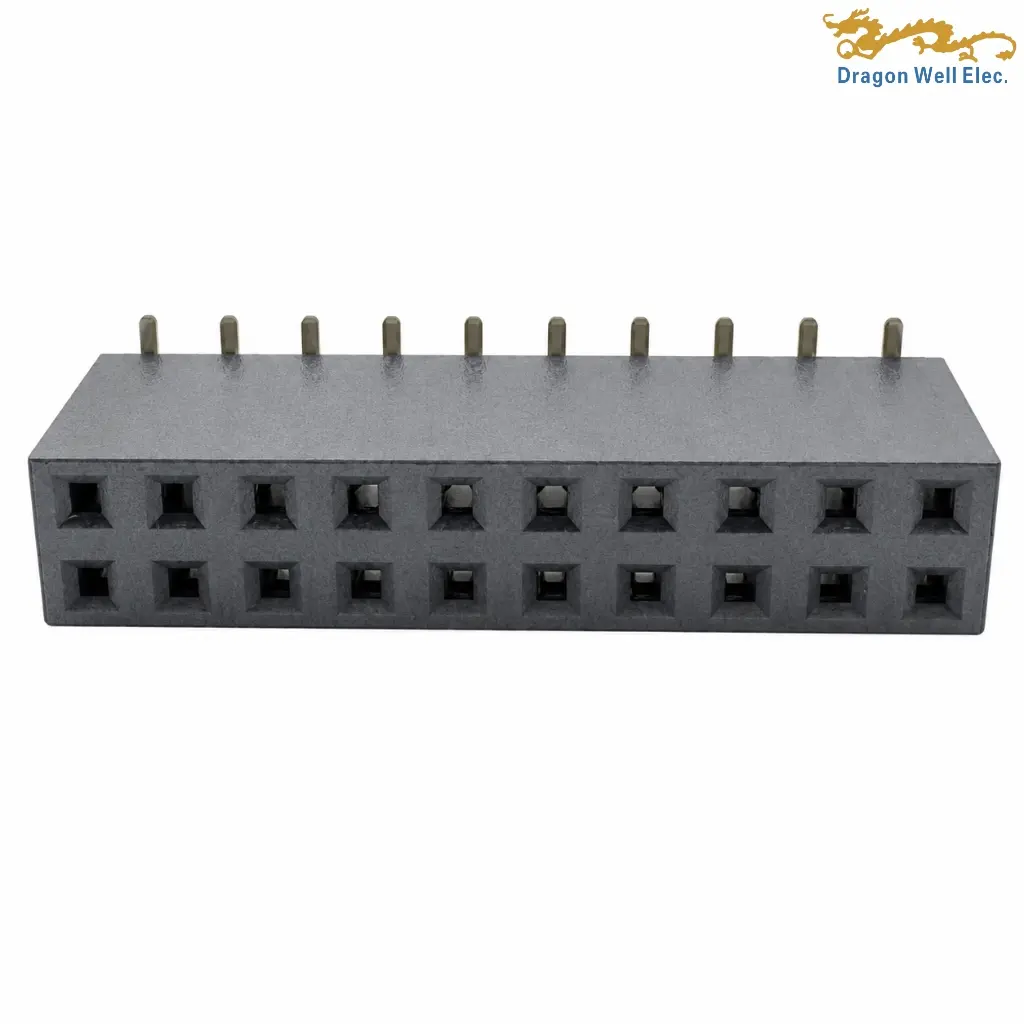

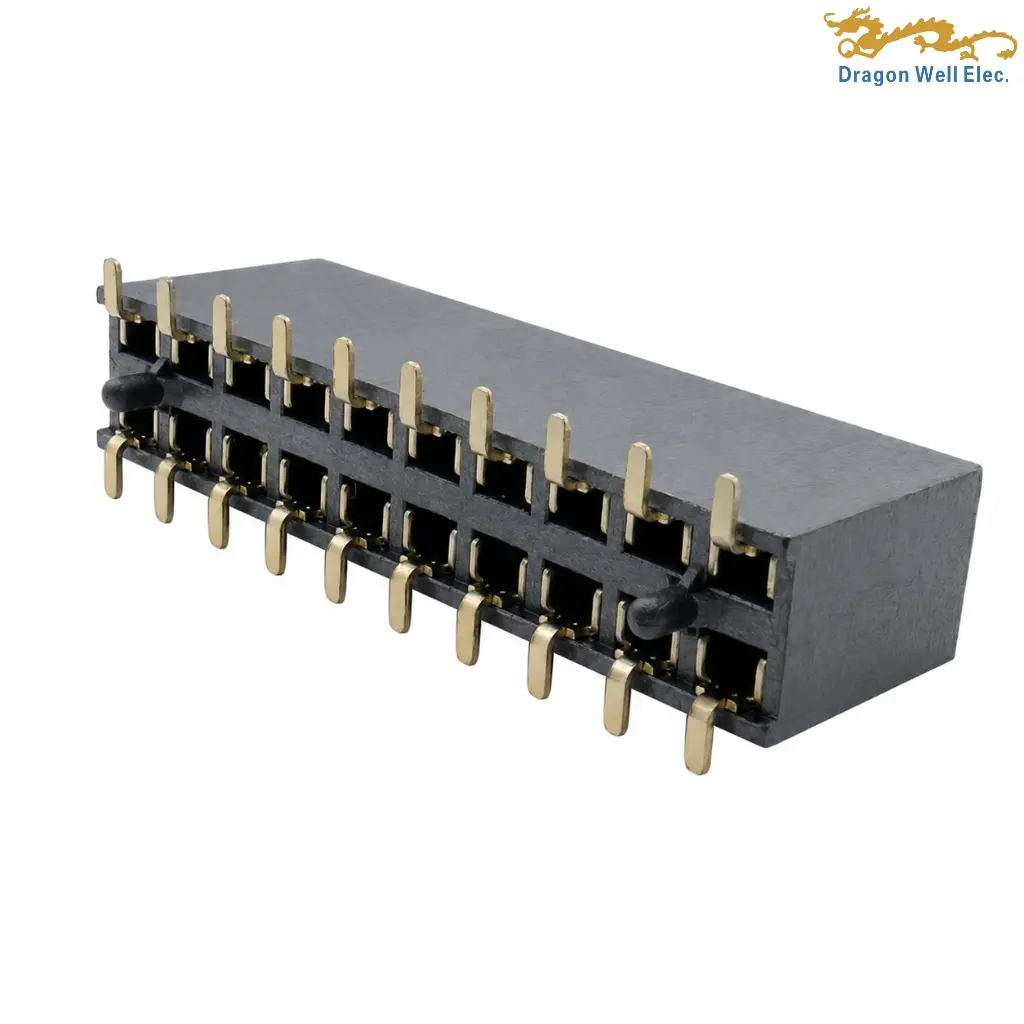

The 2.54mm 20 pin SMT female header is a high-profile, dual-row PCB receptacle designed for vertical surface-mount board-to-board connections. The supplied photograph confirms a 2 × 10 contact arrangement with 20 total positions, while the engineering drawing specifies a 2.54 mm contact pitch and vertical 180° mating orientation.
For the 20-position configuration, the drawing gives a contact span, DIM A, of 22.86 ± 0.25 mm and an overall body length, DIM B, of 25.90 ± 0.35 mm. The black connector housing is 5.00 mm wide and 8.50 ± 0.20 mm high. Its installed height from the PCB surface is 8.80 ± 0.30 mm, and the formed SMT terminals have an overall span of 7.30 ± 0.35 mm.
The 2.54mm 20 pin SMT female header is rated at 3.0 A and 250 V AC/DC. Electrical performance includes 20 mΩ maximum contact resistance, 1,000 MΩ minimum insulation resistance, and a dielectric withstand rating of 500 V AC for one minute. The specified operating-temperature range is -40°C to +105°C.
The contacts are manufactured from copper alloy with a nickel underplate of at least 50 µin and a gold-plated mating surface. The black housing uses high-temperature Nylon 6T, also identified as PA6T, with a UL94 V-0 flammability classification.
This 2.54mm 20 pin SMT female header is suitable for board-to-board connections in industrial controllers, embedded systems, communication equipment, test instruments, development boards, power-control modules, and replaceable daughterboard assemblies.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-FH-2254588WVNP-XXTR-XX | Description | 2.54mm Pitch Female Header, Dual Row, Vertical 180°, Surface Mount, 8.50mm Height, Tape-Reel Type with Pick-and-Place Cap and Optional Plastic Pegs |
| Application | Signal / Board-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount Receptacle / Female Header | Product Name | Female Header Connector |
| Keywords | 2.54mm Female Header, Dual Row Female Header, Vertical Female Header, SMT Female Header, 8.5mm Female Header, Tape Reel Female Header | Contact Type | Receptacle |
| Electrical | |||
| Rated Voltage | 250V AC/DC | Current Rating | 3.0A AC/DC |
| Contact Resistance | 20mΩ Max. | Insulation Resistance | 1000MΩ Min. |
| Dielectric Withstand | 500V AC, 1 Minute | Norm | N/A |
| Physical | |||
| Breakaway | N/A | Circuits / Number of Positions | 4–80 Positions, Even Counts; See Part-Number Code and Dimension Table |
| Circuits Maximum | 80 | Color – Housing | Black |
| Durability / Mating Cycles | N/A | Flammability | UL94V-0 |
| Glow-Wire Capable | N/A | Lock to Mating Part | N/A |
| Material – Metal | Copper Alloy | Material – Plating | Nickel Underplate 50µin Min.; Surface Finish According to Plating Code |
| Material – Plating Solder | N/A | Material – Resin | PA6T (Nylon 6T, UL94V-0) or LCP According to Insulator-Material Code |
| Metal Shape and Form | Rectangular SMT Terminal, 0.75 × 0.25mm | Number of Rows | 2 |
| Connector Orientation | Vertical / 180° | Packaging Type | TR: Tape Reel with Plastic Pick-and-Place Cap |
| PCB Locator | Optional Plastic Pegs; Codes 01 and 02 with Pegs, Codes 03 and 04 without Pegs | PCB Retention | Optional Plastic Pegs |
| PC Tail Length | N/A | Pitch – Mating Interface | 2.54mm |
| Plating Min – Mating | 01: Gold Flash; 03: 3µin Gold; 06: 6µin Gold; 15: 15µin Gold; 30: 30µin Gold; 31: Sn; 32: Ni | Plating Min – Termination | N/A |
| Polarized to Mating | N/A | Polarized to PCB | N/A |
| Shrouded | No; Temporary Pick-and-Place Cap Shown | Stackable | N/A |
| Operating Temperature | -40°C to +105°C | Termination Interface | Surface Mount |
| Square Terminal Post | No; Rectangular Terminal 0.75 × 0.25mm | PCB Mount Retention | Optional Plastic Pegs |
| PCB Mount Alignment | Optional Plastic Pegs; With-Peg and Without-Peg PCB Layouts Shown | Connector Mounting | Surface Mount |
| PCB Thickness Recommended | N/A | Row-to-Row Pitch | 2.54mm |
| Height of Connector | 8.50±0.20mm; 8.80±0.30mm Overall with Plastic Pegs | Recommended PCB Hole Dia. | N/A |
| PCB Layout Width | 8.50mm Overall Pad Span | PCB Pad Pitch | 2.54mm |
| PCB Pad Width | 1.00mm | PCB Pad Length | N/A |
| Solder Process Data | |||
| Max-Cycle | N/A | Max-Duration | N/A |
| Lead-Free Process Compatible | Yes, RoHS Compliant | Max-Temp | N/A |
