Nano SIM connector 6+1 pin 1.40H SMT with card detection switch, copper alloy terminals, stainless steel shell, high-temperature UL94V-0 housing, 0.5A current rating, 30V voltage rating, 3000-cycle durability, and tape reel packaging for compact SIM card PCB applications.
Applications:
• Nano SIM card interface
• Communication modules
• IoT terminals
• GPS tracking devices
• Wireless routers and modems
• Smart meters
• Portable electronic devices
• Embedded wireless systems
• Consumer electronics
• Industrial communication equipment
Highlights:
• Nano SIM card connector
• 6+1 pin design
• 6 SIM contacts + card detection switch
• Low-profile H=1.40 mm SMT socket
• Surface mount termination
• Compact body: 13.53 mm × 10.90 mm
• Pin assignment: VCC, RST, CLK, GND, VPP, I/O, CD switch
• Copper alloy terminals
• Stainless steel shell
• High-temperature thermoplastic housing
• UL94V-0 flame rating
• Rated current: 0.5A
• Rated voltage: 30V
• Contact resistance: 100mΩ max
• Insulation resistance: 1000MΩ min
• Withstanding voltage: 500V AC for 1 minute
• Durability: 3000 cycles
• Operating temperature: -40°C to +85°C
• Humidity range: 10%–95% RH max
• Tape reel packaging: 2,000 pcs/reel
• RoHS compliant

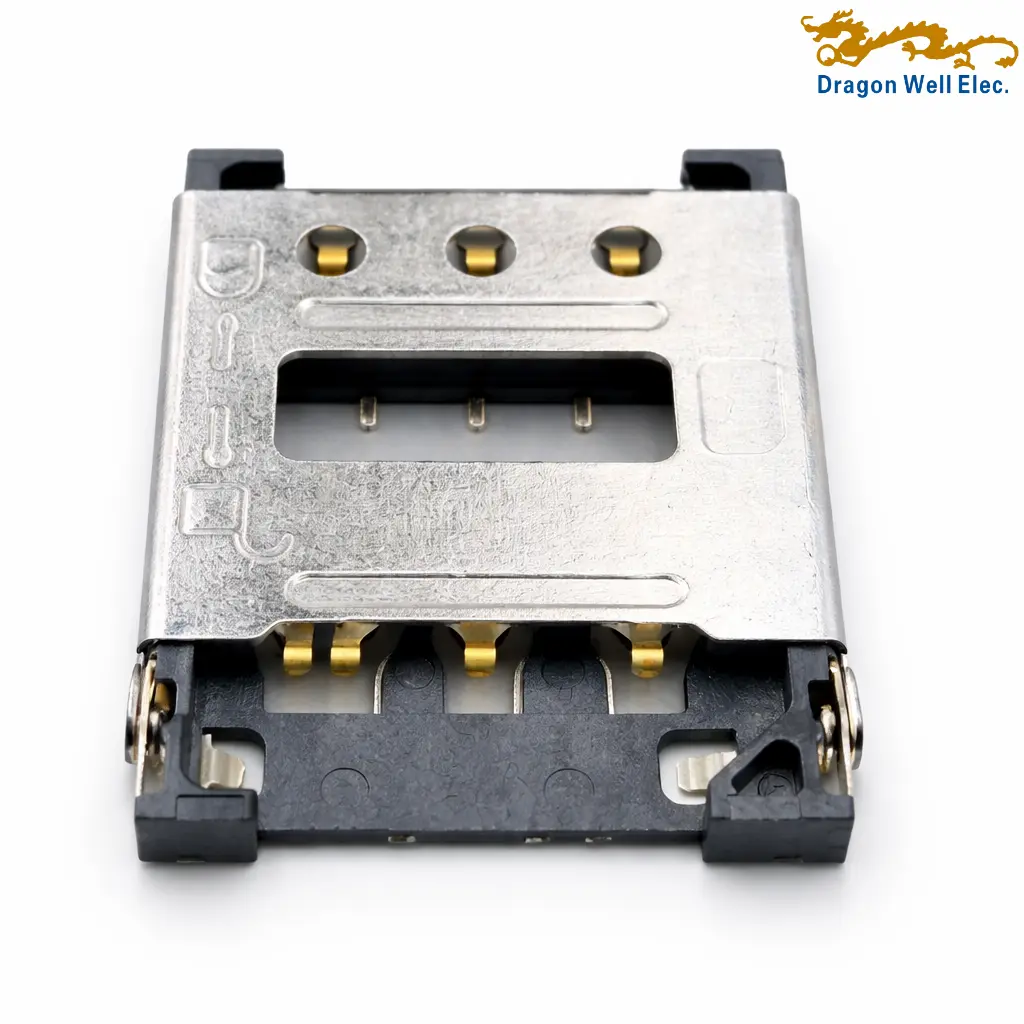

Nano SIM connector 6+1 pin 1.40H SMT is a compact SIM card socket designed for reliable Nano SIM card connection in space-limited electronic devices. Based on the drawing, this connector features a 6+1 pin structure, including six SIM signal contacts and one card detection switch. With a low-profile 1.40 mm height, SMT termination, and compact body size, it is suitable for modern PCB designs requiring stable SIM card contact and automated assembly.The integrated card detection switch helps the device detect SIM card insertion status, making this connector useful for communication modules, IoT terminals, smart devices, GPS devices, wireless routers, and compact embedded systems.
This Nano SIM connector 6+1 pin 1.40H SMT uses copper alloy terminals and a stainless steel shell for stable mechanical strength and reliable electrical performance. The housing is made from high-temperature thermoplastic material with UL94V-0 flame rating. The terminal plating includes 50µ” Ni underplating overall, with selectable gold plating on the mating area according to the XX plating code. The shell plating is 50µ” Ni overall with 1µ” Au selective contact area, according to the drawing.
Electrical performance includes 0.5A current rating, 30V voltage rating, 100mΩ maximum contact resistance, 1000MΩ minimum insulation resistance, and 500V AC for 1 minute withstanding voltage. The connector supports 3000 insertion cycles and operates from -40°C to +85°C with 10%–95% RH humidity range. With RoHS compliance and tape reel packaging, it is suitable for high-volume SMT production.
| General | |||
| Status | Active | Category | SIM card connector |
| Model No. / Series | DW-SM-714015-XXTR-01 | Description | Nano SIM connector, 6+1 pin, SMT type, 1.40 mm profile, with card-detect switch, RoHS compliant |
| Comments | RoHS compliant; XX = terminal plating code; TR = Tape Reel | Product Name | Nano SIM Connector |
| Style | SMT socket | UPC | N/A |
| Electrical | |||
| Current – Maximum per Contact | 0.5 A | Voltage – Maximum | 30 V |
| Shielded | Yes — stainless steel shell | Grounding to Panel | N/A |
| Contact Resistance (Max) | 100 mΩ max | Insulation Resistance (Min) | 1000 MΩ min |
| Withstand Voltage | 500 V AC, 1 minute | N/A | N/A |
| Physical | |||
| Card Detection Switch | Yes | Card Entry Location | N/A |
| Circuits (Loaded) | 6 + 1 detect pin | Circuits (Maximum) | 7 |
| Pin Assignment | C1=VCC; C2=RST; C3=CLK; C5=GND; C6=VPP; C7=I/O; CD=Detect Switch | N/A | N/A |
| Color – Resin | N/A | Durability (Mating Cycles Max) | 3000 cycles |
| Ejector Button Side | N/A | Material – Contact | Copper alloy |
| Material – Plating Mating | 50u” Ni underplated overall; gold flash plated on contact area; XX code: 01=Gold Flash, 03=3u”, 06=6u”, 15=15u”, 30=30u” | Material – Plating Termination | Gold flash plated on solder area; 50u” Ni underplated overall |
| Material – Resin | High temperature thermoplastic | Material – Shell | Stainless steel |
| Shell Plating | N/A | Packaging Type | Tape & Reel; 2,000 PCS/reel; 20,000 PCS/carton |
| PCB Locator | N/A | PCB Retention | Yes — SMT solder tabs / shell tabs |
| Pitch – Mating Interface | N/A | Pitch – Termination Interface | N/A |
| Temperature Range – Operating | -40°C to +85°C; Humidity 10%–95%RH max | Termination Interface Style | Surface Mount (SMT) |
| Salt Spray | N/A | Contact Normal Force | N/A |
| Shell Lock / Open Force | Lock Force 7.0N max; Open Force 0.5N min | N/A | N/A |
| Overall Length | 13.53 mm | Overall Width | 10.90 mm |
| Overall Height / Profile | 1.40 mm | Net Weight | N/A |
| Solder Process Data | |||
| Max-Duration | N/A | Max-Cycle | N/A |
| Lead-Free Process Capability | RoHS compliant | Max-Temp | 250°C ±5°C |
