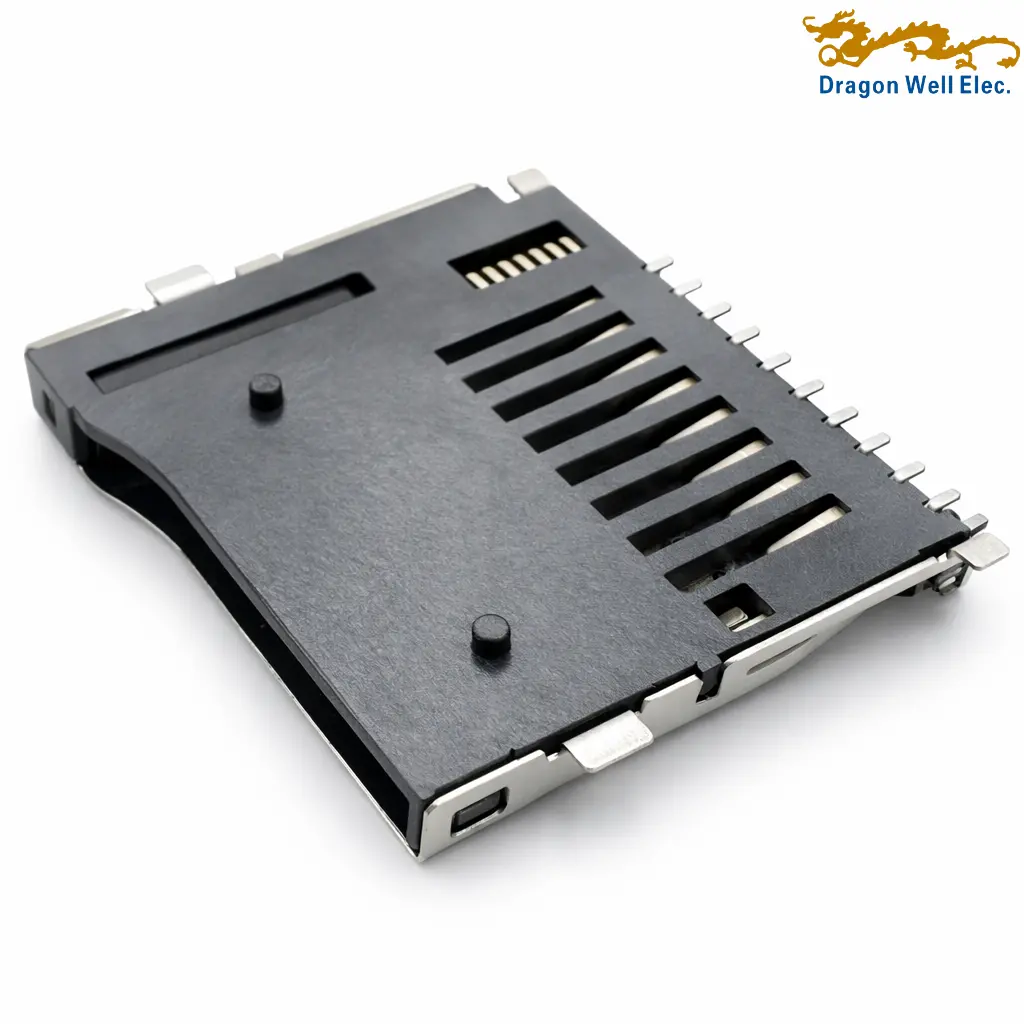

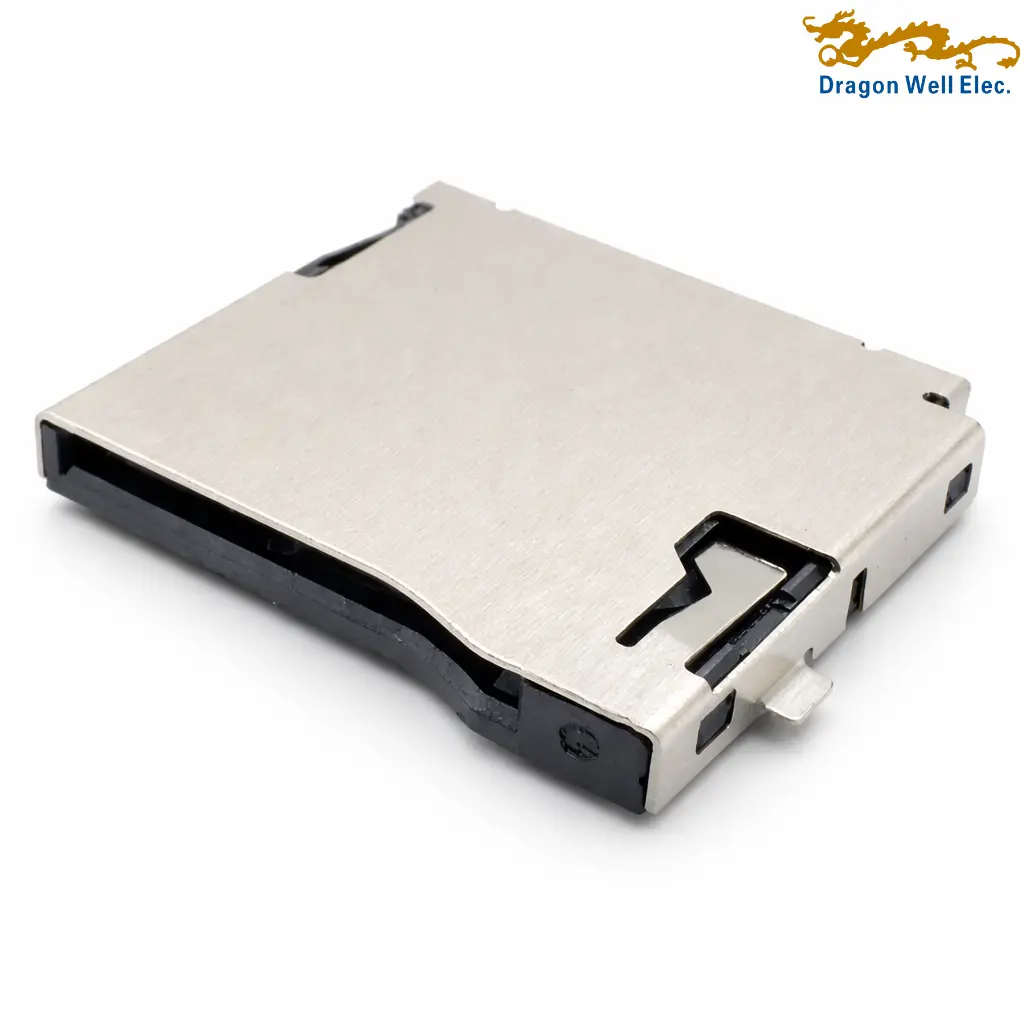

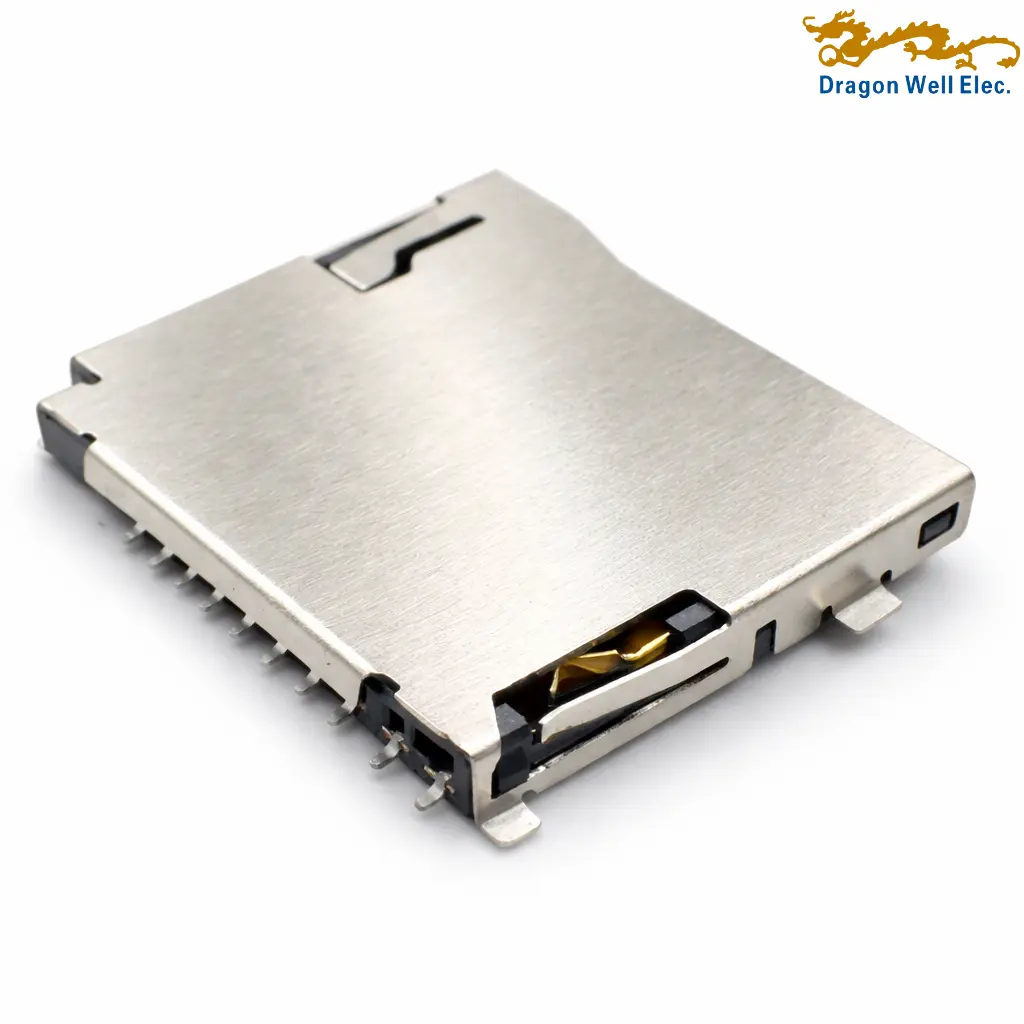

T-Flash card socket 1-85H PCB mount connector for compact memory card applications, designed with an 8-pin interface, 1.85 mm low-profile structure, and push in / push out card operation. Based on the drawing, this connector uses a UL94V-0 high temperature thermoplastic housing, copper alloy contacts, and a plated metal cover for dependable PCB integration in space-saving electronic devices.
• Applications: Portable electronics, embedded systems, data storage modules, communication terminals, handheld devices, industrial control units, smart devices, compact PCB memory card interfaces.**
• Highlights: T-Flash card socket; 1.85H low-profile design; PCB mount type; 8-pin interface; push in / push out operation; multimedia card compatible; high temperature thermoplastic housing; gold-over-nickel contact area; tin-over-nickel solder area; RoHS compliant
T-Flash card socket 1-85H PCB mount connector is a compact memory card connector designed for reliable card interface connection in portable electronics, communication devices, and embedded PCB applications. Based on the drawing, this product is a T-Flash card socket with a 1.85 mm profile, an 8-pin contact design, and a PCB-mount structure for compact board layouts. The drawing also shows push in / push out card operation, making it suitable for applications that require smooth card insertion and removal in limited installation space.
This T-Flash card socket 1-85H PCB mount connector uses a high temperature thermoplastic housing, UL94V-0, black, with copper alloy contacts and a copper alloy or steel cover. The plating information in the drawing specifies nickel underplate, gold over nickel on the contact area, and tin over nickel on the solder area, helping support stable electrical contact and soldering reliability for PCB assembly.
With its slim profile, board-level mounting structure, and durable plated contact system, this T-Flash card socket is suitable for compact electronic products that need dependable flash memory card connectivity. It is a practical choice for data storage modules, portable terminals, industrial handheld devices, and embedded control products where compact card connection is required.
| General | |||
| Status | Active | Category | T-Flash card connector |
| Model No. / Series | TF08F-017-XX X-SHR | Description | T-Flash card connector, push-push type, 8-position, 1.85 mm profile, RoHS compliant |
| Comments | RoHS compliant; multimedia card compatible; part-number plating options shown on drawing | Product Name | T-Flash Card Connector |
| Style | Push-push | UPC | — |
| Electrical | |||
| Current – Maximum per Contact | — | Voltage – Maximum | — |
| Shielded | Yes — metal cover | Grounding to Panel | — |
| Contact Resistance (Max) | — | Insulation Resistance (Min) | — |
| Withstand Voltage | — | — | — |
| Physical | |||
| Card Detection Switch | No separate mechanical card-detect switch shown | Card Entry Location | — |
| Circuits (Loaded) | 8 | Circuits (Maximum) | 8 |
| Color – Resin | Black | Durability (Mating Cycles Max) | — |
| Ejector Button Side | N/A | Material – Contact | Copper alloys |
| Material – Plating Mating | Contact area: gold over nickel | Material – Plating Termination | Solder area: tin over nickel |
| Material – Resin | High temperature thermoplastic, UL94V-0 | Material – Shell | Copper alloys or steel |
| Shell / Cover Options | Part-number code X shown on drawing | Packaging Type | — |
| PCB Locator | Yes — locating holes/posts shown in PCB layout | PCB Retention | Yes — SMT shell hold-down tabs/anchors |
| Pitch – Mating Interface | 1.10 mm | Pitch – Termination Interface | 1.10 mm |
| Termination Interface Style | Surface Mount (SMT) | Temperature Range – Operating | — |
| Overall Body Width | 14.70 mm | Overall Body Length | 15.20 mm |
| Overall Profile / Height | 1.85 mm | Net Weight | — |
| Solder Process Data | |||
| Max-Duration | — | Max-Cycle | — |
| Lead-Free Process Capability | RoHS compliant | Max-Temp | — |
