$0.16

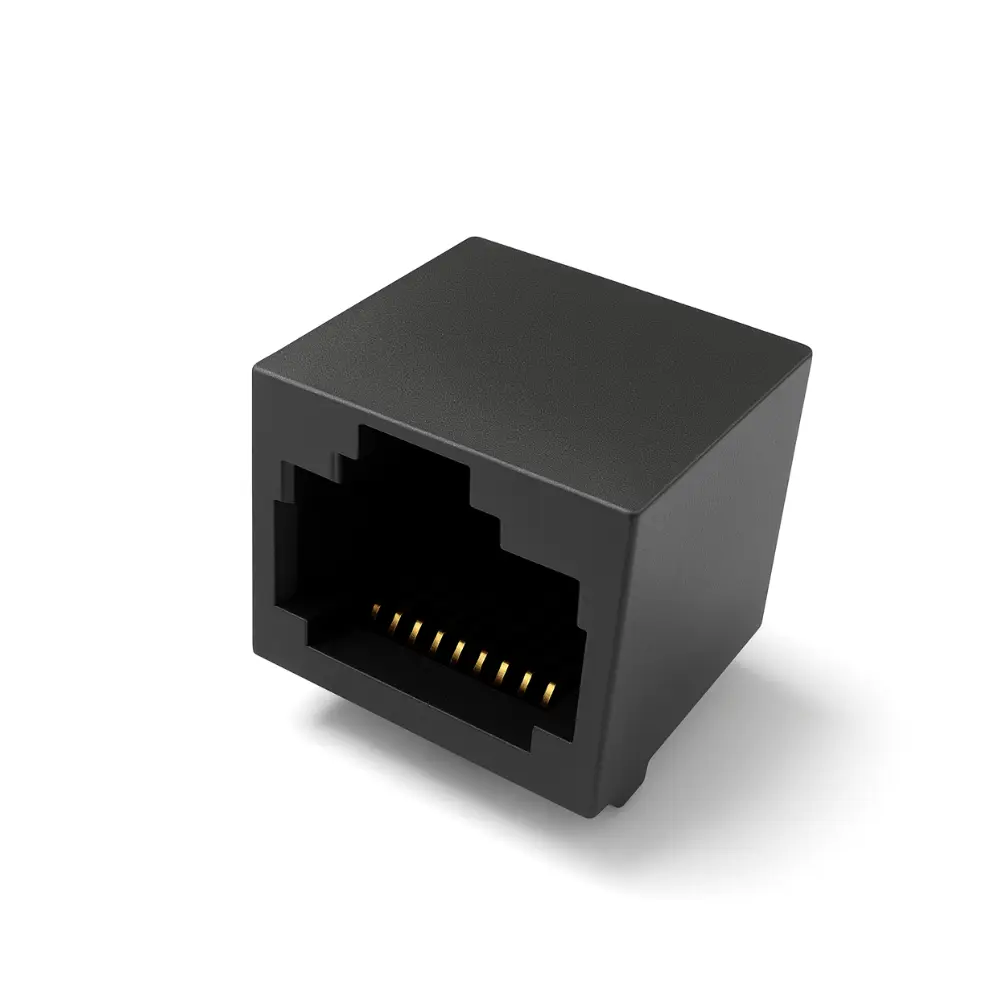

A space-saving 1×1 8P8C RJ45 Modular Jack with tab-up front and DIP terminals no led. PA46 UL94V-0 housing and phosphor-bronze contacts with 3–30 µin gold options deliver long life over 750 cycles. Rated 1.5 A / 125 VAC, –40~85 °C. RoHS/REACH/low-halogen compliant—ideal for routers, switches, gateways, and industrial Ethernet nodes.
Applications:
Ethernet ports on routers, switches, gateways, and LAN appliances
Industrial controllers, PLCs, HMIs, motion/drive Ethernet
IoT hubs and smart-home gateways
Test & measurement equipment network ports
Embedded SBC/COM carrier boards and custom backplanes
Product highlights:
True tab-up, no-LED front for clean aesthetics
Through-hole (DIP) 2.54 mm footprint for strong solder joints
Gold plating options (3/6/10/15/30 µin & flash) to balance wear and cost
Compact ~12.7 mm face, ~15.1 mm body depth for tight panels
1.5 A / 125 VAC, 1000 VAC dielectric withstand
≤50 mΩ contact resistance; ≥500 MΩ insulation
–40 °C to +85 °C operating range
RoHS, REACH SVHC, low-halogen ready

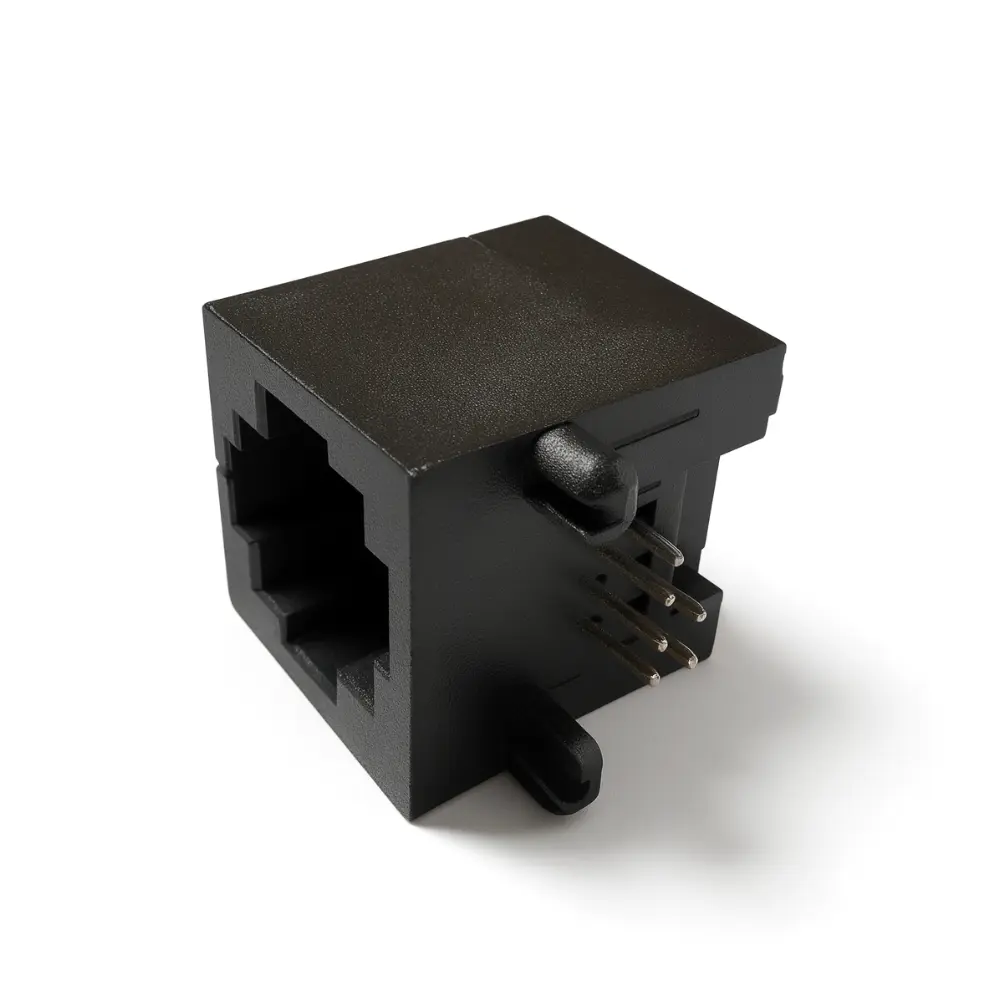

RJ45 Modular Jack 1×1 8P8C Tab Up DIP is a compact, through-hole Ethernet interface designed for durable performance on tightly packed boards. this single-port connector uses a tab-up (latch-on-top) front without LEDs for clean panel design and simplified BOM control. The body width is approximately 12.7 mm, with overall depth around 15.1 mm, allowing dense multi-port arrays while keeping comfortable keep-outs. A PA46, UL94V-0 black housing delivers heat resistance and mechanical stability during wave soldering and in service.
| 1. Basic Information | |||
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-D001151-01TP-01 | Description | RJ45 Jack, 1×1 port, 8P8C, Unshielded, W/O LED, DIP, Tab-Up |
| Product Name | RJ45 1-Port W/O LED Tab-Up | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 15.75 mm | Height | 12.70 mm |
| Length | 15.10 mm | Installed height | 14.30 mm |
| Material (Metal surface contact area top layer) | Gold | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface soldering area) | Nickel | Material (Metal surface soldering area top layer) | Tin |
| Mating Force | PCB Retention | Yes | |
| Customs tariff number | 85366930 | Country of origin | CN |
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation | Right Angle |
| Positions / Loaded Contacts | 8P8C | Lightpipes/LEDs | W/O LED |
| Packaging | Tray | Termination Interface | DIP |
| Port Configuration | 1×1 | Inverted / Top Latch | Yes |
| Durability (mating cycles max) | 750 | Material – Resin | PA46 UL94V-0 |
| Jack Height | 12.70 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Tin | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.02 & 2.04 mm (staggered) |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 JACK, Modular Jack, Through-Hole RJ45 Connector, Right Angle RJ45 Jack, Single Port RJ45 Jack, Unshielded |
| Pitch – Termination Interface | 1.02 & 2.04 mm (staggered) | Latch / Tab orientation | Tab-Up |
| EMI | No | ||
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | No |
| Grounding to PCB | No | Shielded | No |
| Voltage – Maximum | 125V AC RMS | Operating Temperature | -40°C to +85°C |
| Insulation resistance | ≥500 MΩ @ 500 VDC | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | WAVE | Classification temperature, T(C) | 260°C |
| Dielectric Withstanding | 1000 VAC RMS, 60 Hz, 1 min | ||
