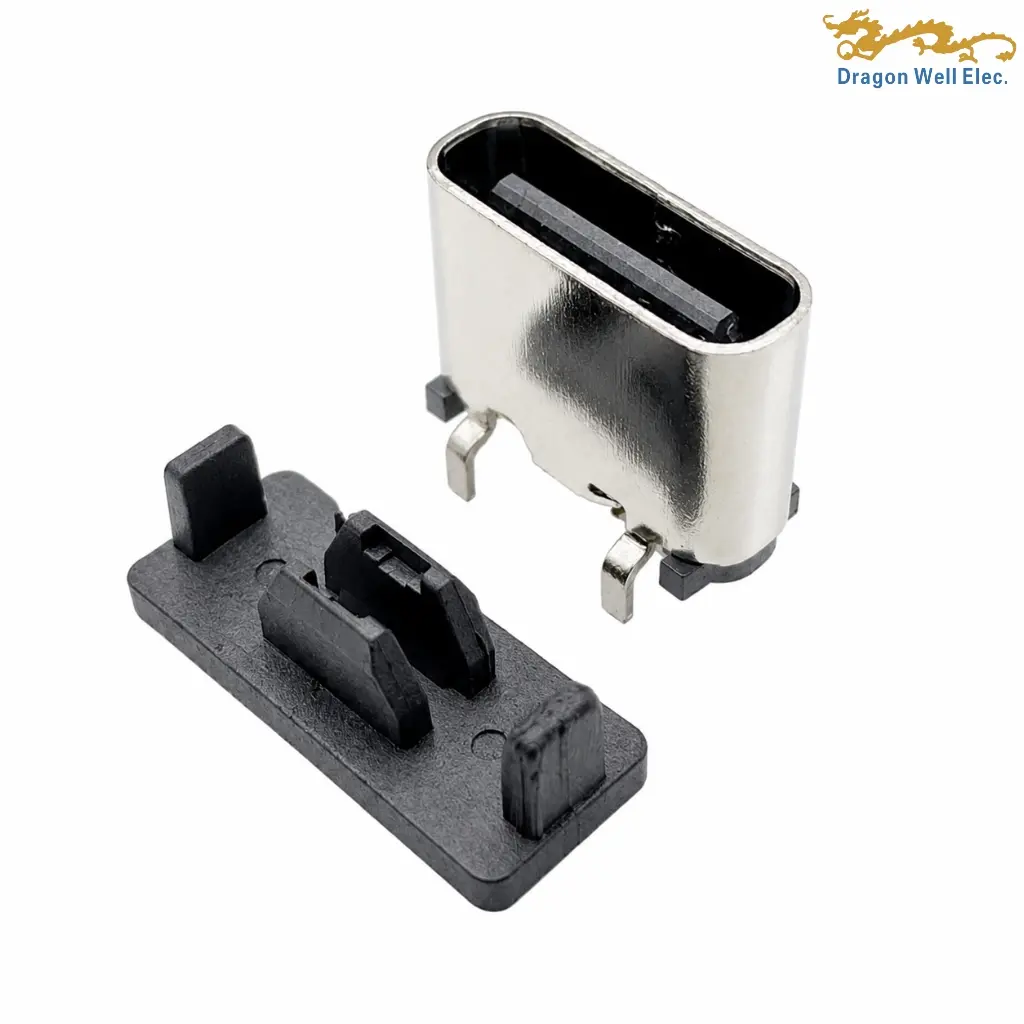

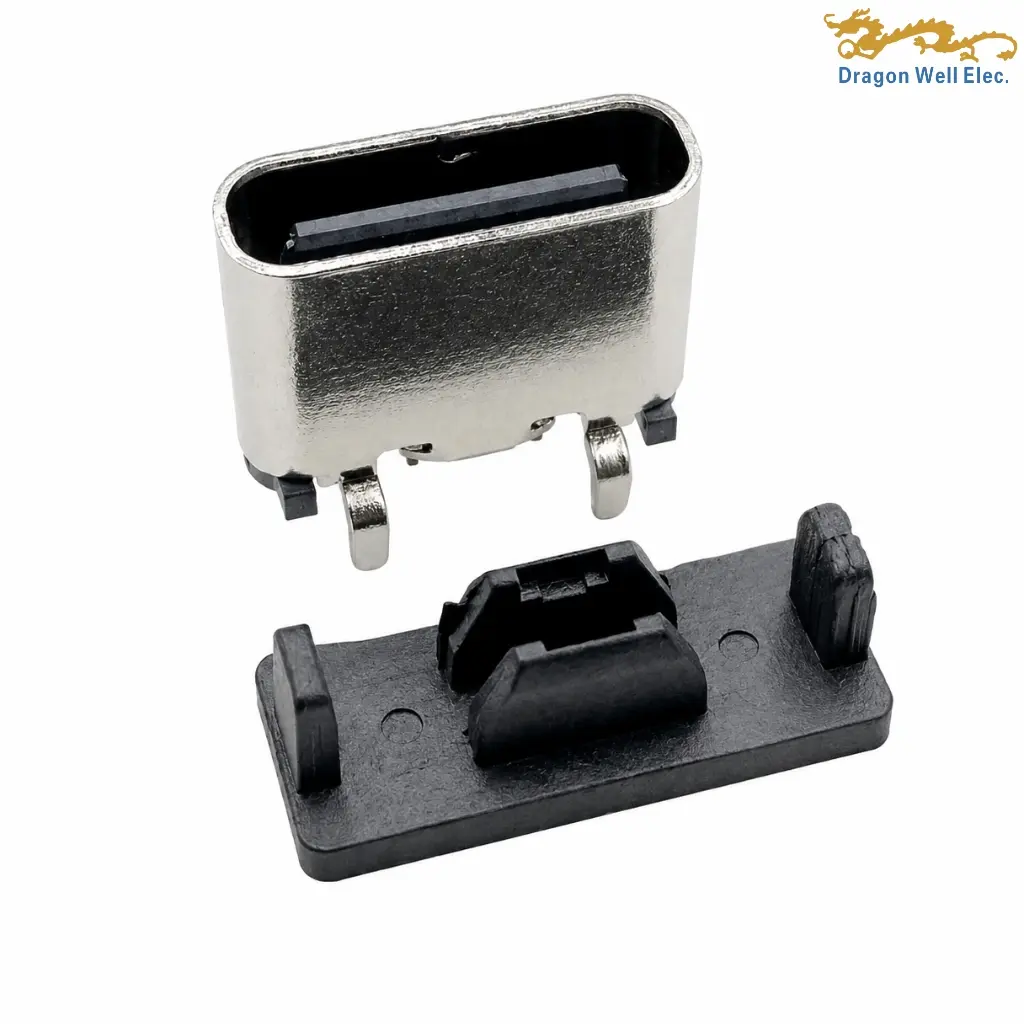

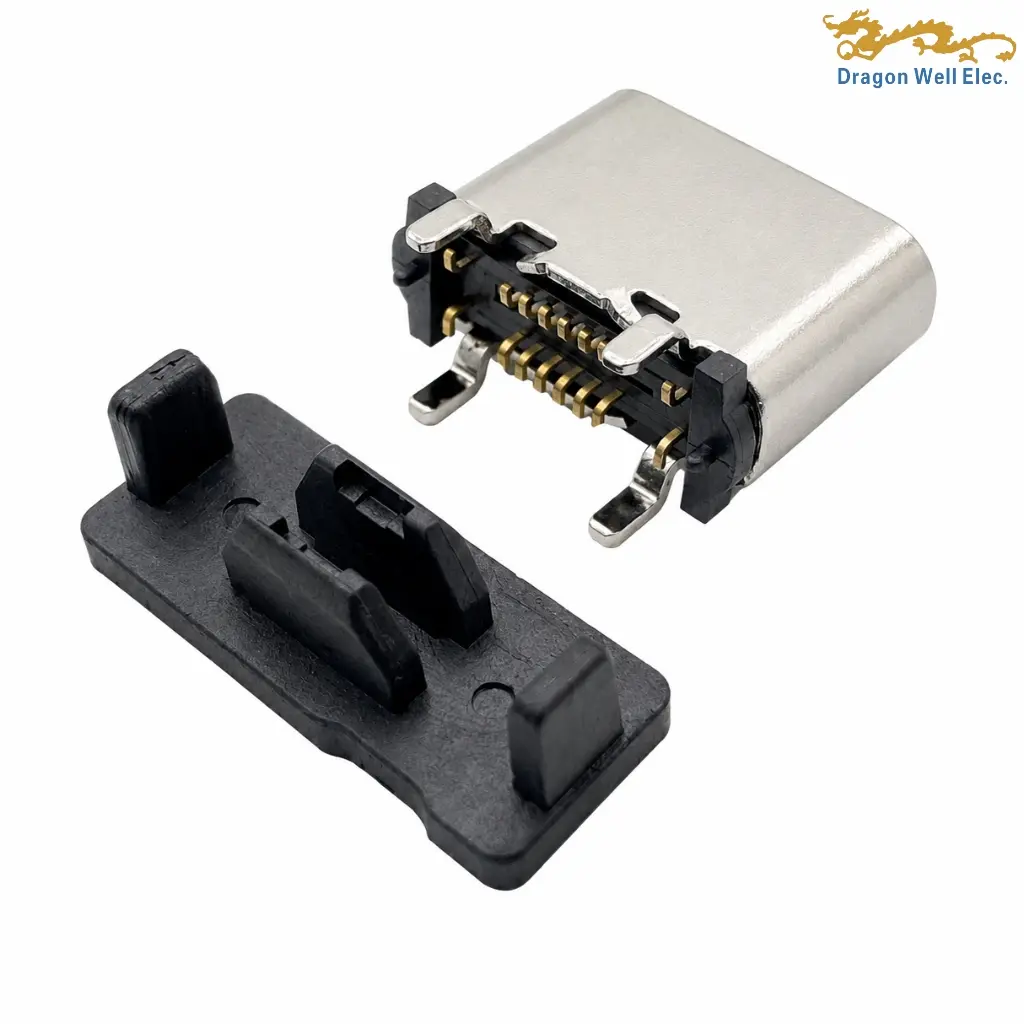

USB Type-C 16 pin vertical receptacle DW-MUB-CF016800-01TR-01 is a female vertical SMD connector with 16 contacts, H6.50 nominal height, 3A/5A maximum current rating, 10,000-cycle durability, stainless-steel shield, copper-alloy contacts, and black LCP UL 94V-0 housing. It features gold-flash mating-area plating, tape-and-reel packaging, and RoHS-compliant construction.
Applications: USB Type-C interfaces, charging ports, embedded electronics, communication equipment, consumer electronics, control systems, compact PCB assemblies, docking products, and other USB-powered electronic devices.
Highlights: 16-contact USB Type-C receptacle; female connector; vertical SMD orientation; H6.50 nominal height; 3 A / 5 A maximum current; 100 VAC rating; ≤40 mΩ contact resistance; ≥100 MΩ insulation resistance; -30°C to +85°C operating temperature; 5–20 N insertion force; 8–20 N initial unmating force; 10,000 mating cycles; stainless-steel nickel-plated shell; copper-alloy terminals; gold-flash mating area; black LCP UL 94V-0 insulator; 24-hour salt-spray requirement; tape-and-reel packaging; RoHS compliant.
USB Type-C 16 pin vertical receptacle DW-MUB-CF016800-01TR-01 is a female vertical SMD connector designed for compact USB Type-C PCB interfaces. The Dragon Well drawing identifies this model as a USB Type-C female vertical SMD connector with H6.50 nominal height, a 16-contact configuration, shielded construction, and tape-and-reel packaging.
The connector is rated at 3 A / 5 A maximum and 100 VAC. Electrical performance specified in the drawing includes 40 mΩ maximum contact resistance and 100 MΩ minimum insulation resistance. Its operating temperature range is -30°C to +85°C.
The signal arrangement includes GND, VBUS, CC1, CC2, D+, D-, SBU1 and SBU2 contacts. The drawing identifies the contact pairs as A1/B12 GND, A4/B9 VBUS, A5 CC1, B5 CC2, A6/B6 D+/D-, A7/B7 D-/D+, and A8/B8 SBU1/SBU2.
This USB Type-C 16 pin vertical receptacle uses a stainless-steel shell with nickel plating, copper-alloy terminals, and a black LCP UL 94V-0 insulator. For model DW-MUB-CF016800-01TR-01, plating code 01 specifies gold-flash plating on the mating area. The TR suffix identifies tape-and-reel packaging.
Mechanical specifications include 5–20 N insertion force, 8–20 N initial unmating force, and 10,000 mating cycles. After durability testing, the drawing specifies 6–20 N unmating force and 50 mΩ maximum contact resistance. A 24-hour salt-spray requirement is also specified.
| General | |||
| Status | Active | Category | USB Connector |
| Model No. | DW-MUB-CF016800-XXTR-01 | Description | USB Type-C female receptacle, 16-pin, vertical SMT, H=6.50 mm |
| Component Type | Receptacle | Product Name | USB Type-C Connector |
| RoHS | Compliant | Packaging | TR: Tape Reel |
| Electrical | |||
| Current Rating | 3 A / 5 A Max. | Voltage Rating | 100 V AC |
| Contact Resistance | 40 mΩ Max. initial; 50 mΩ Max. after 10,000 cycles | Insulation Resistance | 100 MΩ Min. |
| Dielectric Withstanding Voltage | N/A (not specified in drawing) | Operating Temperature | -30 °C to +85 °C |
| Reflow Capability | N/A (not specified in drawing) | Electrical Specification | Available |
| Physical | |||
| Number of Contacts | 16 | Port Type | USB Type-C Female |
| Number of Ports | 1 | Mounting Type | Vertical, SMT contacts with through-hole shell stakes |
| Overall Height | 6.40 ± 0.25 mm | Overall Width | 7.50 ± 0.25 mm |
| Front Width | 8.34 +0.06/-0.02 mm | Body Length | 5.50 ± 0.25 mm overall depth; 4.30 ± 0.25 mm body side dimension |
| Front Opening Height | 2.56 ± 0.10 mm | Recommended Panel Cutout | N/A |
| Insulating Housing & Cover | LCP, UL94V-0 | Housing Color | Black |
| Contacts 5PIN Material | Copper Alloy, applicable to all contacts | Contacts 4PIN Material | Copper Alloy, applicable to all contacts |
| Shell Material | Stainless Steel | Isolated Material | N/A |
| Contact Finish | Ni 30 µin underplate; solder foot Au 0.5 µin; mating-area Au finish selectable by XX plating code | Solder Tail Finish | Au 0.5 µin over Ni 30 µin |
| Underplating | Ni 30 µin | Shell Finish | Ni 30 µin |
| Isolated Finish | N/A | Contact Pitch | 0.50 mm |
| Terminal Plating Options | 01: Gold Flash; 03: 3 µin Gold; 05: 5 µin Gold; 15: 15 µin Gold; 30: 30 µin Gold | Series | 01–99 |
| Classification Reflow Soldering Profile | |||
| Preheat Temperature Min | Ts(min) = 150°C | Preheat Temperature Max | Ts(max) = 200°C |
| Preheat Time (Ts min to max) | ts = 60–120 seconds | Ramp-up Rate (Ts to Tp) | 3°C/second max. |
| Liquidous Temperature | TL = 217°C | Time Above TL | tL = 60–150 seconds |
| Peak Package Body Temp | Tp ≤ 260°C | Time within 5°C of Tp | tp = 20–30 seconds |
| Ramp-down Rate (Tp to TL) | 6°C/second max. | Time 25°C to Peak Temp | 8 minutes max. |
| Package Classification Reflow Temperature (TC) | |||
| Properties | Volume mm³ <350 | Volume mm³ 350–2000 | Volume mm³ >2000 |
| PB-Free Assembly — Package Thickness <1.6mm | 260°C | 260°C | 250°C |
| PB-Free Assembly — Package Thickness 1.6–2.5mm | 260°C | 250°C | 245°C |
| PB-Free Assembly — Package Thickness >2.5mm | 260°C | 245°C | 245°C |
