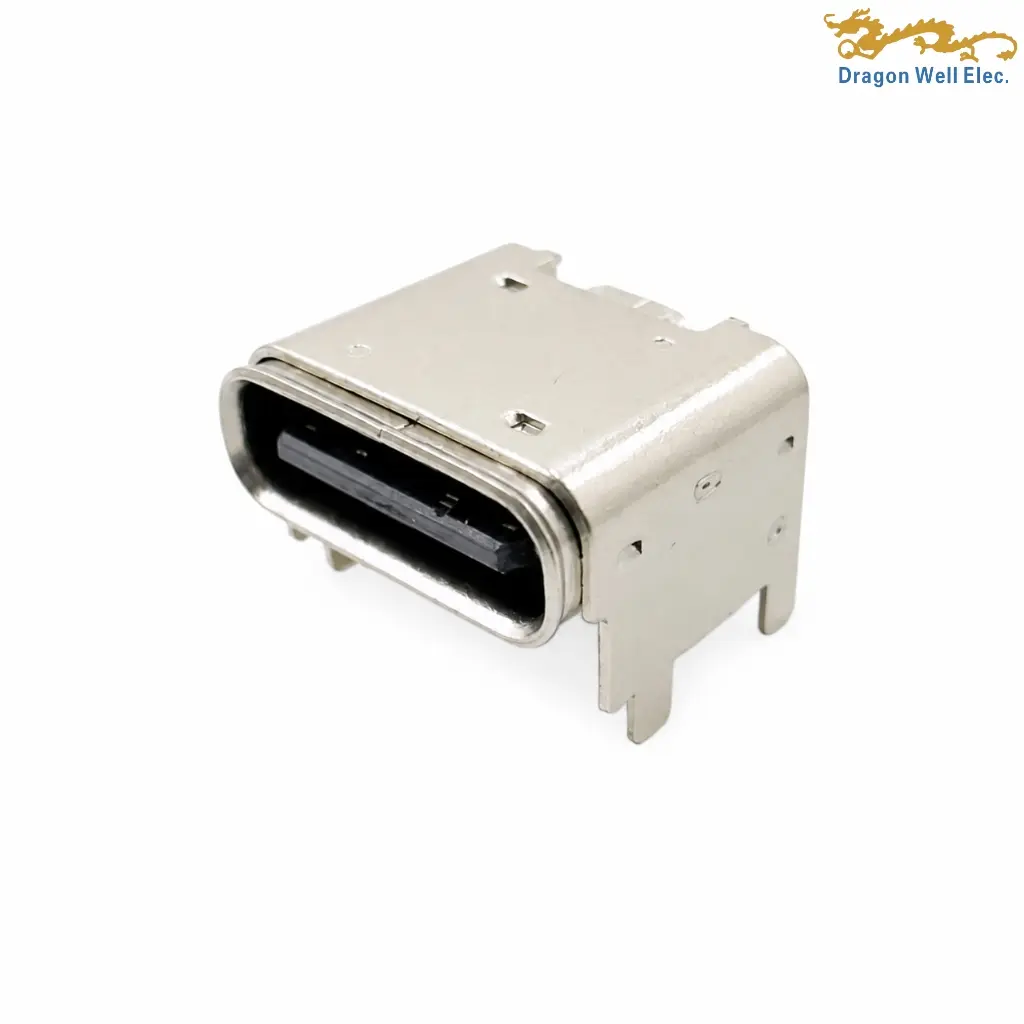

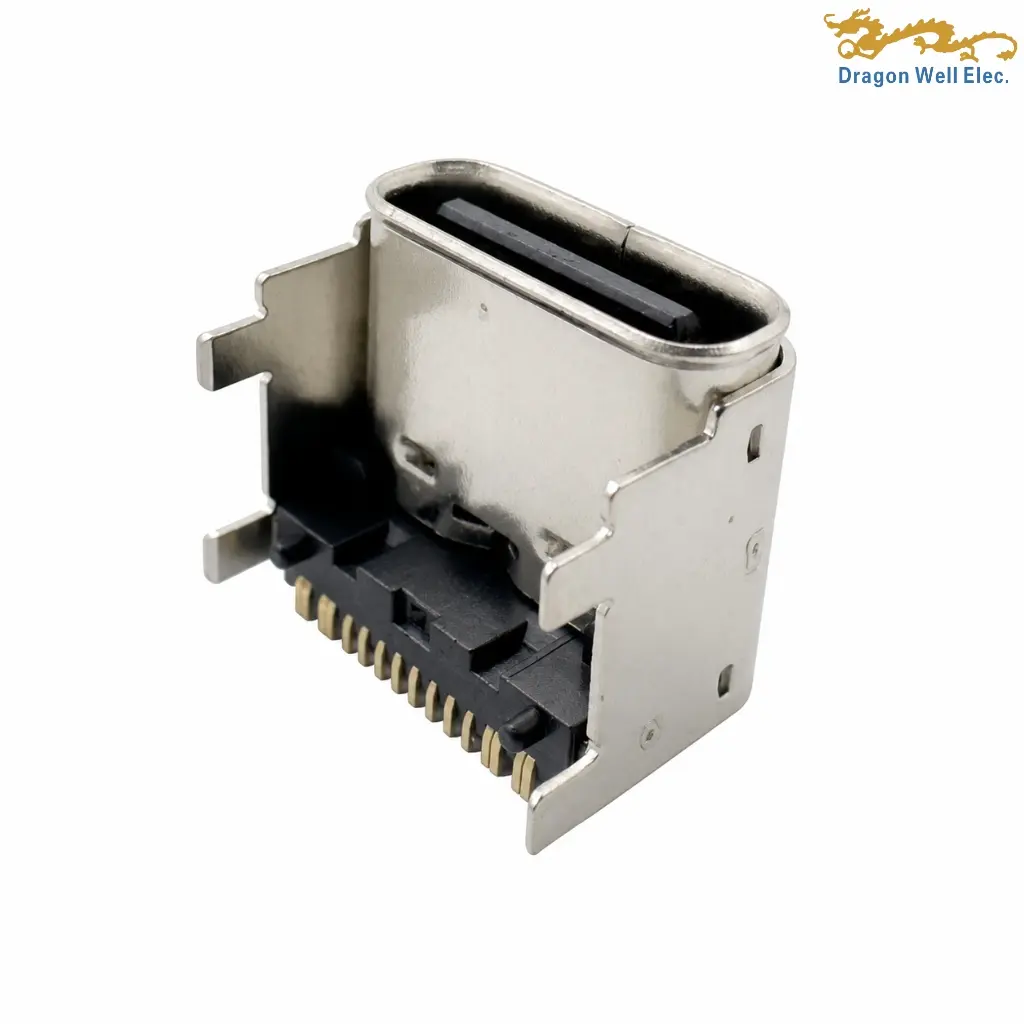

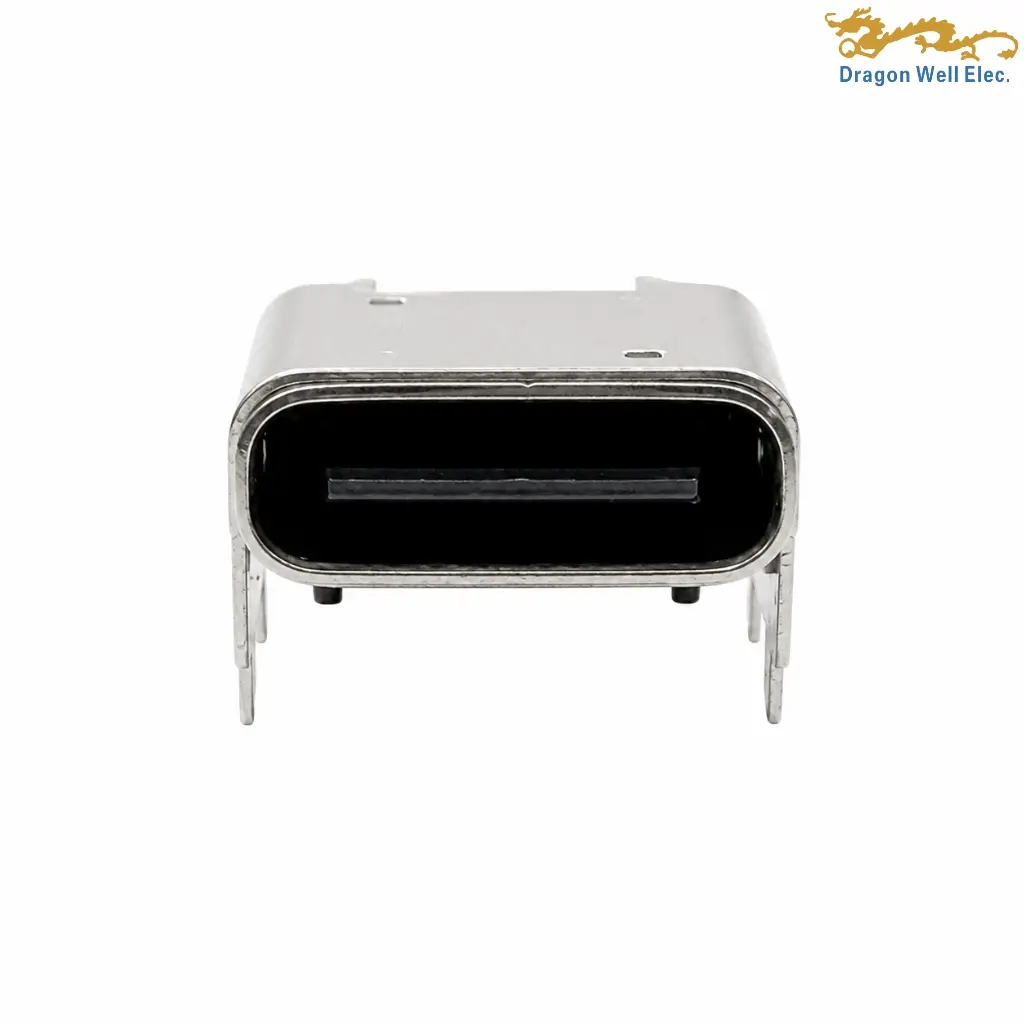

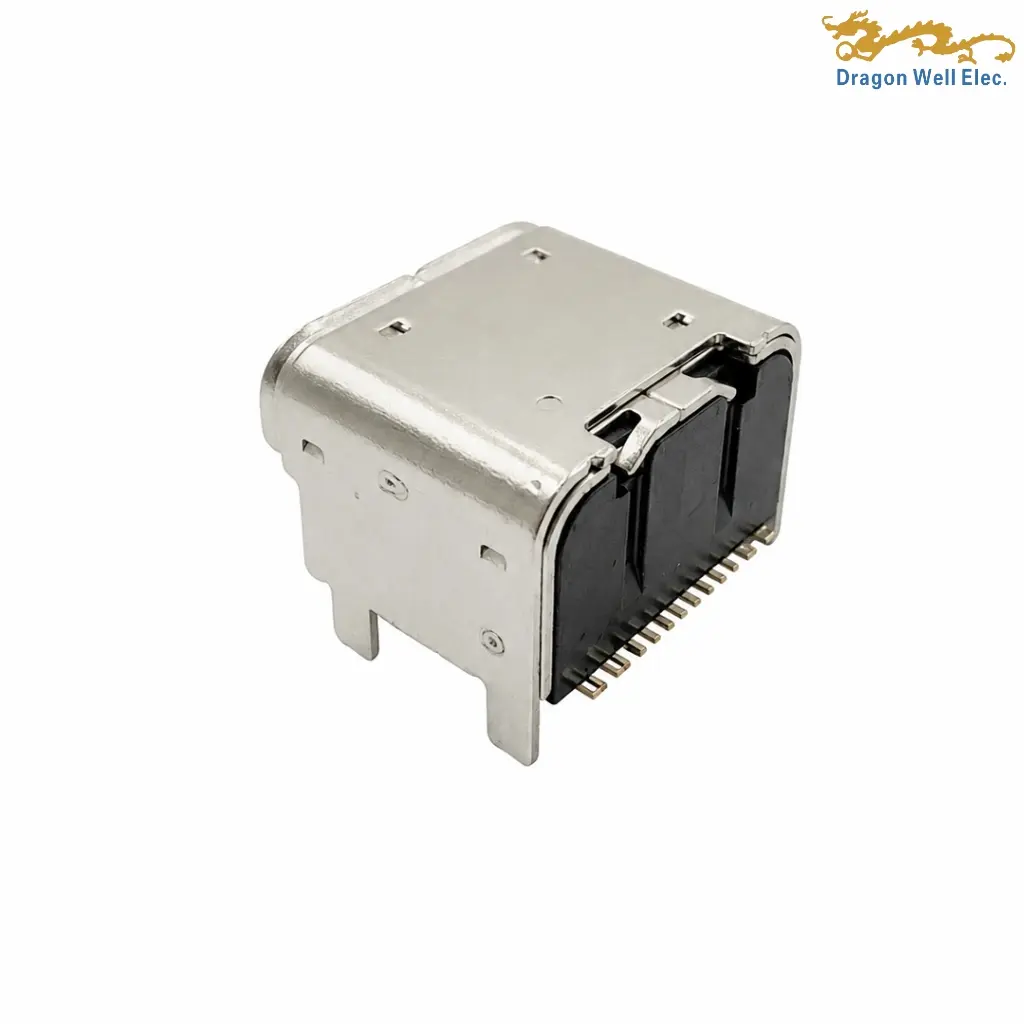

USB Type-C 2.0 16P receptacle DW-MUB-CF016873-01TR-01 is a right-angle, top-mount PCB connector designed for USB 2.0 data and power interfaces. The supplied drawing confirms a 16-contact arrangement with A-side and B-side terminals for GND, VBUS, CC1, CC2, D+, D−, SBU1 and SBU2. The Type-C mating interface is housed in high-temperature-resistant UL94 V-0 plastic with copper-alloy contacts and a stainless-steel front shell.
This connector uses surface-mount signal contacts combined with four through-hole shell-retention stakes, creating a hybrid SMT and THT PCB mounting structure. The recommended PCB layout shows a 0.50 mm contact pitch, two Ø0.80 mm locating holes and four elongated shell-retention slots.
The connector is a raised top-mount design with a 3.50 mm center height and a stated 1.90 mm elevation. Key envelope dimensions include a 9.47 ± 0.25 mm body width, 8.00 ± 0.25 mm body depth, 8.34 mm front-shell width and 9.22 ± 0.15 mm rear-shell width.
The USB Type-C 2.0 16P receptacle has a drawing-specified current rating of 5.0 A and voltage rating of 20 V. Contact resistance is specified at 40 mΩ maximum per pin, while shield resistance is 50 mΩ maximum. The insulation resistance is 100 MΩ minimum, and the dielectric withstand voltage is 100 VAC for one minute.
| General | |||
| Status | Active | Category | USB Connector |
| Model No. | DW-MUB-CF016873-XXTR-01 | Description | USB Type-C 2.0 female receptacle, 16-pin, right-angle board mount, CH=3.50mm, raised height 1.90mm |
| Component Type | Receptacle | Product Name | USB Type-C 2.0 Connector |
| RoHS | Compliant | Packaging | TR: Tape Reel |
| Electrical | |||
| Current Rating | 5.0A | Voltage Rating | 20V |
| Contact Resistance | VBUS, GND and other pins: 40mΩ/pin Max.; Shield: 50mΩ Max.; LLCR change: 10mΩ Max. | Insulation Resistance | 100MΩ Min. |
| Dielectric Withstanding Voltage | 100V AC, 1 Minute | Operating Temperature | -25°C to +85°C |
| Reflow Capability | 260°C for 10 Seconds | Electrical Specification | Available |
| Physical | |||
| Number of Contacts | 16 | Port Type | USB Type-C Female, USB 2.0 |
| Number of Ports | 1 | Mounting Type | Right Angle, SMT Contacts with Through-Hole Shell Stakes |
| Overall Height | 5.36±0.10mm | Overall Width | 9.47±0.25mm |
| Front Width | 8.34 +0.06/-0.02mm | Body Length | 8.00±0.25mm Overall Depth; 7.10mm Shell Body |
| Front Opening Height | 2.56±0.04mm | Recommended Panel Cutout | N/A |
| Insulating Housing & Cover | High-Temperature-Resistant Plastic, UL94V-0 | Housing Color | N/A |
| Contacts 5PIN Material | Copper Alloy, Applicable to All Contacts | Contacts 4PIN Material | Copper Alloy, Applicable to All Contacts |
| Shell Material | Stainless Steel, Front Shell | Isolated Material | N/A |
| Contact Finish | Gold Plating on Mating Area, Selectable by Plating Code | Solder Tail Finish | N/A |
| Underplating | N/A | Shell Finish | N/A |
| Isolated Finish | N/A | Contact Pitch | 0.50mm |
| Terminal Plating Options | 01: Gold Flash; 03: 3µin Gold; 05: 5µin Gold; 15: 15µin Gold; 30: 30µin Gold | Series | 01–99 |
| Classification Reflow Soldering Profile | |||
| Preheat Temperature Min | Ts(min) = 150°C | Preheat Temperature Max | Ts(max) = 200°C |
| Preheat Time (Ts min to max) | ts = 60–120 seconds | Ramp-up Rate (Ts to Tp) | 3°C/second max. |
| Liquidous Temperature | TL = 217°C | Time Above TL | tL = 60–150 seconds |
| Peak Package Body Temp | Tp ≤ 260°C | Time within 5°C of Tp | tp = 20–30 seconds |
| Ramp-down Rate (Tp to TL) | 6°C/second max. | Time 25°C to Peak Temp | 8 minutes max. |
| Package Classification Reflow Temperature (TC) | |||
| Properties | Volume mm³ <350 | Volume mm³ 350–2000 | Volume mm³ >2000 |
| PB-Free Assembly — Package Thickness <1.6mm | 260°C | 260°C | 250°C |
| PB-Free Assembly — Package Thickness 1.6–2.5mm | 260°C | 250°C | 245°C |
| PB-Free Assembly — Package Thickness >2.5mm | 260°C | 245°C | 245°C |
