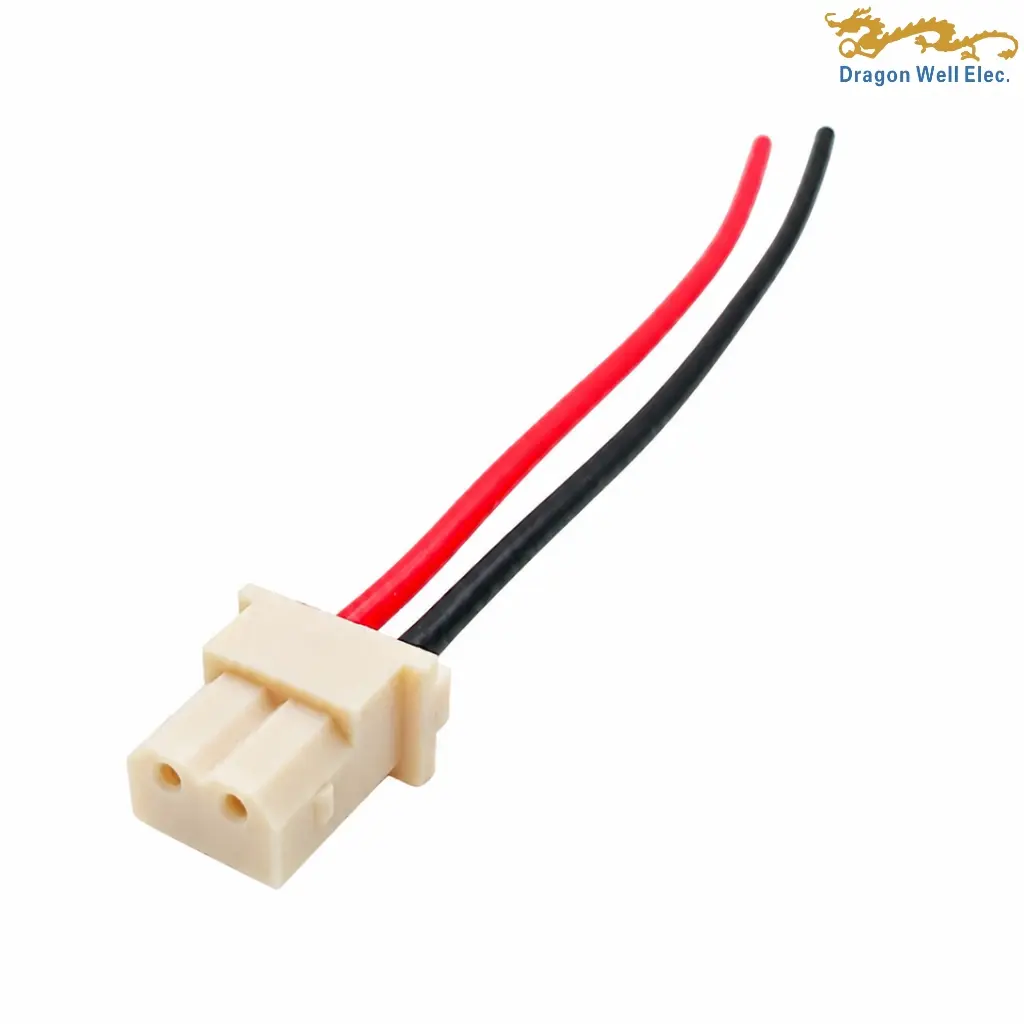

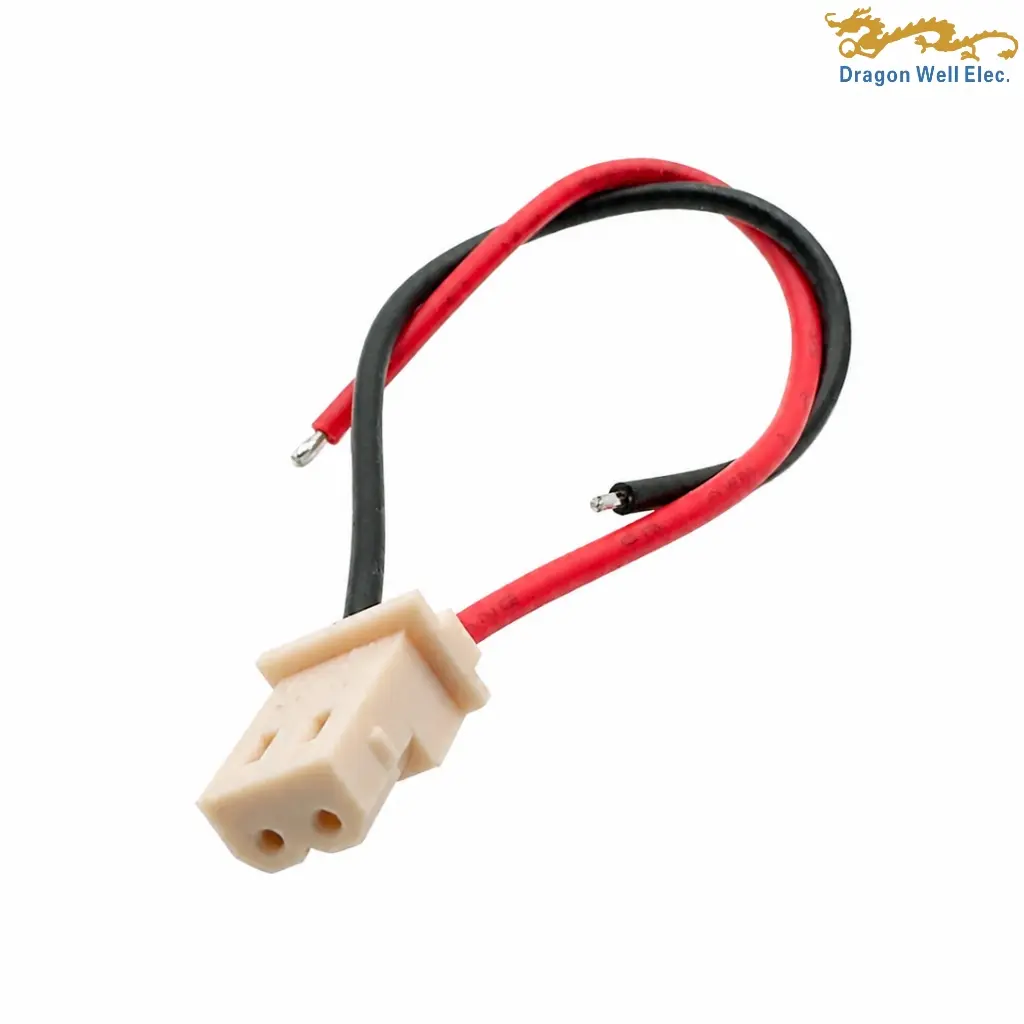

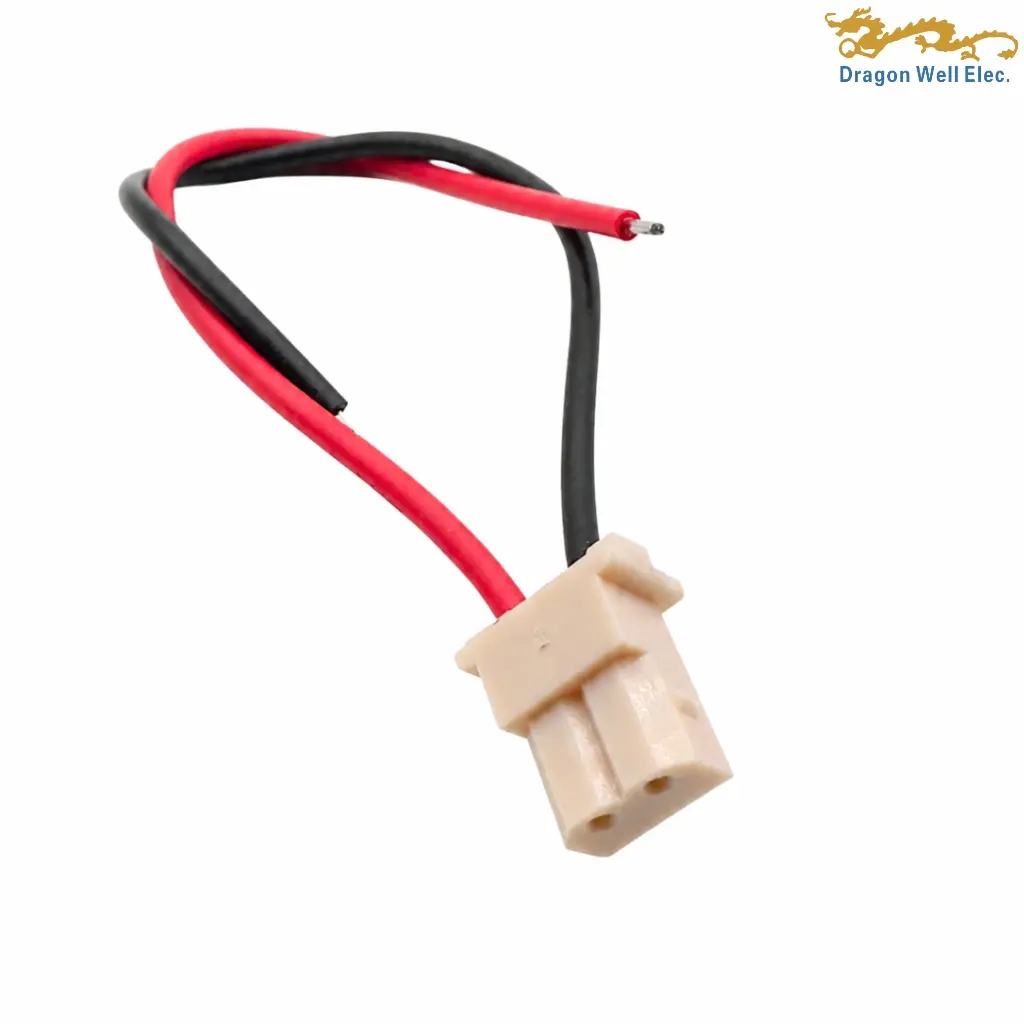

The 2.50mm 2 pin wire harness features a white MOX5264-type two-position housing, tin-plated phosphor-bronze female terminals, and UL1007 AWG 24 red and black wires. The black lead measures 78 ± 1 mm, while the red lead measures 73 ± 1 mm. Both open ends are stripped and tinned to 2.0 ± 0.5 mm for efficient soldering and equipment integration.
The 2.50mm 2 pin wire harness is a compact two-conductor cable assembly developed for internal wire-to-board connections in electronic equipment. According to the approved drawing, it uses a white MOX5264-type two-position housing fitted with two female crimp terminals manufactured from phosphor bronze with tin plating.
The assembly contains one black and one red UL1007 AWG 24 wire. Each conductor has a specified outside diameter of 1.4 mm. Measured from the housing rear reference, the black lead is 78 ± 1 mm long, while the red lead is 73 ± 1 mm long. The wiring table assigns the black conductor to P1 pin 1 and the red conductor to P1 pin 2.
At the open end, both wires are stripped and tinned to 2.0 ± 0.5 mm. This prepared termination supports efficient soldering or connection to another approved component during final equipment assembly. The drawing also specifies that the terminal spring surface must face upward during insertion, helping maintain the required terminal orientation inside the housing.
The 2.50mm 2 pin wire harness can be considered for compact control boards, appliance modules, LED assemblies, sensor interfaces, small power or signal modules, and other internal electronic wiring applications. Final suitability must be confirmed against the customer’s required current, voltage, temperature, mating, and environmental conditions because these ratings are not provided in the supplied drawing.
| 1. General | |||
| Status | Active | Category | FPC Cable Assembly |
| Series | DW-CABPH250-2P000078550 | Description | 2.5mm Pitch FPC Cable Assembly with MOX5264 2P White Male Housing, UL1007 AWG#24 Black and Red Wires (OD 1.4mm), Black Length 78±1mm, Red Length 73±1mm, 2 Circuits, Phosphor Bronze Tin-Plated Female Terminals, and 2.0±0.5mm Stripped and Tinned Open Ends |
| Comments | RoHS Compliant; Terminal Spring Side Facing Up; Both Wire Ends Stripped and Tinned 2.0±0.5mm | Product Name | FPC Cable Assembly |
| 2. Electrical | |||
| Current – Maximum per Contact | N/A | Voltage – Maximum | N/A |
| 3. Physical | |||
| Actuator Type | N/A | Circuits (Loaded) | 2 |
| Color – Resin | White | Contact Position | Open End (per wiring table) |
| Durability (Mating Cycles) | N/A | Mated Height | N/A |
| Material – Metal | Phosphor Bronze Terminals | Material – Plating Mating | Tin |
| Material – Plating Term. | Tin | Material – Resin | N/A |
| Net Weight | N/A | Orientation | Straight |
| Packaging Type | N/A | PCB Locator | N/A |
| PCB Mounting | N/A | PCB Retention | N/A |
| Pitch – Mating Interface | 2.5mm | Polarized to PCB | N/A |
| Stackable | N/A | Temperature Range – Operating | N/A |
| Wire/Cable Type | UL1007 AWG#24 Black and Red Wires, OD 1.4mm | Length | Black: 78±1mm; Red: 73±1mm |
