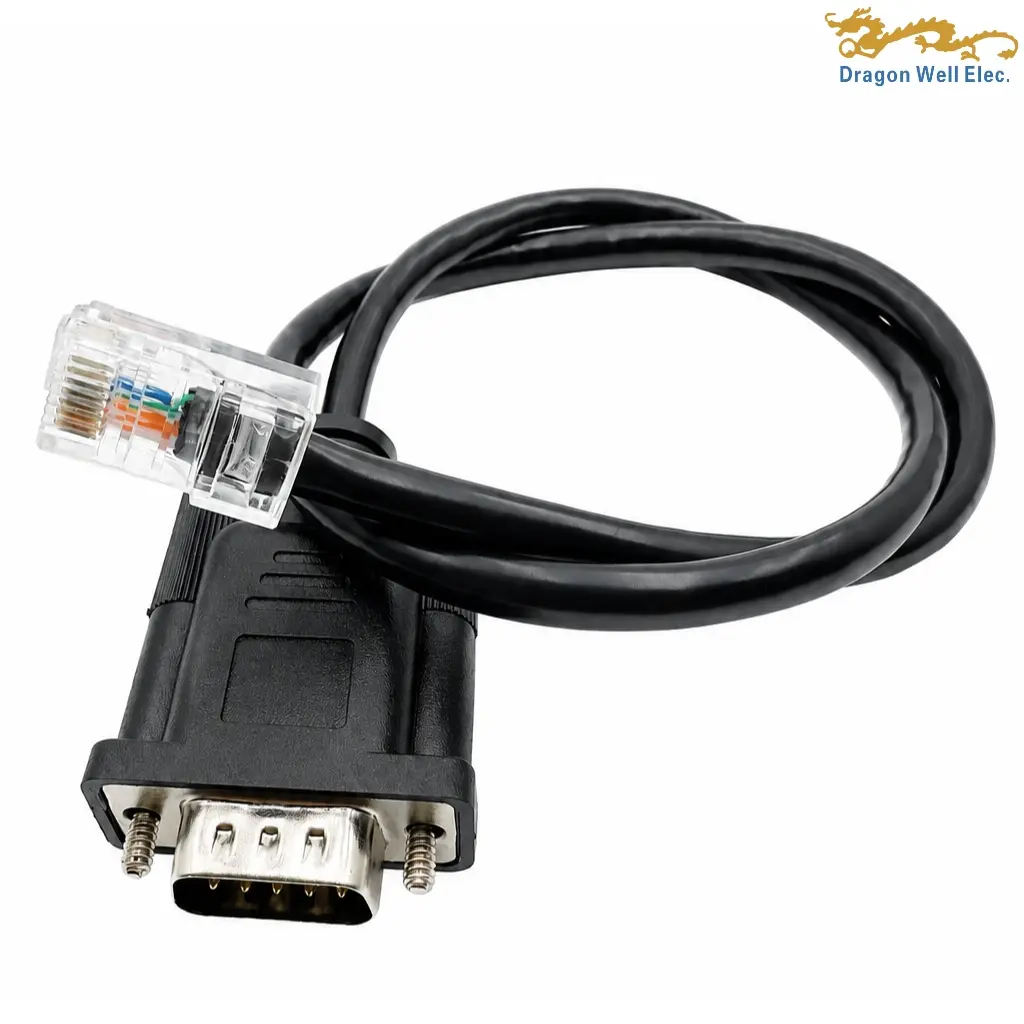

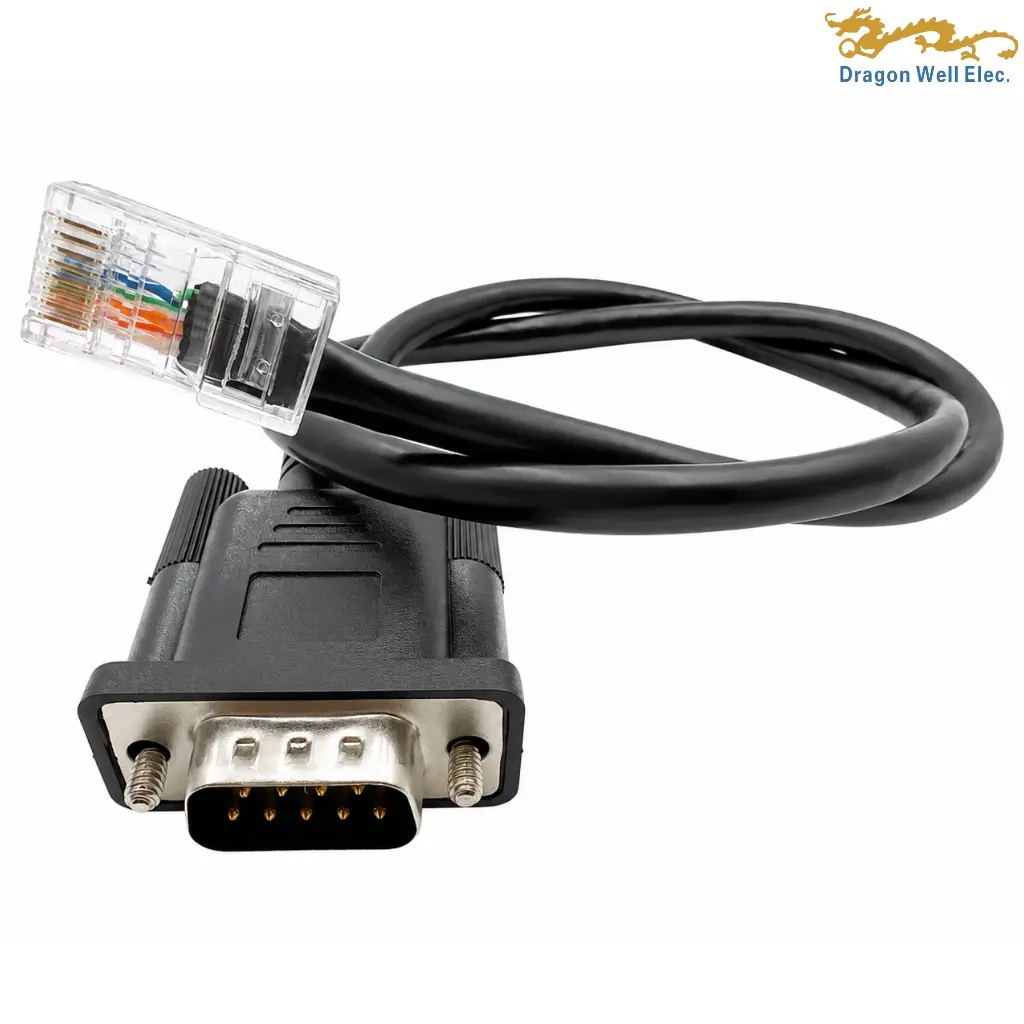

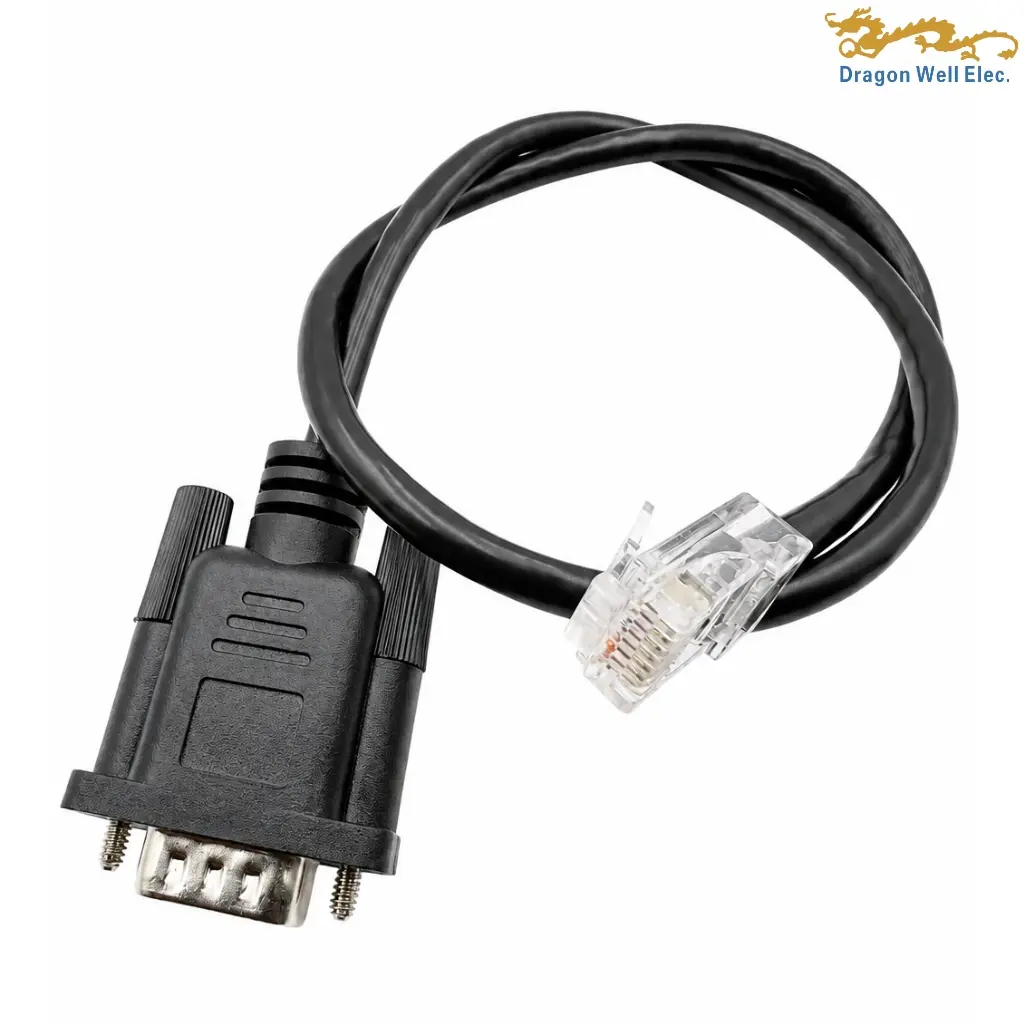

DB9 Male to RJ45 Plug Cable Assembly with 500mm CAT5e UTP cable, DB9 9-pin male connector, RJ45 8P8C plug, molded protection, and RoHS 2.0 compliant construction.
DB9 Male to RJ45 Plug Cable Assembly is a reliable communication cable solution designed for connecting DB9 serial interfaces with RJ45 8P8C network-style connectors in electronic communication and control applications. The DW-CABHDR9-RJ45P500 model features a DB 9-pin male connector on one end and an RJ45 8P8C unshielded plug on the other end, providing a convenient cable assembly solution for equipment requiring this connector combination.
According to the drawing, this DB9 Male to RJ45 Plug Cable Assembly uses a 500±20mm cable length with CAT5e UTP cable construction. The cable specification is identified as PVC((2A4WG/4P)+1F) black UTP CAT5e cable, providing a flexible connection structure for electronic systems. The RJ45 side uses an 8P8C G/F unshielded plug, while the DB9 side is a male connector with blue housing.
The assembly includes molded protection components with a black PVC outer mold and white PE inner mold structure. The connector fixing hardware uses #4-40UNC Q25.4 screws as shown in the drawing. Electrical performance specifications include AC 300V / 0.1S / 0.5mA voltage rating, DC 300V / 10MΩ minimum insulation resistance, and maximum contact resistance of 1.8Ω.
Each cable assembly undergoes 100% testing for open circuits, short circuits, and reversed polarity conditions according to the drawing requirements. The product is also specified as RoHS 2.0 compliant.
Dragon Well Electronics provides the DW-CABHDR9-RJ45P500 DB9 Male to RJ45 Plug Cable Assembly for OEM customers requiring dependable cable assemblies for communication equipment, industrial electronics, and control systems.
| General | |||
| Status | Active | Category | Cable Assembly |
| Model No. | DW-CABHDR9M-RJ45P5006 | Description | DB9 male to RJ45 plug 8P8C CAT5e UTP cable assembly, 500±20 mm |
| Component Type | Cable Assembly | Product Name | DB9 Male to RJ45 Plug 8P8C Cable Ass’y |
| Connector A | DB9 9-Pin Male | Connector B | 8P8C RJ45 Plug |
| Electrical | |||
| Hi-Pot Test | AC 300 V / 0.1 s / 0.5 mA | Insulation Resistance | DC 300 V / 10 MΩ Min. |
| Conductive Resistance | 1.8 Ω Max. (drawing states Contact Resistance) | Open / Short / Intermittence | 100% test for opens, shorts, and reversed polarity |
| Shielded | No — UTP cable / unshielded RJ45 plug | Voltage – Maximum | — |
| Current – Maximum | — | RoHS | RoHS 2.0 Compliant |
| Physical | |||
| Positions / Contacts | P1: 9-pin; P2: 8P8C | Cable Category | CAT5e |
| Cable Length | 500 ± 20 mm | Cable OD | — |
| Cable Color | Black | Jacket Material | PVC |
| Shield Structure | UTP (Unshielded Twisted Pair) | Wiring | Custom DB9-to-RJ45 wiring |
| Outer Mold Material | 45P Black PVC Plug Material | Internal Mold Material | White PE Material |
| P1 Part No. | — | P2 Part No. | — |
| P1 Specification | DB 9PIN MALE, Housing Color: Blue | P2 Specification | 8P8C G/F Unshielded Plug |
| Mounting Style (P1) | With #4-40UNC screws, Q25.4 | Connection | P1-2→P2-2; P1-3→P2-3; P1-4→P2-4; P1-5→P2-5; P1-8→P2-1; P1-6→P2-6; P1-7→P2-7; P1-1→P2-8; P1-9→N/A |
