4 Pin Wire Harness 150mm

4 pin wire harness 150mm DW-CABPH200-PH200150556 is a compact four-circuit cable assembly designed for internal wire-to-board and electronic interconnection applications. According to the Dragon Well drawing, the finished harness has a nominal length of 150 ±5 mm and uses four black UL1007 PVC insulated AWG 28 wires. The wire specification shown in the BOM is a 7-strand conductor with 0.127 mm strand specification.

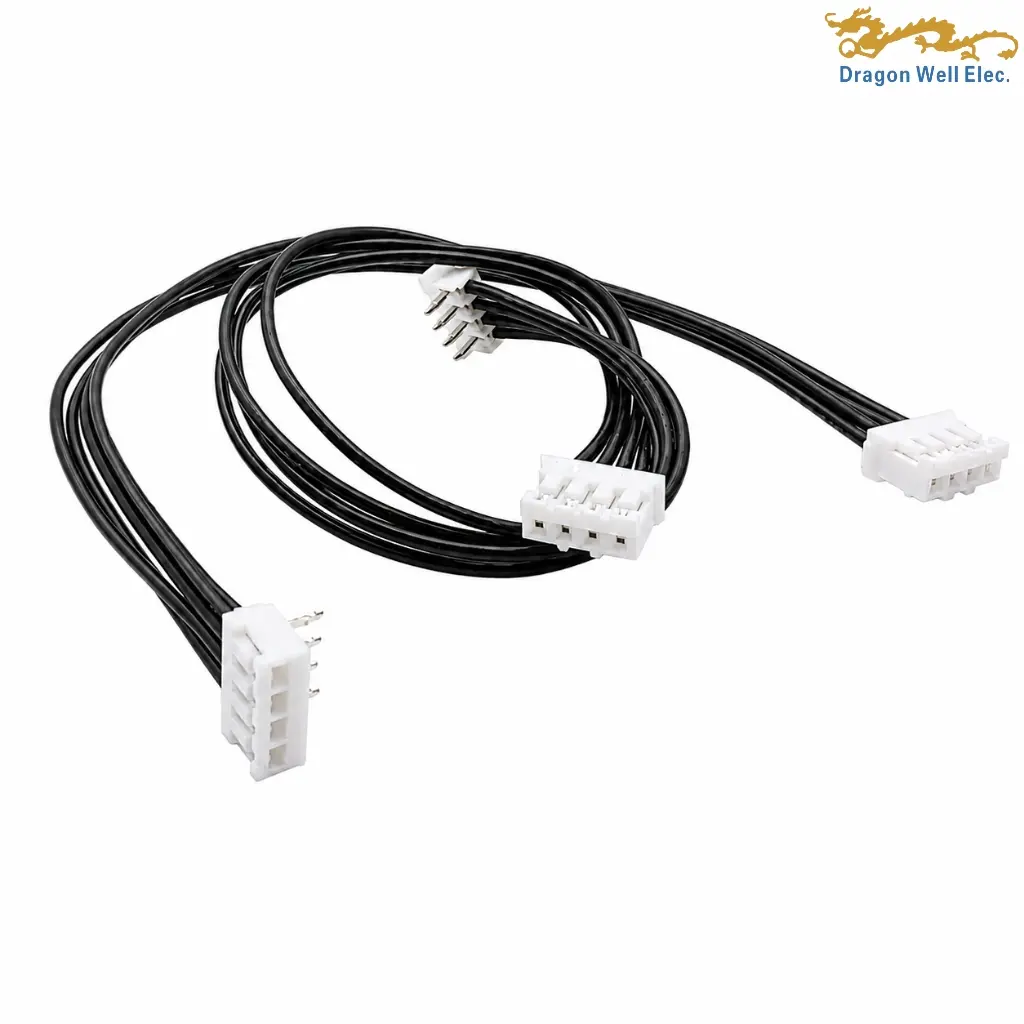

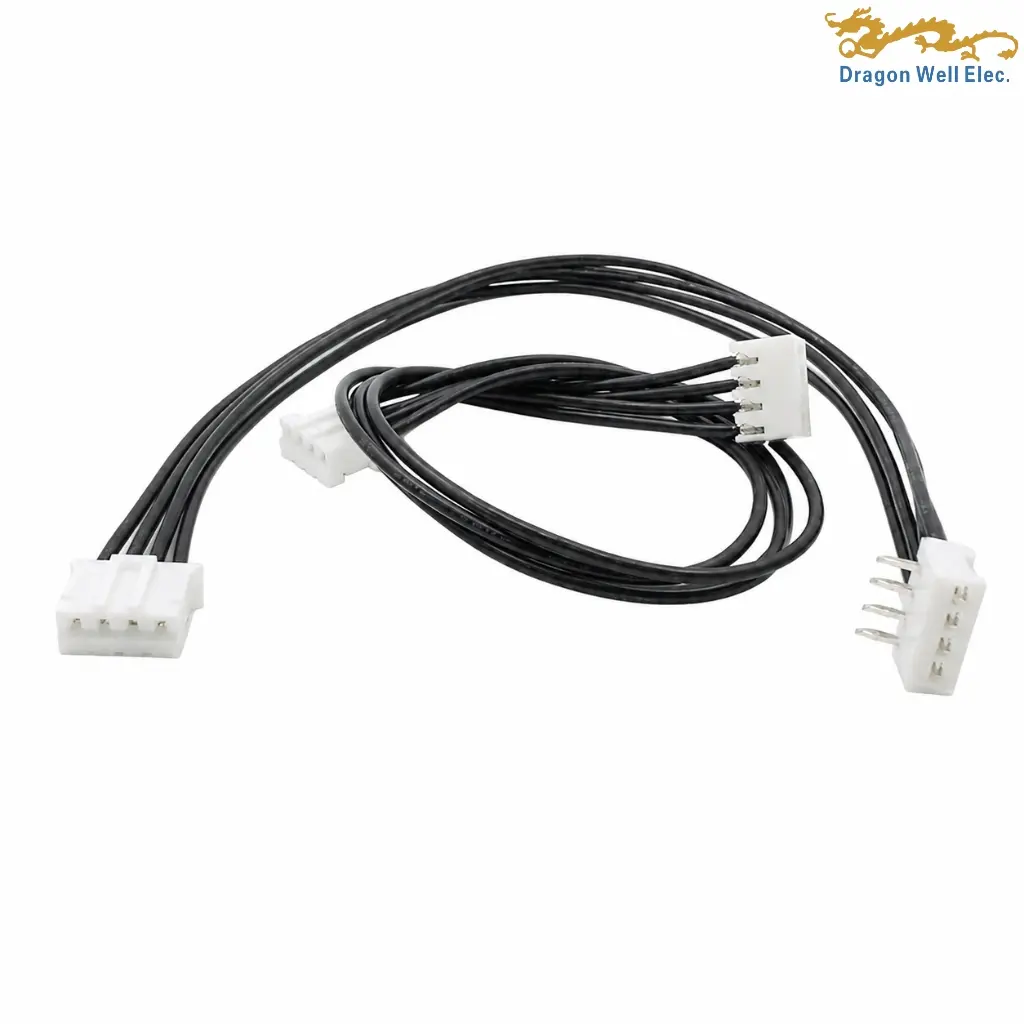

The assembly combines a 4-position 90° board-in white connector housing with a PH2.0 4-position white connector housing. Four crimp terminals are used at each connector interface. The wiring table specifies a direct straight-through circuit arrangement: P1-1 to P2-1, P1-2 to P2-2, P1-3 to P2-3, and P1-4 to P2-4. All four conductors are black.

This 4 pin wire harness 150mm is manufactured with assembly controls covering correct terminal insertion, correct connector position, protection against wire or housing damage, and acceptable terminal/tinning condition. The drawing specifically requires 100% continuity testing of the finished assembly to check for short circuits, open circuits, and incorrect circuit positions. The product is also marked RoHS compliant.

The 4-position construction and compact cable length make the harness suitable for internal signal and control connections in electronic equipment, control boards, embedded systems, appliances, instrumentation, and other compact assemblies. Molex also uses 2.00 mm, four-circuit and 150 mm cable-assembly terminology for comparable wire interconnect products, while Samtec classifies similar 2.00 mm products as wire-to-board cable assemblies.
