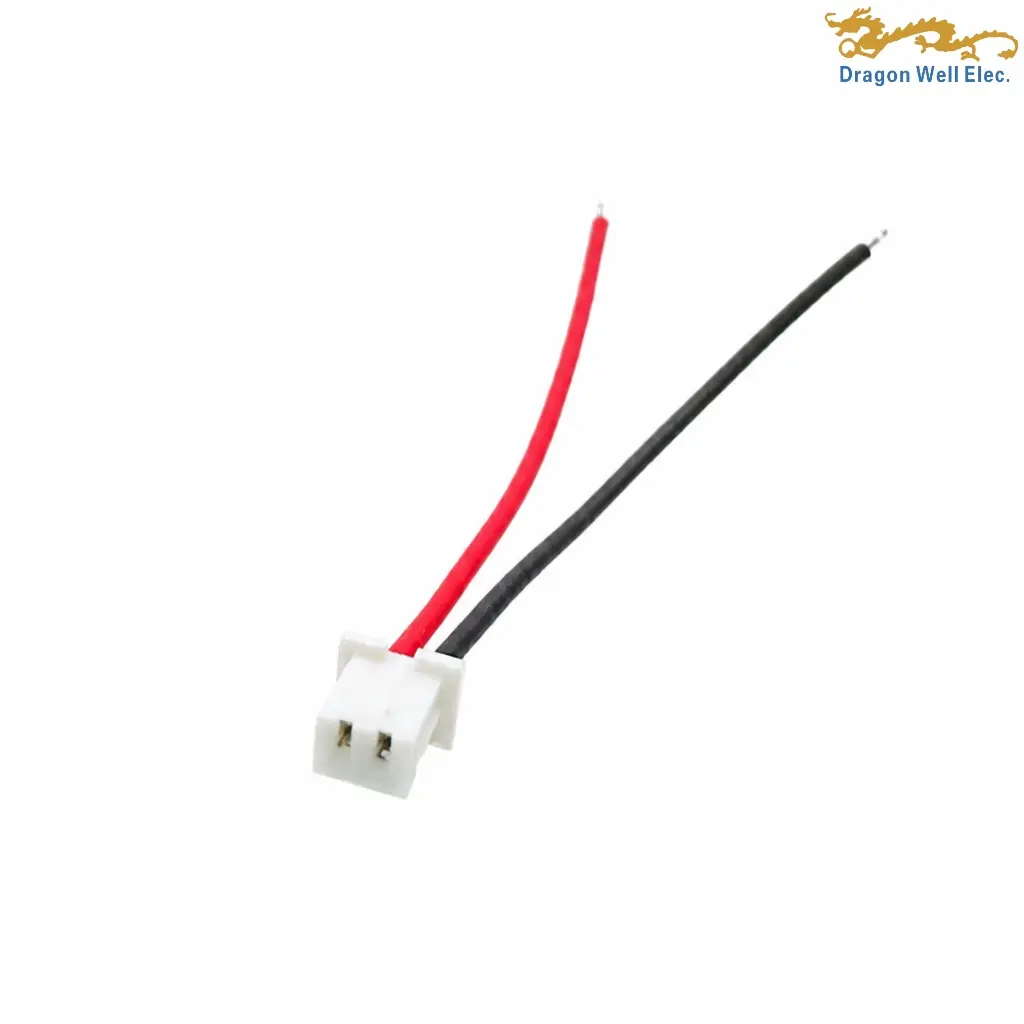

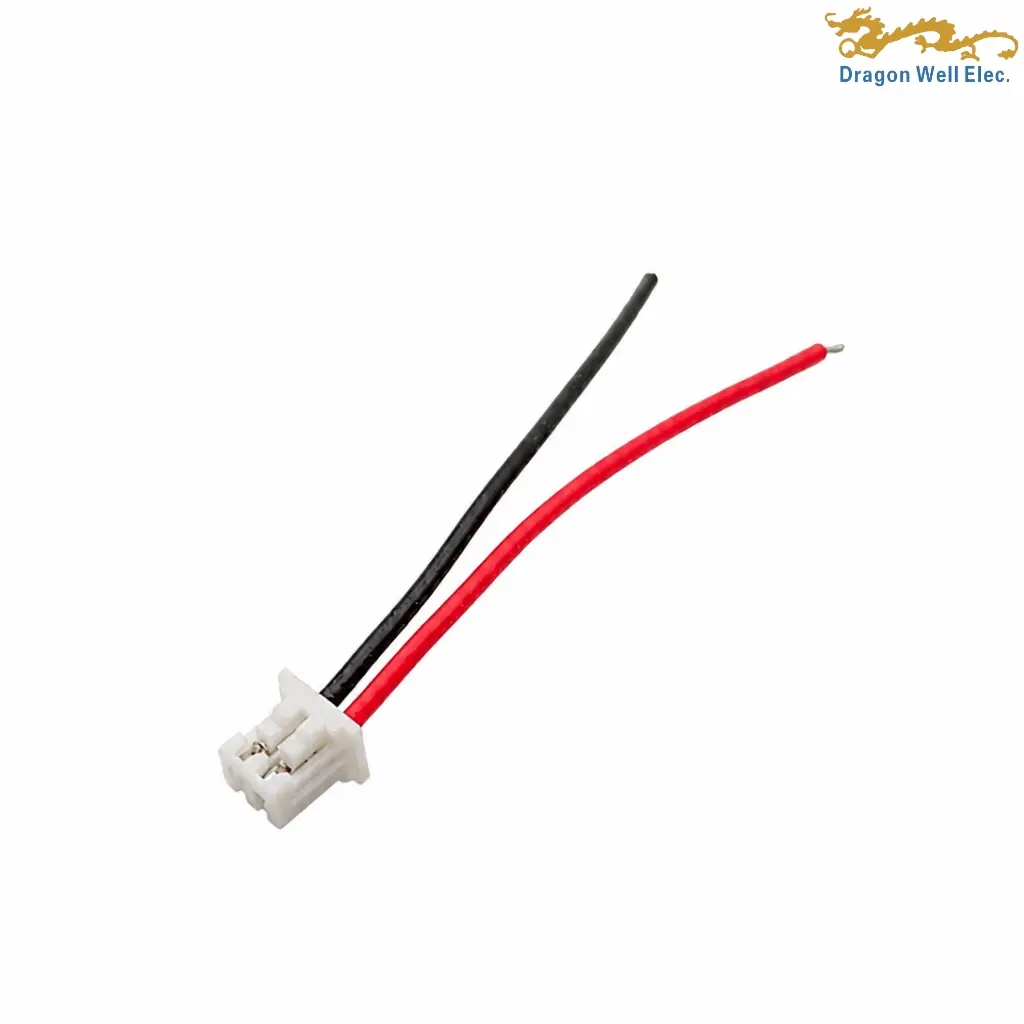

The 1.25mm 2 pin wire harness features a white 51021-type two-position connector housing, tin-plated female crimp terminals, and UL1571 AWG 28 red and black wires. The black wire is 41 ± 1 mm long, while the red wire is 39 ± 1 mm long. Both open ends are stripped and tinned to 2.0 ± 0.5 mm for convenient soldering and assembly integration.
Product Applications
Product Highlights
The 1.25mm 2 pin wire harness is a compact cable assembly designed around a 51021-type two-circuit connector housing for low-voltage internal wiring. According to the supplied drawing, the assembly uses one black and one red UL1571 AWG 28 wire, each with an outside diameter of 0.9 mm. The black lead measures 41 ± 1 mm, while the red lead measures 39 ± 1 mm.
Both conductors are terminated inside a white two-position housing with tin-plated female crimp terminals. At the open end, each wire is stripped and tinned over a length of 2.0 ± 0.5 mm, helping simplify soldering or integration into another cable, board, or electronic assembly.
The wiring table identifies P1 pin 1 as the black conductor and P1 pin 2 as the red conductor. Both opposite ends remain open. The assembly is also identified as RoHS compliant in the technical drawing.
This 1.25mm 2 pin wire harness is suitable for compact wire-to-board or wire-to-wire connections where limited installation space, clear conductor identification, and prepared solder ends are required. Potential integration areas include small control boards, sensor modules, LED assemblies, charging modules, compact consumer electronics, and other low-voltage electronic equipment, subject to final validation against the customer’s electrical requirements.
| 1. General | |||
| Status | Active | Category | FPC Cable Assembly |
| Series | DW-CABPH125-2P000041551 | Description | 1.25mm pitch FPC cable assembly with Molex 51021-2P white housing, UL1571 AWG#28 black and red wires (OD 0.9mm), black length 41±1mm, red length 39±1mm, 2 circuits, tin-plated terminals, and 2.0±0.5mm stripped/tinned open ends. |
| Comments | RoHS compliant; open wire ends stripped 2.0±0.5mm and tin plated. | Product Name | FPC Cable Assembly |
| 2. Electrical | |||
| Current – Maximum per Contact | N/A | Voltage – Maximum | N/A |
| 3. Physical | |||
| Actuator Type | N/A | Circuits (Loaded) | 2 |
| Color – Resin | White | Contact Position | Open End (per wiring table) |
| Durability (Mating Cycles) | N/A | Mated Height | N/A |
| Material – Metal | Tin-plated terminals | Material – Plating Mating | Tin |
| Material – Plating Term. | Tin | Material – Resin | N/A |
| Net Weight | N/A | Orientation | Straight |
| Packaging Type | N/A | PCB Locator | N/A |
| PCB Mounting | N/A | PCB Retention | N/A |
| Pitch – Mating Interface | 1.25mm | Polarized to PCB | N/A |
| Stackable | N/A | Temperature Range – Operating | N/A |
| Wire/Cable Type | UL1571 (AWG#28, Black & Red), wire OD 0.9mm | Length | Black: 41±1mm; Red: 39±1mm |
