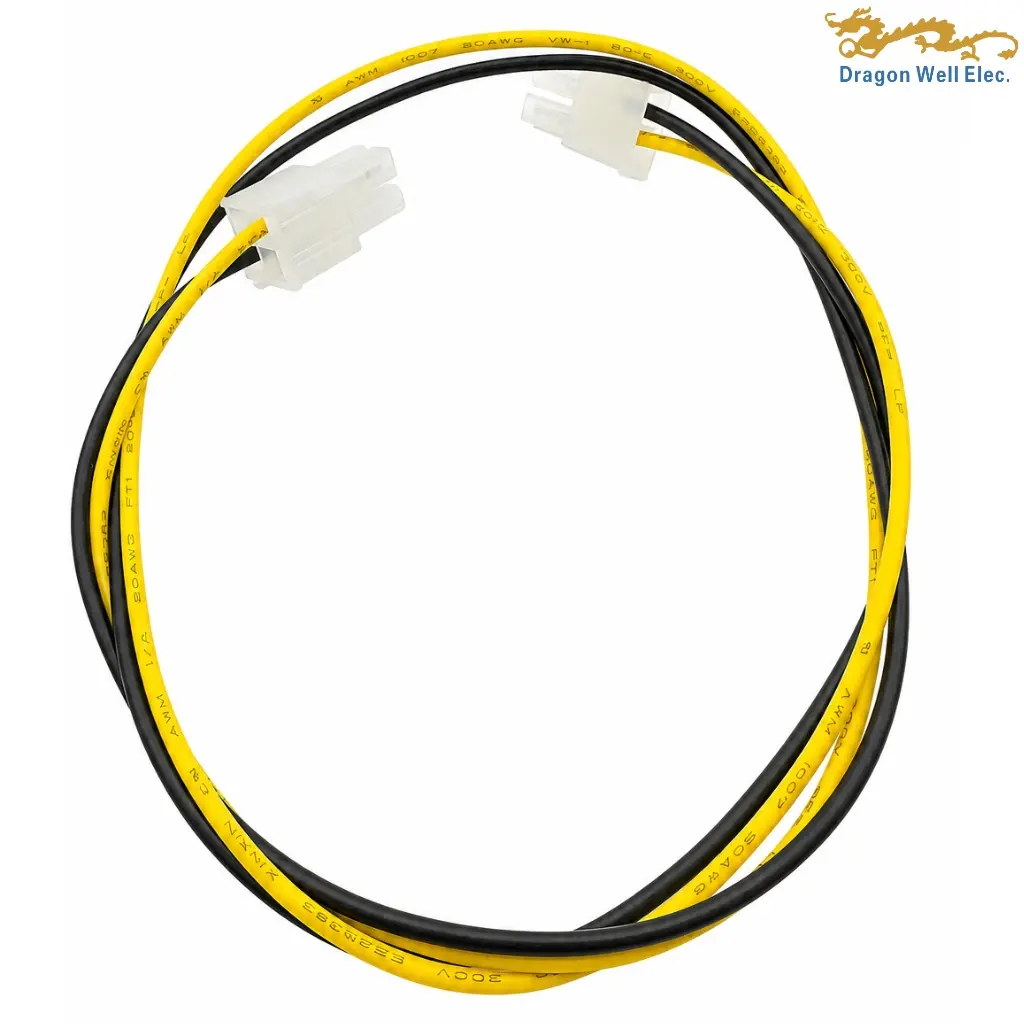

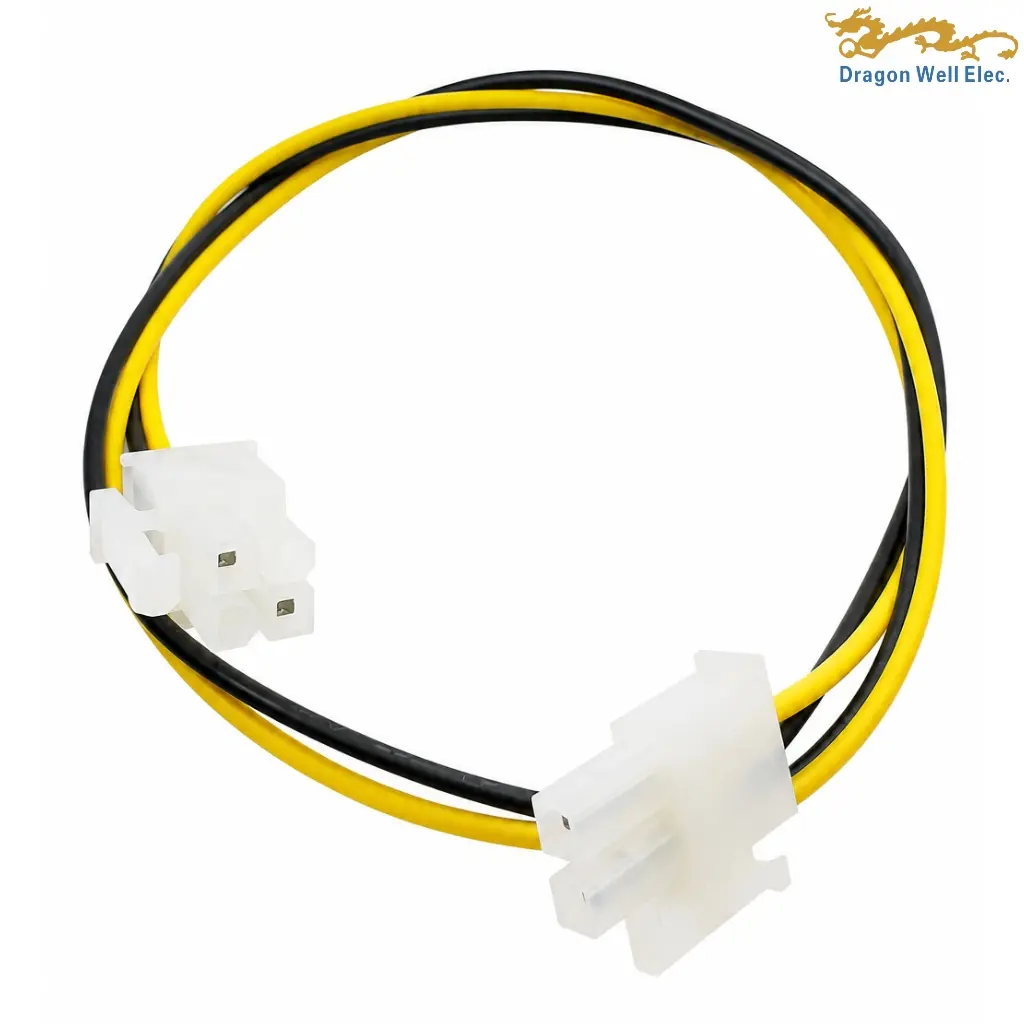

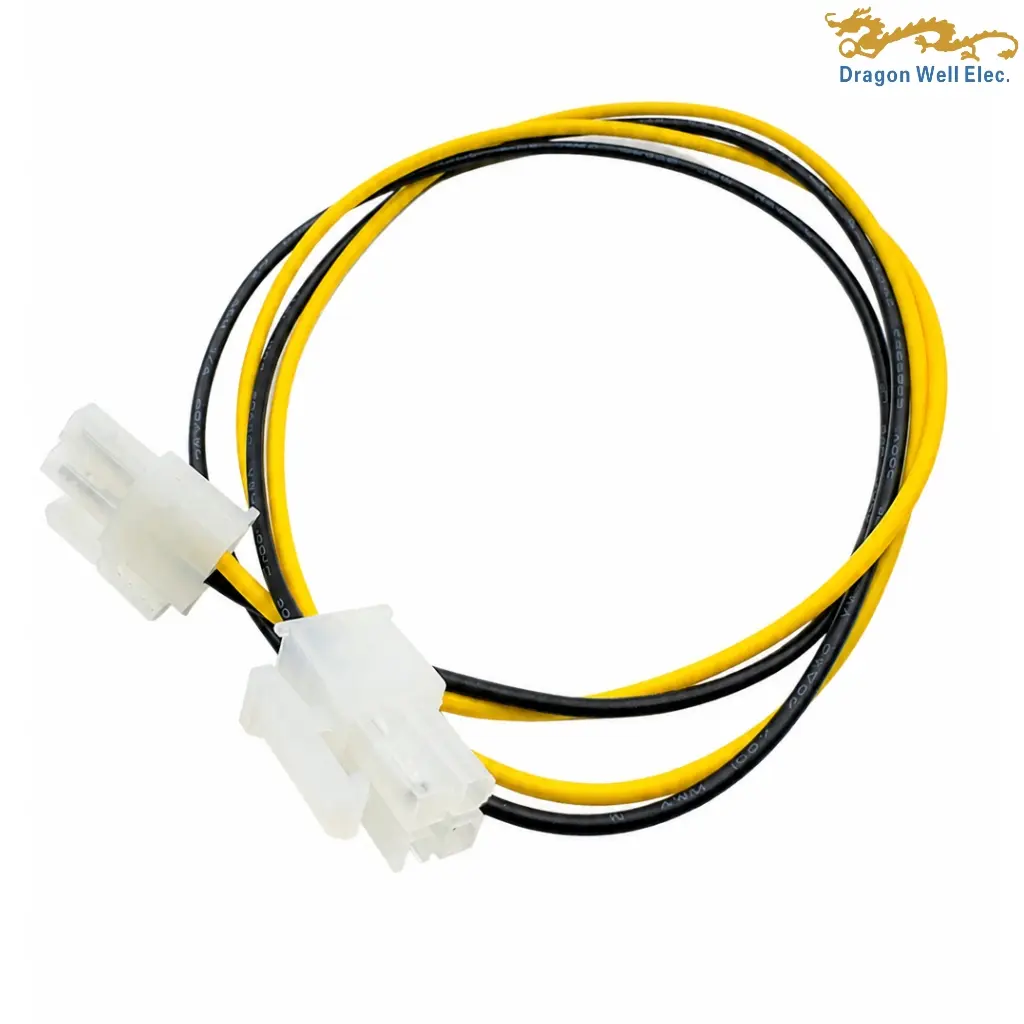

4.2mm Pitch Wire Harness Cable Assembly featuring 2×2P to 2×1P connector configuration, UL1007 AWG#20 wires, 478mm assembly length, and RoHS-compliant construction.
4.2mm Pitch Wire Harness Cable Assembly is a reliable power and signal connection solution designed with 4.2mm pitch plug connectors and UL1007 wire construction for electronic equipment and wiring applications. The DW-CABPH4200P series features a 2×2P connector on one side and a 2×1P connector on the opposite side, providing a flexible connection arrangement for OEM electrical assemblies.
According to the drawing, this 4.2mm Pitch Wire Harness Cable Assembly uses UL1007/PVC insulated wires with AWG#20 specifications. The cable assembly includes black and yellow wire configurations, with each wire specified as UL1007/PVC/AWG#20 (26/0.16TS). The total assembly length is confirmed as 478±10mm, while the wire length is specified as 498mm in the material table.
The assembly uses Dragon Well 4.2 pitch plug housings and 4.2 pitch terminals, including DW-HG-2420141VW04P-PE-02, DW-HG-2420141VW02P-PE-02, and DW-TM-42027WV-TR-01 terminal components. The connector structure provides a practical solution for power distribution and internal wiring connections in electronic systems.
Quality requirements from the drawing include 100% continuity testing, with no open circuits, short circuits, or misalignment permitted. The finished assembly must also be free from defects including solder bridges, excessive solder, split wire strands, and poor wetting conditions.
Dragon Well Electronics manufactures this 4.2mm Pitch Wire Harness Cable Assembly for OEM customers requiring dependable cable harness solutions with controlled dimensions, consistent electrical connection performance, and RoHS-compliant materials.
| General | |||
| Status | Active | Category | Cable Assembly |
| Model No. | DW-CABPH420-PH42004P478580 | Description | 4.2 mm pitch 2×2P to 4.2 mm pitch 2×1P discrete wire cable assembly, L=478±10 mm |
| Component Type | Cable Assembly | Product Name | 4.2 mm Pitch 2×2P to 2×1P Cable Ass’y |
| Connector A | 4.2 mm Pitch, Dual Row 2×2P Plug | Connector B | 4.2 mm Pitch, Dual Row 2×1P Plug |
| Electrical | |||
| Hi-Pot Test | — | Insulation Resistance | — |
| Conductive Resistance | — | Open / Short / Intermittence | 100% continuity test; no short circuits, open circuits, or misalignment permitted |
| Shielded | — | Voltage – Maximum | — |
| Current – Maximum | — | RoHS | Compliant |
| Physical | |||
| Positions / Contacts | A: 4 positions (2×2), 2 populated; B: 2 positions (2×1), 2 populated | Cable Category | UL1007 discrete hook-up wire |
| Cable Length | 478 ± 10 mm finished assembly | Cable OD | — |
| Cable Color | Black / Yellow | Jacket Material | PVC |
| Shield Structure | — | Wiring | A1 Yellow → B1; A4 Black → B2; A2 and A3 Empty |
| Outer Mold Material | — | Internal Mold Material | — |
| P1 Part No. | DW-HG-2420141WV04P-PE-02 | P2 Part No. | DW-HG-2420141WV02P-PE-02 |
| P1 Specification | Dual Row 4.2 Pitch 2×2P, Natural Color | P2 Specification | Dual Row 4.2 Pitch 2×1P, Natural Color |
| Mounting Style (P1) | — | Connection | A Pin 1 → B Pin 1 (Yellow); A Pin 4 → B Pin 2 (Black) |
| Wire Part No. – Black | 0201063200B01 | Wire Part No. – Yellow | 0201063200Y01 |
| Wire Specification | UL1007 / PVC / AWG #20 (26/0.16TS) | Wire Cut Length | 498 mm each |
| A-Side Wire Stripping | 3.2 mm | B-Side Wire Stripping | 3.2 mm |
| Terminal Part No. | DW-TM-420277WV-TR-01 | Terminal Specification | 4.2 Pitch Terminal |
| Terminal Quantity | 4 pcs | Plug Color | Natural |
| Connector A Quantity | 1 pc | Connector B Quantity | 1 pc |
