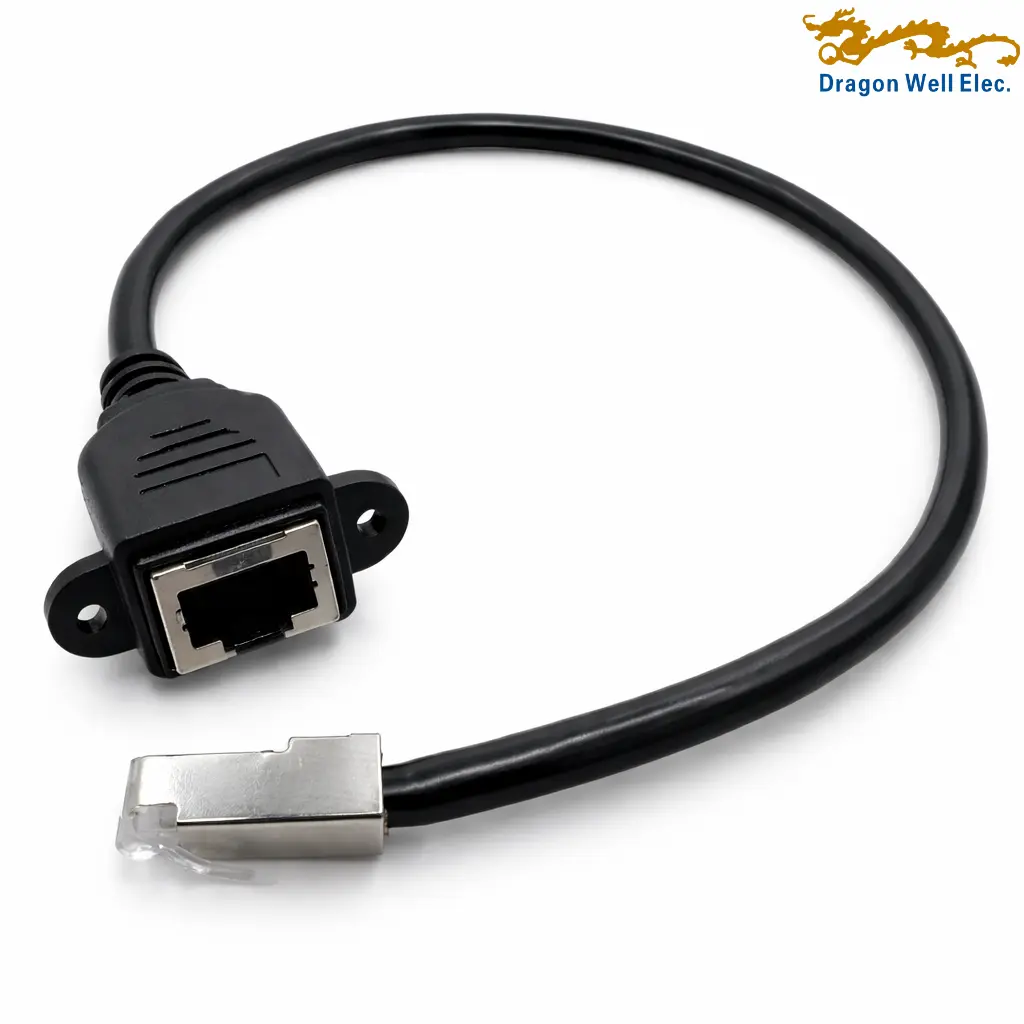

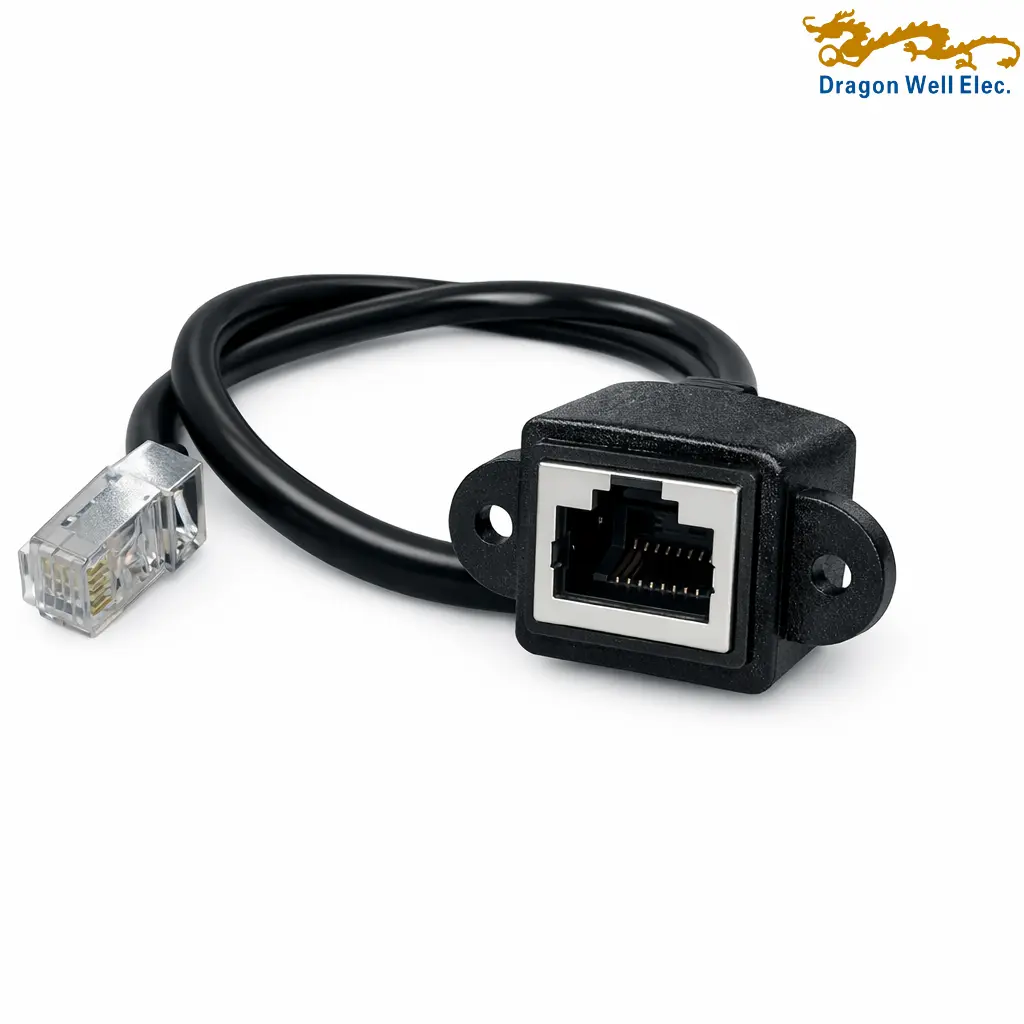

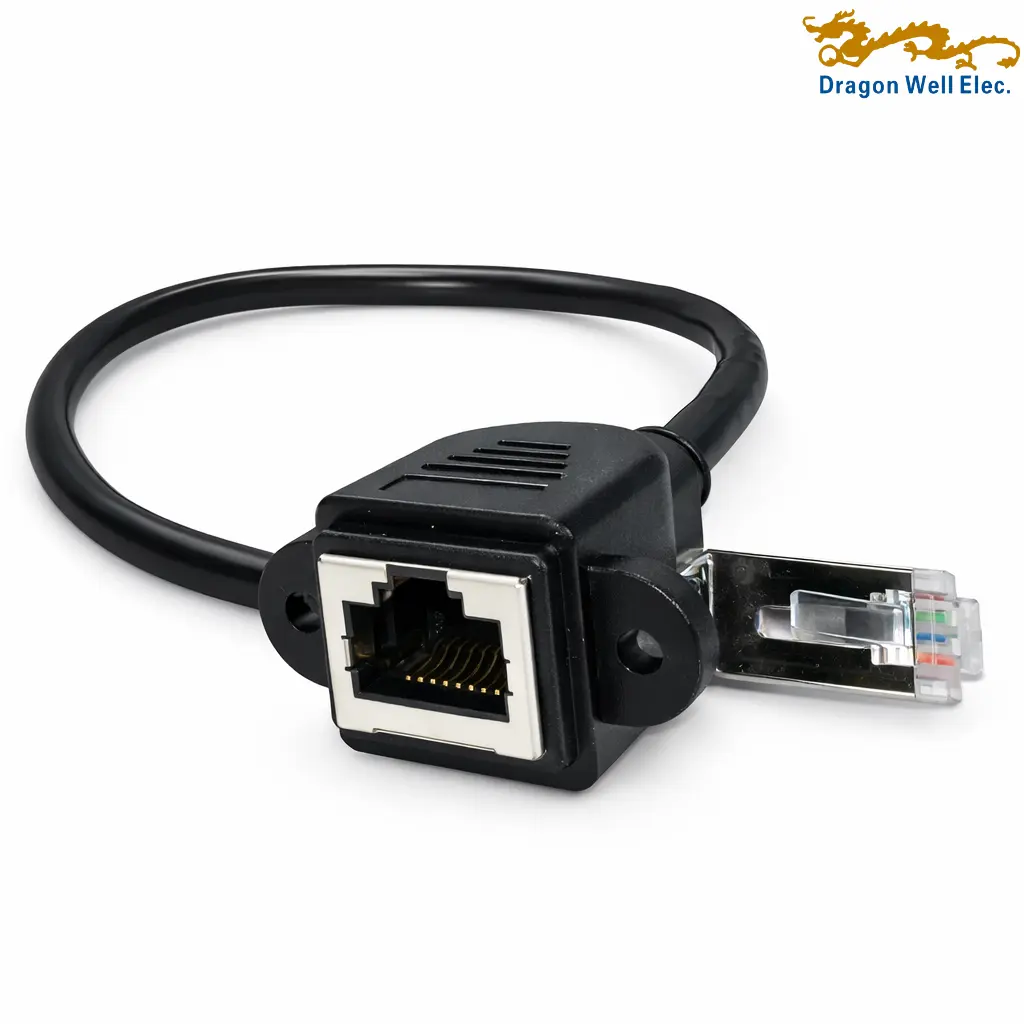

RJ45 panel mount jack to RJ45 plug cable 300mm for Ethernet and panel interface applications, designed with a straight-through 8P8C connection, shielded CAT5e cable structure, and panel-mount RJ45 jack on one side. Based on the drawing, this cable assembly uses a 300±15 mm black cable, includes drain wire shield connection, and is tested for insulation, continuity, and conductive resistance for dependable equipment integration.
• Applications: Network devices, industrial control panels, communication equipment, router and switch enclosures, custom panel interfaces, embedded systems, automation cabinets, Ethernet extension assemblies.**
• Highlights: RJ45 jack to RJ45 plug cable assembly; 300±15 mm length; panel mount RJ45 jack; 8P8C straight-through wiring; CAT5e cable; shielded structure with braid and drain; Hi-Pot tested; 100MΩ min insulation resistance; 1.5 ohm max conductive resistance; RoHS 2.0 compliant
RJ45 panel mount jack to RJ45 plug cable 300mm is a compact Ethernet cable assembly designed for secure panel interface connection and internal device wiring. Based on the drawing, this product is an RJ45 connector assembly with a panel mount RJ45 jack on one end (P1) and an RJ45 plug on the other end (P2), connected by a 300±15 mm black CAT5e cable. The connection table in the drawing shows a straight-through 1-to-1 pin assignment from PIN1 to PIN8, with the shield connected through the drain wire, making it suitable for data connection and shield continuity requirements.
This RJ45 panel mount jack to RJ45 plug cable 300mm uses a PVC jacketed CAT5e cable with a specified structure of 26AWG/4P + aluminum layer + 28AWG drain + braid, and the cable outside diameter is listed as 6.0 ±0.30 mm. The drawing also includes section details identifying the jacket, braid, insulation, conductor, AL/MY, and drain construction. These features support a stable cable assembly structure for equipment connection and panel feed-through use.
With its panel-mount format, compact length, and shielded CAT5e cable structure, this RJ45 cable assembly is suitable for network equipment, industrial devices, communication enclosures, control systems, and custom panel interface applications where a reliable RJ45 jack to plug cable is required.
| General | |||
| Status | Active | Category | Cable Assembly |
| Model No. | DW-CABRJ45-RJ45PG300536 | Description | Shielded RJ45 jack to RJ45 plug CAT5e cable assembly, 300±15 mm |
| Component Type | Cable Assembly | Product Name | RJ45 Conn to RJ45 Plug Connector Ass’y |
| Connector A | 8P8C RJ45 Jack | Connector B | 8P8C RJ45 Plug |
| Electrical | |||
| Hi-Pot Test | AC 200V / 0.1S / 0.5mA | Insulation Resistance | DC 200V / 10 MΩ Min. |
| Conductive Resistance | 1.5 Ω Max. | Open / Short / Intermittence | 100% |
| Shielded | Yes | Voltage – Maximum | — |
| Current – Maximum | — | RoHS | Compliant |
| Physical | |||
| Positions / Contacts | 8P8C | Cable Category | CAT5e |
| Cable Length | 300±15 mm | Cable OD | 6.0 ± 0.3 mm |
| Cable Color | Black | Jacket Material | PVC |
| Shield Structure | AL/MY + Braid + Drain | Wiring | 1:1 Straight-through |
| Outer Mold Material | 78A Black PVC plastic | Internal Mold Material | PE white |
| P1 Part No. | DW-RJ45-D001338-01TP-01 | P2 Part No. | 01C6003U2 |
| P1 Specification | 8P8C RJ45 Jack, Black Shield | P2 Specification | 8P8C G/F Shield Plug |
| Mounting Style (P1) | Flange / panel mount | Connection | PIN1-PIN1 to PIN8-PIN8, Shield-Shield |
