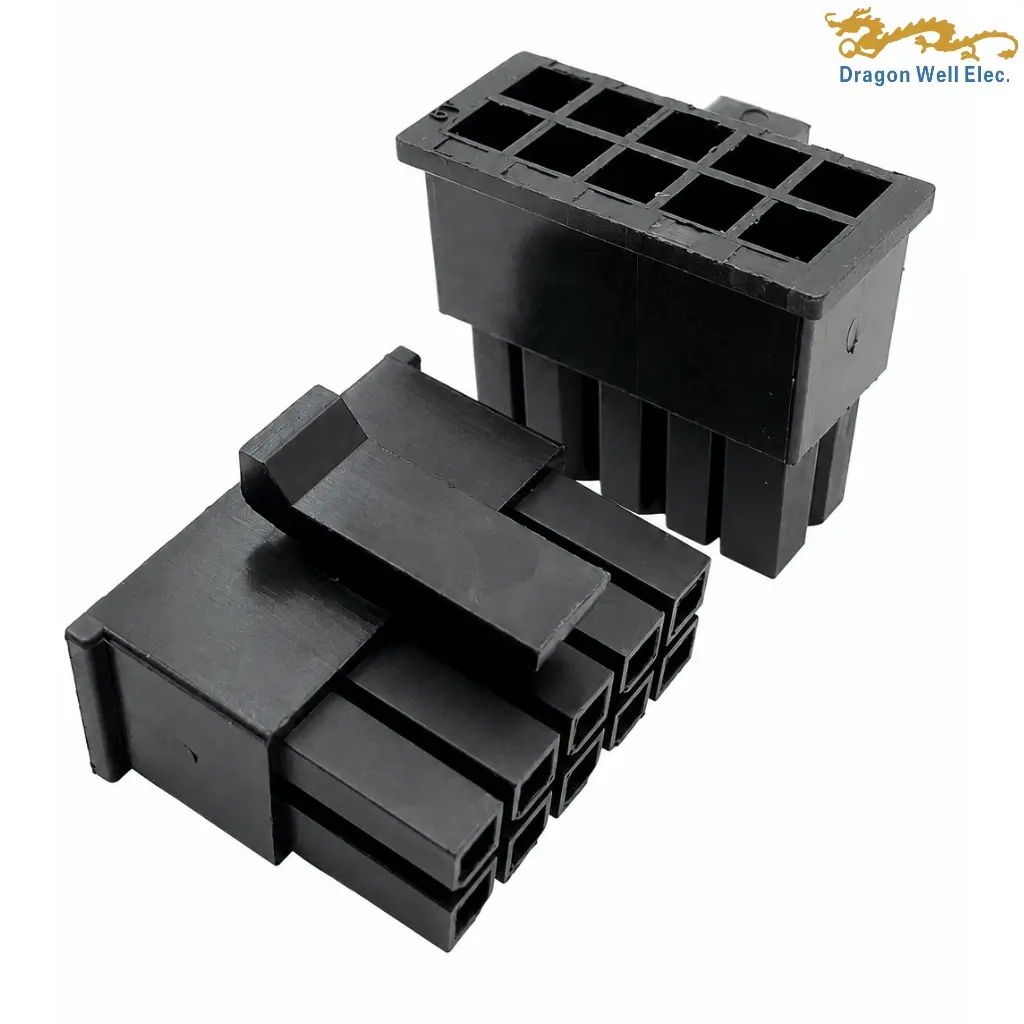

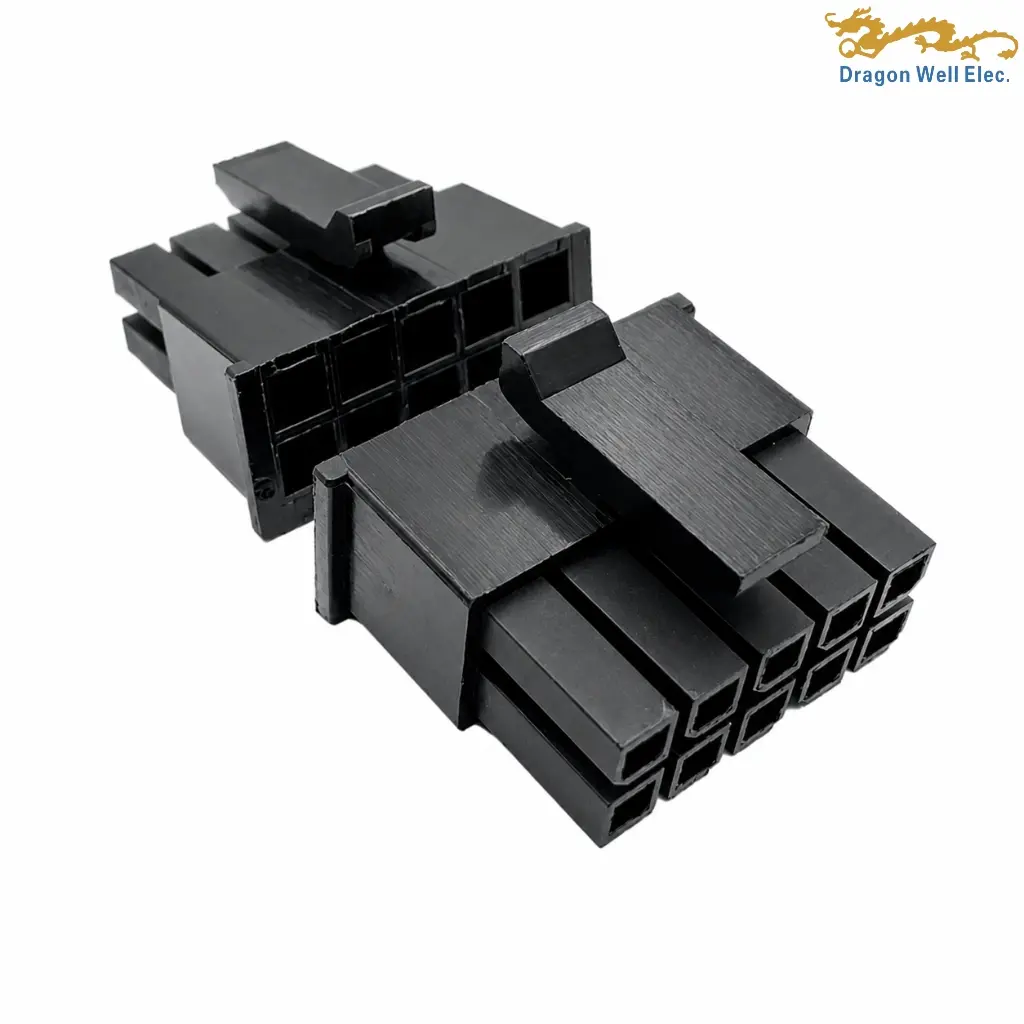

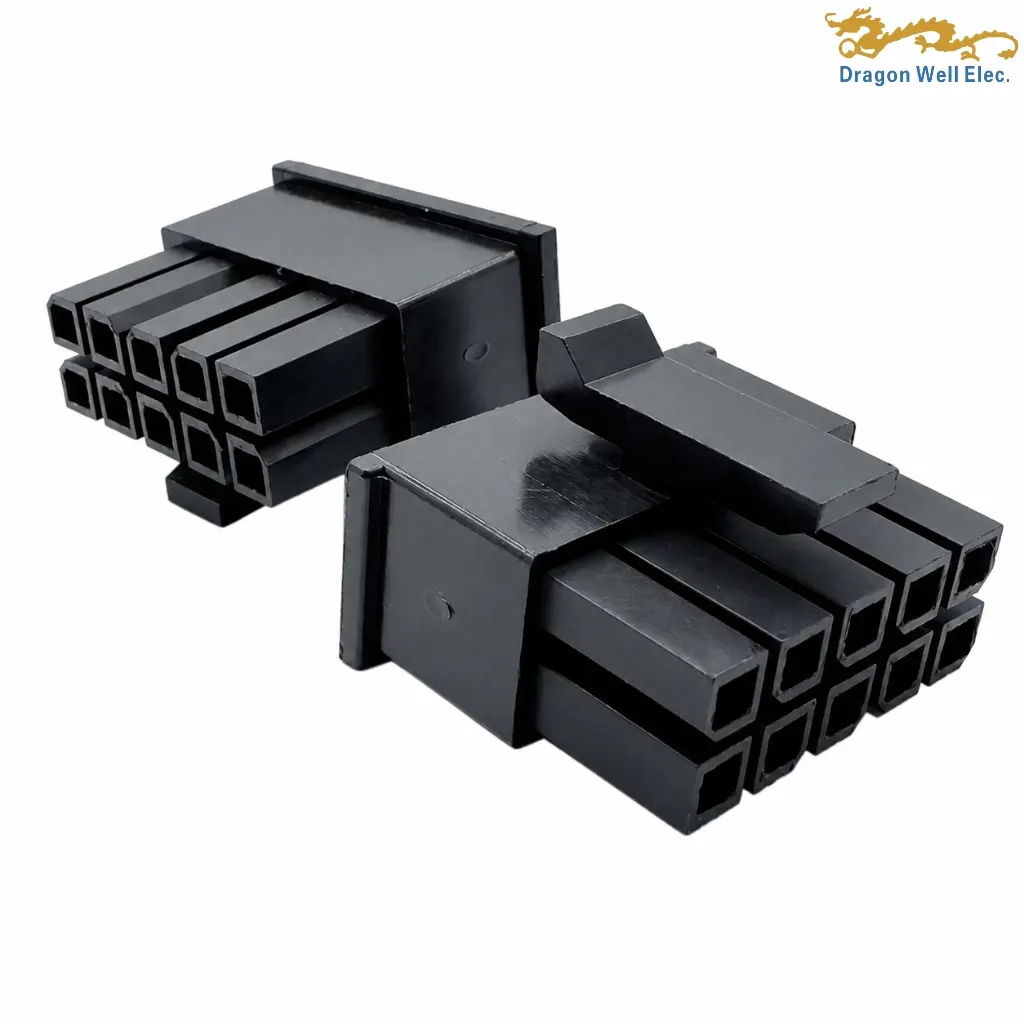

3.00mm Dual Row Male Housing Connector with vertical dual-row design, PA66 black housing, 5A current rating, 250V AC/DC rating, and RoHS-compliant construction.
3.00mm Dual Row Male Housing Connector is a reliable connector housing solution designed for compact wire-to-board and wire-to-wire electrical connection systems. The DW-HG series features a 3.00mm pitch dual row structure with a vertical configuration, providing a practical housing solution for applications requiring secure terminal alignment and stable connector assembly.
According to the drawing, this 3.00mm Dual Row Male Housing Connector is manufactured with PA66 housing material and a black housing color. The dual row design allows higher circuit density while maintaining a compact connector footprint. The product supports variable pin configurations, allowing customers to select different circuit counts according to application requirements.
The connector is specified with a rated current of 5A AC/DC and rated voltage of 250V AC/DC. Electrical performance includes a contact resistance of ≤20mΩ, insulation resistance of ≥1000MΩ, and withstand voltage of 1500V AC per minute. The operating temperature range is confirmed as -25°C to +85°C, supporting use in various electronic and industrial environments.
The 3.00mm Dual Row Male Housing Connector uses PA66 engineering plastic material, providing mechanical strength and durability for connector assembly applications. The compact dual-row structure helps optimize PCB and wiring space while maintaining reliable terminal positioning.
Dragon Well Electronics provides the DW-HG-230065WVnP-PE-01 series for OEM customers requiring dependable connector housing solutions. With RoHS-compliant materials, stable electrical performance, and flexible pin-count options, this male housing connector is suitable for a wide range of electronic equipment and electrical connection applications.
| General | |||
| Status | Active | Category | Crimp Style Connector Housing |
| Model No. | DW-HG-230065WVnP-PE-01 | Description | 3.00 mm pitch dual-row male connector housing, 2–24 pins in even counts, black |
| Component Type | Housing | Product Name | Dual Row Male Housing |
| Mounting Type | Cable Mount | Number of Rows | 2 |
| Electrical | |||
| Current Rating | 5 A AC/DC | Voltage Rating | 250 V AC/DC |
| Temperature Range | -25°C to +85°C | Contact Resistance | ≤20 mΩ |
| Insulation Resistance | ≥1000 MΩ | Withstanding Voltage | 1500 V AC / Minute |
| Material | PA66 | Flammability Rating | — |
| Physical | |||
| Number of Pins | 2–24 Pins, Even Counts | Pitch | 3.00 ± 0.10 mm |
| Dimension A | N/A for 2P; 3.00–33.00 mm for 4P–24P | Dimension B | 5.20–38.20 mm, depending on pin count |
| Overall Height | 14.11 ± 0.25 mm | Body Height | 7.70 ± 0.20 mm |
| Body Width | 7.70 ± 0.20 mm | Side Dimension | 11.30 ± 0.30 mm overall depth; latch height 11.55 ± 0.30 mm |
| Front Width (2PIN) | 5.20 mm | Connector Style | Dual Row Male Crimp Housing |
| Material | PA66 | Color | Black |
| Packaging | PE Bag | Series | 65WV |
