5.08mm wafer crimp style connectors with single row 4P design, vertical 180° orientation, through-hole PCB mounting, brass tin-plated terminals, Nylon 66 UL94V-0 housing, 10A/250V rating, and RoHS compliance.
• Applications: Wire-to-board connection, power supply boards, industrial control boards, automation equipment, home appliances, communication equipment, battery-powered devices, instrumentation, PCB power connection, and through-hole electronic assembly.
• Highlights: 5.08mm wafer crimp style connectors; single row 4P configuration; vertical 180° orientation; through-hole PCB mounting; brass terminals; tin-plated finish; 10A AC/DC current rating; 250V AC/DC voltage rating; 1500V AC withstanding voltage per minute; 1000MΩ min insulation resistance; 10mΩ max contact resistance; Nylon 66 UL94V-0 insulator; 23.5mm body width; 12.25mm body height; 12.30mm overall height; 9.00mm side height; 3.60mm front projection; mates with SWB housing 5050H; PE bag packaging; RoHS compliant.

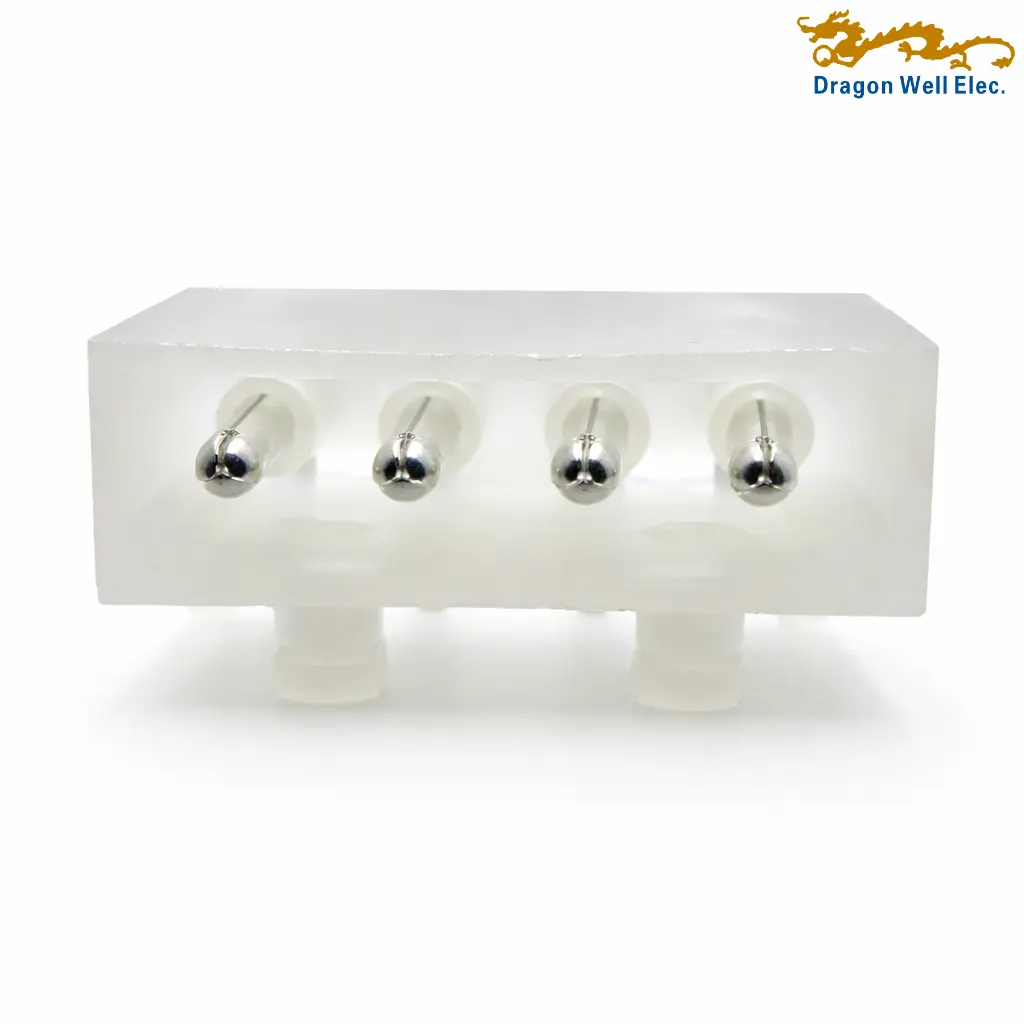

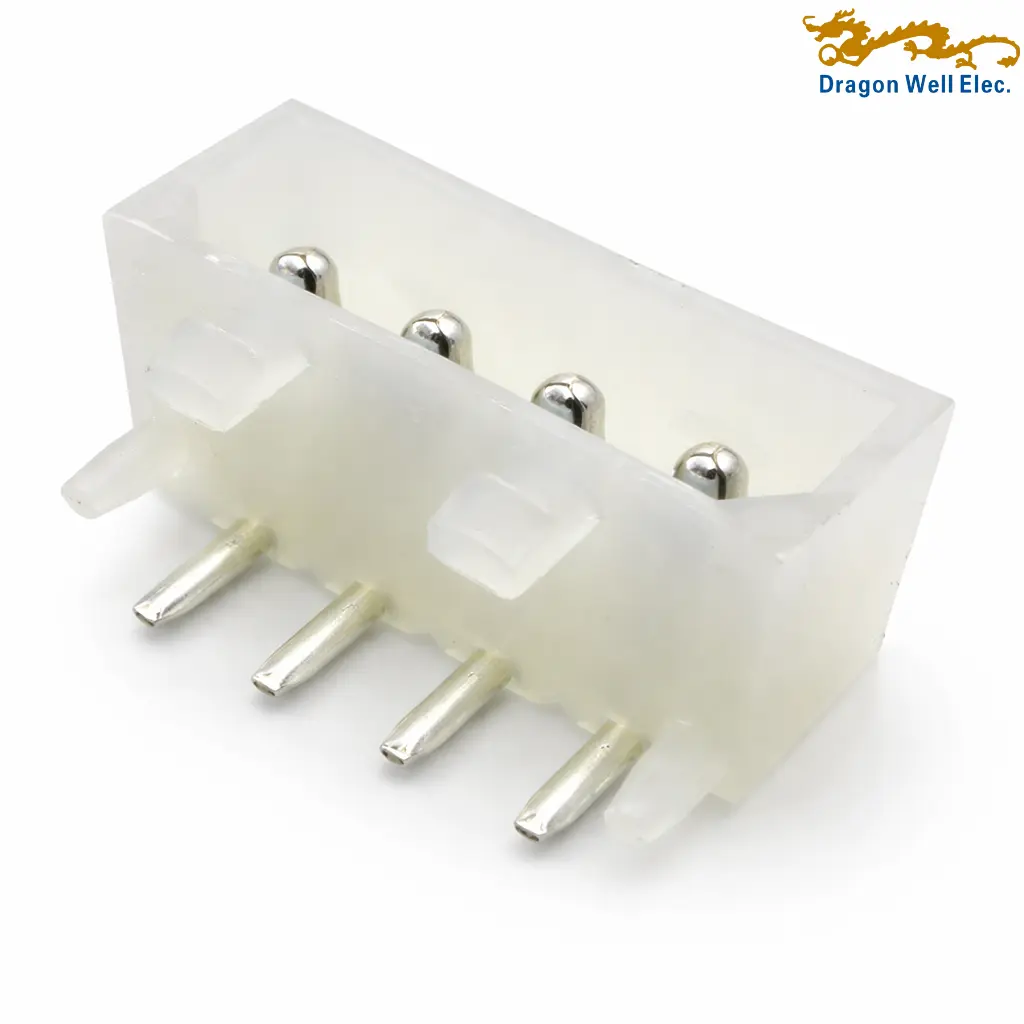

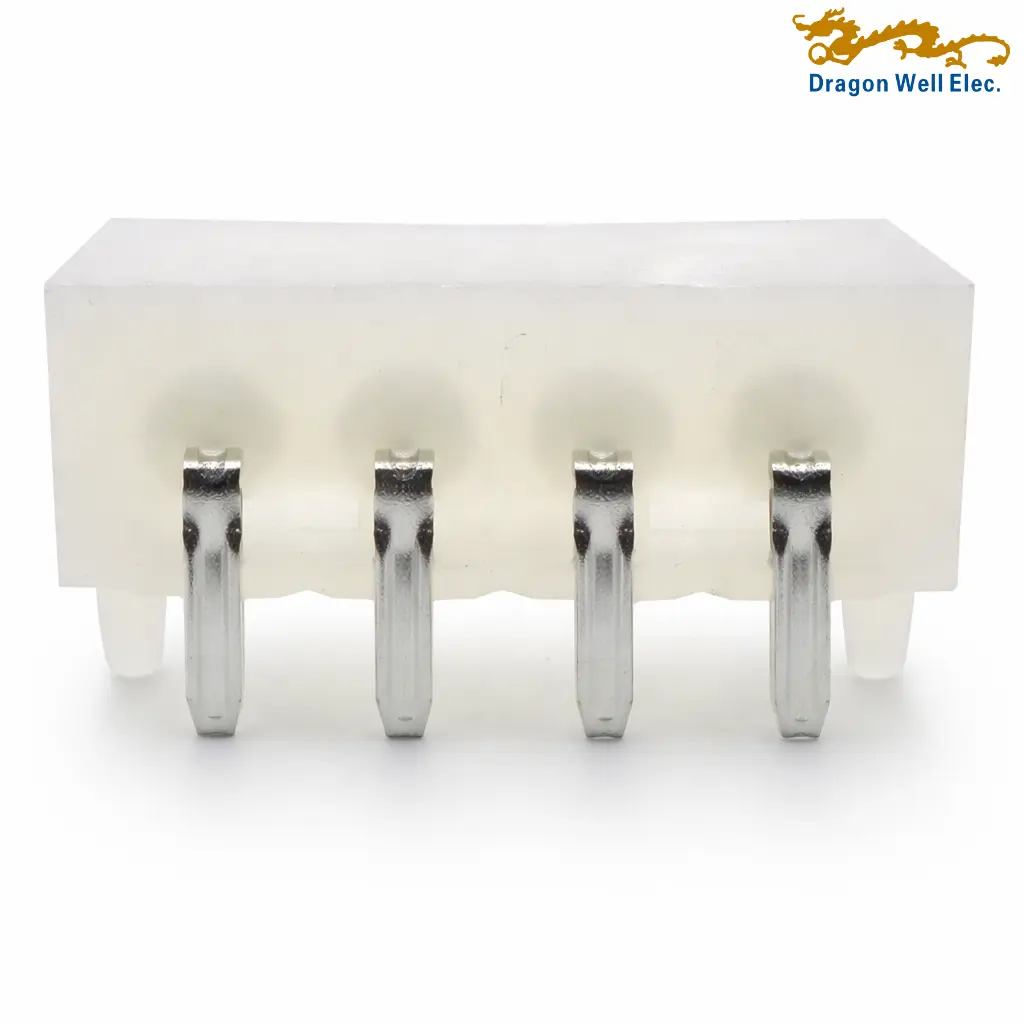

5.08mm wafer crimp style connectors DW-WF-1508410WV4P-XXPE-01 are vertical through-hole wire-to-board connectors designed for reliable power and signal connection in PCB assemblies. Based on the drawing title, this product is a 5.08mm wafer crimp style connector with single row structure, 4P configuration, vertical 180° orientation, and through-hole PCB mounting.
These 5.08mm wafer crimp style connectors use brass terminals with tin-plated finish for stable electrical contact and PCB soldering. The connector supports a 10A AC/DC current rating and 250V AC/DC voltage rating, making it suitable for higher-current wire-to-board applications. The electrical specifications include 10mΩ maximum contact resistance, 1000MΩ minimum insulation resistance, and 1500V AC withstanding voltage per minute.
The insulator material is Nylon 66, UL94V-0, supporting flame-retardant performance for electronic and industrial applications. The drawing confirms 5.08mm pitch, 4P pin configuration, 23.5mm body width, 12.25mm body height, 12.30mm overall height, 9.00mm side height, 3.60mm front projection, and recommended PCB layout with Ø1.52mm contact holes, Ø2.54mm holes, and Ø3.99mm mounting/locator holes.
The part number supports plating options including 01 Gold Flash, 03 3u” Gold, 06 6u” Gold, 15 15u” Gold, 30 30u” Gold, 31 Sn, and 32 Ni. With PE bag packaging, RoHS compliance, and compatibility with SWB housing 5050H, these 5.08mm wafer crimp style connectors are suitable for dependable wire-to-board PCB connection in power and control systems.
| General | |||
| Status | Active | Category | Wire-to-Board Connector |
| Model No. | DW-WF-1508410WV4P-XXPE-01 | Description | 5.08 mm pitch single-row vertical 4P wafer crimp style connector, through-hole, RoHS compliant |
| Component Type | Header | Product Name | Wafer Connector |
| Mounting Type | Through Hole / PCB Mount | Orientation | Vertical / 180° |
| Electrical | |||
| Current Rating | 10 A AC/DC | Voltage Rating | 250 V AC/DC |
| Temperature Range | -25°C to +85°C | Contact Resistance | 10 mΩ Max. |
| Insulation Resistance | 1000 MΩ Min. | Withstanding Voltage | 1500 V AC / minute |
| Housing Material | Nylon 66, UL94V-0 | Contact Material | Brass |
| Physical | |||
| Number of Pins | 4P | Pitch | 5.08 mm |
| Number of Rows | Single Row | Connector Style | Crimp Style Wafer |
| Dimension A | Not specified in drawing | Dimension B | Not specified in drawing |
| Body Height | 12.25 mm | Overall Height | 12.30 mm |
| Side Height | 9.00 mm | Front Projection | 3.60 mm |
| Pin Length | Not specified in drawing | Body Width | 23.50 mm |
| PCB Hole Diameter | Ø1.52 mm contact hole; Ø2.54 mm and Ø3.99 mm mounting/locator holes | Pin Width | Not specified in drawing |
| Plating Code | XX / 31 | Plating Finish | Tin-Plated |
| Packaging Code | PE | Packaging | PE Bag |
