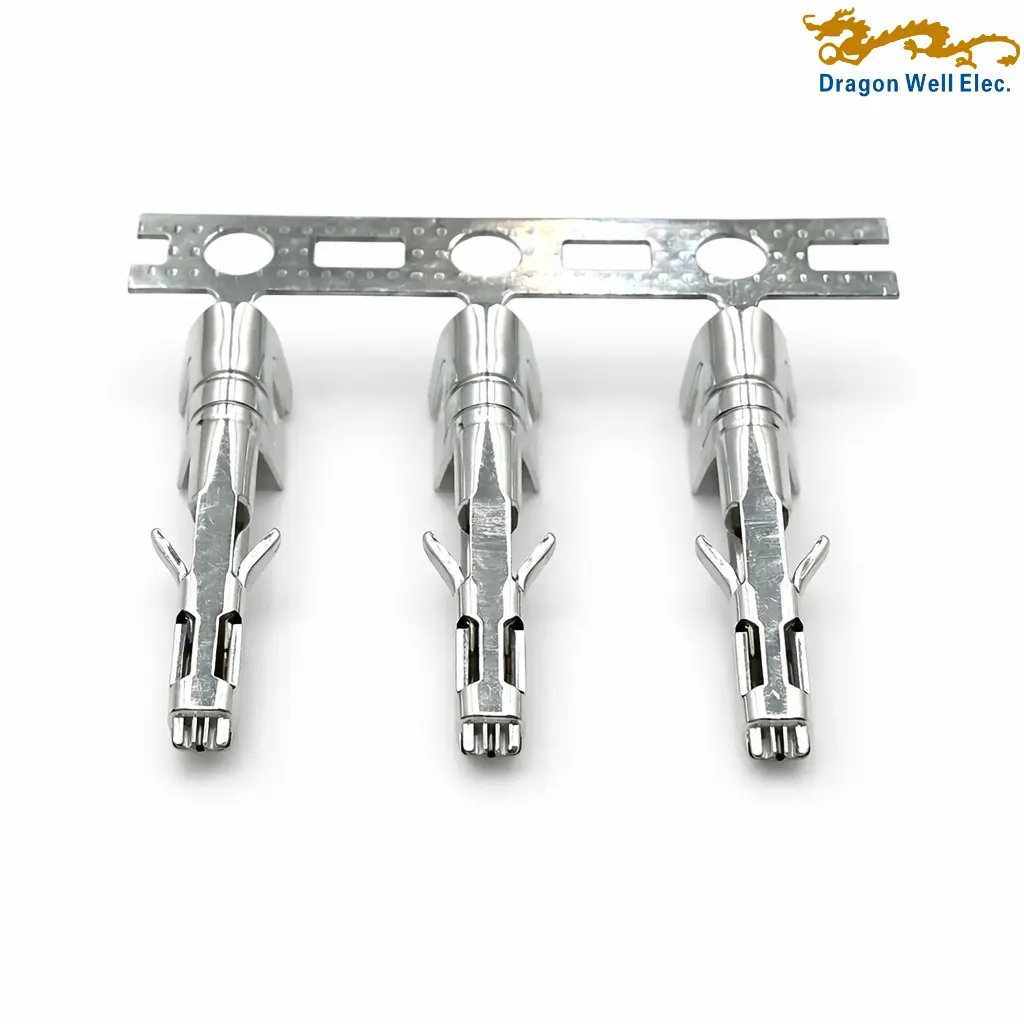

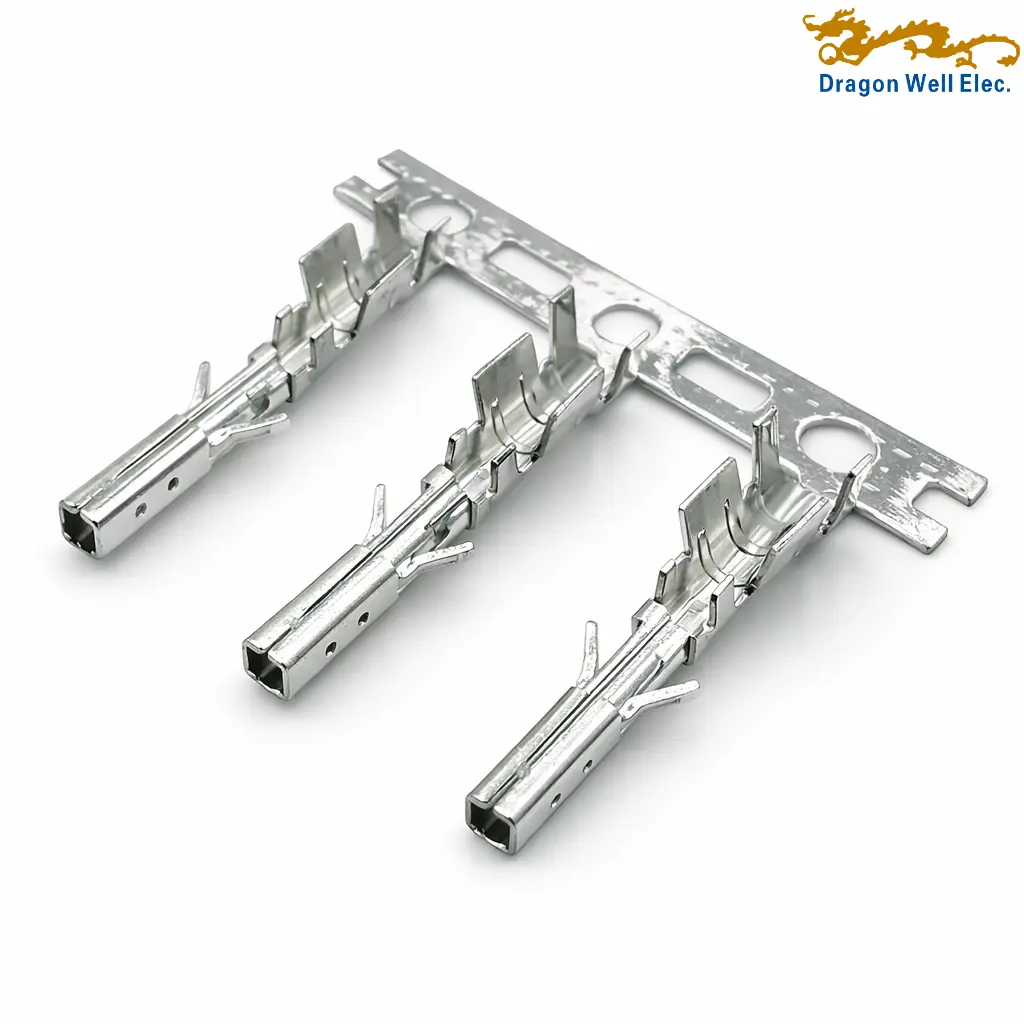

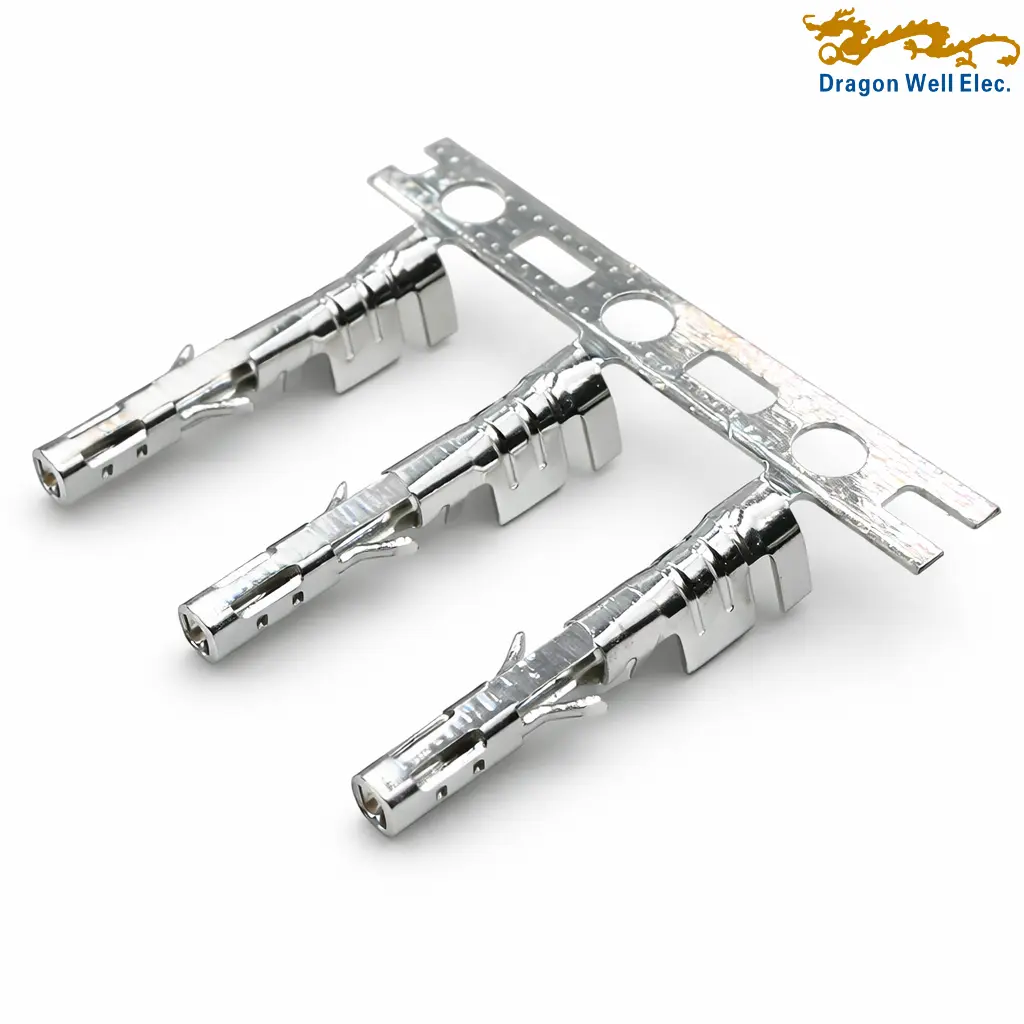

3.00mm crimp terminal vertical 180° tin plated for wire-to-board crimp connector systems. Made from phosphor bronze with tin-plated finish, suitable for AWG #20–#24 wire, 1.6mm max insulation O.D., 10.90mm overall length, and tape reel packaging with 10,000 pcs/reel.
Applications:
• Wire-to-board connector assemblies
• Crimp style connector systems
• Internal wire harness production
• Consumer electronics wiring
• Industrial control equipment
• Power supply modules
• Home appliance electronics
• Communication equipment wiring
• Signal and power cable assemblies
• Automated terminal crimping production
Highlights:
• 3.00mm pitch crimp terminal series
• Vertical 180° orientation code: WV
• Optional right angle 90° code: WR
• Designed for single-row crimp connector systems
• Phosphor bronze terminal material
• Tin-plated finish
• Wire range: AWG #20–#24
• Insulation O.D.: 1.6mm max
• Overall length: 10.90mm
• Main body length: 6.85 ±0.15mm
• Terminal height: 1.30 ±0.15mm
• Front width: 2.00mm
• Material thickness: 0.20mm
• Small square dimension: 0.59mm
• Chamfer / corner: C0.15
• Tape reel packaging
• Quantity: 10,000 pcs/reel
3.00mm crimp terminal vertical 180° tin plated is a precision wire-to-board terminal designed for crimp style connector systems requiring stable electrical contact and reliable wire retention. Based on the drawing, this terminal belongs to the 3.00mm pitch crimp connector series and is supplied in tape reel packaging for automated or semi-automated crimping production.This 3.00mm crimp terminal vertical 180° tin plated terminal is made from phosphor bronze, offering good spring performance, conductivity, and mechanical durability for wire harness connection. The finish is tin plated, supporting stable contact performance and solder/crimp compatibility in connector assemblies. The terminal is designed for AWG #20–#24 wire range with 1.6mm maximum insulation O.D., making it suitable for compact power and signal harness applications.
Key dimensions from the drawing include 10.90mm overall length, 6.85 ±0.15mm main body length, 1.30 ±0.15mm terminal height, 2.00mm front width, 0.20mm material thickness, and 0.59mm small square dimension. The terminal is RoHS compliant and packaged at 10,000 pcs per reel, making it suitable for high-volume wire harness production, consumer electronics, industrial control systems, power modules, and wire-to-board connector applications.
| General | |||
| Status | Active | Category | Crimp Style Connector / Terminal |
| Model No. / Series | DW-TM-130083WV-TR-01 | Description | 3.00mm Crimp Style Connector, Terminal, Single Row, WV Vertical 180°, Tape Reel, RoHS compliant |
| Comments | RoHS compliant; TR = Tape Reel; Series/ECN No. 01–99 | Product Name | 3.00mm Crimp Style Connector |
| Style | Crimp Terminal | UPC | N/A |
| Electrical | |||
| Current – Maximum per Contact | N/A | Voltage – Maximum | N/A |
| Contact Resistance Max | N/A | Insulation Resistance Min | N/A |
| Withstand Voltage | N/A | Grounding to Panel | N/A |
| Physical | |||
| Connector Type | Terminal | Number of Rows | Single Row |
| Wire Range | AWG #20–#24 | Insulation O.D. | 1.6mm max |
| Material – Contact | Phosphor Bronze | Finish / Plating | Tin Plated |
| Packaging Type | Tape Reel | Quantity / Reel | 10,000 pcs |
| Pitch | 3.00mm | Connector Orientation | WV: Vertical 180° |
| Optional Orientation Code | WR: Right Angle 90° | PCB Mounting | N/A |
| Termination Interface Style | Crimp | Contact Type | Crimp Terminal |
| Overall Length | 10.90mm | Contact / Gold Area Length | 5.0mm |
| Main Body Length | 6.85±0.15mm | Front Width | 2.00mm |
| Terminal Height | 1.30±0.15mm | Material Thickness | 0.20mm |
| Section A-A Size | 2.30±0.20 × 2.40±0.20mm | Section B-B Size | 2.10±0.20 × 2.00±0.20mm |
| Small Square Dimension | 0.59mm | Chamfer / Corner | C0.15 |
| Color – Resin | N/A | Durability / Mating Cycles | N/A |
| PCB Locator | N/A | PCB Retention | N/A |
| Operating Temperature | N/A | Net Weight | 0.25 Gram |
