Dragon Well’s 5-pin DIN PCB socket features a 180-degree contact arrangement, a PBT UL94V-0 housing, and Cu/Sn-plated H62 metal components. Designed for PCB mounting, it provides a five-contact interface for compatible DIN plugs.
Applications:
Highlights:

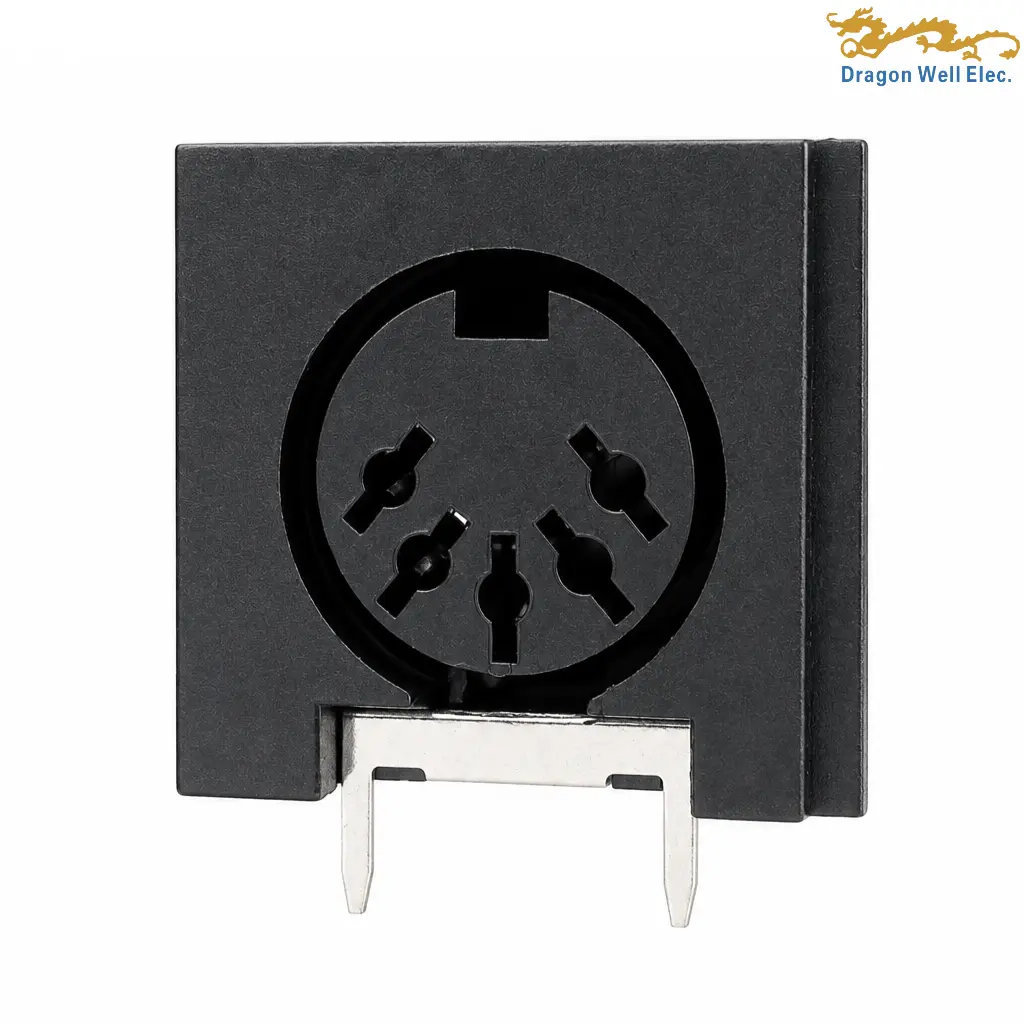

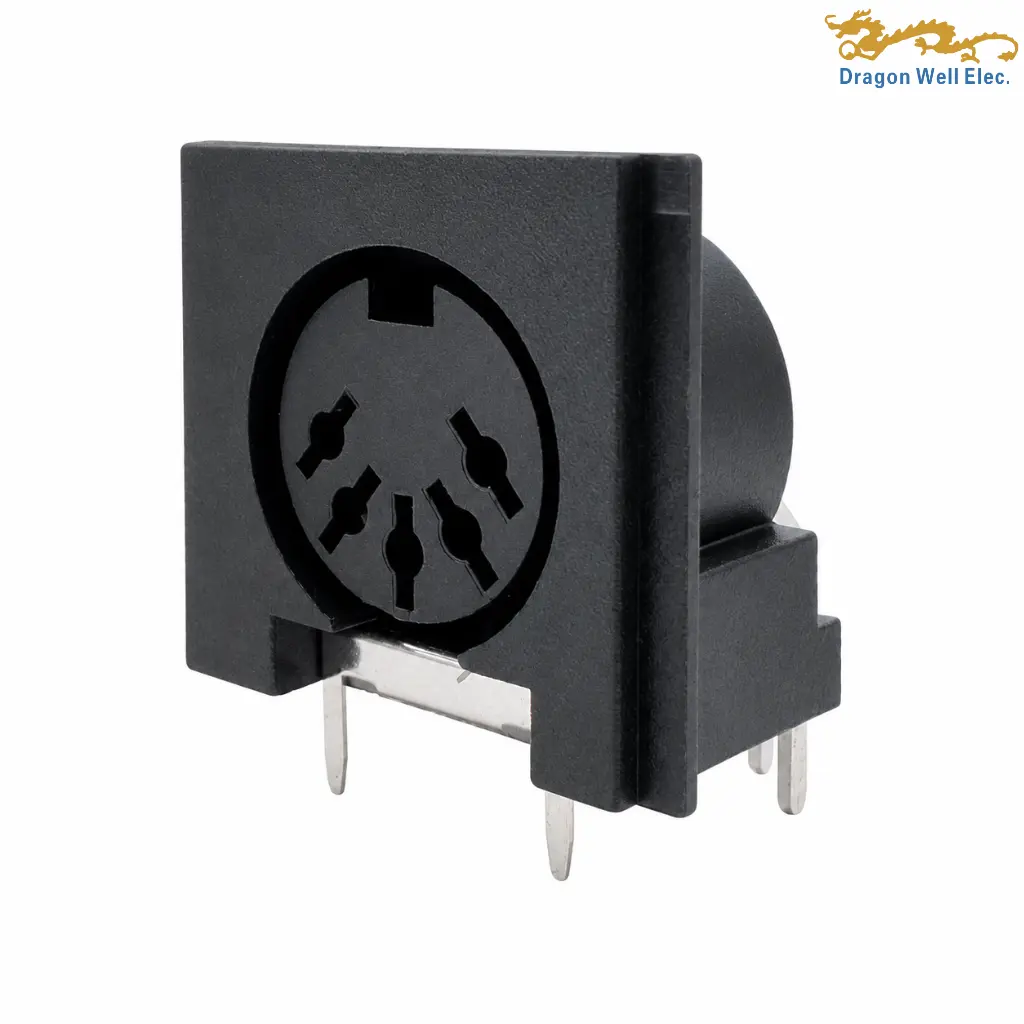

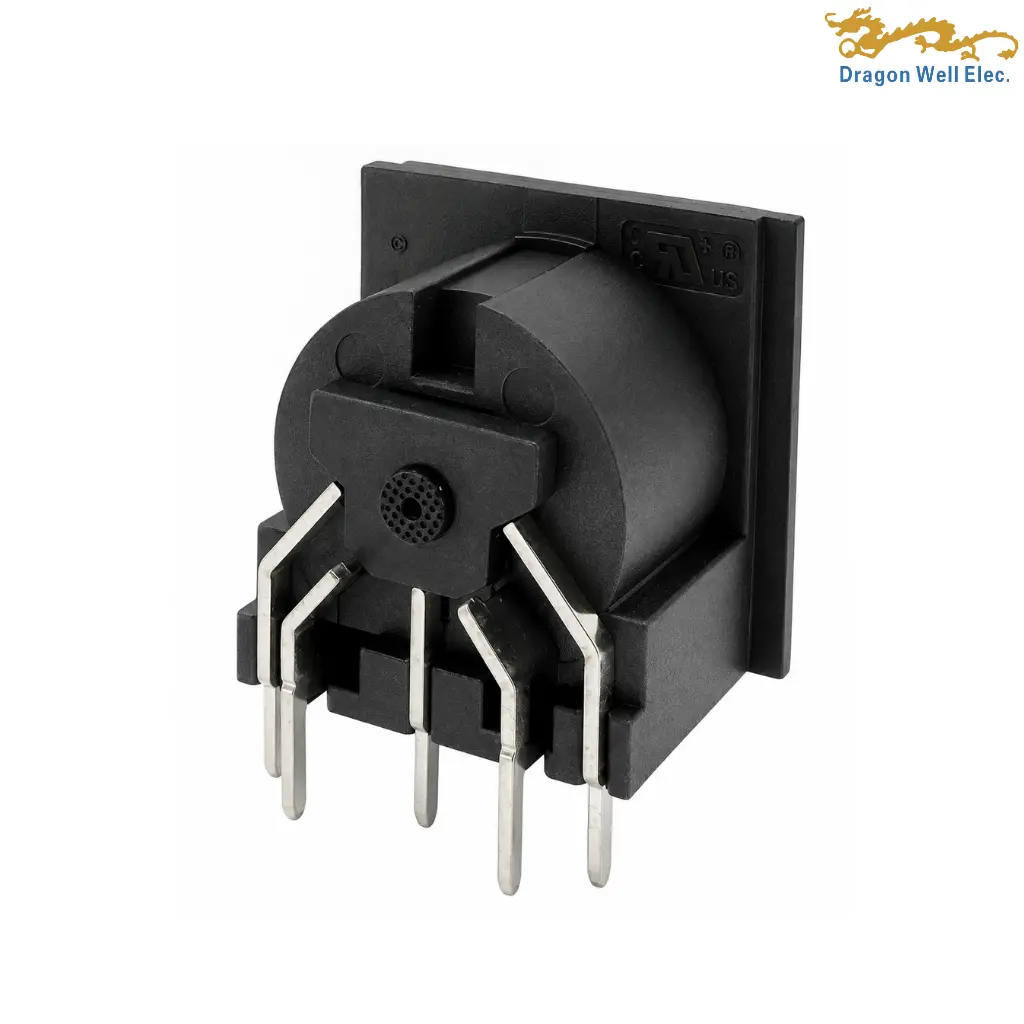

5-pin DIN PCB socket (DW-DIN-D00521-TP-01) is a female five-contact DIN connector designed for printed circuit board mounting. The drawing shows a 180-degree five-pin contact arrangement and a front-facing mating opening, with solder terminals extending toward the PCB. This right-angle layout can be used where a compatible DIN plug must connect through a board-mounted socket.
The housing is specified as PBT with a UL94V-0 flammability classification. The drawing identifies the contact terminals and plate as H62, 0.60 mm thick, and the shell as H62, 0.28 mm thick; the listed plating is Cu/Sn. The drawing also marks the connector RoHS compliant. The front dimensions are 20.6 ±0.4 mm wide and 20.6 ±0.4 mm high, with a 15.5 ±0.3 mm dimension shown in the side view.
Electrical and mechanical values listed on the drawing include DC 24 V / 1 A, contact resistance of 30 mΩ maximum, insulation resistance of at least 100 MΩ at DC 250 V, and a 500 VAC withstand-voltage test. The drawing also lists an insertion force of 50 N maximum and an extraction force of 10–35 N. Confirm the mating plug, pin assignment, PCB footprint, and operating requirements before production use.
This 5-pin DIN PCB socket may suit audio equipment, MIDI interfaces, test instruments, and control electronics that require a matching five-pin DIN connection. These are potential category applications, not a guarantee of suitability for every design. The part number indicates tray packaging (TP).
| General | |||
| Status | Active | Category | DIN Socket |
| Model No. | DW-DIN-D00521-TP-01 | Description | 5-contact DIN socket; PCB-mounted; RoHS compliant |
| Component Type | DIN Socket | Product Name | DIN Socket, 5-Contact PCB-Mount Connector |
| RoHS | Compliant | Packaging | Tray Packing (TP) |
| Electrical | |||
| Current Rating | AC 100 V CA; DC 24 V, 1 A (as printed; AC portion ambiguous) | Voltage Rating | AC 100 V; DC 24 V (as listed in the drawing) |
| Operating Temperature | N/A | Contact Resistance | ≤30 mΩ |
| Insulation Resistance | ≥100 MΩ (DC 250 V test condition) | Withstanding Voltage | 500 V AC |
| Temperature Range | N/A | Electrical Specification | Insertion force: 50 N max; extraction force: 10–35 N; life test: 5,000 cycles max |
| Physical | |||
| Number of Contacts | 5 | Contact Pitch | N/A (non-uniform DIN contact arrangement) |
| Mounting Type | Through-Hole / PCB Mount | Actuator Type | N/A |
| Contact Position | 5-pin socket; contact positions numbered 1–5 | Mounting Orientation | Right-angle PCB mount; horizontal mating axis as drawn |
| Overall Profile Height | N/A (overall height including terminals is not explicitly dimensioned) | Body Height | 20.6 ±0.4 mm (front-view housing dimension) |
| Connector Depth | 15.5 ±0.3 mm (side-view dimension) | Body Depth | N/A (not separately identified) |
| Compatible FPC Thickness | N/A | FPC Contact Pitch | N/A |
| FPC Contact Length | N/A | FPC End Length | N/A |
| FPC Contact Width | N/A | FPC Corner Radius | N/A |
| Contact Material | H62; t = 0.60 mm (contact terminal) | Housing Material | PBT, UL94V-0 |
| Housing Color | N/A | Cover Material | N/A |
| Cover Color | N/A | Contact Plating | Cu/Sn plating (copper/tin plating) |
| Solder Piece Material | N/A | Solder Piece Plating | N/A |
| Terminal Width | N/A | PCB Contact Pitch | N/A (refer to recommended PCB layout) |
| Recommended PCB Layout Tolerance | ±0.05 mm | Series | 01–99 (series range shown in part-number information) |
