PCIe 36P Vertical SMT Connector with Latch is a compact 1.00mm pitch surface mount PCI Express connector designed for reliable edge card connection applications. It features a reinforced LCP housing, copper alloy contacts, gold-plated mating area, and integrated latch structure for secure PCB connections.

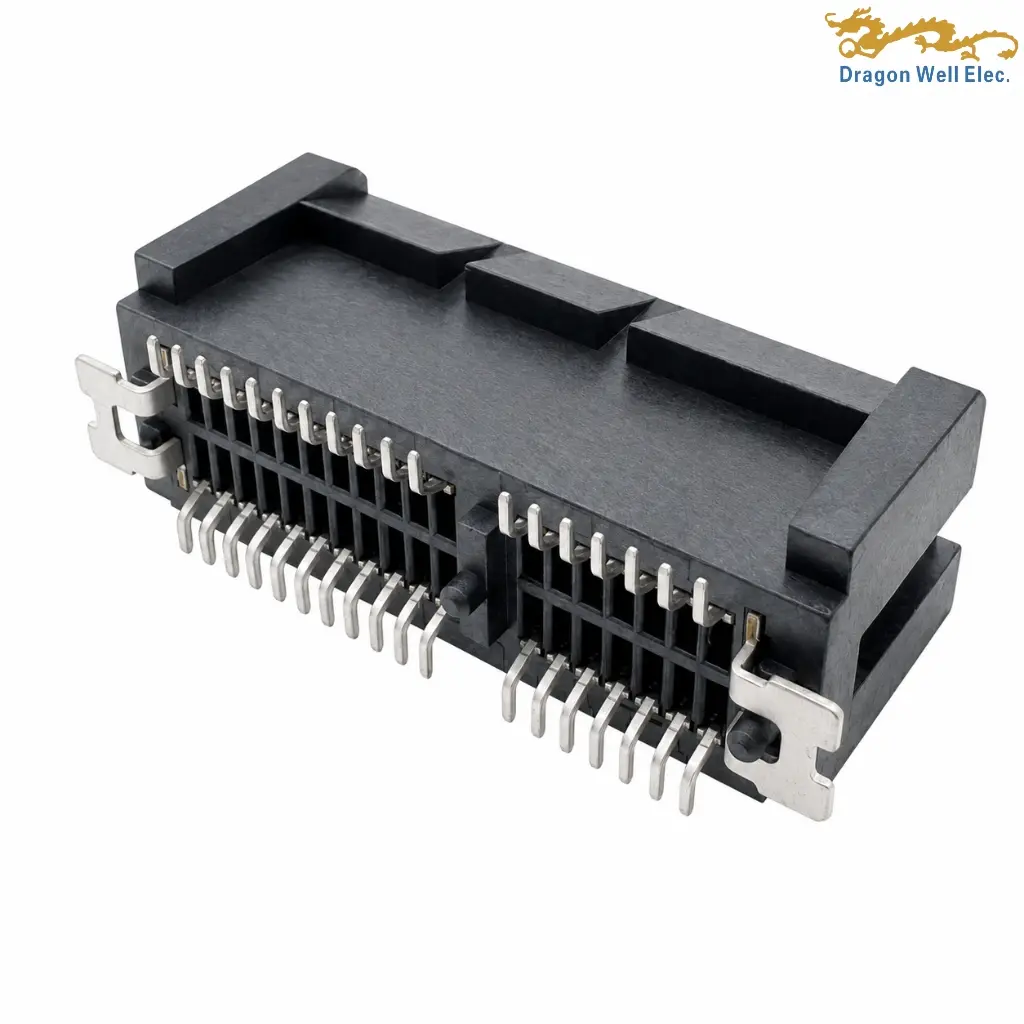

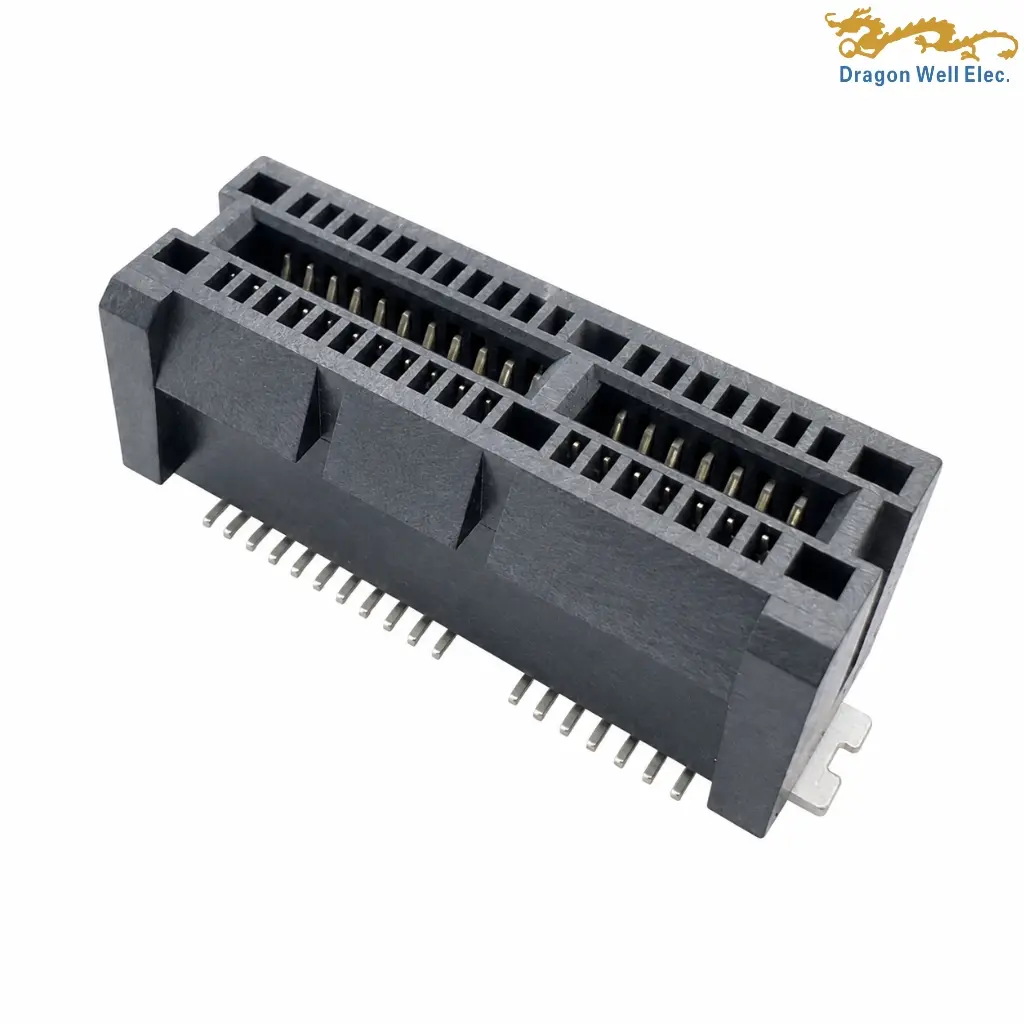

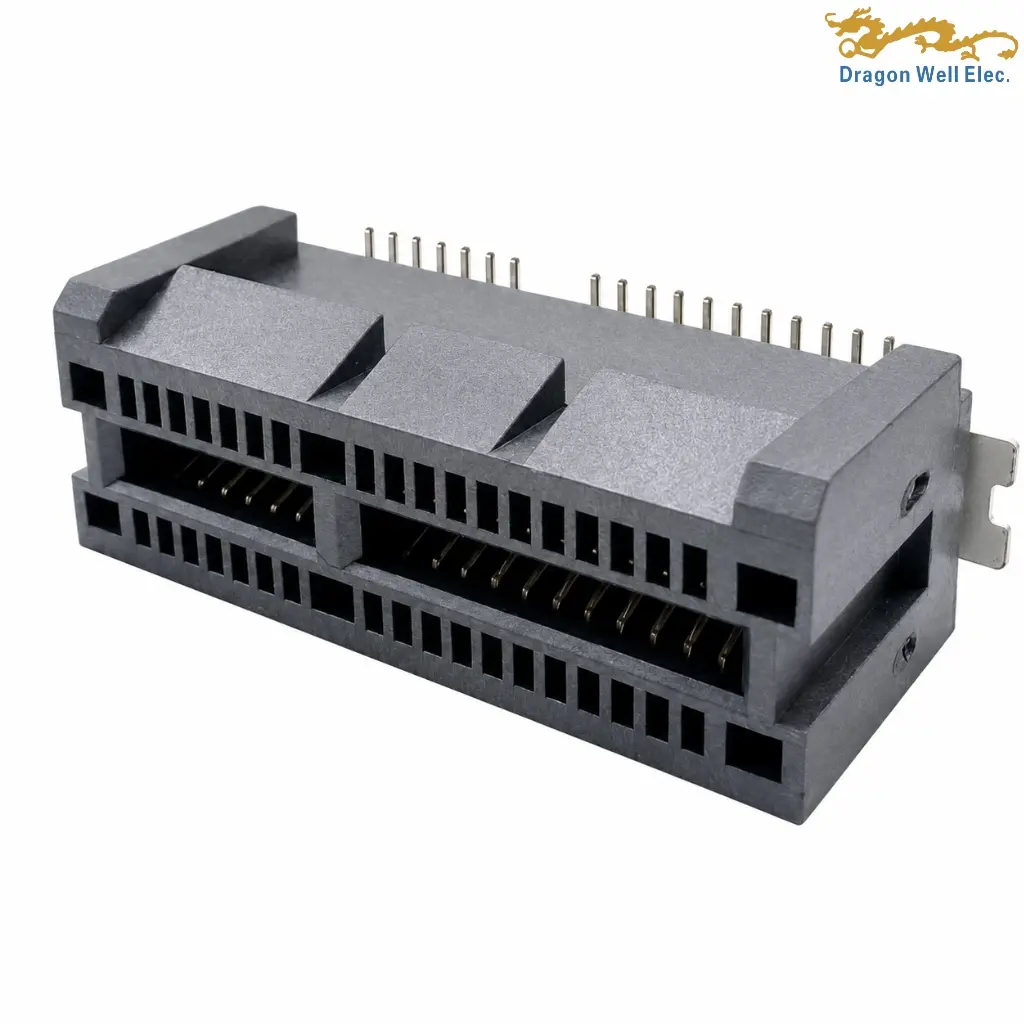

PCIe 36P Vertical SMT Connector with Latch is a high-reliability surface mount connector designed for PCI Express edge card applications requiring stable mechanical retention and efficient PCB integration. The DW-PCI-E10003608 features a vertical SMT mounting structure with 36 positions and a 1.00mm pitch design, providing a compact connection solution for modern electronic systems.
This PCIe connector adopts a high-temperature LCP housing reinforced with 30% glass fiber material and UL94 V-0 flame retardant performance, ensuring excellent mechanical strength and reliability during assembly and operation. The connector terminals are manufactured from copper alloy with optimized plating performance, including gold plating on the mating contact area and tin plating on the soldering area with nickel underplating for improved conductivity and corrosion resistance.
The integrated latch structure provides additional retention between the connector and mating card, helping maintain a secure connection under vibration or mechanical stress conditions. With a maximum contact resistance of 30mΩ, insulation resistance of 1000MΩ minimum, and dielectric strength of 500V DC for 1 minute, this PCIe 36P connector delivers dependable electrical performance.
Designed for automated PCB assembly processes, the vertical SMT configuration helps save board space while supporting efficient manufacturing. The connector is suitable for various applications including embedded computing systems, industrial control equipment, communication devices, storage systems, and other high-density electronic platforms.
Dragon Well Electronics provides customizable PCIe connector solutions with different pin counts, plating options, packaging methods, and design requirements to support OEM and ODM projects.
| General | |||
| Status | Active | Category | PCIe Connector |
| Model No. | DW-PCI-E10003608-XXXX-01 | Description | 1.00 mm pitch, 36-pin PCIe vertical SMT connector with latch |
| Component Type | Connector Assembly | Product Name | PCIe 36P Vertical SMT with Latch |
| RoHS | Compliant | Packaging | TP: Tray Packing / TR: Tape Reel |
| Electrical | |||
| Current Rating | 1.1 A per pin Min. | Contact Resistance | 30 mΩ Max. |
| Insulation Resistance | 1000 MΩ Min. | Dielectric Strength | 500 V DC / 1 minute |
| Voltage Rating | — | Operating Temperature | — |
| Mechanical | |||
| Number of Contacts | 36 Pins | Contact Pitch | 1.00 mm |
| Mounting Type | Surface Mount (SMT) | Connector Orientation | Vertical |
| Latch | Yes | Durability | 50 Cycles |
| Insertion Force | 1.15 N per contact pair Max. | Extraction Force | 0.15 N per contact pair Min. |
| Body Length | 25.00 ± 0.25 mm | Overall Length | 27.00 ± 0.35 mm |
| Overall Height | 11.10 mm | Body Height | 9.00 mm |
| Body Depth | 8.40 ± 0.35 mm | Front-View Height | 10.80 mm |
| Section Width | 7.30 mm | Section Overall Height | 7.65 mm |
| Contact Spacing | 1.00 mm TYP. | Terminal Width | 0.33 mm TYP. |
| PCB / Location Feature | Ø1.08 mm shown | Additional Location Feature | Ø1.00 mm shown |
| Material & Finish | |||
| Housing Material | LCP + 30% G/F | Housing Color | Black |
| Flammability Rating | UL94V-0 | Terminal Material | Copper Alloy, T = 0.25 mm |
| Terminal Contact Finish | Gold on contact area | Terminal Solder Finish | 80 µ″ Min. Tin on solder area |
| Terminal Underplating | 50 µ″ Min. Nickel underplating overall | Latch Material | Copper Alloy, T = 0.30 mm |
| Latch Finish | Sn 100 µ″ Min. | Latch Underplating | 50 µ″ Min. Nickel underplating overall |
| Ordering Information | |||
| Pin Code | 036 = 36 Pin | Series | 01–99 |
| Plating Code 01 | Gold Flash on mating area | Plating Code 03 | 3 µ″ Gold on mating area |
| Plating Code 05 | 5 µ″ Gold on mating area | Plating Code 15 | 15 µ″ Gold on mating area |
| Plating Code 30 | 30 µ″ Gold on mating area | Packaging Code | TP = Tray Packing; TR = Tape Reel |
