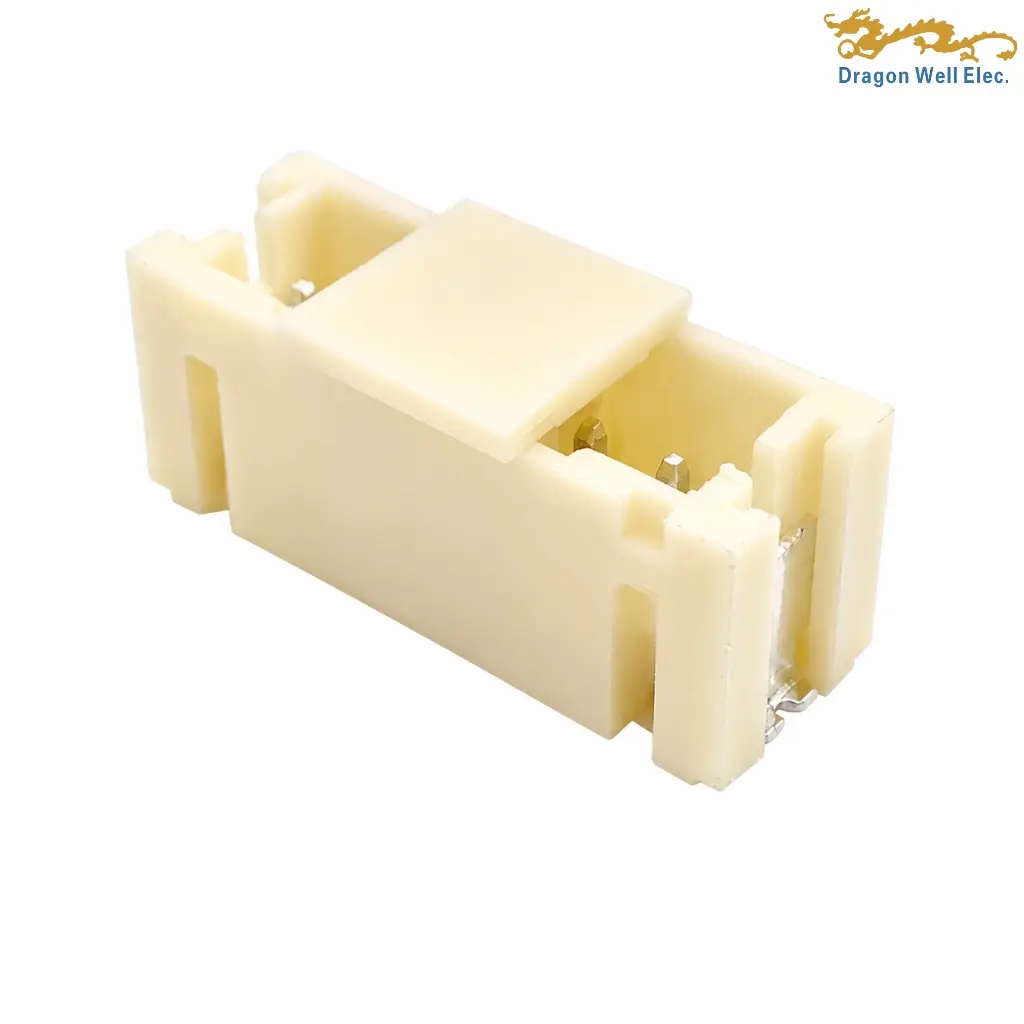

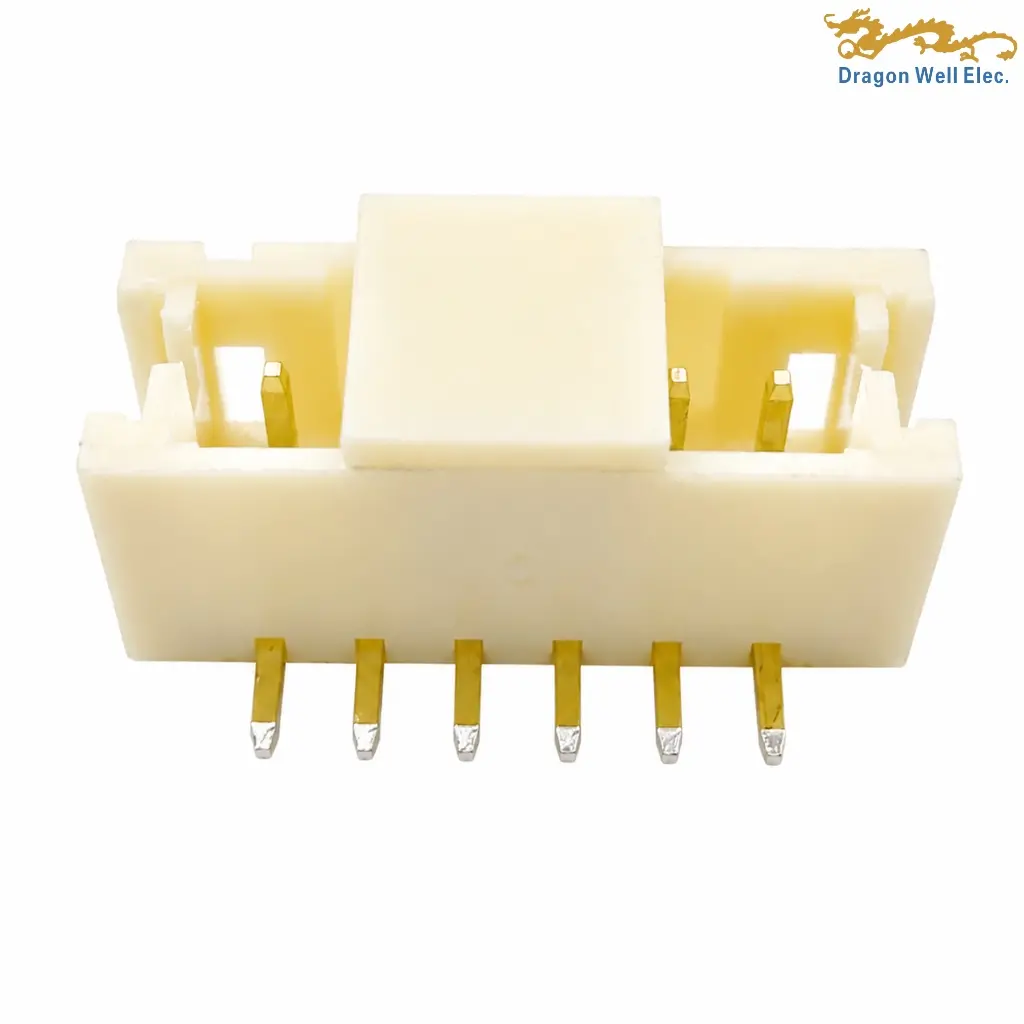

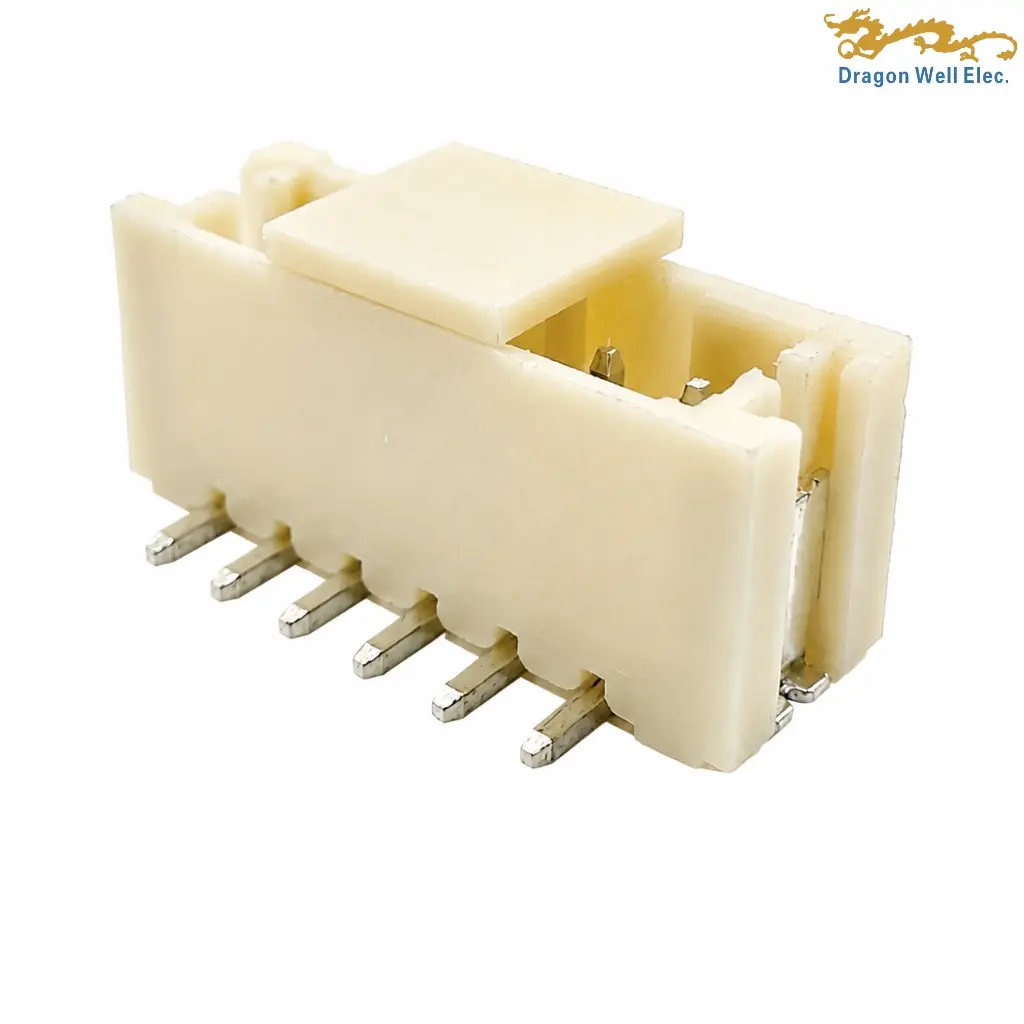

The 2mm SMT wafer connector DW-WF-120060WVnP-31TR-05 is a single-row, vertical 180° surface-mount connector available from 2 to 20 positions. It features a 2.00 mm pitch, 2 A / 100 V AC/DC rating, tin-plated copper-alloy contacts, natural LCP UL 94V-0 housing, tape-and-reel packaging, and RoHS-compliant construction.
Applications: Wire-to-board connections, industrial control boards, embedded electronics, communication equipment, consumer electronics, instrumentation, smart devices, power/control interfaces, and compact PCB assemblies.
Highlights: 2.00 mm pitch; single-row construction; 2–20 positions; vertical 180° SMT mounting; 2 A AC/DC current rating; 100 V AC/DC voltage rating; ≤25 mΩ contact resistance; ≥1000 MΩ insulation resistance; 800 V AC/minute withstand voltage; -25°C to +85°C operating temperature; copper-alloy contacts; Sn plating; LCP UL 94V-0 housing; tape-and-reel packaging; cover-equipped design; RoHS compliant.
2mm SMT wafer connector DW-WF-120060WVnP-31TR-05 is a single-row, 180° vertical surface-mount wafer connector designed for compact PCB interconnection. The Dragon Well drawing specifies a 2.00 mm contact pitch and supports configurations from 2 to 20 positions, allowing the same connector series to serve different circuit-count requirements.
The connector is rated for 2 A AC/DC and 100 V AC/DC. Electrical performance specified in the drawing includes 25 mΩ maximum contact resistance, 1000 MΩ minimum insulation resistance, and 800 V AC for one minute withstand voltage. Its specified operating temperature range is -25°C to +85°C, supporting use in a variety of electronic equipment and control assemblies.
The contact system uses copper alloy, while the housing is manufactured from natural LCP rated UL 94V-0. Solder terminals are copper alloy with tin plating. For model DW-WF-120060WVnP-31TR-05, plating code 31 identifies the connector-contact finish as Sn (tin). The TR designation indicates tape-and-reel packaging for automated SMT production.
The drawing also specifies a cover-equipped construction and a recommended SMT PCB footprint. The contact terminals use a 0.50 mm square contact section, while the 2.00 mm pitch remains consistent across the available position counts.
This 2mm SMT wafer connector is suitable for compact wire-to-board and internal PCB connection systems used in industrial electronics, consumer equipment, communication devices, instrumentation, control boards, and embedded electronic assemblies. Molex and Samtec similarly classify comparable 2.00 mm-pitch products as single-row vertical SMT wire-to-board/header connectors, supporting this industry terminology.
