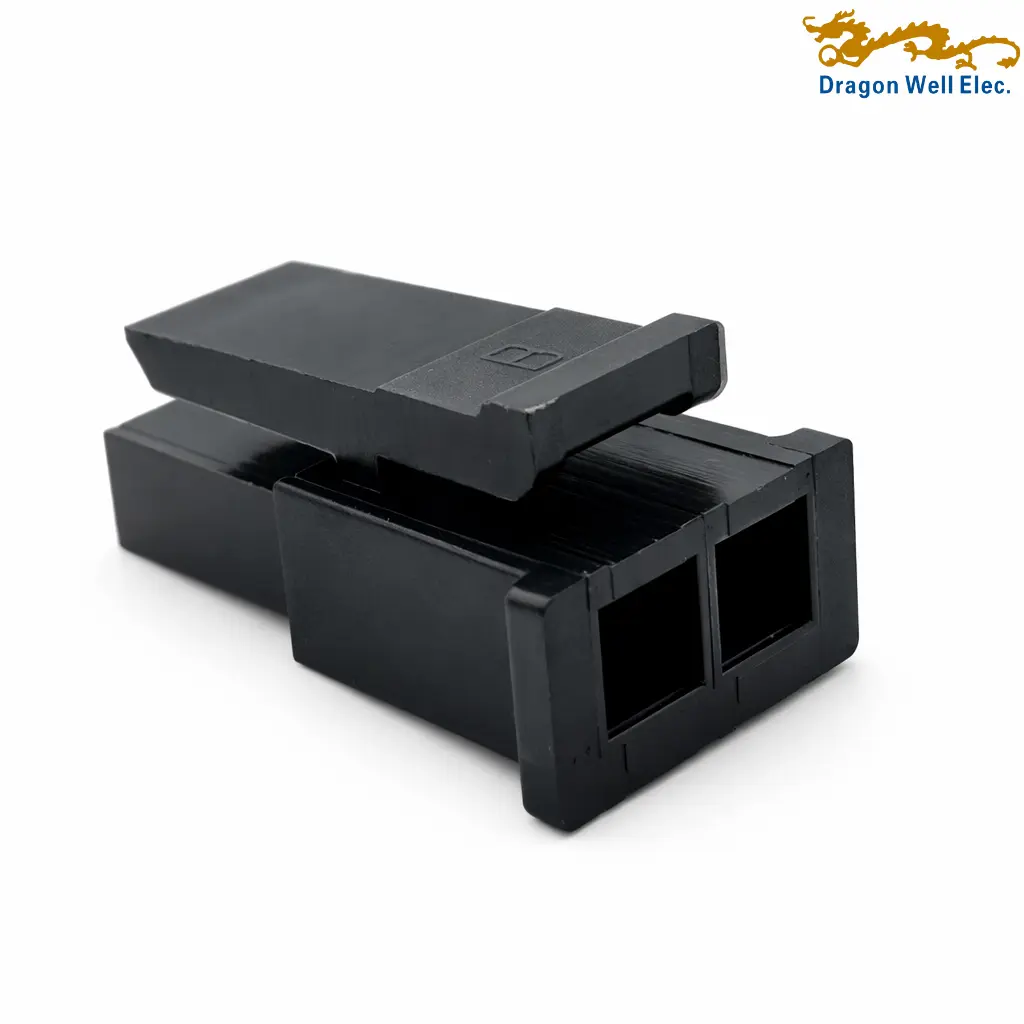

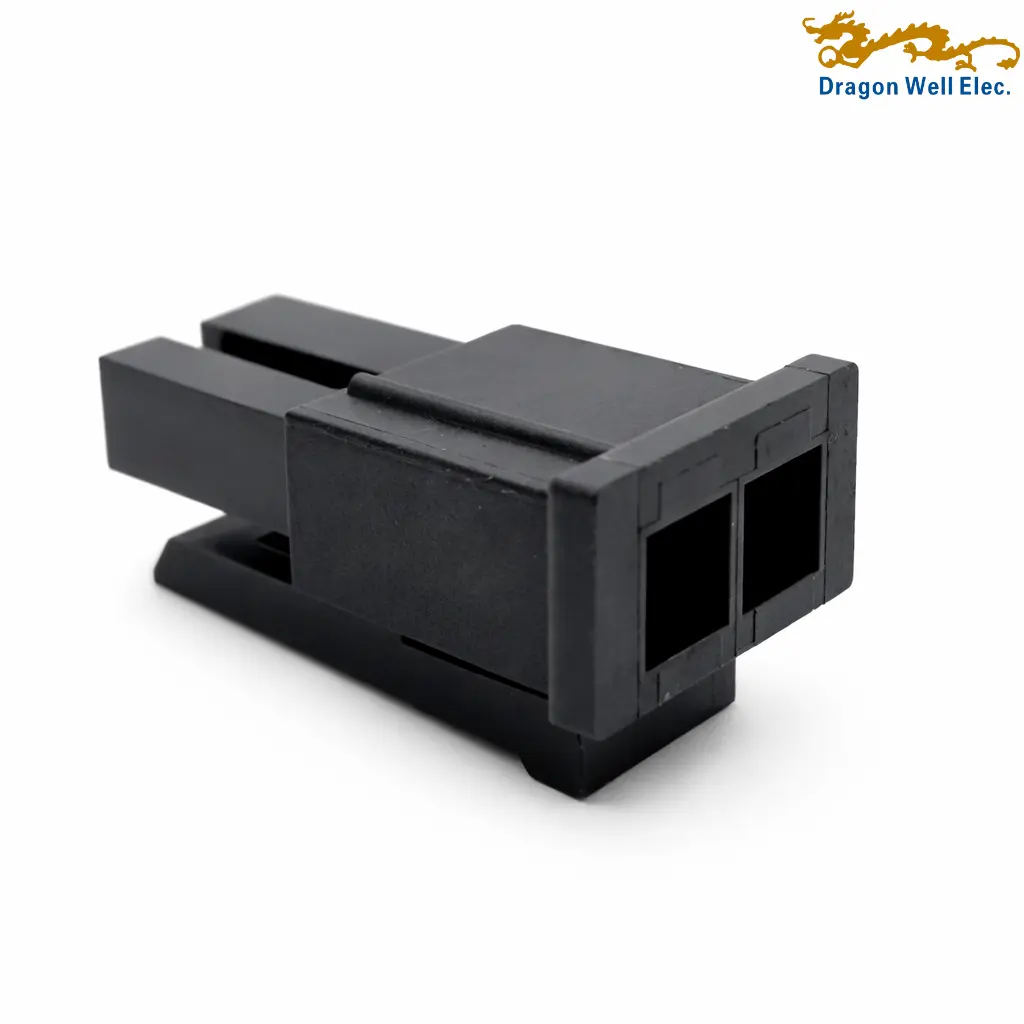

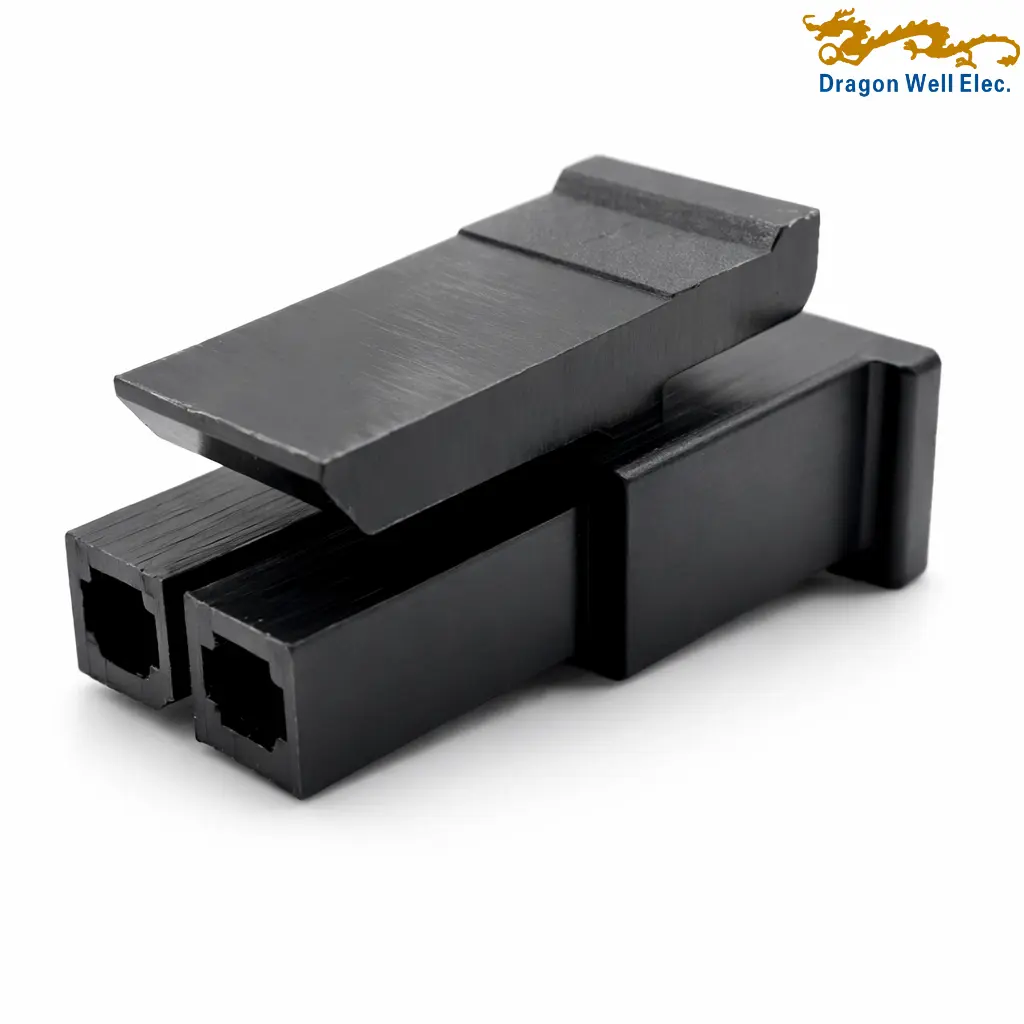

3.00mm crimp style connector housing 2 pin is a single-row cable mount wire-to-board connector housing made from Nylon 66 with UL94V-2 flame rating. It features 3.00mm pitch, 2-pin layout, black housing, 5A AC/DC current rating, 250V AC/DC voltage rating, and PE bag packaging for wire harness and PCB connection applications.
Applications:
• Wire-to-board connection
• Power supply modules
• Consumer electronics
• Industrial control equipment
• Internal wiring harnesses
• PCB cable connection
• Home appliance electronics
• Communication equipment
• LED lighting and control boards
Highlights:
• 3.00mm pitch crimp style connector housing
• 2-pin single-row design
• Cable mount type
• Wire-to-board connector series
• Nylon 66 housing material
• UL94V-2 flammability rating
• Black housing color
• Rated current: 5A AC/DC
• Rated voltage: 250V AC/DC
• Contact resistance: 10mΩ max.
• Insulation resistance: 1000MΩ min.
• Withstanding voltage: 1500V AC / minute
• Operating temperature: -25°C to +85°C
• RoHS compliant
• PE bag packaging
3.00mm crimp style connector housing 2 pin is a single-row wire-to-board connector housing designed for reliable cable-mounted electrical connection in compact PCB and harness applications. Based on the drawing, this connector uses a 3.00mm pitch structure with 2-pin configuration, making it suitable for signal and power connection where stable crimp terminal assembly and secure housing retention are required.
The product is designed as a crimp style housing with cable mount installation. The 2-pin version has Dimension A: 3.00 mm and Dimension B: 8.30 mm, with an overall height of 14.00 mm, body height of 11.60 mm, body width of 5.25 mm, and side dimension of 7.60 mm. The housing is made from Nylon 66 material with UL94V-2 flammability rating, supporting dependable mechanical strength and insulation performance for wire harness and board-level connection systems.With RoHS compliance, black housing color, single-row design, and PE bag packaging, this connector housing is suitable for wire-to-board applications that require compact size, dependable electrical performance, and easy crimp terminal assembly.
| General | |||
| Status | Active | Category | Crimp Style Connector Housing |
| Model No. | DW-HG-1300168WV02P-PE-01 | Description | 3.00 mm pitch single-row crimp housing, 2-pin |
| Component Type | Housing | Product Name | Crimp Style Housing |
| Mounting Type | Cable Mount | Number of Rows | Single Row |
| Electrical | |||
| Current Rating | 5A AC/DC | Voltage Rating | 250V AC/DC |
| Temperature Range | -25°C to +85°C | Contact Resistance | 10 mΩ Max. |
| Insulation Resistance | 1000 MΩ Min. | Withstanding Voltage | 1500V AC / Minute |
| Material | Nylon 66 | Flammability Rating | UL94V-2 |
| Physical | |||
| Number of Pins | 2 | Pitch | 3.00 mm |
| Dimension A | 3.00 mm | Dimension B | 8.30 mm |
| Overall Height | 14.00 mm | Body Height | 11.60 mm |
| Body Width | 5.25 mm | Side Dimension | 7.60 mm |
| Front Width (2PIN) | 8.30 mm | Connector Style | Crimp Housing |
| Material | Nylon 66 | Color | Black |
| Packaging | PE Bag | Series | wire to board. |
