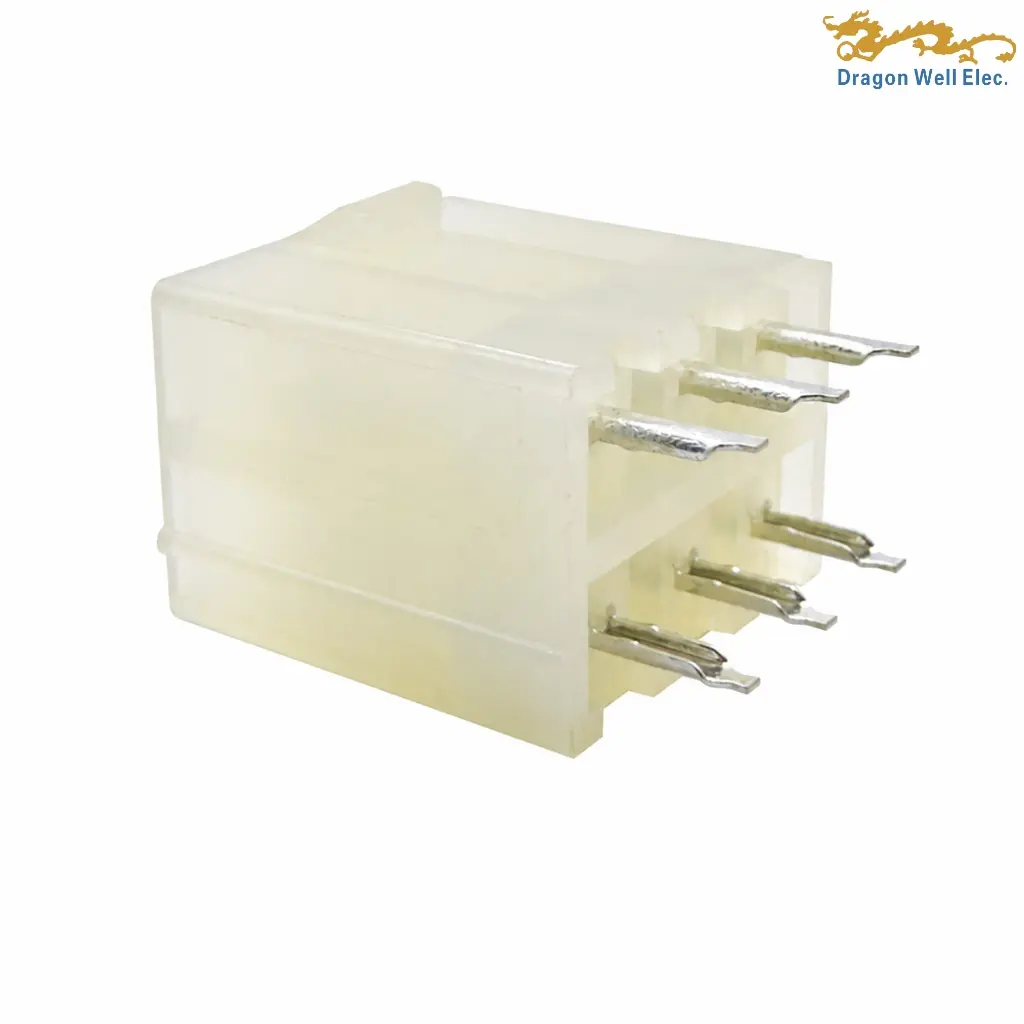

The 4.20mm vertical dual row wafer connector DW-WF-242050 is a vertical through-hole power connector featuring a 4.20 mm pitch, brass tin-plated terminals, Nylon 66 UL94 V-0 housing and a 9 A / 600 V AC/DC rating. The supplied engineering configuration uses vertical 180° orientation, tin plating and tape-reel packaging.
4.20mm vertical dual row wafer connector DW-WF-242050WV02P-31TR-01 is a vertical through-hole PCB power connector designed for reliable wire-to-board electrical interconnection. The supplied Dragon Well engineering drawing identifies a 4.20 mm pitch, dual-row construction and 180° vertical orientation, with a polarized shrouded housing for controlled mating.
The connector is rated at 9 A AC/DC and 600 V AC/DC. Electrical performance includes 20 mΩ maximum contact resistance, 1000 MΩ minimum insulation resistance, and 1500 VAC per minute dielectric withstand voltage. The specified operating-temperature range is −25°C to +85°C.
The 4.20mm vertical dual row wafer connector uses brass terminals with tin plating. Its insulating housing is manufactured from Nylon 66 and is rated UL94 V-0 according to the supplied drawing. The combination of a shrouded housing, vertical mating direction and through-hole PCB termination makes the connector suitable for power-oriented board interfaces requiring secure mechanical PCB attachment.
For the supplied 02P engineering configuration, the drawing shows a body width of 5.40 mm, an overall body height of 12.85 ±0.30 mm, and a depth of 9.70 ±0.30 mm. The PCB terminal extension is specified at 3.40 ±0.35 mm. The recommended PCB footprint uses Ø1.40 mm holes with 5.50 mm center spacing.
The ordering code confirms WV vertical 180° orientation, 02P pin configuration, 31 tin plating, TR tape-reel packaging and series code 01.
This 4.20mm vertical dual row wafer connector is suited to power and wire-to-board PCB interconnection in electronic equipment where a 4.20 mm pitch, 9 A current rating and 600 V rating are required. Comparable 4.20 mm power connector systems from major connector manufacturers are also used for vertical through-hole wire-to-board power connections.
| General | |||
| Status | Active | Category | Wafer |
| Product Name | Wafer Connector | Description | MX 4.2 180° DUAL ROW WAFER |
| Part Number | DW-WF-242050WV02P-31TR-01 | Component Type | Wafer (DIP) |
| Electrical | |||
| Current – Maximum | 9A AC/DC | Voltage – Maximum | 600V AC/DC |
| Insulation Resistance Min. | 1000MΩ Min. | Withstanding Voltage | 1500V AC/minute |
| Contact Resistance | 20mΩ Max. | ||
| Physical | |||
| Circuits (Loaded) | 02P | Circuits (maximum) | 2 |
| Color – Resin | N/A | Durability (mating cycles max) | N/A |
| Glow-Wire Capable | N/A | Lock to Mating Part | Yes |
| Mated Height | 12.85±0.30 mm | Mated Width | 5.40 mm |
| Material – Metal | Brass | Material – Plating | Tin-plated |
| Material – Plating Thickness | 31 Sn | Net Weight | N/A |
| Material – Resin | Nylon 66, UL94V-0 | Material – Shell | N/A |
| Number of Rows | 2 (Dual Row) | Orientation | Vertical (180°) |
| Packaging Type | TR: Tape Reel | PCB Locator | N/A |
| PCB Retention | N/A | Pitch – Mating Interface | 4.20 mm |
| Pitch – Termination | 5.50±0.25 mm | Plating min – Mating | N/A |
| Polarized to Mating Part | Yes | Polarized to PCB | N/A |
| Temperature Range | -25°C to +85°C | Termination Interface | Through Hole |
