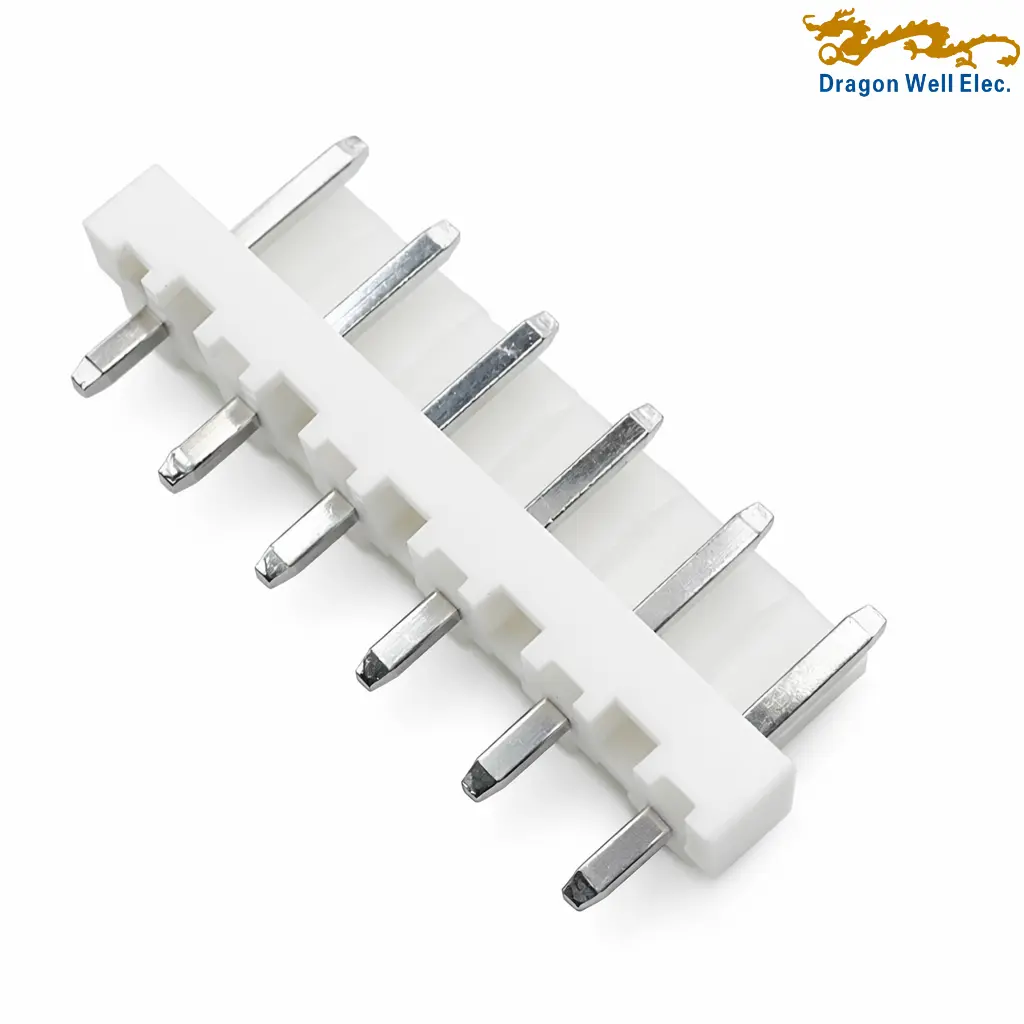

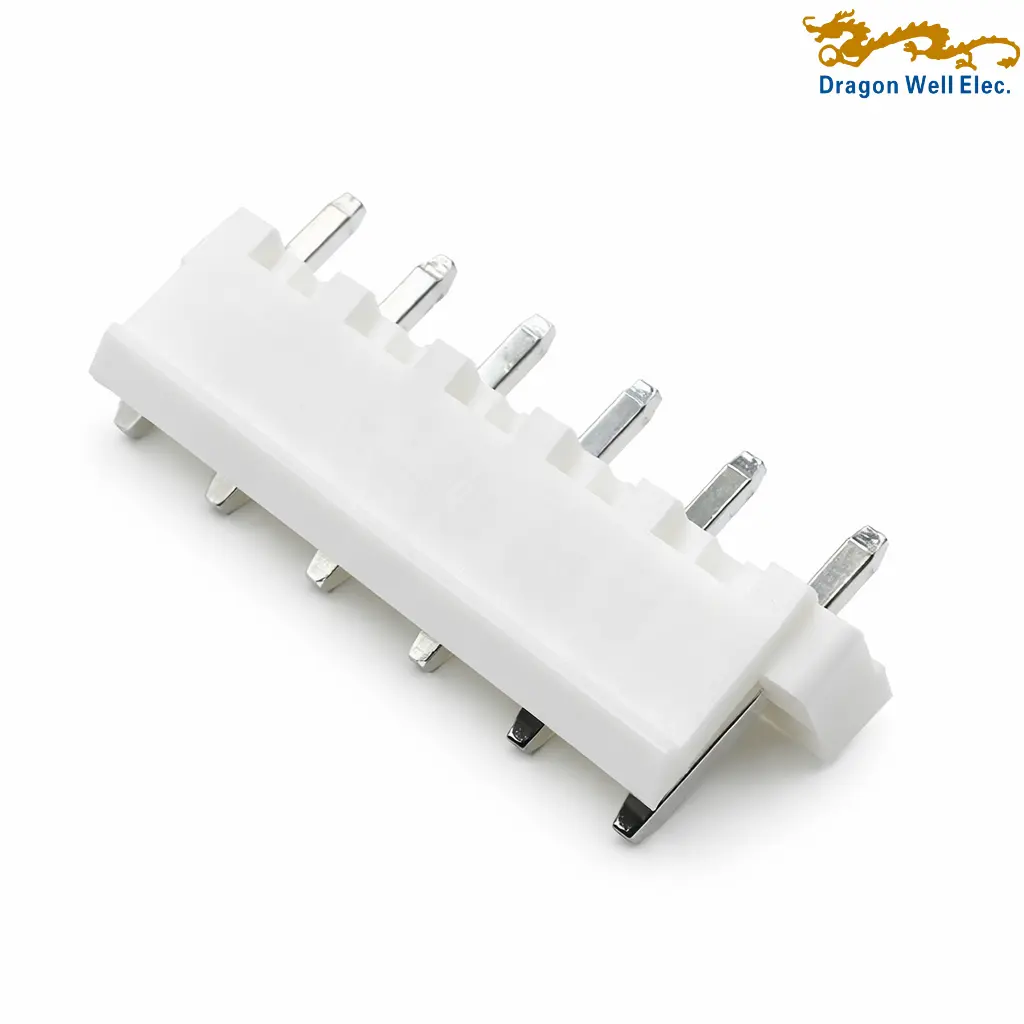

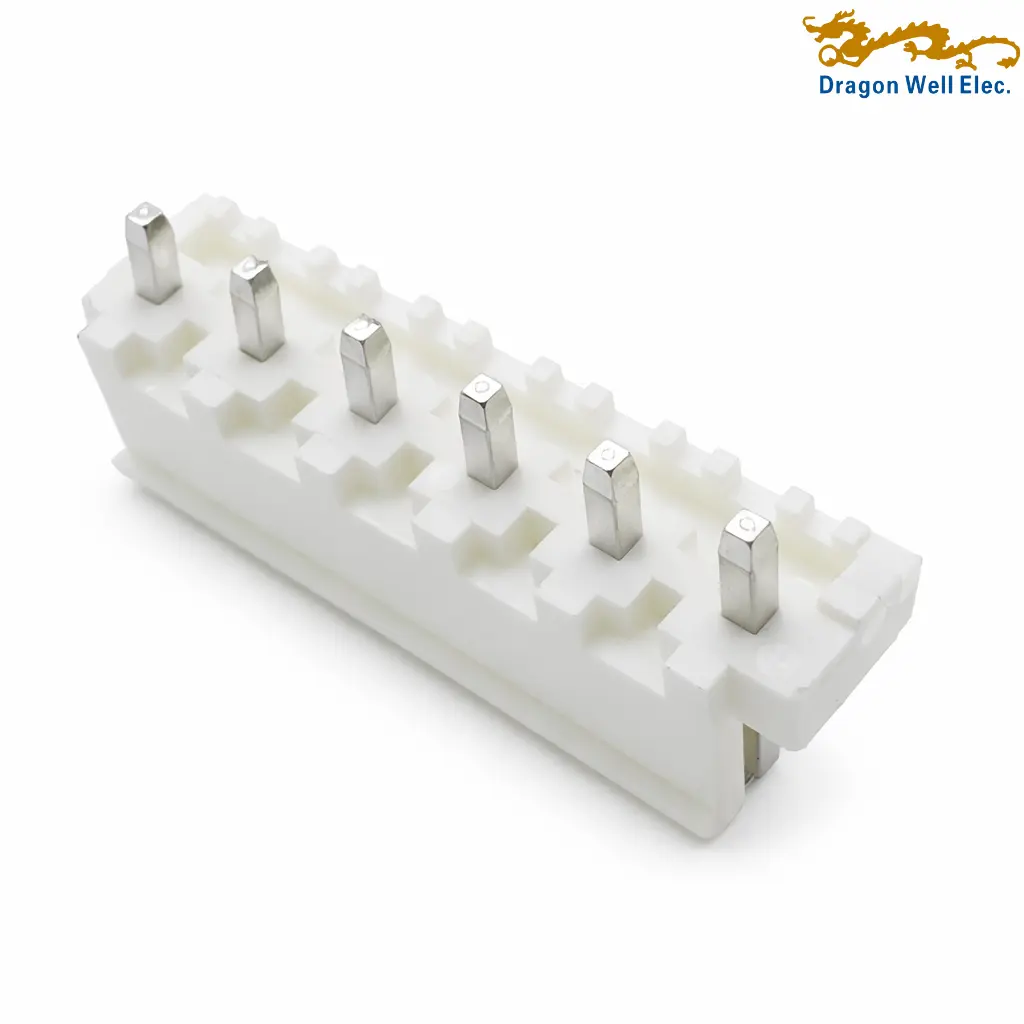

5.00mm pitch DIP 180° single row wafer connector 6 pin for wire-to-board PCB interconnection, designed with a single row layout, vertical 180° through-hole structure, and 5.00mm pitch for reliable assembly in higher-current applications. Based on the drawing, this connector supports 10A AC/DC, 250V AC/DC, and uses brass contacts with tin plated over nickel plus a Nylon 66 94V-0 housing for dependable board-level connection.
• Applications: Wire-to-board connection, power supply boards, industrial control systems, household appliances, LED power modules, control panels, consumer electronics, internal PCB power interconnection.
• Highlights: 5.00mm pitch wafer connector; single row design; 180° DIP type; 6-pin version shown; 10A AC/DC current rating; 250V AC/DC voltage rating; contact resistance ≤20mΩ; 1000MΩ min insulation resistance; 1500V AC withstand; Nylon 66 94V-0 housing; RoHS compliant.
5.00mm pitch DIP 180° single row wafer connector 6 pin is a through-hole wire-to-board connector designed for stable power and signal interconnection in industrial equipment, control boards, power modules, and consumer electronic assemblies. Based on the drawing, this product is a single row wafer connector with 5.00mm pitch, 180° vertical/DIP mounting style, and a 6-pin version shown. The title block identifies it as a 5.00 pitch DIP 180° single row wafer, and the dimension table shows the series is available from 2 to 10 pins.
This 5.00mm pitch DIP 180° single row wafer connector 6 pin is designed for dependable electrical and mechanical performance in PCB-mounted applications. According to the specification section in the drawing, it has a current rating of 10A AC/DC and a voltage rating of 250V AC/DC. The drawing also specifies contact resistance ≤20mΩ, insulation resistance 1000MΩ min, and withstanding voltage 1500V AC/minute, supporting reliable conductivity and insulation performance in demanding environments.
The material information shown in the drawing specifies a Nylon 66 94V-0 (Natural) housing and brass contacts with tin plated over nickel finish. The operating temperature range is listed as -25°C to +85°C, making this connector suitable for a wide range of appliance, power, and industrial connection applications. The recommended PCB layout is clearly provided with 5.00mm spacing and Ø1.80 +0.10/-0.00 mm hole size, helping support accurate PCB design and assembly.
| General | |||
| Status | Active | Category | Wire-to-Board Connector |
| Model No. | DW-WF-1508610WV06P-31PE-01 | Description | 5.00 mm pitch DIP 180° single-row wafer header, 6-pin, through-hole |
| Component Type | Header | Product Name | Wafer Connector |
| Mounting Type | Through Hole | Orientation | Vertical / 180° |
| Electrical | |||
| Current Rating | 10A AC/DC | Voltage Rating | 250V AC/DC |
| Temperature Range | -25°C to +85°C | Contact Resistance | 20 mΩ Max. |
| Insulation Resistance | 1000 MΩ Min. | Withstanding Voltage | 1500V AC / Minute |
| Housing Material | Nylon 66, 94V-0 | Contact Material | Brass |
| Physical | |||
| Number of Pins | 6 | Pitch | 5.08 mm |
| Number of Rows | Single Row | Connector Style | DIP Wafer |
| Dimension A | 25.00 mm | Dimension B | 30.00 mm |
| Body Height | 6.80 ± 0.20 mm | Overall Height | 14.00 ± 0.30 mm |
| Side Height | 9.50 ± 0.35 mm | Front Projection | 8.60 ± 0.35 mm |
| Pin Length | 3.50 ± 0.35 mm | Body Width | 8.00 ± 0.20 mm |
| PCB Hole Diameter | Ø1.80 +0.10 / -0.00 mm | Pin Width | 1.14 ± 0.05 mm |
| Plating Code | 31 | Plating Finish | Tin Plated Over Nickel |
| Packaging Code | PE | Packaging | PE Bag |
