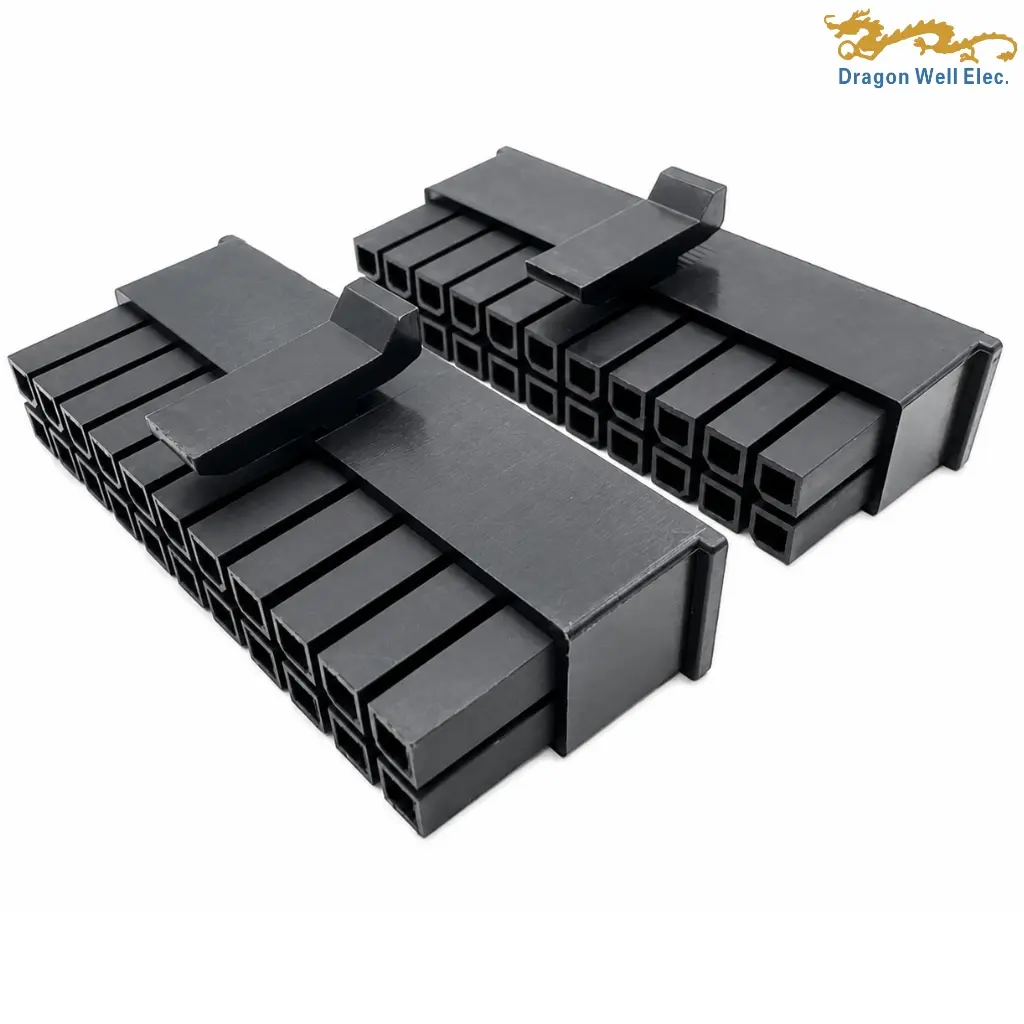

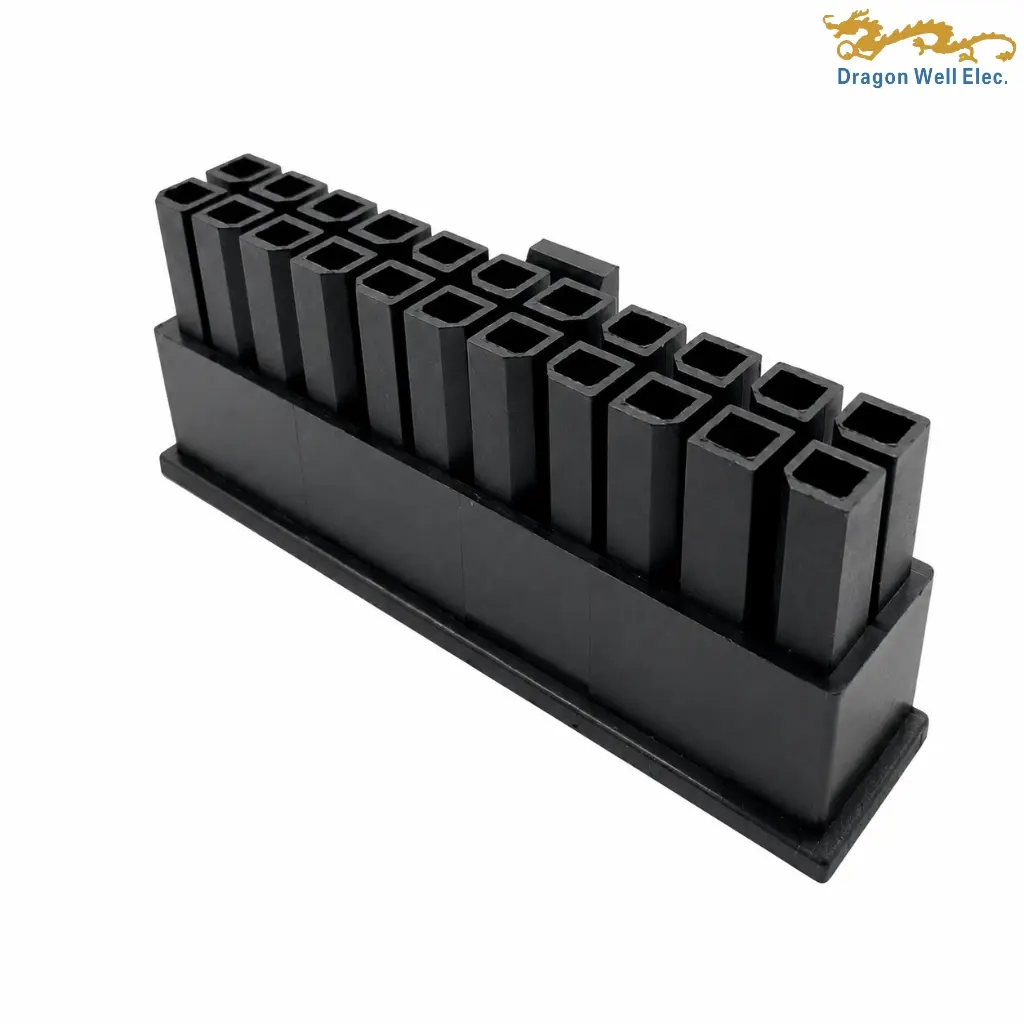

The 3.00mm dual row connector housing is a black Nylon 66 crimp housing series available in 2–24 circuits. It features a 3.00 mm contact pitch, integrated locking latch, 5 A and 250 V AC/DC drawing ratings, UL94 V-0 construction, and an operating range from -40°C to +105°C. The series is RoHS compliant and supplied in PE bags.
The 3.00mm dual row connector housing is a compact crimp-style housing series designed for organized power and signal connections in wire-to-board or compatible wire-to-wire systems. The supplied engineering drawing covers dual-row configurations from 2 to 24 total circuits, with all versions arranged on a 3.00 ± 0.10 mm contact grid.

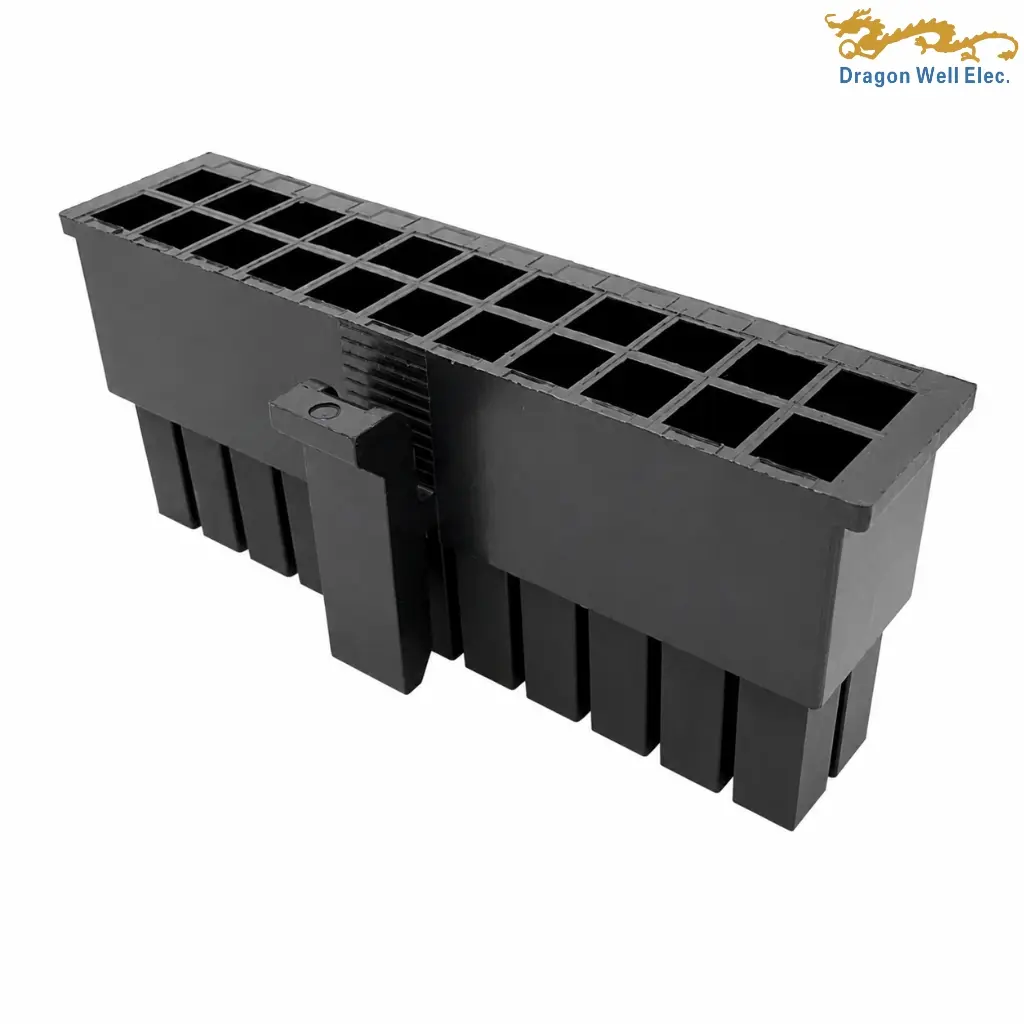

The housing incorporates an integral locking latch and polarized mating geometry to help support secure connector engagement and reduce incorrect mating. Its overall depth is 14.10 ± 0.35 mm, while the housing width changes according to circuit count. Available widths range from 3.85 mm for the 2-circuit version to 36.85 mm for the 24-circuit version.
The drawing specifies a connector-system current rating of 5 A AC/DC and a voltage rating of 250 V AC/DC. Electrical performance includes 10 mΩ maximum contact resistance, 1,000 MΩ minimum insulation resistance, and dielectric withstand capability of 1,500 V AC for one minute.
The 3.00mm dual row connector housing is manufactured from black Nylon 66 with a UL94 V-0 flammability classification. Its operating-temperature range extends from -40°C to +105°C, supporting use in a variety of electronic and electrical equipment environments. The housing series is RoHS compliant and supplied in PE-bag packaging.
This connector housing can support internal connections in industrial controls, power modules, household appliances, LED systems, communication equipment, charging devices, and custom cable assemblies. The 3.00mm dual row connector housing must be used with approved crimp terminals and a compatible mating connector selected for the required wire size and electrical load.
| General | |||
| Status | Active | Category | Crimp Style Connector Housing |
| Model No. | DW-HG-230065WVnP-PE-01 | Description | 3.00mm pitch dual-row crimp-style connector housing, 2–24 pins in even counts |
| Component Type | Housing | Product Name | Crimp Style Housing |
| Mounting Type | Cable Mount | Number of Rows | 2 |
| Electrical | |||
| Current Rating | 5A AC/DC | Voltage Rating | 250V AC/DC |
| Temperature Range | -40°C to +105°C | Contact Resistance | 10mΩ Max. |
| Insulation Resistance | 1000MΩ Min. | Withstanding Voltage | 1500V AC / Minute |
| Material | Nylon 66 | Flammability Rating | UL94V-0 |
| Physical | |||
| Number of Pins | 2–24 Pins, Even Counts | Pitch | 3.00±0.10mm |
| Dimension A | N/A for 2P; 3.00–33.00mm for 4P–24P | Dimension B | 3.85–36.85mm, Depending on Pin Count |
| Overall Height | 14.10±0.35mm | Body Height | 7.65±0.35mm |
| Body Width | 6.96±0.25mm | Side Dimension | 6.90±0.35mm for 6P–24P; 6.85±0.35mm for 4P; 3.85±0.30mm for 2P |
| Front Width (2PIN) | 3.85mm | Connector Style | Crimp Housing |
| Material | Nylon 66 | Color | Black |
| Packaging | PE Bag | Series | Wire to Board |
