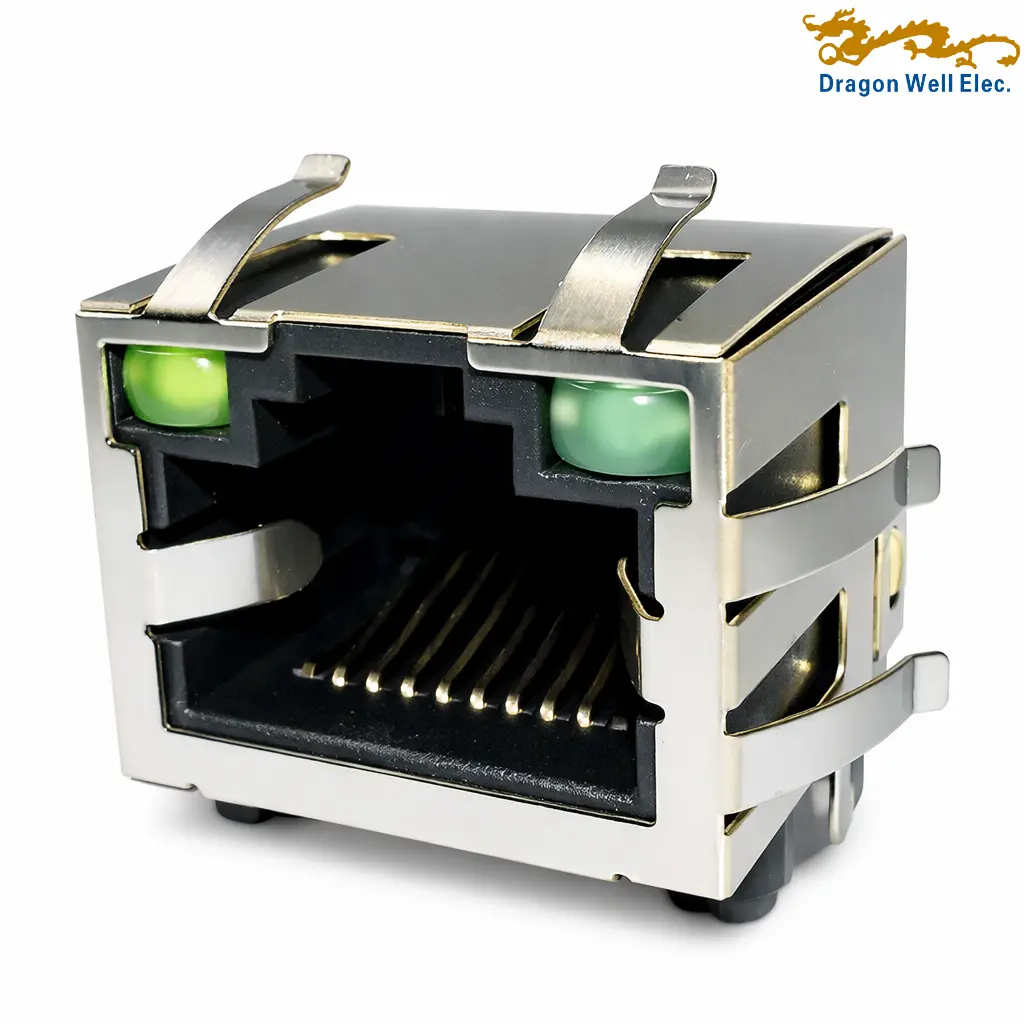

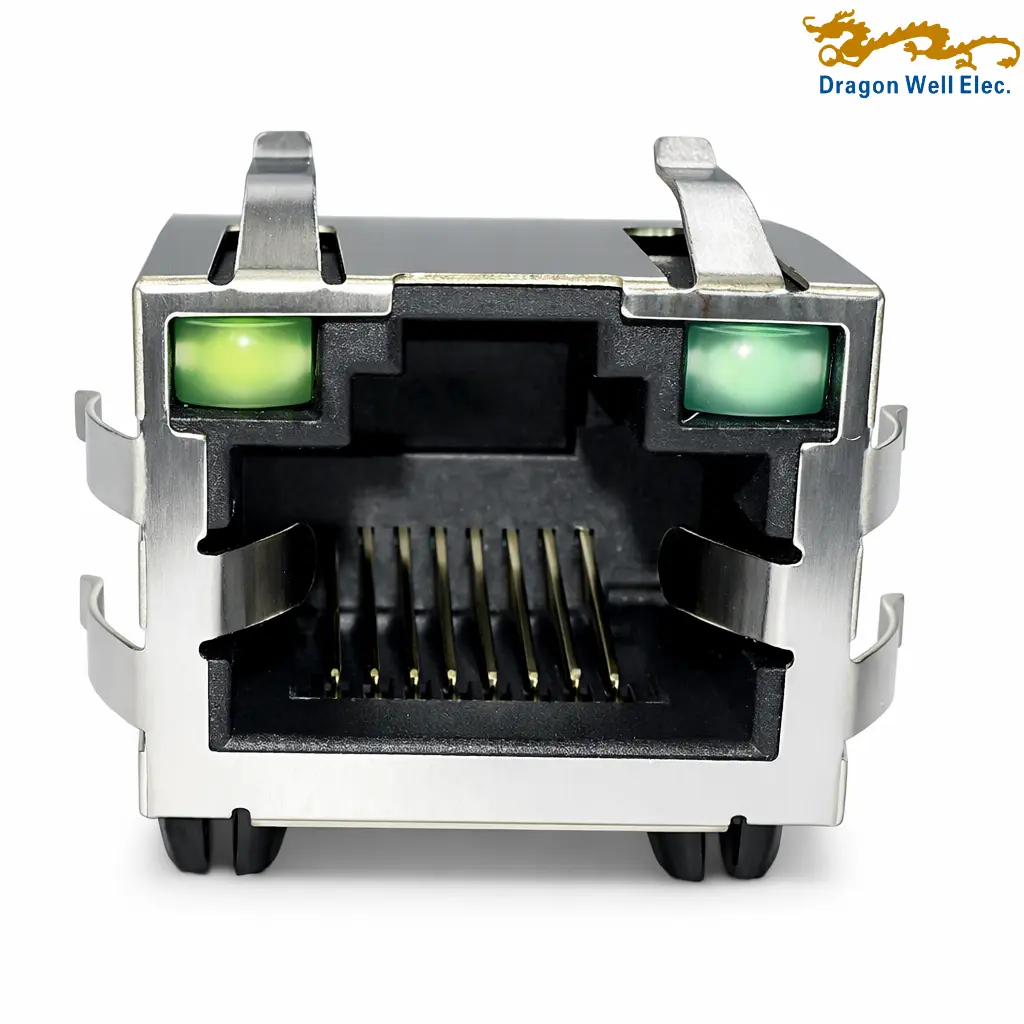

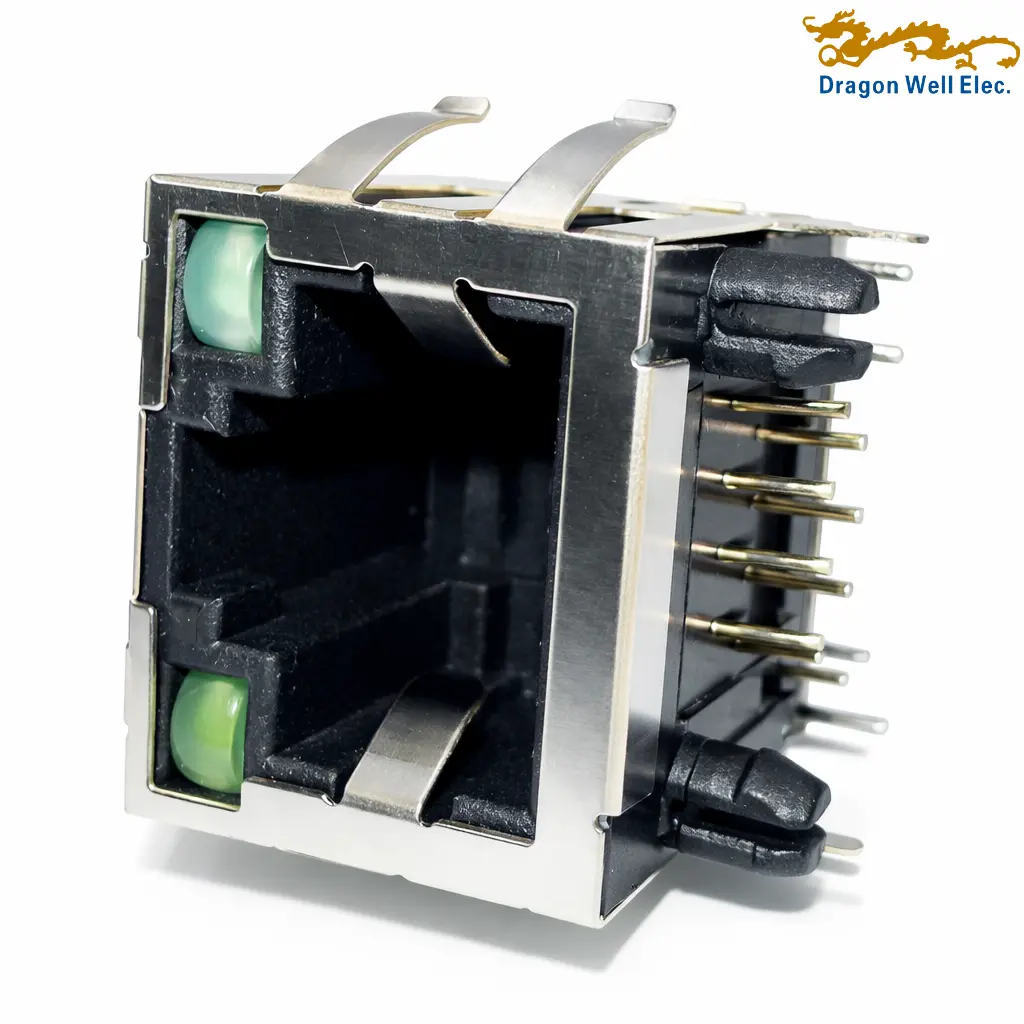

RJ45 1 port 8P8C shielded tab-up connector without LED for PCB Ethernet interface applications, designed with a single-port 8P8C structure, shielded metal shell, and tab-up orientation. Based on the drawing, this connector supports 125 VAC RMS, 1.5 AMP, and uses a PA46 UL94V-0 housing with gold-plated contacts over nickel for stable board-level network connection.
• Applications: Ethernet networking equipment, routers, switches, industrial control systems, communication terminals, embedded network boards, automation devices, LAN interface modules.
• Highlights: RJ45 1 port connector; 8P8C modular jack; shielded structure; tab-up type; without LED; 125 VAC RMS voltage rating; 1.5 AMP current rating; 50 milliohms max contact resistance; 500 megaohms min insulation resistance; 1000V AC withstand; 750 mating cycles minimum; RoHS compliant.
RJ45 1 port 8P8C shielded tab-up connector without LED is a compact Ethernet interface connector designed for reliable PCB mounting in networking, communication, and industrial electronic equipment. Based on the drawing, this product is a single-port RJ45 jack with an 8P8C contact structure, shielded housing, and tab-up orientation. The title block clearly identifies it as W/O LED, so this version is a non-LED RJ45 connector.
This RJ45 1 port 8P8C shielded tab-up connector without LED is designed for dependable electrical and mechanical performance in board-level network interface applications. According to the specification section in the drawing, it has a voltage rating of 125 VAC RMS and a current rating of 1.5 AMP. The drawing also specifies contact resistance of 50 milliohms max, insulation resistance of 500 megaohms min at 500V DC, and dielectric withstanding voltage of 1000V AC RMS 50Hz for 1 minute. These parameters support stable signal connection and insulation reliability in Ethernet port applications.
With its single-port 8P8C structure, shielded shell, and tab-up design, this RJ45 connector is suitable for switches, routers, communication terminals, industrial control devices, embedded networking boards, and Ethernet-enabled equipment that require a dependable PCB-mounted LAN interface. The drawing also confirms RoHS compliance.
| General | |||
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-D001191-XXTP-01 | Description | RJ45 Jack, 1×1, Side Entry, Shielded, Without LED, Tab-Up |
| Product Name | RJ45 8P8C Tab-Up Jack | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Packaging | Tray Packing |
| Width | 16.25 ±0.25 mm | Height | 13.21 ±0.25 mm |
| Length | 15.60 ±0.25 mm | Installed Height | 13.21 ±0.25 mm |
| Contact Material | Phosphor Bronze, Ø0.46 mm | Contact Plating | Gold Plating over Nickel |
| Shield Material | Copper Alloy, 0.20 mm thickness | Shield Plating | Nickel |
| Mating Force | — | Retention Strength | — |
| Customs Tariff Number | — | Country of Origin | — |
| Electrical | |||
| Current – Maximum per Contact | 1.5 AMP | Grounding to Panel | — |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125 VAC RMS | Operating Temperature | -40°C to +85°C |
| Contact Resistance (Max) | 50 mΩ Max | Storage Temperature | -40°C to +85°C |
| Insulation Resistance (Min) | 500 MΩ Min @ 500 VDC | EMI | Yes |
| Dielectric Withstanding Voltage | 1000V AC RMS, 50Hz, 1 Min | Lead-Free Process Capability | RoHS Compliant |
| Physical | |||
| Color – Housing | — | Orientation | Side Entry Right Angle |
| Positions / Loaded Contacts | 8P8C | Lightpipes / LEDs | No |
| Port Configuration | 1×1 | Termination Interface | DIP / THT |
| Durability (mating cycles min) | 750 Cycles Min | Inverted / Top Latch | Yes |
| Jack Height | 13.21 ±0.25 mm | Latch / Tab Orientation | Tab-Up |
| Material – Resin | PA46 UL94V-0 | Material – Metal | Phosphor Bronze |
| PCB Retention | Yes | Pitch – Mating Interface | 1.02 ±0.10 mm |
| Pitch – Termination Interface | 1.02 ±0.10 mm | PCB Thickness – Recommended | — |
| Recommended PCB Layout | 8 × Ø0.90 mm holes | Additional PCB Holes | 2 × Ø1.70 mm, 2 × Ø3.20 mm |
| Net Weight | — | RoHS | Yes |
