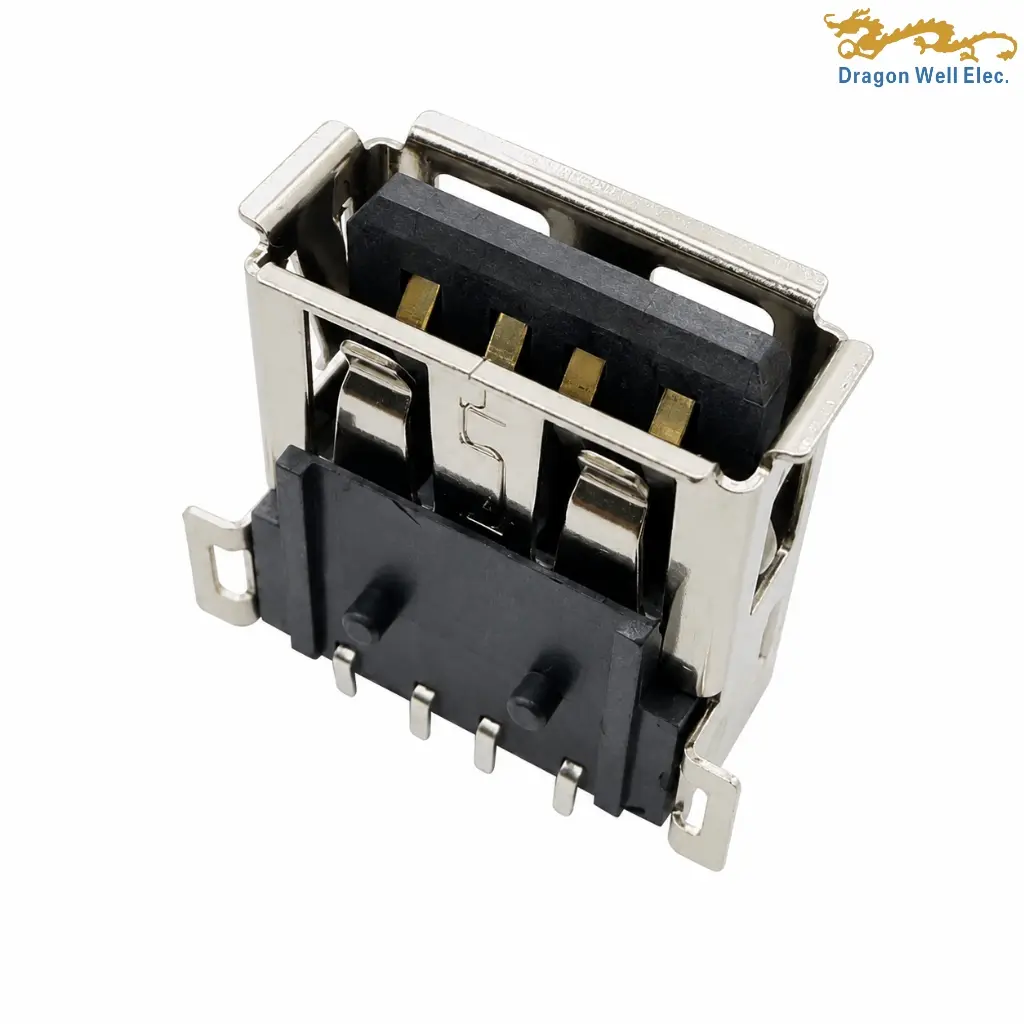

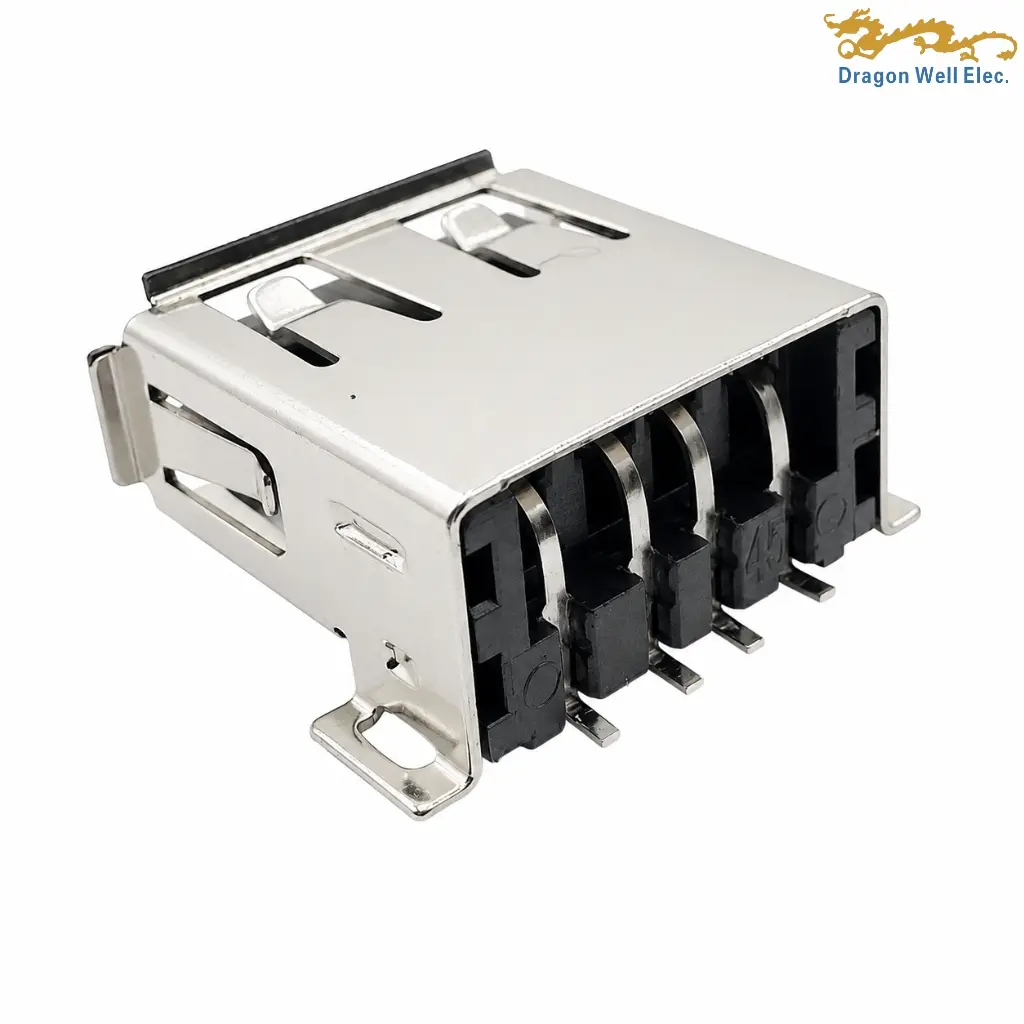

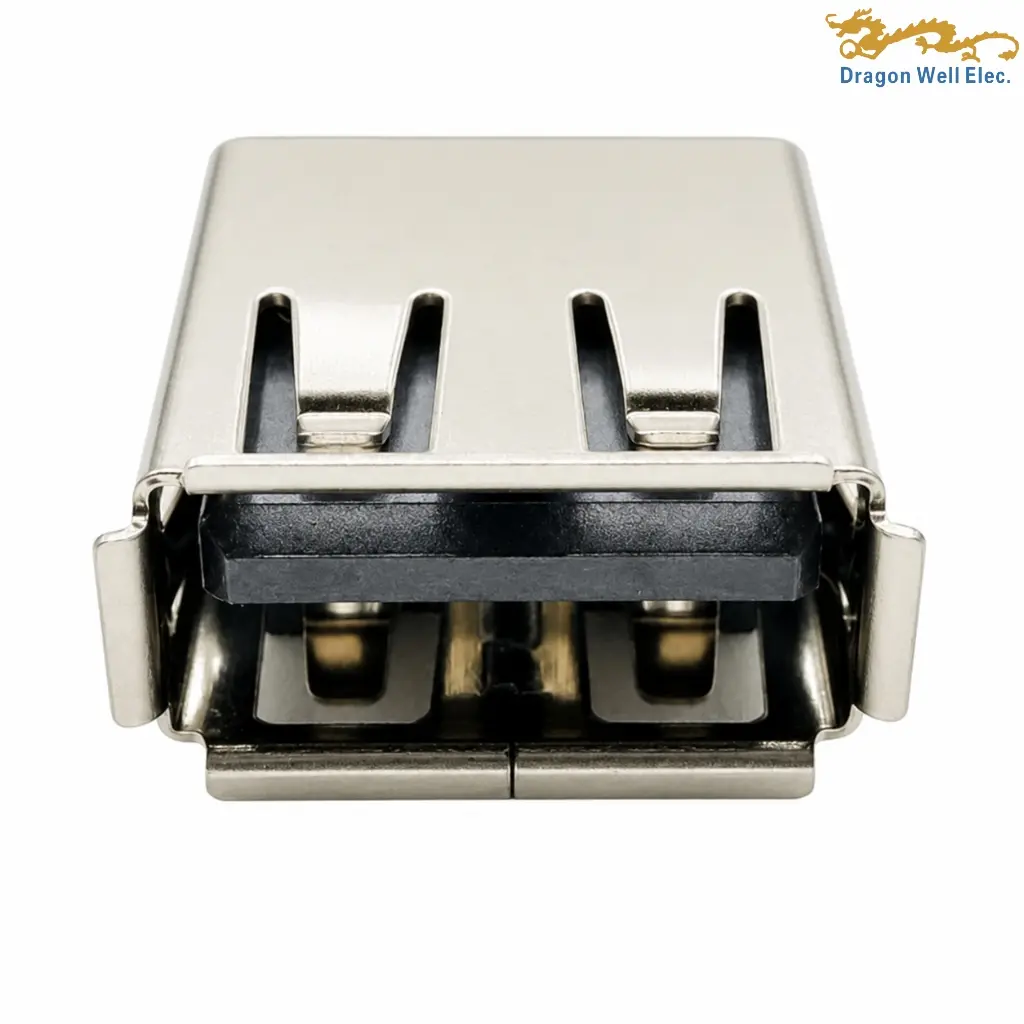

The USB Type-A SMT Receptacle 4 Pin DW-U20-SA430-01TR-03 is a shielded female PCB connector rated at 1.5 A max with SMT contact termination. It features gold-flash mating contacts, nickel-plated brass shielding, LCP UL 94V-0 housing, tape-and-reel packaging, and RoHS-compliant construction.
Applications: USB host interfaces, embedded systems, industrial controls, communication equipment, consumer electronics, instrumentation, test equipment, and compact PCB assemblies.
Highlights: 4-contact USB Type-A female receptacle; SMT termination; 1.5 A maximum current; -25°C to +75°C operating temperature; ≤30 mΩ contact resistance; ≥1000 MΩ insulation resistance; 500 VAC RMS dielectric withstand; ≤3.57 kg insertion force; ≥1.02 kg extraction force; 0.25 mm brass contacts; gold-flash mating area; 0.30 mm nickel-plated brass shell; LCP UL 94V-0 housing; tape-and-reel packaging; RoHS compliant.
USB Type-A SMT Receptacle 4 Pin DW-U20-SA430-01TR-03 is a shielded female USB connector designed for surface-mount PCB applications. The Dragon Well drawing confirms a standard 4-contact Type-A interface, SMT contact termination, metal shell retention features, and tape-and-reel packaging for automated production.
The connector is rated at 1.5 A maximum and operates from -25°C to +75°C. Electrical performance includes 30 mΩ maximum contact resistance, 1000 MΩ minimum insulation resistance, and 500 VAC RMS dielectric withstand voltage.
Mechanical specifications for the USB Type-A SMT Receptacle 4 Pin include a maximum insertion force of 3.57 kg and a minimum extraction force of 1.02 kg. The connector body measures approximately 15.80 ±0.25 mm overall width, with a 13.20 ±0.15 mm front shell width, 13.50 ±0.25 mm body depth, and 7.0 ±0.15 mm height.
The housing is made from LCP thermoplastic rated UL 94V-0. Contacts are 0.25 mm brass, while the 0.30 mm brass shell uses nickel plating. For this specific model, plating code 01 specifies gold flash on the mating area. The product is marked RoHS compliant.
This USB Type-A SMT Receptacle 4 Pin is suitable for USB host ports, embedded electronics, industrial control equipment, communication products, consumer electronics, instrumentation, and other compact PCB interfaces. Amphenol and Samtec likewise classify comparable Type-A receptacles with right-angle/surface-mount configurations and flash-gold contact options.
| 1. General | |||
| Status | Active | Category | USB Connector |
| Part number | DW-U20-DA4136-XXXX-02 | Description | USB 2.0 Type-A female receptacle, 4-pin, 180° through-hole / DIP board-mount type |
| Application | USB 2.0 Type-A board interface | Comments | Connector plating code selectable; TP = Tray Packing; PE = PE-Bag Packing; drawing series suffix = 02 |
| Component Type | Receptacle | Product Name | USB Type-A |
| USB Version | USB 2.0 | Type | Type-A Female |
| Keywords | USB Type-A, 4 Pin, Through-Hole, DIP, 180°, Female Receptacle | Circuit Application | Power & Signal |
| 2. Electrical | |||
| Current – Maximum | N/A | Grounding to Panel | N/A |
| Shielded | Yes | Shield Type | Nickel-plated metal shell |
| Voltage – Maximum | N/A | Contact Resistance | 30 mΩ Max. |
| Insulation Resistance | 1000 MΩ Min. | Dielectric Withstanding Voltage | 500 V AC for 1 minute |
| 3. Physical | |||
| Circuits (Loaded) | 4 | Circuits (Maximum) | 4 |
| Color – Housing | N/A | Durability (Mating Cycles Max) | N/A |
| Flammability | UL94V-0 | Gender | Female / Receptacle |
| Keying to Mating Part | Yes | Lock to Mating Part | N/A |
| Material – Contact | Copper Alloy | Plating on soldering area | Sn plating over Nickel |
| Plating on contact area | Gold Flash over Nickel; finish selectable by connector plating code | Material – Housing | Thermoplastics, UL94V-0 |
| Mounting Style | Through-Hole / DIP | Connector Mounting Type | Board Mount |
| Number of Rows | 1 | Net Weight | N/A |
| Packaging Type | TP: Tray Packing / PE: PE-Bag Packing | Orientation | 180° |
| PCB Retention | Yes — 3 shell / retention mounting points shown in PCB layout | Vacuum Pick-up Cap | N/A |
| Polarized to Mating Part | Yes | Temperature Range – Operating | N/A |
| Waterproof / Dustproof | N/A | Number of Mount Legs | 3 |
| Pitch – Termination Interface | 2.00 mm | Ports | 1 |
| Termination Interface Style | Through-Hole | PCB Thickness (Recommended) | N/A |
| 4. Classification Reflow Soldering Profile | |||
| Preheat Temperature Min | Ts(min) = 150°C | Preheat Temperature Max | Ts(max) = 200°C |
| Preheat Time (Ts min to max) | ts = 60–120 seconds | Ramp-up Rate (Ts to Tp) | 3°C/second max. |
| Liquidous Temperature | TL = 217°C | Time Above TL | tL = 60–150 seconds |
| Peak Package Body Temp | Tp ≤ TC (see table below) | Time within 5°C of Tp | tp = 20–30 seconds |
| Ramp-down Rate (Tp to TL) | 6°C/second max. | Time 25°C to Peak Temp | 8 minutes max. |
| 5. Package Classification Reflow Temperature (TC) | |||
| PB-Free Assembly — Package Thickness <1.6 mm | 260°C | Volume mm³ <350 | 260°C |
| PB-Free Assembly — Package Thickness 1.6–2.5 mm | 260°C | Volume mm³ 350–2000 | 250°C |
| PB-Free Assembly — Package Thickness >2.5 mm | 250°C | Volume mm³ >2000 | 245°C |
