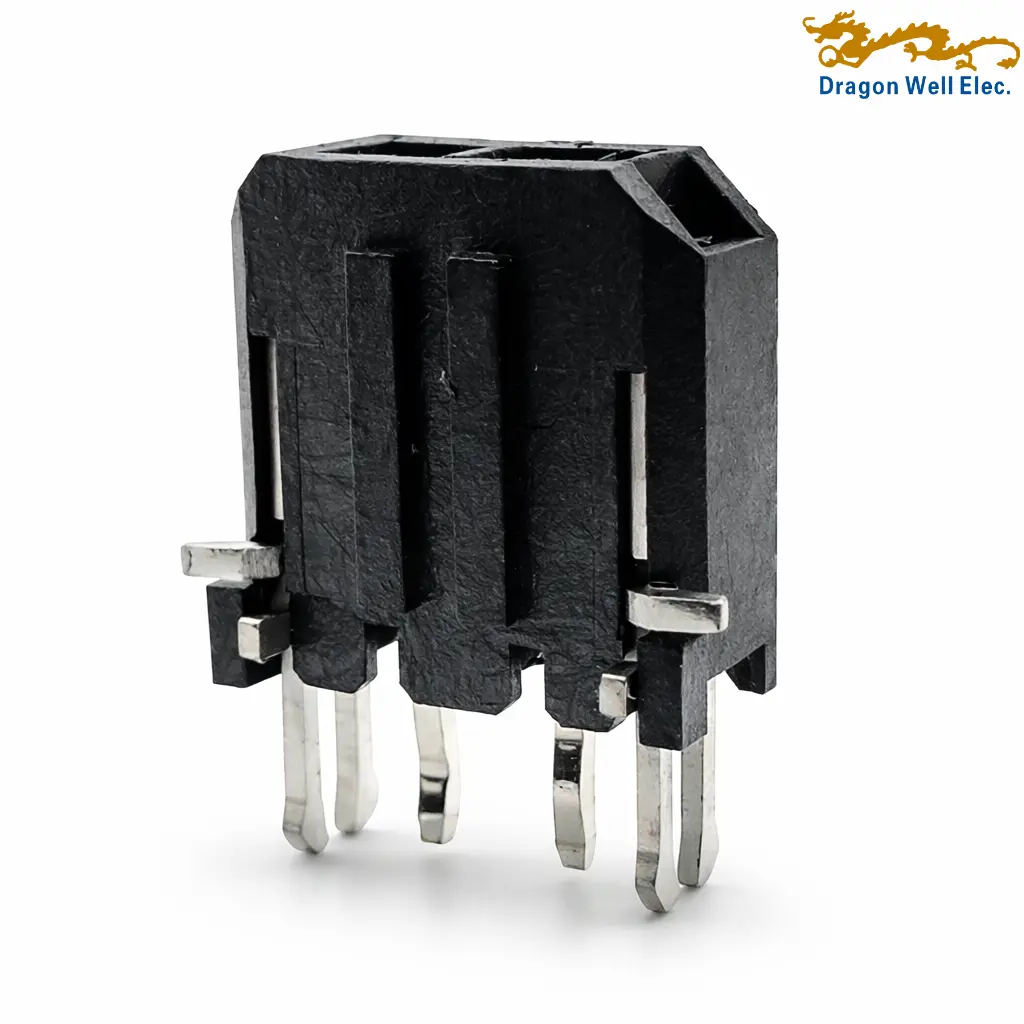

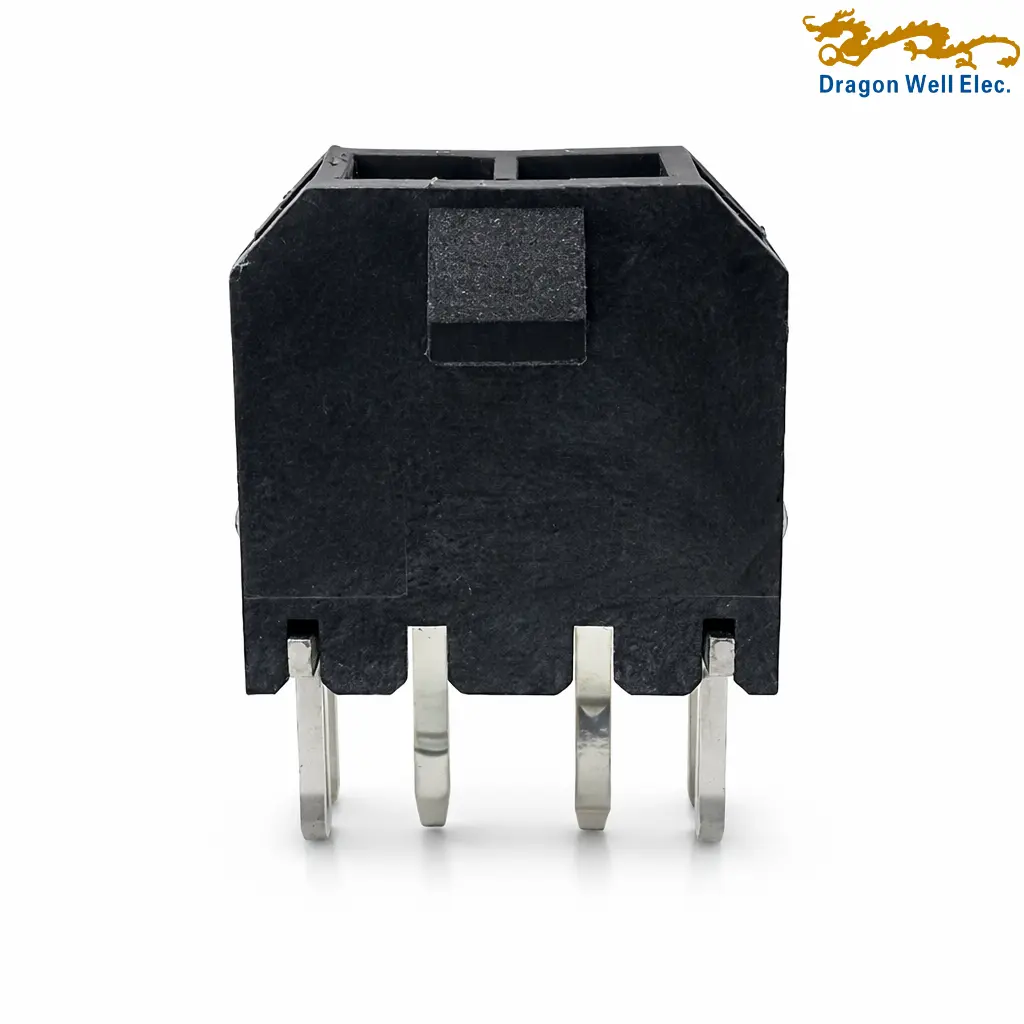

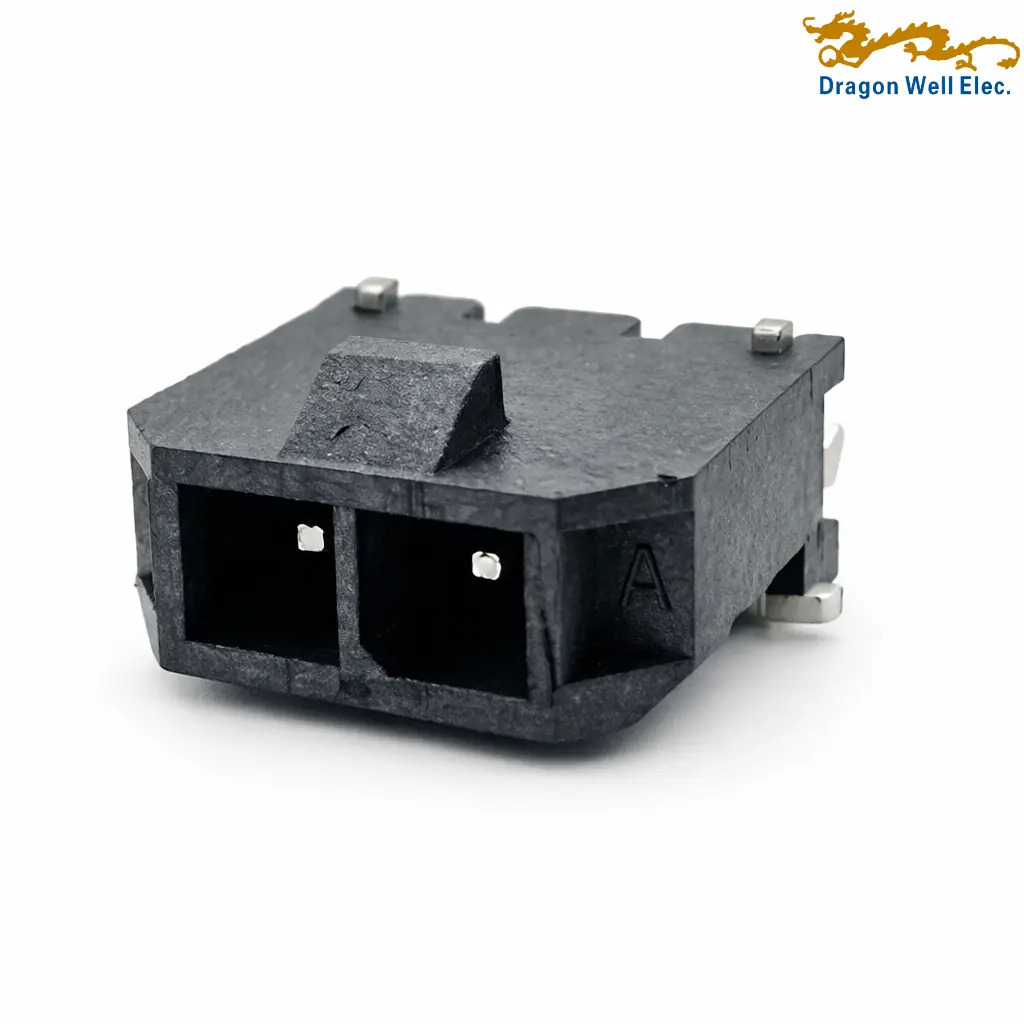

3.00mm 180° single row DIP wafer connector with vertical through-hole mounting, 02P–24P pin options, brass terminals with tin over nickel plating, black LCP UL94V-0 housing, 6A current rating, 250V AC/DC voltage rating, and PE bag packaging for reliable wire-to-board PCB applications.
Applications:
• Wire-to-board PCB connection
• Power supply modules
• Industrial control equipment
• Home appliance control boards
• Consumer electronics
• Communication equipment
• Internal wiring systems
• PCB signal and power interfaces
• Automation control boards
• Electrical harness connection
Highlights:
• 3.00mm pitch wafer connector
• Single-row vertical 180° design
• DIP / through-hole mounting
• Variable pin options: 02P to 24P
• Brass terminals with tin over nickel plating
• Black LCP UL94V-0 housing
• Rated current: 6A AC/DC
• Rated voltage: 250V AC/DC
• Contact resistance: 10mΩ max
• Insulation resistance: 1000MΩ min
• Withstanding voltage: 1500V AC / minute
• Operating temperature: -25°C to +85°C
• Pin width: 0.64 ±0.05mm
• PCB terminal hole: Ø1.20mm
• PCB mounting hole: Ø2.40mm
• Body height: 9.90mm
• Pin length: 3.40 ±0.35mm
• PE bag packaging
3.00mm 180° single row DIP wafer connector is a vertical wire-to-board connector designed for reliable PCB through-hole mounting in power and signal applications. Based on the drawing, this connector features a 3.00mm pitch, single-row structure, 180° vertical orientation, and DIP termination, making it suitable for PCB designs that require stable board retention and dependable wire-to-board connection.
The product model is DW-WF-1300620WVNP-XXPE-01. The part number structure identifies this connector as a Dragon Well wafer connector series with single-row layout, 3.00mm pitch, WV vertical 180° orientation, variable total pins, selectable plating code, and PE bag packaging. The drawing dimension table supports variable pin configurations from 02P to 24P, allowing engineers to select the proper circuit count according to the PCB layout and application requirement.
This 3.00mm 180° single row DIP wafer connector uses brass terminals with tin over nickel plating, supporting reliable conductivity and stable through-hole soldering performance. The housing material is black LCP UL94V-0, offering good heat resistance, dimensional stability, and flame-retardant performance for electronic assembly environments. The connector uses a 0.64 ±0.05mm pin width and recommended PCB layout with Ø1.20mm terminal holes and Ø2.40mm mounting hole.Electrical performance includes 6A AC/DC current rating, 250V AC/DC voltage rating, 10mΩ maximum contact resistance, 1000MΩ minimum insulation resistance, and 1500V AC per minute withstanding voltage. With an operating temperature range of -25°C to +85°C, RoHS compliance, and PE bag packaging, this connector is suitable for industrial control boards, power modules, home appliances, communication equipment, consumer electronics, and wire harness PCB connection systems.
| General | |||
| Status | Active | Category | Wire-to-Board Connector |
| Model No. | DW-WF-1300620WVNP-XXPE-01 | Description | 3.00 mm pitch DIP 180° single-row wafer header, through-hole, RoHS compliant |
| Component Type | Header | Product Name | Wafer Connector |
| Mounting Type | Through Hole | Orientation | Vertical / 180° |
| Electrical | |||
| Current Rating | 6A AC/DC | Voltage Rating | 250V AC/DC |
| Temperature Range | -25°C to +85°C | Contact Resistance | 10 mΩ Max. |
| Insulation Resistance | 1000 MΩ Min. | Withstanding Voltage | 1500V AC/Minute |
| Housing Material | LCP UL94V-0, Black | Contact Material | Brass / Tin over Nickel |
| Physical | |||
| Number of Pins | Variable, 02P–24P | Pitch | 3.00 mm |
| Number of Rows | Single Row | Connector Style | DIP Wafer |
| Dimension A | Variable, see dimension table below | Dimension B | Variable, see dimension table below |
| Body Height | 9.90 mm | Overall Height | N/A |
| Side Height | 3.20 ± 0.35 mm | Front Projection | 1.20 mm |
| Pin Length | 3.40 ± 0.35 mm | Body Width | 4.37 mm |
| PCB Hole Diameter | Ø1.20 mm; mounting hole Ø2.40 mm | Pin Width | 0.64 ± 0.05 mm |
| Plating Code | XX | Plating Finish | 01: Gold Flash; 03: 3u” Gold; 06: 6u” Gold; 15: 15u” Gold; 30: 30u” Gold; 31: Sn; 32: Ni |
| Packaging Code | PE | Packaging | PE Bag |
