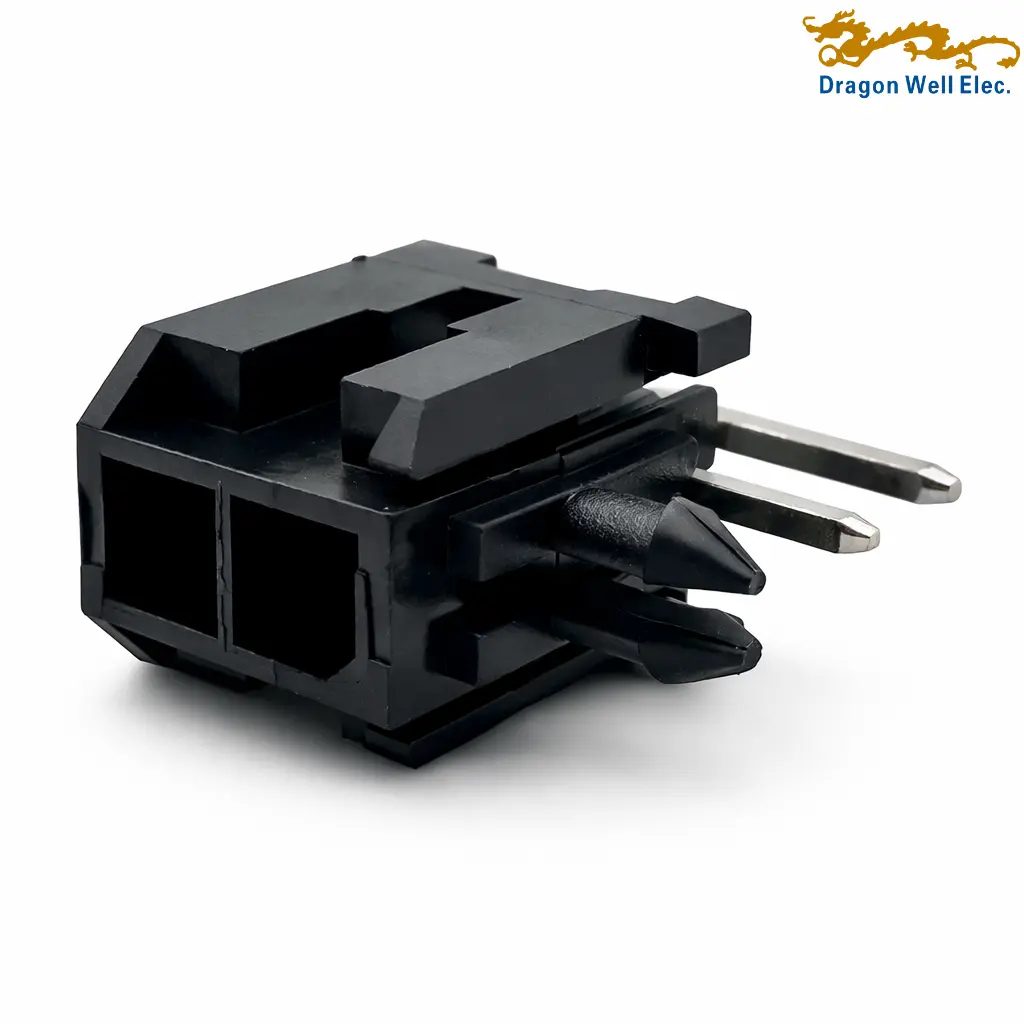

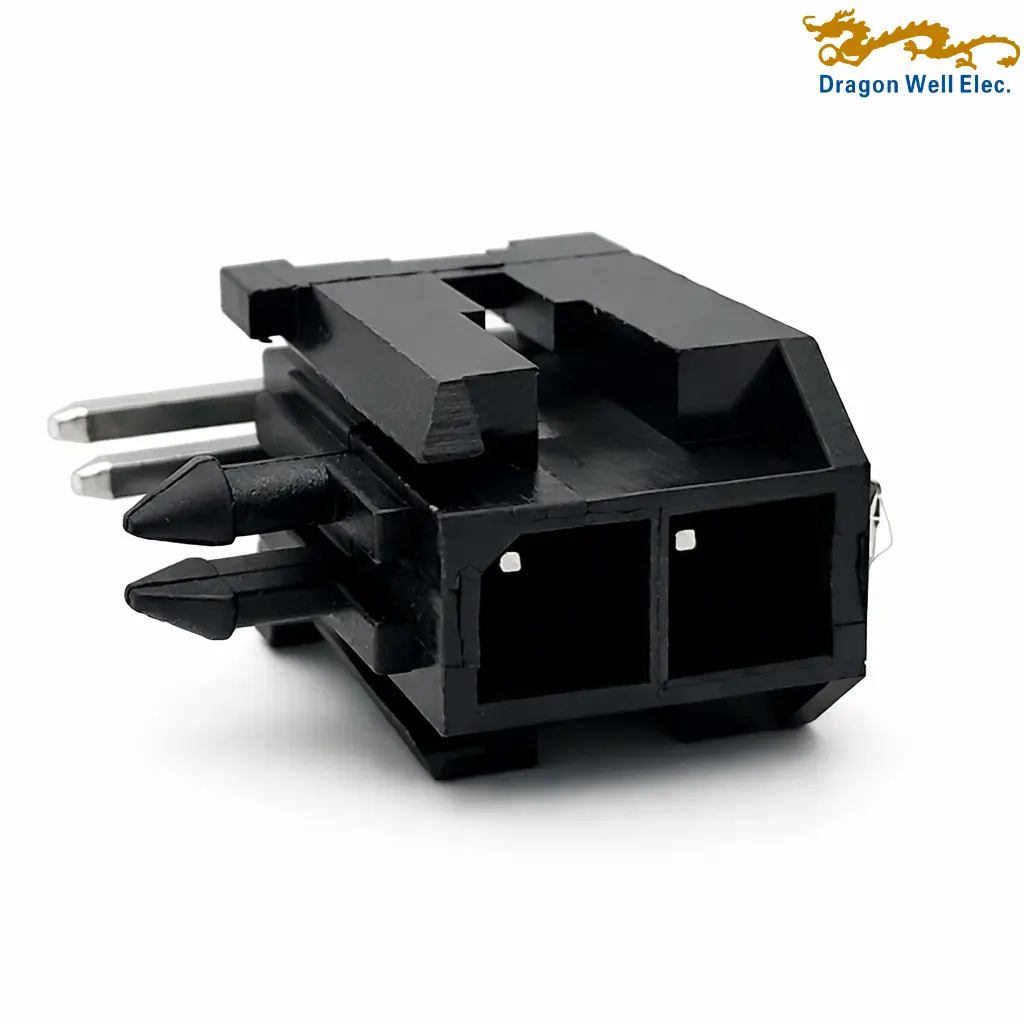

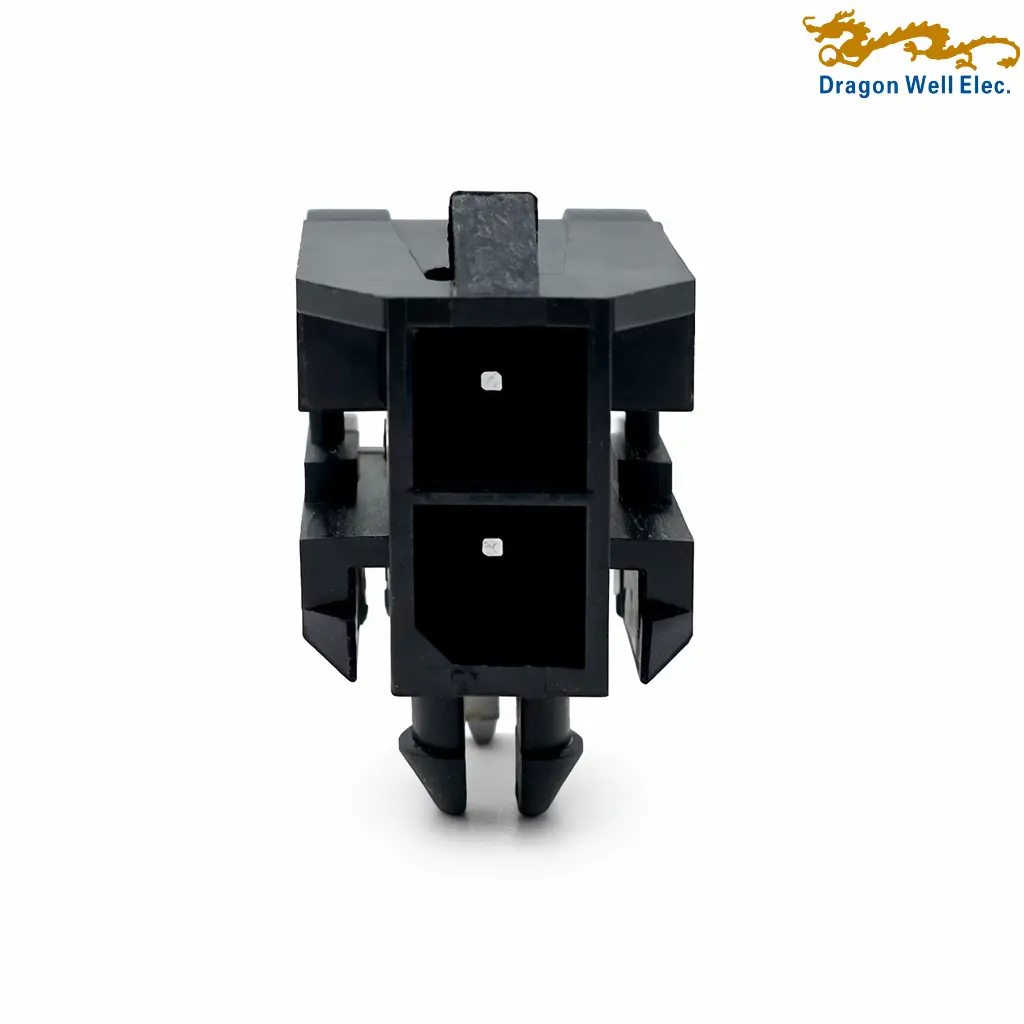

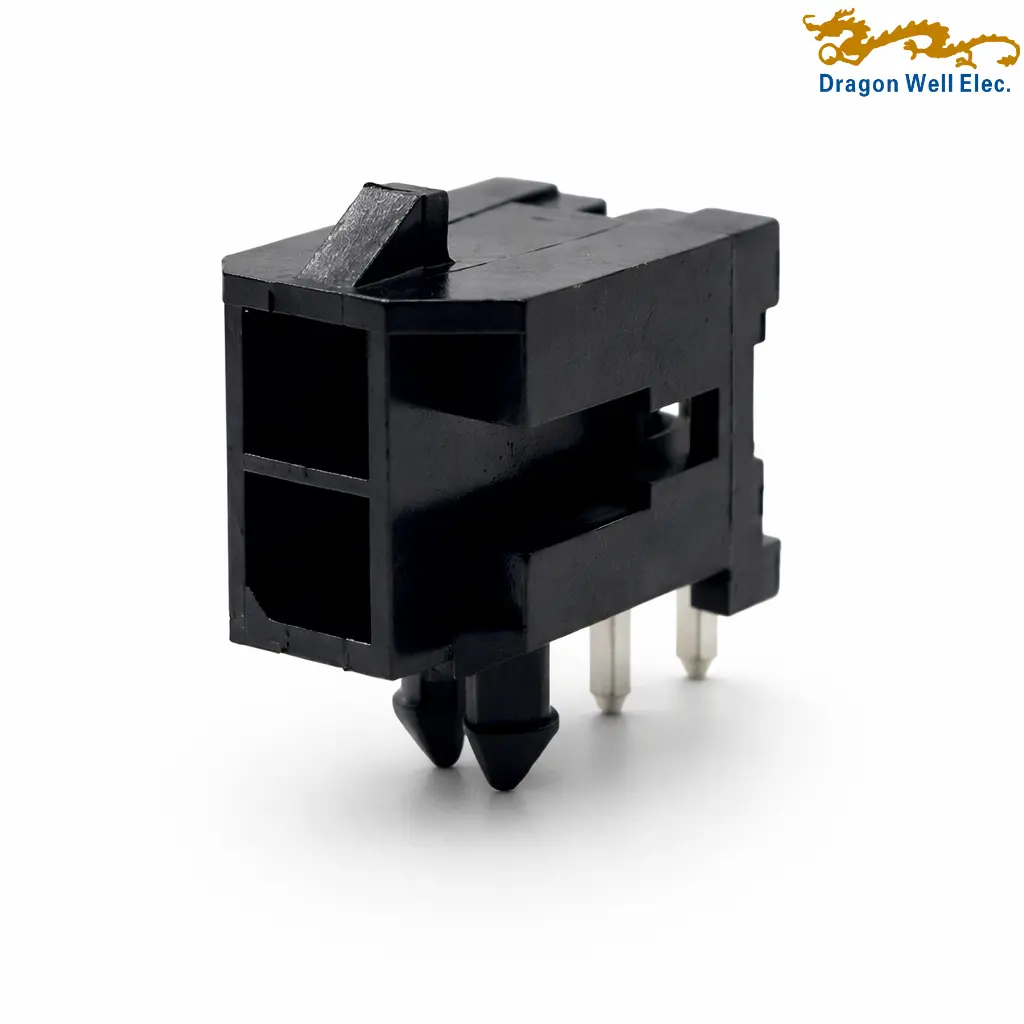

3.00mm pitch 90° dual row DIP wafer connector with right-angle through-hole mounting, 2×1P to 2×12P position options, brass tin-plated 0.64 mm square pins, PA46 black housing, 5.0A current rating, 250V AC/DC voltage rating, and PE bag or tray packing for wire-to-board PCB applications.
Applications:
• Wire-to-board PCB connection
• Power supply modules
• Industrial control equipment
• Consumer electronics
• Home appliance control boards
• Communication equipment
• Internal wiring systems
• PCB signal and power interfaces
• Automation control boards
• Electrical harness connection
Highlights:
• 3.00mm pitch wafer connector
• Dual-row right-angle design
• 90° DIP / through-hole mounting
• Position options: 2×1P to 2×12P
• Total contacts: 2 to 24 contacts
• Brass tin-plated pins
• 0.64 mm square pin structure
• PA46 insulator material
• Black housing color
• Rated current: 5.0A AC/DC
• Rated voltage: 250V AC/DC
• Contact resistance: 10mΩ max
• Insulation resistance: 1000MΩ min
• Withstanding voltage: 1500VAC for one minute
• Operating temperature: -40°C to +105°C
• PCB hole diameter: Ø1.02 ±0.05 mm
• Mounting hole diameter: Ø3.00 ±0.05 mm
• PE bag / tray packing options
• RoHS compliant
3.00mm pitch 90° dual row DIP wafer connector is a right-angle through-hole wire-to-board connector designed for reliable PCB connection in power and signal applications. Based on the drawing, this connector features a dual-row structure, 3.00mm pitch, 90° orientation, and DIP mounting style, making it suitable for PCB designs where horizontal cable connection and strong board retention are required.
The product model is DW-WF-230082WRnP-XXXX-01. The part number structure identifies this connector as a Dragon Well wafer connector series with dual-row layout, 3.00mm pitch, WR right-angle 90° orientation, variable pin positions, selectable contact plating, and PE bag or tray packing options. The drawing supports position options from 2×1P to 2×12P, giving a total contact range from 2 to 24 contacts depending on the selected configuration.
This 3.00mm pitch 90° dual row DIP wafer connector uses brass tin-plated pins with a 0.64 mm square pin design. The insulator material is PA46, and the housing color is black. The connector is designed for through-hole PCB mounting, with a recommended PCB hole diameter of Ø1.02 ±0.05 mm and mounting hole diameter of Ø3.00 ±0.05 mm.
Electrical performance includes 5.0A AC/DC current rating, 250V AC/DC voltage rating, 10mΩ maximum contact resistance, 1000MΩ minimum insulation resistance, and 1500VAC for one minute withstanding voltage. With an operating temperature range of -40°C to +105°C, RoHS compliance, and reliable DIP retention, this connector is suitable for wire-to-board applications in industrial control, power modules, consumer electronics, home appliances, communication devices, and PCB signal interfaces.
| General | |||
| Status | Active | Category | Wire-to-Board Connector |
| Model No. | DW-WF-230082WRnP-XXXX-01 | Description | 3.00 mm pitch 90° dual-row wafer header, DIP, through-hole, RoHS compliant |
| Component Type | Header | Product Name | Wafer Connector |
| Mounting Type | Through Hole | Orientation | Right Angle / 90° |
| Electrical | |||
| Current Rating | 5.0A AC/DC | Voltage Rating | 250V AC/DC |
| Temperature Range | -40°C to +105°C | Contact Resistance | 10 mΩ Max. |
| Insulation Resistance | 1000 MΩ Min. | Withstanding Voltage | 1500V AC For One Minute |
| Housing Material | PA46 | Contact Material | Brass / Tin-Plated |
| Physical | |||
| Number of Pins | Variable, 2×1P to 2×12P | Pitch | 3.00 mm |
| Number of Rows | Dual Row | Connector Style | 90° DIP Wafer |
| Dimension A | Variable, see dimension table below | Dimension B | Variable, see dimension table below |
| Body Height | 9.90 mm | Overall Height | 11.88 mm |
| Side Height | 6.85 mm | Front Projection | 3.20 mm |
| Pin Length | 3.00 mm | Body Width | 7.36 mm |
| PCB Hole Diameter | Ø1.02±0.05 mm; mounting hole Ø3.00±0.05 mm | Pin Width | 0.64 SQ |
| Plating Code | 01 / 03 / 06 / 15 / 30 / 31 / 32 | Plating Finish | 01: Gold Flash; 03: 3u” Gold; 06: 6u” Gold; 15: 15u” Gold; 30: 30u” Gold; 31: Sn; 32: Ni |
| Packaging Code | PE / TP | Packaging | PE Bag / Tray Packing |
