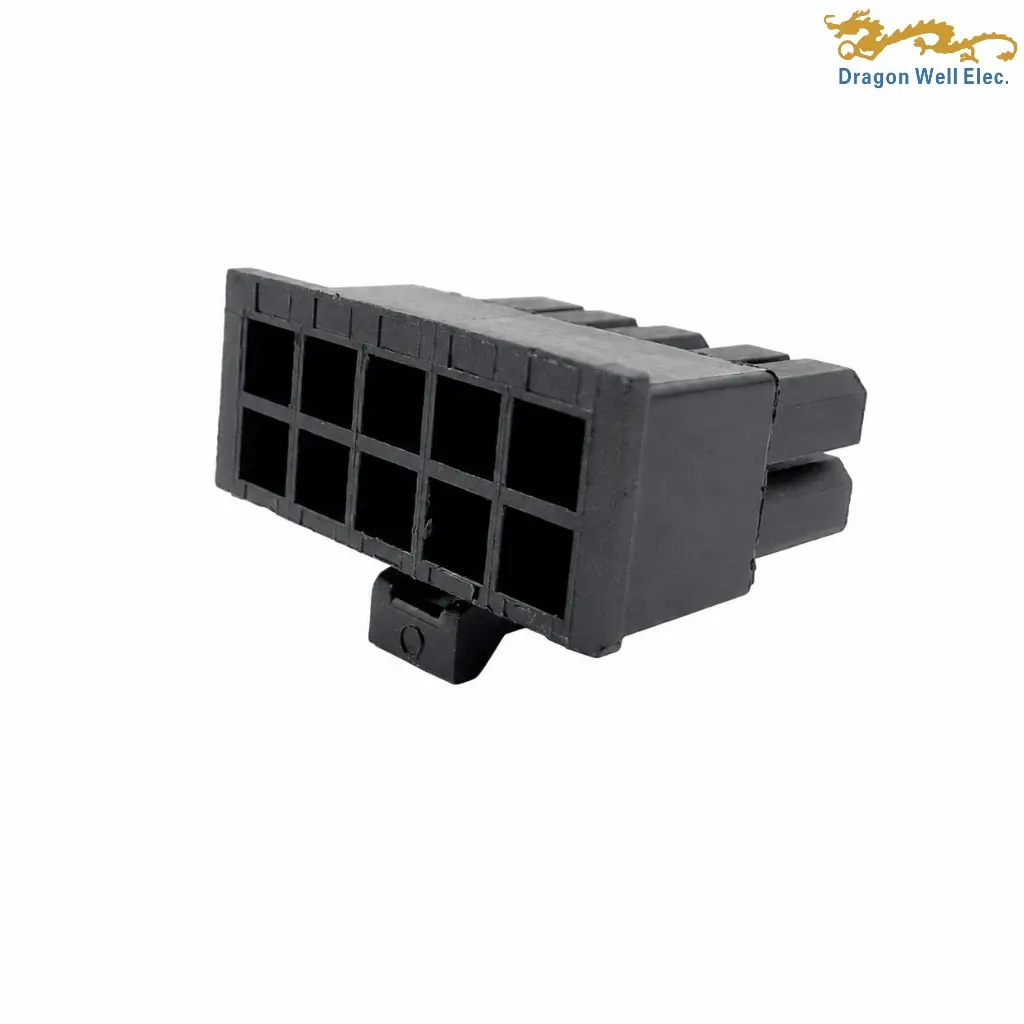

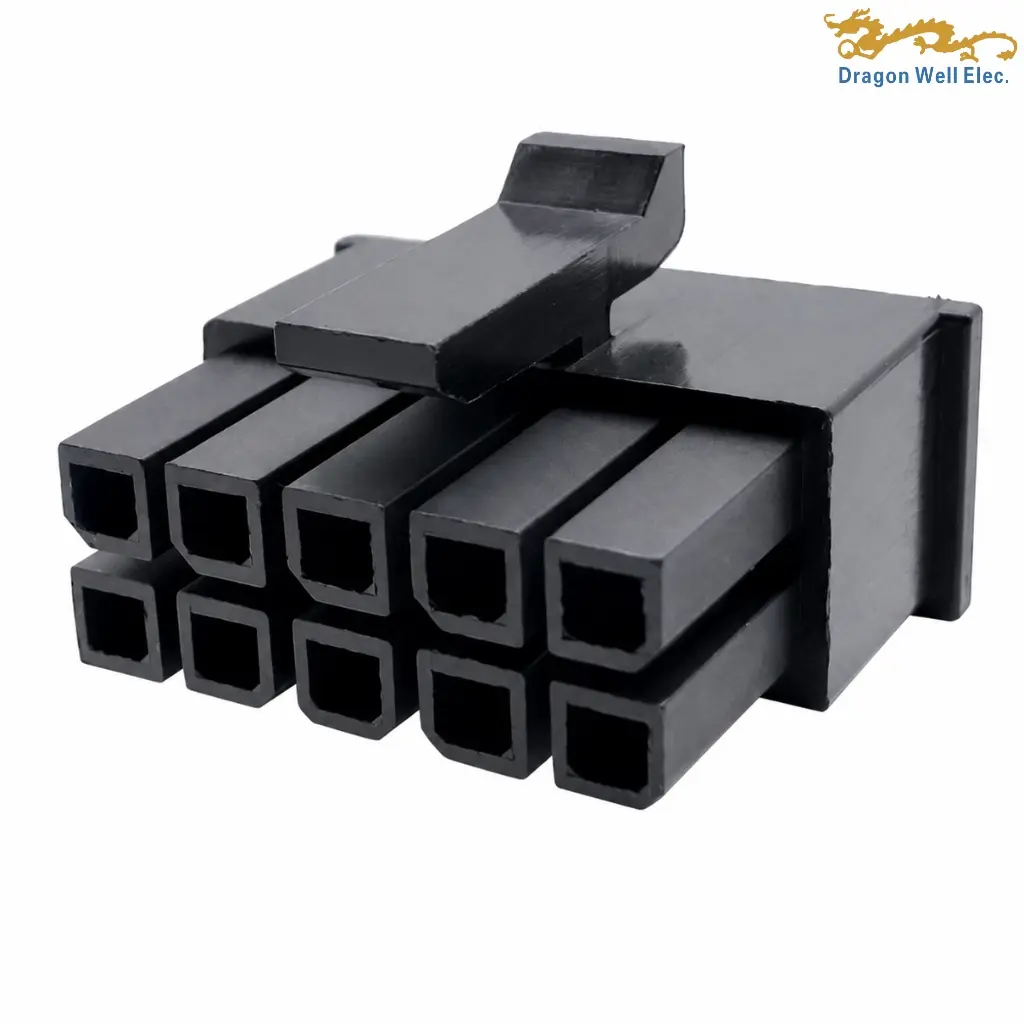

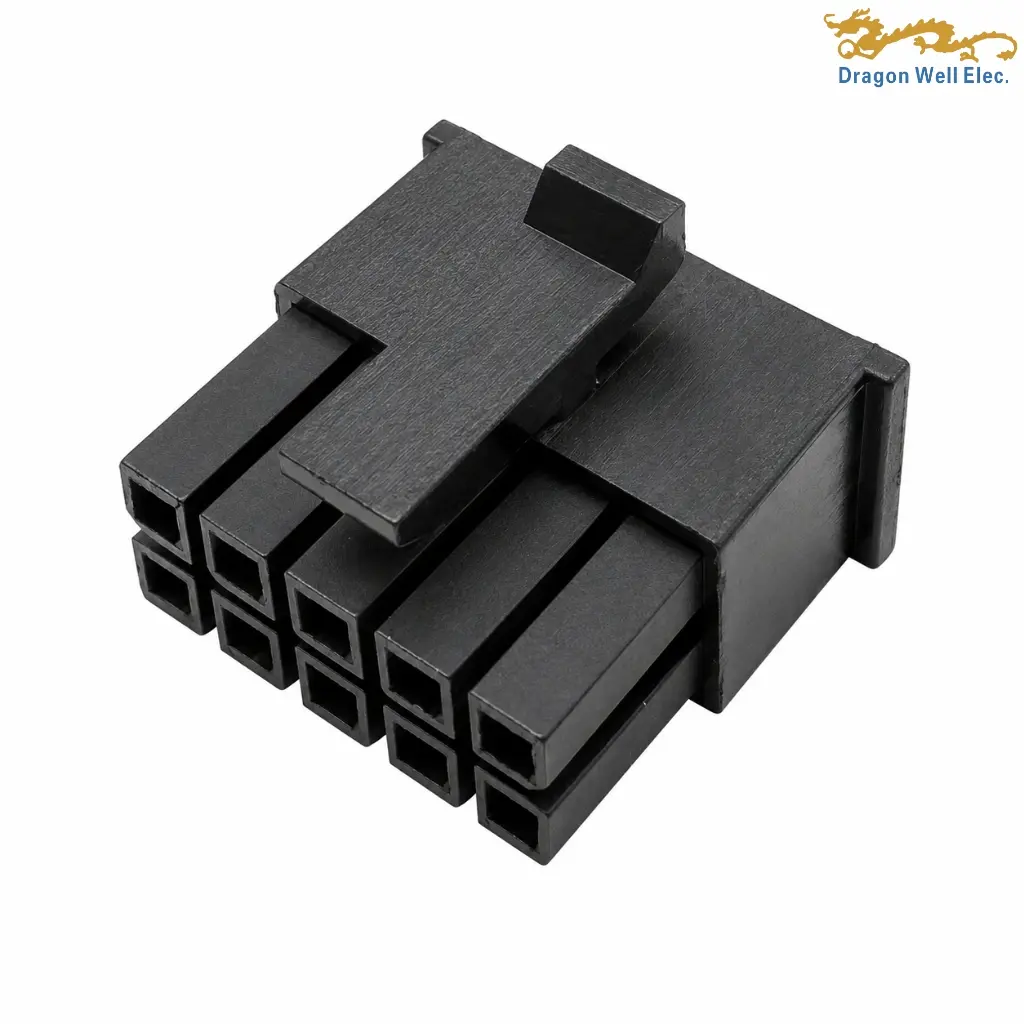

3.00mm dual row male housing 10P DW-HG-230065WV10P-PE-01 is a 3.00 mm pitch, 2 × 5 position wire-to-board connector housing with an integral locking latch. The drawing specifies 5 A / 250 V AC/DC series ratings, PA66 construction, black housing, PE-bag packaging, and RoHS compliance.
Applications: Wire-to-board interconnections, industrial control equipment, home appliances, communication equipment, embedded electronics, consumer devices, power/control systems, and compact electronic assemblies.
Highlights: 3.00 mm pitch; 10 positions; 2 × 5 dual-row configuration; male housing; locking latch; 5 A AC/DC rated current; 250 V AC/DC rated voltage; ≤20 mΩ contact resistance; ≥1000 MΩ insulation resistance; 1500 V AC/1 minute withstand voltage; -25°C to +85°C operating range; PA66 housing; black color; A = 12.00 mm; B = 17.20 mm; PE-bag packaging; RoHS compliant.
3.00mm dual row male housing 10P DW-HG-230065WV10P-PE-01 is a black wire-to-board connector housing designed with a 3.00 mm pitch and dual-row 2 × 5 circuit arrangement. The Dragon Well drawing identifies the product as a 3.00 mm pitch dual-row male housing, with the series available from 2 to 24 total positions in even circuit counts.
For this specific 10-position configuration, the drawing specifies Dimension A = 12.00 mm and Dimension B = 17.20 mm. The housing incorporates individual terminal cavities and an integral locking latch to support secure mating within compatible connector systems.
The drawing lists series electrical performance of 5 A AC/DC rated current and 250 V AC/DC rated voltage. It also specifies 20 mΩ maximum contact resistance, 1000 MΩ minimum insulation resistance, and 1500 V AC for one minute withstand voltage. The stated operating temperature range is -25°C to +85°C.
This 3.00mm dual row male housing 10P is manufactured from PA66 and supplied in black, as identified by color code 01 in the part-number system. Packaging code PE indicates PE-bag packaging, and the product is marked RoHS compliant.
The 3.00 mm dual-row housing format is well established for compact power and signal interconnection. Molex Micro-Fit 3.0 and Amphenol Minitek Pwr 3.0 families likewise use 3.00 mm pitch, dual-row connector-housing architectures for wire-to-board systems, supporting the terminology used for this Dragon Well product.
The 3.00mm dual row male housing 10P is suitable for industrial electronics, appliances, communication equipment, embedded systems, power/control assemblies, consumer electronics, and other wire-to-board applications requiring a compact locking connector housing.
| General | |||
| Status | Active | Category | Crimp Style Connector Housing |
| Model No. | DW-HG-230065WVnP-PE-01 | Description | 3.00 mm pitch dual-row male connector housing, 2–24 pins in even counts, black |
| Component Type | Housing | Product Name | Dual Row Male Housing |
| Mounting Type | Cable Mount | Number of Rows | 2 |
| Electrical | |||
| Current Rating | 5 A AC/DC | Voltage Rating | 250 V AC/DC |
| Temperature Range | -25 °C to +85 °C | Contact Resistance | ≤20 mΩ |
| Insulation Resistance | ≥1000 MΩ | Withstanding Voltage | 1500 V AC / Minute |
| Material | PA66 | Flammability Rating | — |
| Physical | |||
| Number of Pins | 2–24 Pins, Even Counts | Pitch | 3.00 ± 0.10 mm |
| Dimension A | N/A for 2P; 3.00–33.00 mm for 4P–24P | Dimension B | 5.20–38.20 mm, depending on pin count |
| Overall Height | 14.11 ± 0.25 mm | Body Height | 7.70 ± 0.20 mm |
| Body Width | 7.70 ± 0.20 mm | Side Dimension | 11.30 ± 0.30 mm overall depth; latch height 11.55 ± 0.30 mm |
| Front Width (2PIN) | 5.20 mm | Connector Style | Dual Row Male Crimp Housing |
| Material | PA66 | Color | Black |
| Packaging | PE Bag | Series | 65WV |
