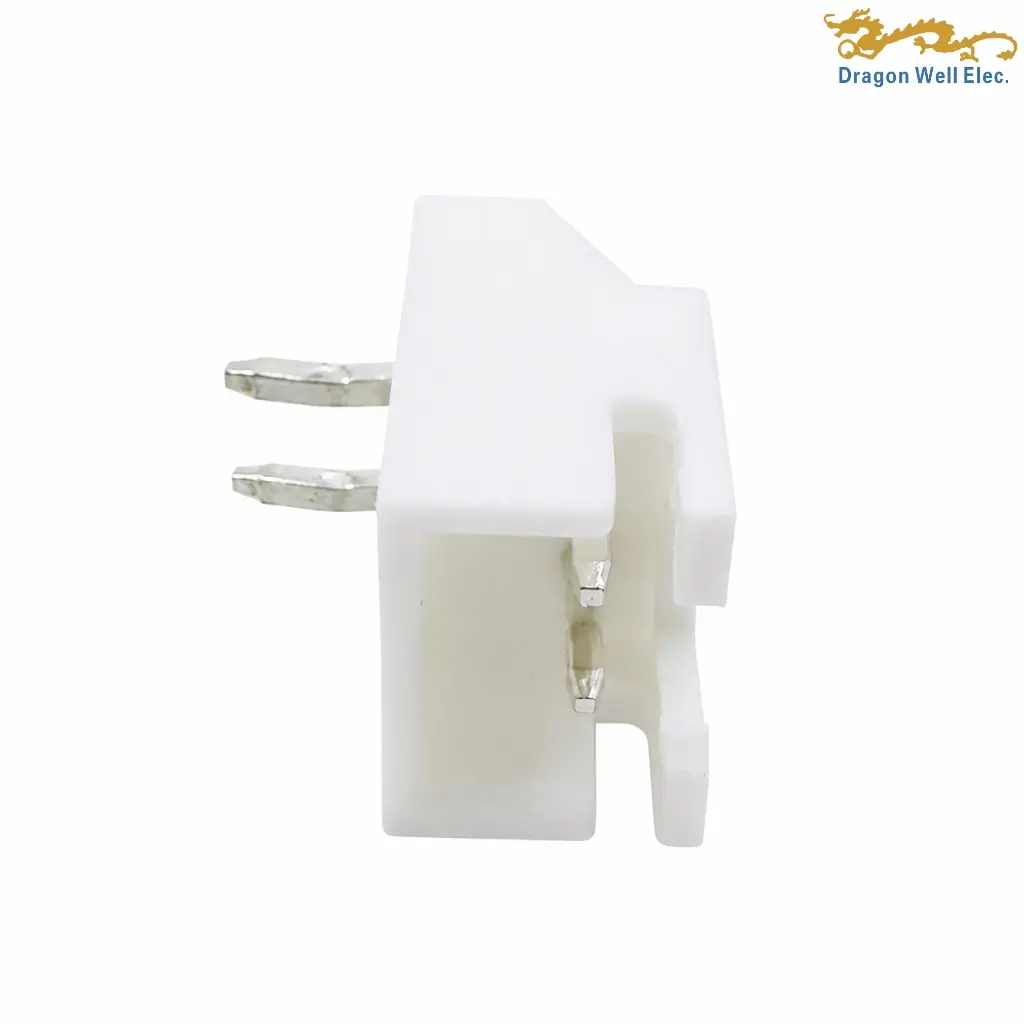

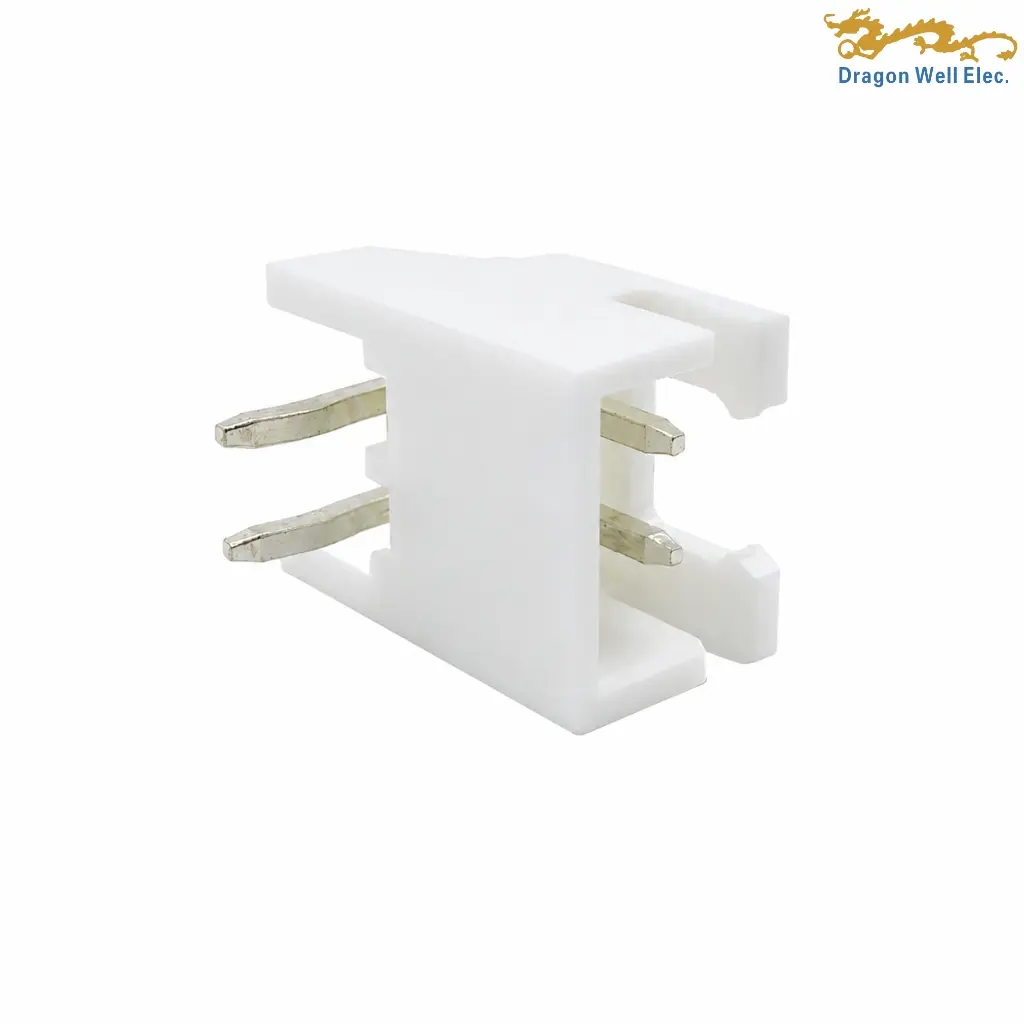

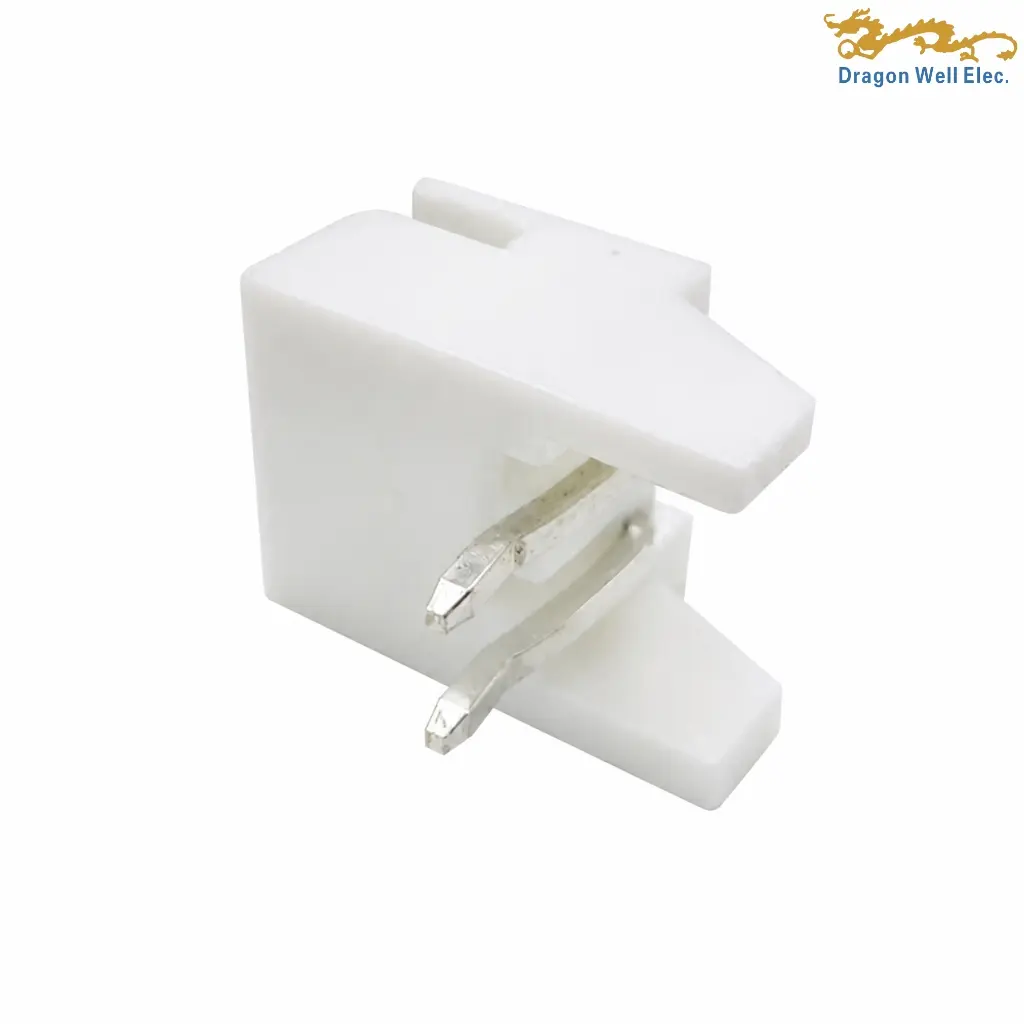

The 2.50mm Right Angle Wafer Connector 2 Pin DW-WF-125078WR02P-31PE-01 is a single-row, 90° DIP/through-hole connector with 2.50 mm pitch, 3 A / 250 V AC/DC rating, 0.64 mm square brass terminals, tin plating, white Nylon 66 UL 94V-0 housing, PE-bag packaging, and RoHS-compliant construction.
Applications: Wire-to-board connections, industrial control boards, home appliances, consumer electronics, embedded systems, communication equipment, instrumentation, and compact PCB assemblies.
Highlights: 2.50 mm pitch; 2 positions; single-row construction; 90° right-angle orientation; DIP/through-hole mounting; 3 A AC/DC rating; 250 V AC/DC rating; ≤20 mΩ contact resistance; ≥1000 MΩ insulation resistance; 1000 VAC/1 minute withstand voltage; -25°C to +85°C operating temperature; 0.64 ±0.05 mm square brass terminals; Sn/tin plating; white Nylon 66 UL 94V-0 housing; Ø1.02 mm recommended PCB holes; A = 2.50 mm; B = 7.50 mm; PE-bag packaging; RoHS compliant.
2.50mm Right Angle Wafer Connector 2 Pin DW-WF-125078WR02P-31PE-01 is a single-row, 90° through-hole PCB connector designed for compact wire-to-board interconnection. The Dragon Well drawing confirms a 2.50 mm pitch, 2-position configuration, DIP mounting, and 0.64 ±0.05 mm square brass terminals. For this specific 2-pin model, the dimension table specifies A = 2.50 mm and B = 7.50 mm.
The connector is rated at 3 A AC/DC and 250 V AC/DC. Electrical performance includes 20 mΩ maximum contact resistance, 1000 MΩ minimum insulation resistance, and 1000 VAC withstand voltage for one minute. The specified operating temperature range is -25°C to +85°C.
This 2.50mm Right Angle Wafer Connector 2 Pin uses brass terminals and a white Nylon 66 insulator rated UL 94V-0. The specific model uses plating code 31, which the drawing identifies as Sn/tin plating. Packaging code PE specifies PE-bag packaging, and the product is marked RoHS compliant.
The recommended PCB layout uses 2.50 mm terminal spacing with Ø1.02 mm PCB holes, supporting standard through-hole installation. Its right-angle construction allows the mating interface to remain parallel to the PCB, helping accommodate assemblies where vertical clearance is limited.
The 2.50mm Right Angle Wafer Connector 2 Pin is suitable for industrial control boards, consumer electronics, home appliances, embedded systems, communication equipment, instrumentation, and other wire-to-board PCB connections. Molex uses the same industry terminology for 2.50 mm pitch, single-row, right-angle, through-hole wire-to-board PCB headers, supporting the product naming used here.
| General | |||
| Status | Active | Category | Wire-to-Board Connector |
| Model No. | DW-WF-125078WRnP-XXPE-01 | Description | 2.50 mm pitch DIP 90° single-row wafer connector, 2–16 pins, white, RoHS compliant |
| Component Type | Header | Product Name | Wafer Connector |
| Mounting Type | Through-Hole / DIP | Orientation | Right Angle / 90° |
| Electrical | |||
| Current Rating | 3 A AC/DC | Voltage Rating | 250 V AC/DC |
| Temperature Range | -25 °C to +85 °C | Contact Resistance | 20 mΩ Max. |
| Insulation Resistance | 1000 MΩ Min. | Withstanding Voltage | 1000 V AC / minute |
| Housing Material | Nylon 66, UL94V-0, White | Contact Material | Brass |
| Physical | |||
| Number of Pins | 2–16 pins | Pitch | 2.50 mm |
| Number of Rows | Single Row | Connector Style | DIP 90° Wafer |
| Dimension A | Variable by pin count: 2.50–37.50 mm | Dimension B | Variable by pin count: 7.50–42.50 mm |
| Body Height | 7.00 mm | Overall Height | 11.20 mm |
| Side Height | 9.30 mm | Front Projection | 3.40 mm |
| Pin Length | N/A (not separately specified in drawing) | Body Width | 5.80 mm |
| PCB Hole Diameter | Ø1.02 mm | Pin Width | 0.64 ± 0.05 mm SQ |
| Plating Code | XX, variable plating code | Plating Finish | Gold Flash / 3 µin Gold / 6 µin Gold / 15 µin Gold / 30 µin Gold / Sn / Ni |
| Packaging Code | PE | Packaging | PE Bag |
