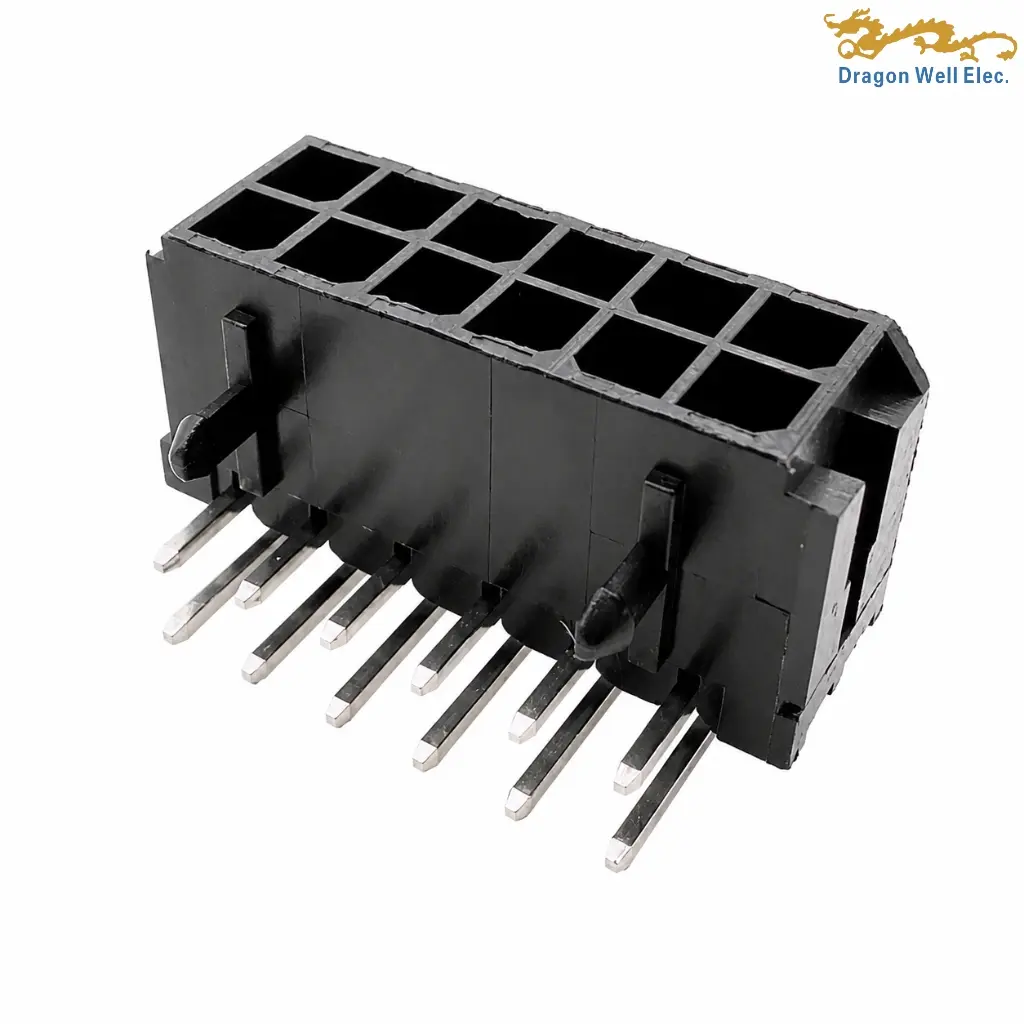

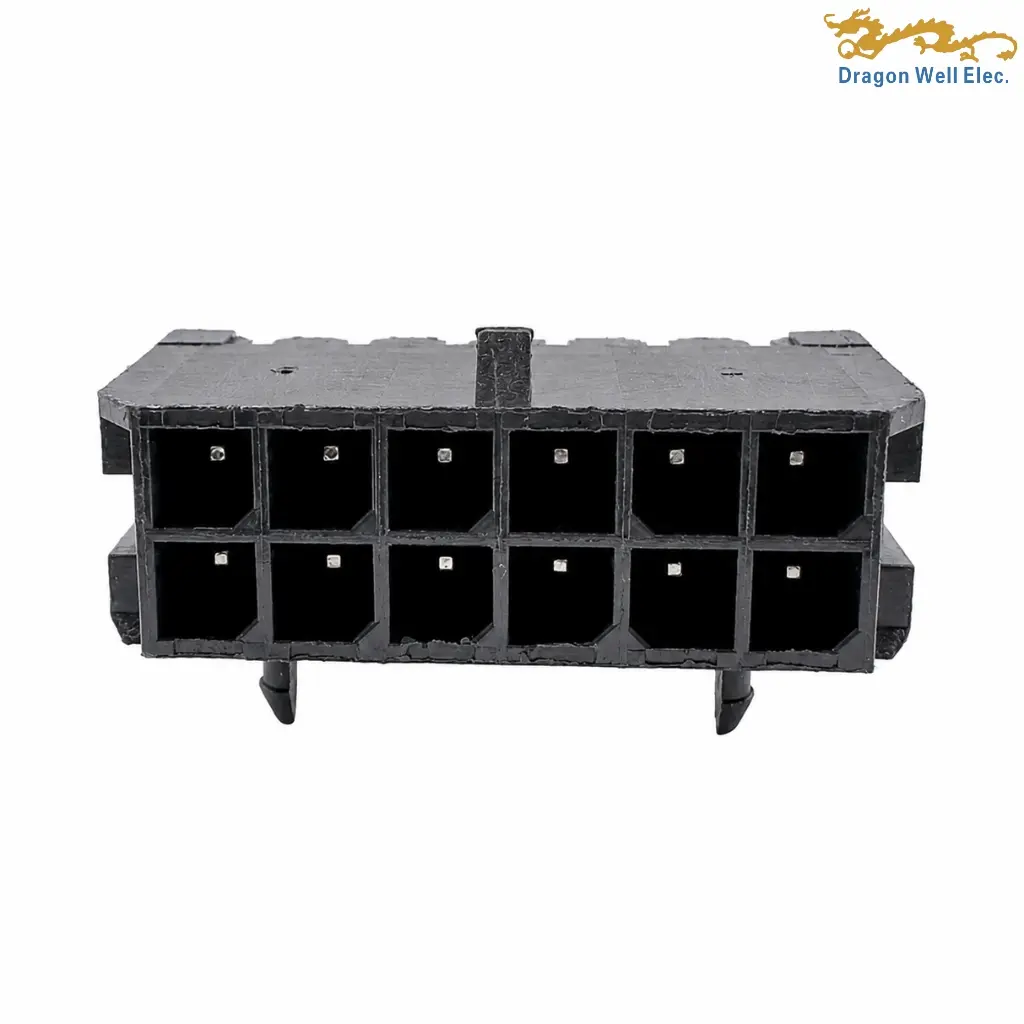

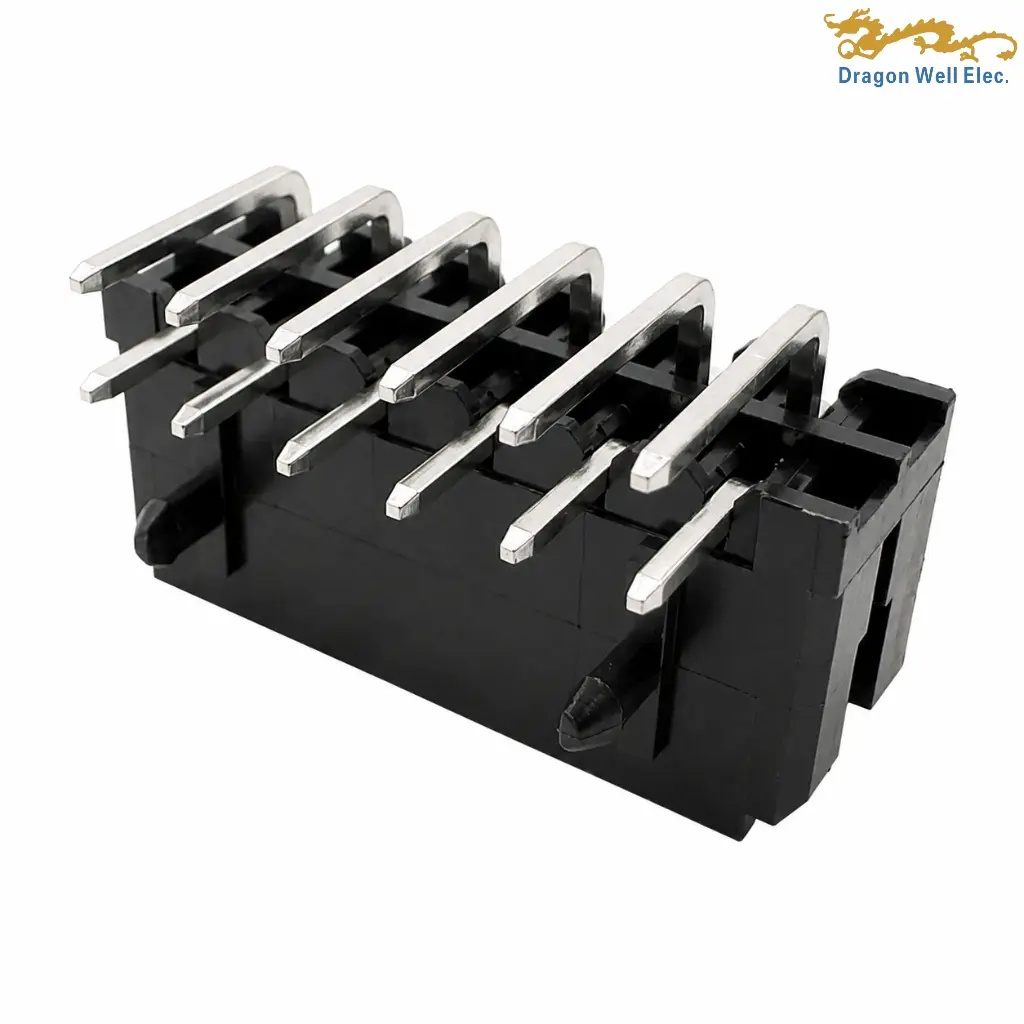

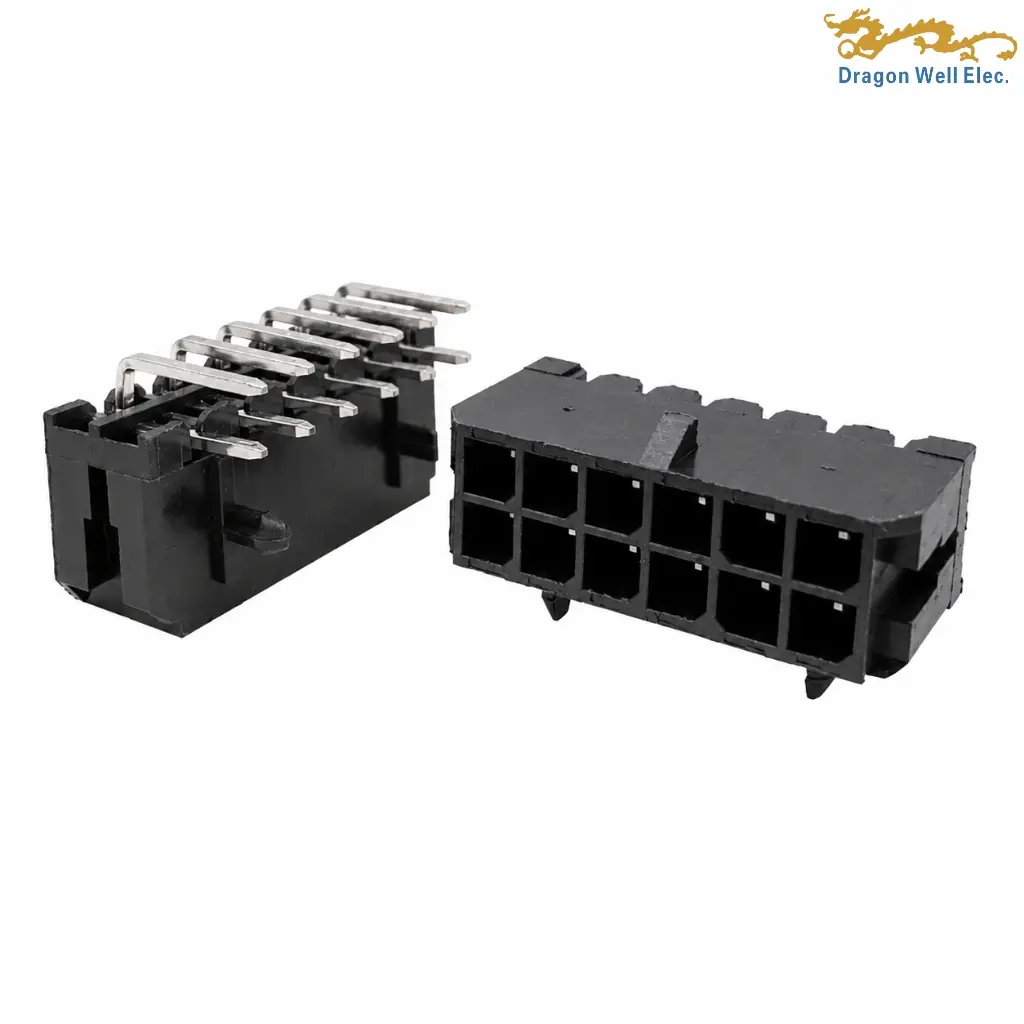

3mm 90° DIP wafer connector DW-WF-230082WRnP-XXXX-01 is a 3.00 mm pitch, dual-row, right-angle through-hole PCB header supporting 2–24 pins. It is rated at 5 A / 250 V AC/DC and features brass tin-plated pins, a black PA46 housing, selectable contact plating, and RoHS-compliant construction.
Applications: Wire-to-board PCB connections, industrial control equipment, communication equipment, embedded electronics, consumer electronics, home appliances, control boards, power/signal interfaces, and electronic equipment.
Highlights: 3.00 mm pitch; dual-row design; 90° right-angle orientation; DIP/through-hole mounting; 2–24 total pins; 5.0 A AC/DC; 250 V AC/DC; ≤10 mΩ contact resistance; ≥1000 MΩ insulation resistance; 1500 V AC/1 minute withstand voltage; -40°C to +105°C operating range; 0.64 mm square pins; brass/tin-plated pins; black PA46 housing; multiple contact-plating options; PCB locating pegs; PE bag or tray packaging; RoHS compliant.
3mm 90° DIP wafer connector DW-WF-230082WRnP-XXXX-01 is a dual-row, right-angle wire-to-board PCB header designed for through-hole mounting. The Dragon Well drawing specifies a 3.00 mm pitch and configurations from 2 to 24 total pins, providing multiple circuit-count options within the same connector series. Comparable 3.00 mm connector families from Molex and Amphenol use the same industry terminology of dual-row, right-angle, through-hole PCB headers.
The connector is rated for 5.0 A AC/DC and 250 V AC/DC. Electrical performance includes 10 mΩ maximum contact resistance, 1000 MΩ minimum insulation resistance, and 1500 V AC for one minute withstand voltage. Its specified operating temperature range is -40°C to +105°C.
This 3mm 90° DIP wafer connector uses brass, tin-plated pins and a black PA46 insulating housing. The drawing specifies 0.64 mm square pins and recommended PCB holes of Ø1.02 ±0.05 mm. Mechanical PCB locating features use Ø3.00 ±0.05 mm holes. The connector is marked RoHS compliant.
The part-number system supports several mating-contact plating options, including gold flash, 3µin gold, 6µin gold, 15µin gold, 30µin gold, Sn, and Ni. Packaging codes include PE bag and tray packing.
With its right-angle configuration, dual-row layout, 5 A current capability, and through-hole PCB termination, the 3mm 90° DIP wafer connector is suitable for compact power and signal interconnection in industrial electronics, communication equipment, consumer devices, embedded control systems, appliances, and other wire-to-board PCB assemblies. Similar 3.00 mm dual-row connector systems are widely offered for right-angle wire-to-board applications.
